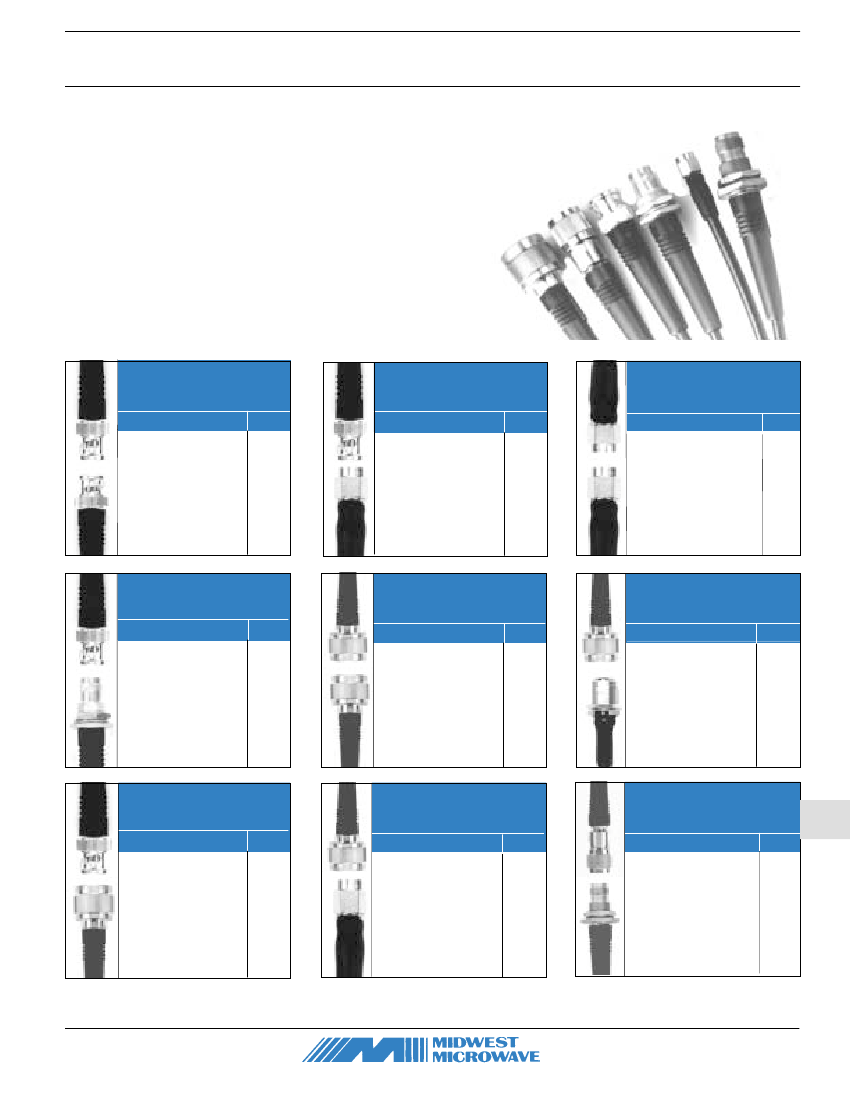

Wireless - Cellular Products
Standard System Cable Assemblies
•
•
•
•
System or Test Bench Patch Cord Assemblies
Standard RG 58C/U Cable
N, BNC, TNC, and SMA Connectors
Quick Delivery
Cable Assemblies
Midwest Microwave offers these standard cable assemblies for use in
a system or on the laboratory test bench. These low cost, quick
delivery assemblies provide a simple approach to meeting the imme-
diate need for standard test bench or system cable assemblies.
Normally standard MIL-C-17 RG58C/U cable (**see note for XX
designation) is used with standard off the shelf connectors however
other types of cable can be provided upon request.
BNC Male to BNC Male
XX = Select Cable Type
BNC Male to SMA Male
XX = Select Cable Type
SMA Male to SMA Male
XX = Select Cable Type
Model No.
CSY-BMBM-XX-012-CS
CSY-BMBM-XX-024-CS
CSY-BMBM-XX-036-CS
CSY-BMBM-XX-048-CS
CSY-BMBM-XX-060-CS
CSY-BMBM-XX-072-CS
CSY-BMBM-XX-084-CS
CSY-BMBM-XX-096-CS
Length*
Model No.
CSY-BMSM-XX-012-CS
CSY-BMSM-XX-024-CS
CSY-BMSM-XX-036-CS
CSY-BMSM-XX-048-CS
CSY-BMSM-XX-060-CS
CSY-BMSM-XX-072-CS
CSY-BMSM-XX-084-CS
CSY-BMSM-XX-096-CS
Length*
Model No.
CSY-SMSM-XX-012-CS
CSY-SMSM-XX-024-CS
CSY-SMSM-XX-036-CS
CSY-SMSM-XX-048-CS
CSY-SMSM-XX-060-CS
CSY-SMSM-XX-072-CS
CSY-SMSM-XX-084-CS
CSY-SMSM-XX-096-CS
Length*
12
24
36
48
60
72
84
96
12
24
36
48
60
72
84
96
12
24
36
48
60
72
84
96
BNC Male to BNC
Blkhd Female
XX = Select Cable Type
N Male to N Male
XX = Select Cable Type
N Male to N Blkhd Female
XX = Select Cable Type
Model No.
CSY-BMBB-XX-012-CS
CSY-BMBB-XX-024-CS
CSY-BMBB-XX-036-CS
CSY-BMBB-XX-048-CS
CSY-BMBB-XX-060-CS
CSY-BMBB-XX-072-CS
CSY-BMBB-XX-084-CS
CSY-BMBB-XX-096-CS
Length*
Model No.
CSY-NMNM-XX-012-CS
CSY-NMNM-XX-024-CS
CSY-NMNM-XX-036-CS
CSY-NMNM-XX-048-CS
CSY-NMNM-XX-060-CS
CSY-NMNM-XX-072-CS
CSY-NMNM-XX-084-CS
CSY-NMNM-XX-096-CS
Length*
Model No.
CSY-NMNB-XX-012-CS
CSY-NMNB-XX-024-CS
CSY-NMNB-XX-036-CS
CSY-NMNB-XX-048-CS
CSY-NMNB-XX-060-CS
CSY-NMNB-XX-072-CS
CSY-NMNB-XX-084-CS
CSY-NMNB-XX-096-CS
Length*
12
24
36
48
60
72
84
96
12
24
36
48
60
72
84
96
12
24
36
48
60
72
84
96
BNC Male to N Male
XX = Select Cable Type
N Male to SMA Male
XX = Select Cable Type
TNC Male to TNC
BlkhdFemale
XX = Select Cable Type
Model No.
CSY-BMNM-XX-012-CS
CSY-BMNM-XX-024-CS
CSY-BMNM-XX-036-CS
CSY-BMNM-XX-048-CS
CSY-BMNM-XX-060-CS
CSY-BMNM-XX-072-CS
CSY-BMNM-XX-084-CS
CSY-BMNM-XX-096-CS
Length*
Model No.
CSY-NMSM-XX-012-CS
CSY-NMSM-XX-024-CS
CSY-NMSM-XX-036-CS
CSY-NMSM-XX-048-CS
CSY-NMSM-XX-060-CS
CSY-NMSM-XX-072-CS
CSY-NMSM-XX-084-CS
CSY-NMSM-XX-096-CS
Length*
Model No.
CSY-TMTB-XX-012-CS
CSY-TMTB-XX-024-CS
CSY-TMTB-XX-036-CS
CSY-TMTB-XX-048-CS
CSY-TMTB-XX-060-CS
CSY-TMTB-XX-072-CS
CSY-TMTB-XX-084-CS
CSY-TMTB-XX-096-CS
Length*
12
24
36
48
60
72
84
96
12
24
36
48
60
72
84
96
12
24
36
48
60
72
84
96
Notes: * All lengths shown are in inches.
** To designate RG58C/U Cable, substitue “58” for “XX” in the Model No. Alternately “42” or ”52” may be used to designate M42 or M52
higher performance cable (see page 78 for cable specifications). For use of other cable types, please contact the factory for Model Numbers.
91
