PF0001/PC Overview

10A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER, PLUG

Preview

Download Datasheet

View All

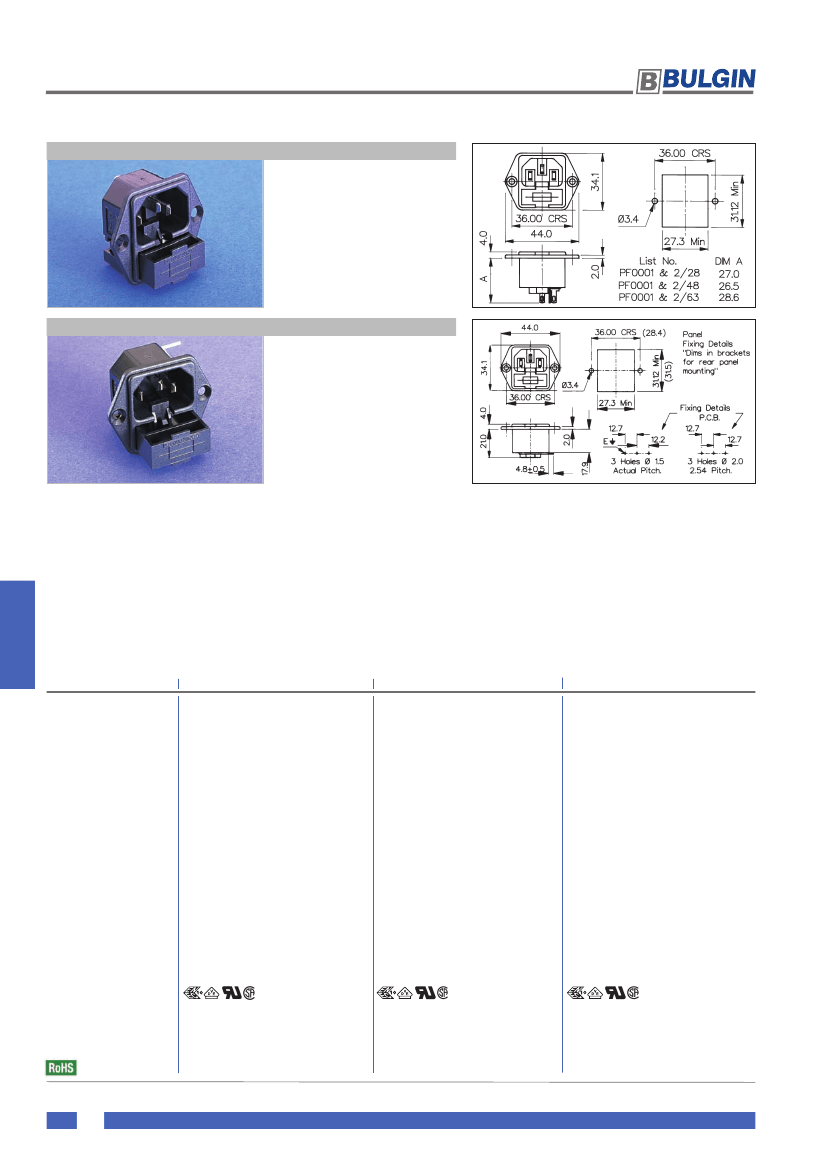

IEC CONNECTORS

EN60 320-1 Standard Sheet C14 Class I Cold Condition (Fused)

FLANGE MOUNT FUSED INLET

Single Fuse 5 x 20mm

Spare Fuse Facility

2.8, 4.8 or 6.3mm Tabs

10A, 250V a.c.

Fuse Contacts Isolated

(PF0002)

PF0001/28

PF0002/28

PC FLANGE MOUNT FUSED INLET

Single Fuse 5 x 20mm

Spare Fuse Facility

PC Spills - Horizontal

10A, 250V a.c.

PF0001/PC

IEC CONNECTORS

Specification

Fixing:

Terminations:

Colours:

Max. Rating:

Max. Fuse Rating:

Contact Resistance:

Insulation Resistance:

A.C. Breakdown:

Operating Temp. Range:

Max. Pin Temp.:

Mouldings:

Contacts:

Approvals:

Accessories / Notes:

Mating Connectors:

PF0001/Term/Col

Flange

/28 (2.8mm solder), /48 (4.8mm tab)

/63 (6.3mm tab)

No suffix (Black), /WH (White), /GY (Grey)

10A, 250V a.c.

2.5W/10A, 250V a.c.

<10mΩ (<15mΩ including

Fuseholder)

>10

MΩ

Pole-Pole 5.5kV. Poles-Panel 4kV

–40˚C to +70˚C

+70˚C

Nylon, Flammability Rating UL94V-0

Brass: Pins, Nickel Plated. Tabs, Tin

Plated

PF0001/PC/Col

.C.B./Flange

P Spills

.C.

PF0002/Term/Col

Flange

/28 (2.8mm solder), /48 (4.8mm tab)

/63 (6.3mm tab)

No suffix (Black), /WH (White), /GY (Grey) No suffix (Black), /WH (White), /GY (Grey)

10A, 250V a.c.

2.5W/10A, 250V a.c

<10mΩ (<15mΩ including

Fuseholder)

>10

MΩ

Pole-Pole 5.5kV. Poles-Panel 4kV

–40˚C to +70˚C

+70˚C

Nylon, Flammability Rating UL94V-0

Brass: Pins, Nickel Plated. Tabs, Tin

Plated

10A, 250V a.c.

2.5W/10A, 250V a.c

<10mΩ

>10

MΩ

Pole-Pole 5.5kV. Poles-Panel 4kV

–40˚C to +70˚C

+70˚C

Nylon, Flammability Rating UL94V-0

Brass: Pins, Nickel Plated. Tabs, Tin

Plated

.No. 11987, KT0009

(See Pages 95 & 97)

PX0587, PX0587/SE, PX0588

Compliant

KT0009 (front of panel mounting only)

(See Page 95)

PX0587, PX0587/SE, PX0588

Compliant

.No. 11987, KT0009 (See Pages 95 & 97)

(Note: Fuse contact isolated)

PX0587, PX0587/SE, PX0588

Compliant

www.elektron-bulgin.com
