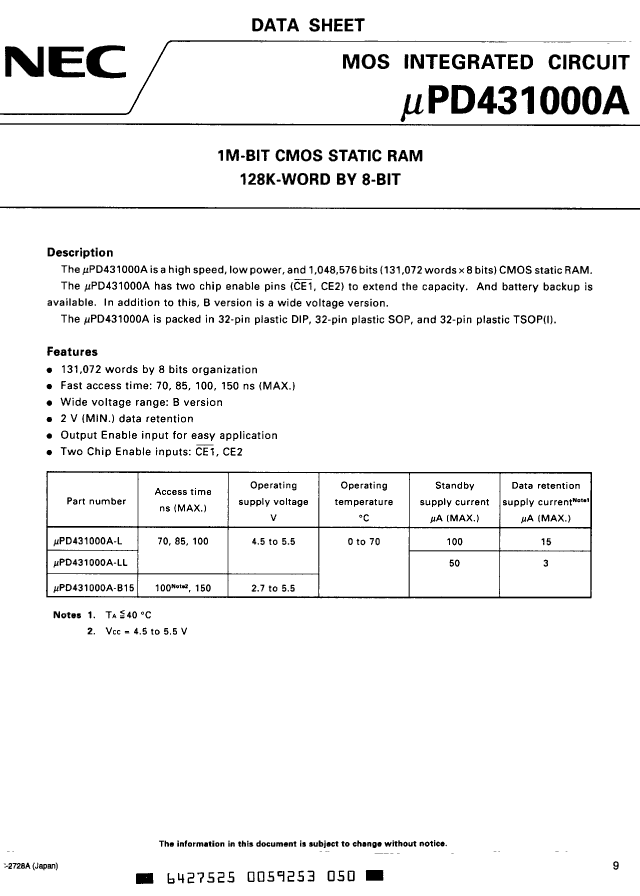

UPD43100AGZ-B10-9JH

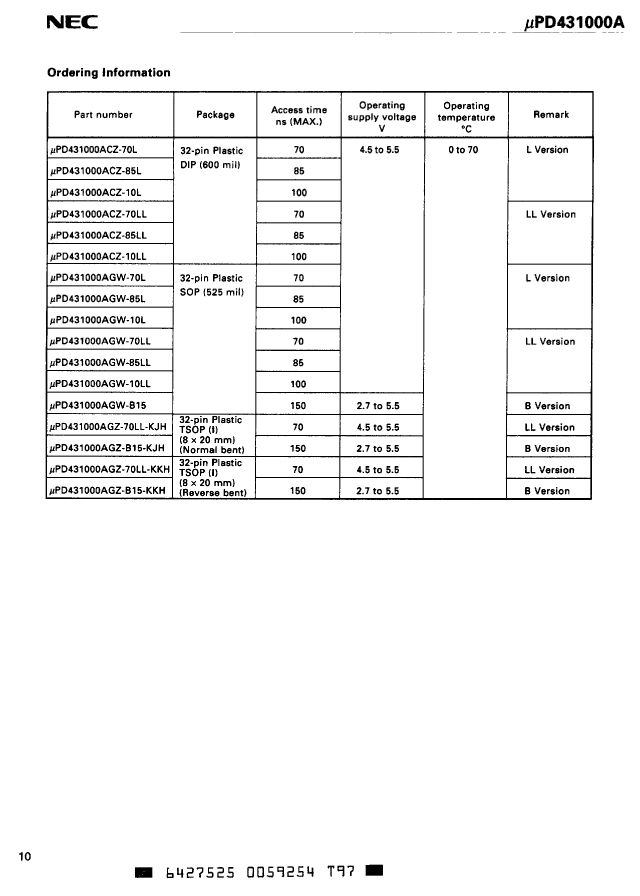

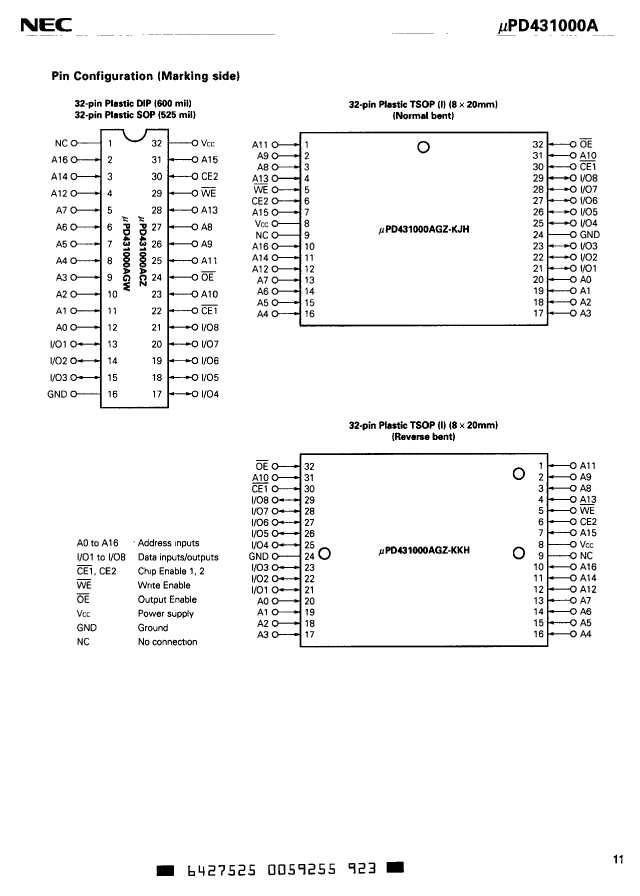

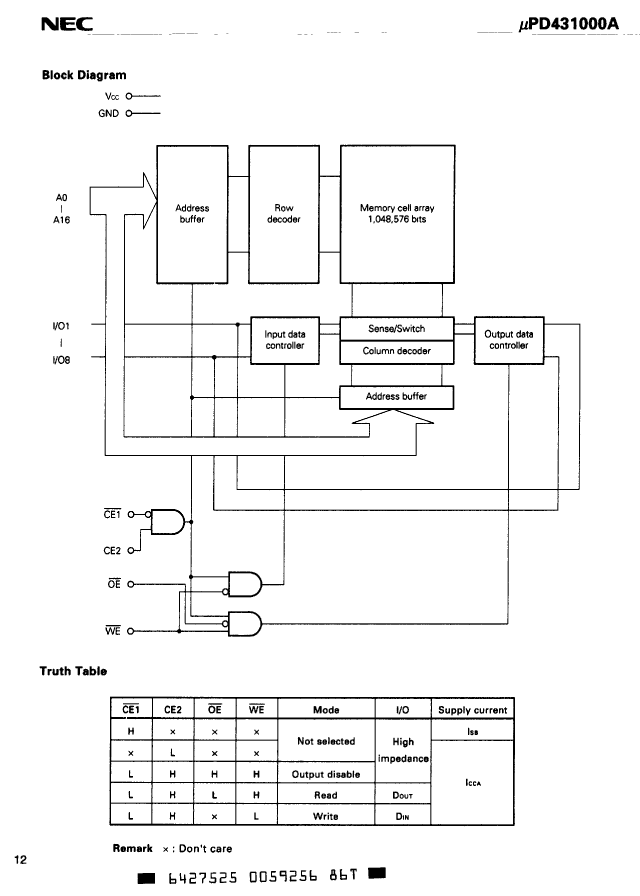

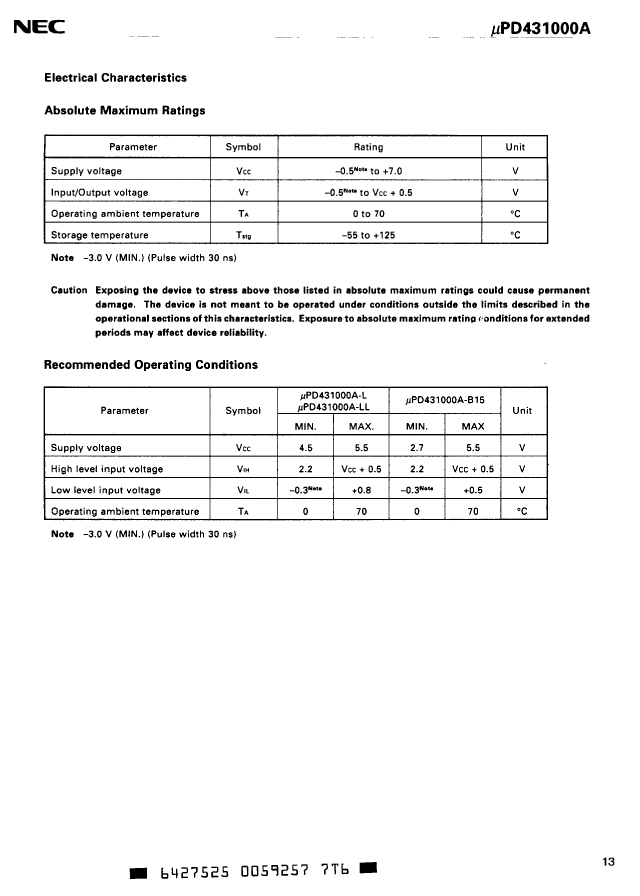

| Parameter Name | Attribute value |
| Maker | Renesas Electronics Corporation |
| package instruction | , |
| Reach Compliance Code | compliant |
| UPD43100AGZ-B10-9JH | UPD43100AGZ-B10-9KH | UPD43100AGZ-B10-KJH | UPD431000BCZ-85 | UPD431000AGW(F)-10L | UPD431000BCZ-70 | UPD431000BGZ-55L-KKH | UPD431000BGZ-70L-KKH | |
|---|---|---|---|---|---|---|---|---|
| Description | UPD43100AGZ-B10-9JH | UPD43100AGZ-B10-9KH | UPD43100AGZ-B10-KJH | IC,SRAM,128KX8,CMOS,DIP,32PIN,PLASTIC | IC,SRAM,128KX8,CMOS,SOP,32PIN,PLASTIC | IC,SRAM,128KX8,CMOS,DIP,32PIN,PLASTIC | IC,SRAM,128KX8,CMOS,TSSOP,32PIN,PLASTIC | IC,SRAM,128KX8,CMOS,TSSOP,32PIN,PLASTIC |
| package instruction | , | , | , | DIP, DIP32,.6 | SOP, SOP32,.56 | DIP, DIP32,.6 | TSSOP, TSSOP32,.8,20 | TSSOP, TSSOP32,.8,20 |
| Reach Compliance Code | compliant | compliant | compliant | unknown | unknown | unknown | unknown | unknown |
| Is it Rohs certified? | - | - | - | incompatible | incompatible | incompatible | incompatible | incompatible |
| Objectid | - | - | - | 1156994867 | 1156994859 | 1156994865 | 1156994877 | 1156994881 |
| ECCN code | - | - | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum access time | - | - | - | 85 ns | 100 ns | 70 ns | 55 ns | 70 ns |
| I/O type | - | - | - | COMMON | COMMON | COMMON | COMMON | COMMON |
| JESD-30 code | - | - | - | R-PDIP-T32 | R-PDSO-G32 | R-PDIP-T32 | R-PDSO-G32 | R-PDSO-G32 |
| JESD-609 code | - | - | - | e0 | e0 | e0 | e0 | e0 |
| memory density | - | - | - | 1048576 bit | 1048576 bit | 1048576 bit | 1048576 bit | 1048576 bit |
| Memory IC Type | - | - | - | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM |
| memory width | - | - | - | 8 | 8 | 8 | 8 | 8 |
| Number of terminals | - | - | - | 32 | 32 | 32 | 32 | 32 |
| word count | - | - | - | 131072 words | 131072 words | 131072 words | 131072 words | 131072 words |
| character code | - | - | - | 128000 | 128000 | 128000 | 128000 | 128000 |
| Operating mode | - | - | - | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS |
| Maximum operating temperature | - | - | - | 70 °C | 85 °C | 70 °C | 70 °C | 70 °C |
| organize | - | - | - | 128KX8 | 128KX8 | 128KX8 | 128KX8 | 128KX8 |
| Output characteristics | - | - | - | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Package body material | - | - | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | - | - | - | DIP | SOP | DIP | TSSOP | TSSOP |
| Encapsulate equivalent code | - | - | - | DIP32,.6 | SOP32,.56 | DIP32,.6 | TSSOP32,.8,20 | TSSOP32,.8,20 |
| Package shape | - | - | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | - | - | - | IN-LINE | SMALL OUTLINE | IN-LINE | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Parallel/Serial | - | - | - | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL |
| power supply | - | - | - | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | - | - | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum standby current | - | - | - | 0.00005 A | 0.0001 A | 0.00005 A | 0.000005 A | 0.000005 A |
| Minimum standby current | - | - | - | 2 V | 2 V | 2 V | 2 V | 2 V |
| Maximum slew rate | - | - | - | 0.06 mA | 0.07 mA | 0.065 mA | 0.07 mA | 0.065 mA |
| Nominal supply voltage (Vsup) | - | - | - | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | - | - | - | NO | YES | NO | YES | YES |
| technology | - | - | - | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | - | - | - | COMMERCIAL | INDUSTRIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | - | - | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | - | - | - | THROUGH-HOLE | GULL WING | THROUGH-HOLE | GULL WING | GULL WING |
| Terminal pitch | - | - | - | 2.54 mm | 1.27 mm | 2.54 mm | 0.5 mm | 0.5 mm |
| Terminal location | - | - | - | DUAL | DUAL | DUAL | DUAL | DUAL |
