801-44-0-07-40-002000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 801-44-0-07-40-002000

801-44-0-07-40-002000: DescriptionBoard Connector, ROHS COMPLIANT; CategoryThe connector The connector; File Size3MB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

801-44-0-07-40-002000 Overview

Board Connector, ROHS COMPLIANT

801-44-0-07-40-002000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Manufacturer's serial number	801

Preview

Download Datasheet

View All

INTERCONNECTS

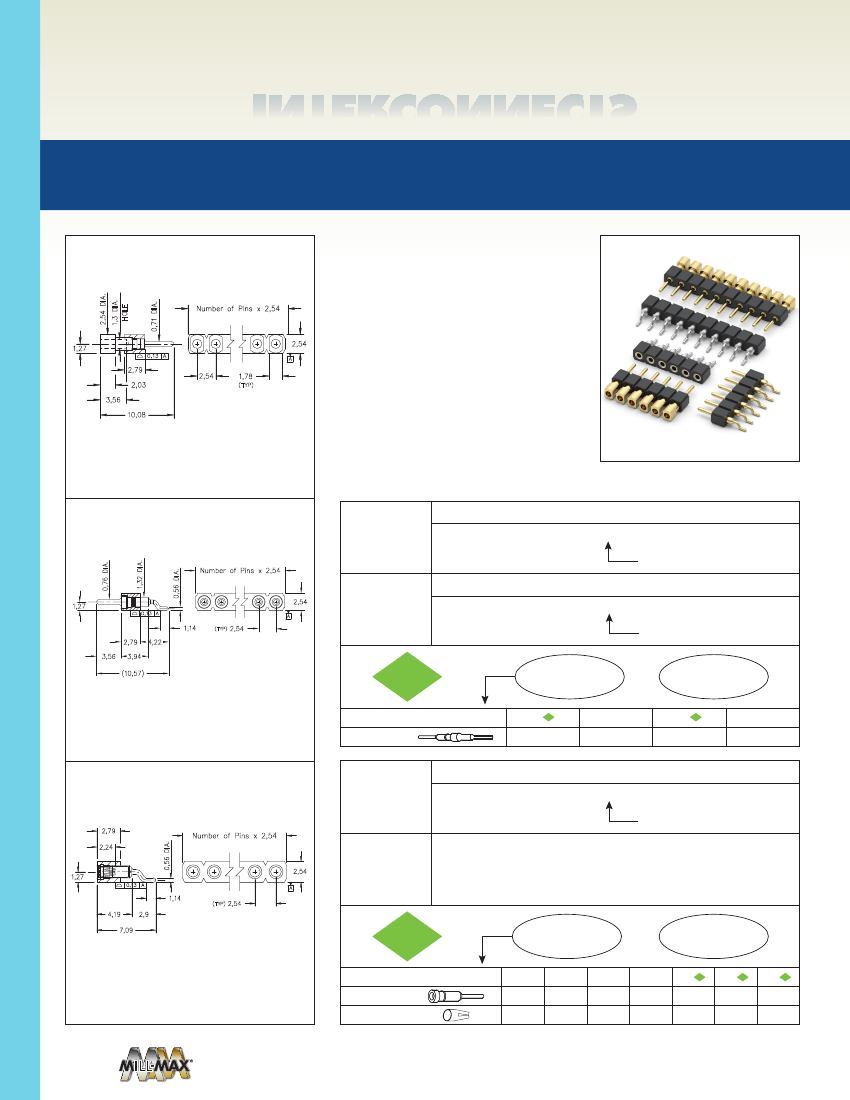

SERIES 800, 801, 830• 2,54 GRID (0,76 DIA. PINS),

SURFACE MOUNT HEADERS AND SOCKETS • SINGLE ROW STRIPS

Mates with Series 801...002 Surface Mount

Z-Bend Socket (See Fig. 3)

2,54 DIA.

1,3 DIA.

HOLE

0,71 DIA.

•

Series 800 horizontal surface mount headers

are availble with 0,71 dia. pluggable pins

(MM #1502). Series 830 horizontal surface

mount z-bend headers use MM #3028 pins.

See page 224 for details

Number of Pins x 2,54

•

Series 801 horizontal surface mount Z-Bend

2,54

1,27

2,79

2,03

3,56

10,08

0,13 A

2,54

1,78

(TYP)

sockets uses MM #1303 receptacles that accept

pin diameters from 0,64 - 0,94 and 0,64 square

leads. See pages 180 for details

suitable for all soldering operations

•

Insulators are high temperature thermoplastic,

•

Ideal for daisy chaining parallel boards

Coplanarity 0,13. For pin counts >10 positions,

consult Technical Support.

FIG. 1

Mates with Series 801...002 Surface Mount

Z-Bend Socket (See Fig. 3)

0,76 DIA.

1,32 DIA.

ORDERING INFORMATION

Series 800...002

0,71 Dia. Surface Mount Header

800-10-0_ _-40-002000

Specify number of pins

02-10

FIG. 1

Series 830...028

0,56 DIA.

Number of Pins x 2,54

0,76 Dia. Surface Mount Z-Bend Header

830-XX-0_ _-40-028000

02-10

For

Electrical, Mechanical

& Enviromental Data,

See page 264

1,27

0,13 A

2,54

FIG. 2

RoHS - 2

1,14

2,79

3,56

3,94

(10,57)

4,22

(TYP)

2,54

Specify number of pins

XX=Plating Code

See Below

0,25μm Au

2011/65/EU

Coplanarity 0,13. For pin counts >10 positions,

consult Technical Support.

SPECIFY PLATING CODE XX=

Pin Plating

5,08μm Sn

FIG. 2

Mates with Series 800...002 and 830...028

Surface Mount Header (See Fig. 1 & 2)

2,79

2,24

Series 801...002

0,71 Dia. Surface Mount Z-Bend Socket

801-XX-0_ _-40-002000

02-10

FIG. 3

Specify number of pins

Number of Pins x 2,54

0,56 DIA.

PAGE 59.1 | INTERCONNECTS

1,27

0,13 A

2,54

1,14

4,19

7,09

2,9

(TYP)

2,54

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Coplanarity 0,13. For pin counts >10 positions,

consult Technical Support.

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

FIG. 3

5,08μm Sn/Pb 5,08μm Sn/Pb 5,08μm Sn/Pb

5,08μm Sn 5,08μm Sn 5,08μm Sn

0,25μm Au 0,76μm Au

2,54μm Sn/Pb

0,25μm Au 0,76μm Au 2,54μm Sn

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
