M5RJ15UPJ250.0000MHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> M5RJ15UPJ250.0000MHZ

Preview

M5RJ15UPJ250.0000MHZ: DescriptionPECL Output Clock Oscillator, 250MHz Nom, J-LEADED PACKAGE-6; CategoryPassive components oscillator; File Size520KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M5RJ15UPJ250.0000MHZ Overview

PECL Output Clock Oscillator, 250MHz Nom, J-LEADED PACKAGE-6

M5RJ15UPJ250.0000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
Reach Compliance Code	unknown
Other features	COMPLEMENTARY OUTPUT; ENABLE/DISABLE FUNCTION
maximum descent time	0.55 ns
Frequency Adjustment - Mechanical	NO
frequency stability	35%
Manufacturer's serial number	M5RJ
Installation features	SURFACE MOUNT
Nominal operating frequency	250 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	PECL
Output load	50 OHM
physical size	14.22mm x 9.78mm x 4.7mm
longest rise time	0.55 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

M5RJ Series

This product is not

recommended for new designs

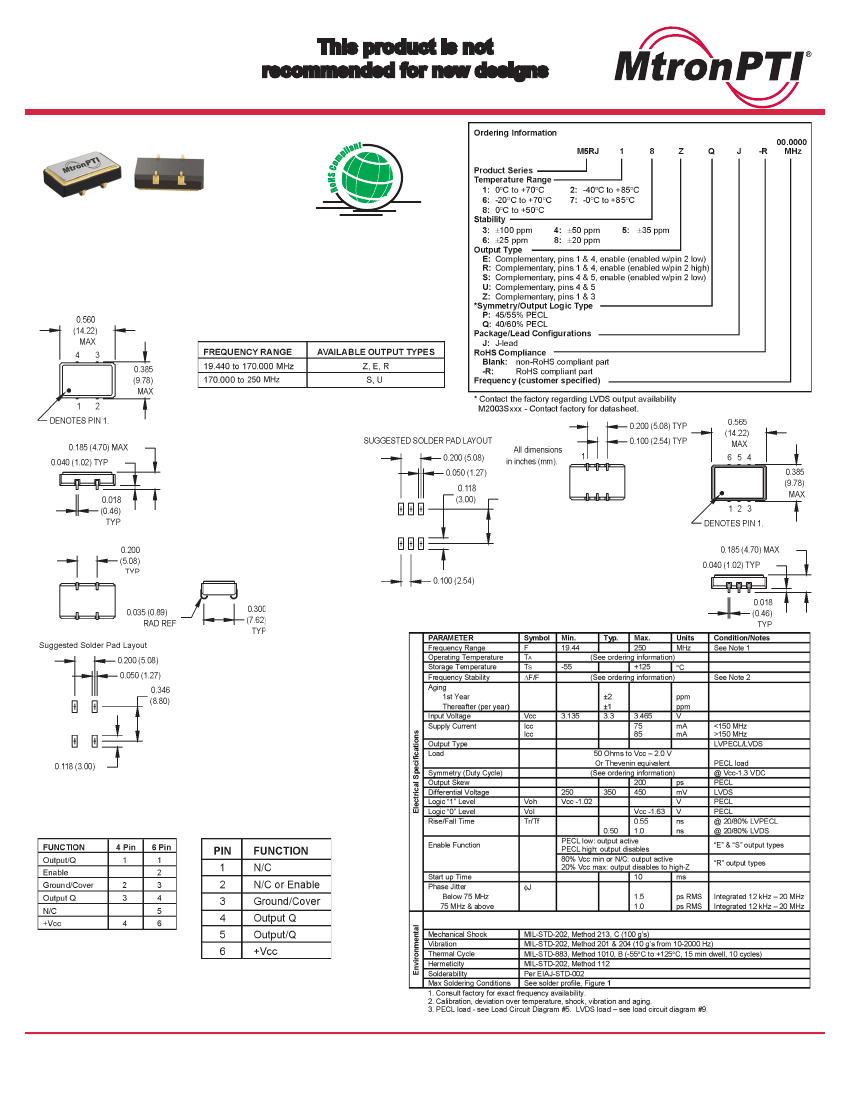

9x14 mm, 3.3 Volt, LVPECL/LVDS, Clock Oscillator

•

Integrated phase jitter of less than 1 ps

from 12 kHz to 20 MHz

Ideal for 10 and 40 Gigabit Ethernet and

Optical Carrier applications

Pin Connections

(Z, E, and R Output Types)

Pin Connections

(S and U Output Types)

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 11-12-10
