CL40V28-0CT: DescriptionClass 2 UL5085-3 Transformer 40VA, Core 3/4', Non-Inherently Energy Limited; File Size714KB，2 Pages; ManufacturerWabash Transformer Inc.; Websitehttps://www.wabashtransformer.com/

Download Datasheet View All

CL40V28-0CT Overview

Class 2 UL5085-3 Transformer 40VA, Core 3/4', Non-Inherently Energy Limited

Preview

Download Datasheet

View All

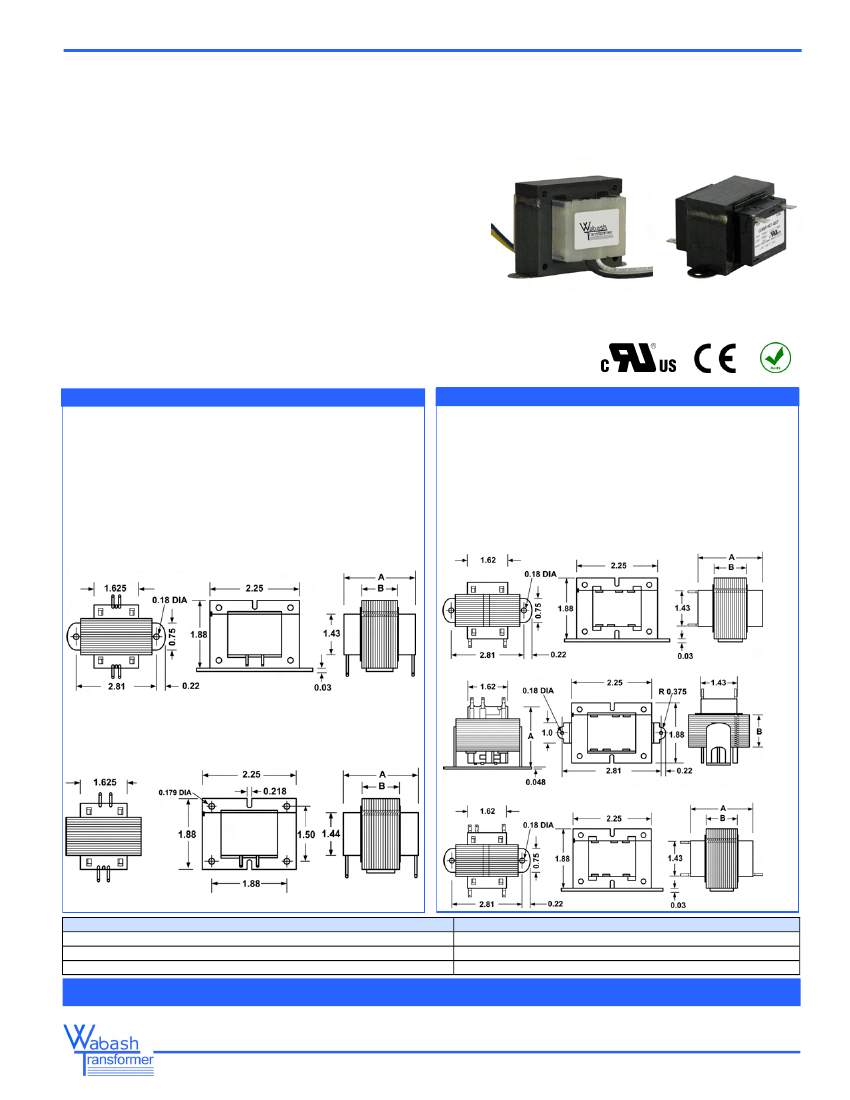

Class 2 UL5085 - 3 Transformer

40VA, Core 3/4”,

Non-Inherently Energy Limited

Series: CL

- Lead Wires & Quick-Connects



Power Rating 40VA

Secondary Fusing Required

(Provided by Factory)

Frequency 50/60Hz

Insulation Class F (155°C)

Agency Approvals:



UL/cUL 5085-3 Class 2 Recognized (File E49606)

Insulation File No. E95662

*

Multi voltage combinations are available - consult factory.

Class 2

Quick-Connects

Type BB

Foot Mount, Pri & Sec on Same Side - Quick connect terminals

with line and load terminations on the same side of transformer.

Type AE

Laydown, Pri & Sec on Top Side - Quick connect terminals

with line and load terminations on the top of transformer.

Type AB

Foot Mount Pri & Sec on Opposite Side - Quick connect terminals

with line and load terminations on opposite sides of transformer

Terminals:

Standard male quick connects - 0.250” x 0.032” (6.35 x 0.81 mm)

Other available quick connects - 0.187” x 0.032” (4.75 x 0.81 mm)

Lead Wires

Type HX

Foot Mount - Steel bracket welded to the

bottom of the laminations for easy mounting

Type GX

Panel Mount - 0.179” (4.55 mm) diameter

holes in each corner to allow direct mounting to a panel.

Lead Wires:

All leads are 18 AWG stranded 2/64” (0.794 mm)

insulation thickness. Standard parts have 12” (305 mm)

total length with 1/2” (12.7 mm) strip.

Type BB

- Foot Mount, Pri & Sec on Same Side

Type HX

- Foot Mount

Type AE

- Laydown, Pri & Sec on Top Side

Type GX

- Panel Mount

Type AB

- Foot Mount, Pri & Sec on Opposite Side

Dimensions (Inches)

A

B

Weight (Lbs)

40VA - V

2.410

1.250

0.710

Any application, Any requirement, Contact us for our Custom Designs

16

Sales Office:

300 W Factory Road, Addison IL 60101

•

Phone: (630) 628-9999

•

Fax: (630) 628-9922

•

www.wabashtransformer.com
