AN1568/D

Interfacing Between LVDS

and ECL

Prepared by: Paul Lee

Logic Applications Engineer

ON Semiconductor

http://onsemi.com

APPLICATION NOTE

Introduction

Recent growth in high−speed data transmission between

high−speed ICs demand more bandwidth than ever before

while still maintaining high performance, low power

consumption and good noise immunity. Emitter Coupled

Logic (ECL) recognized the challenge and provided high

performance and good noise immune devices. ECL

migrated toward low voltages to reduce the power

consumption and to keep up with current technology trends

by offering 3.3 V and 2.5 V Low Voltage ECL (LVECL)

devices.

LVDS (Low Voltage Differential Signaling) technology

also addresses the needs of current high performance

applications. LVDS as specified in ANSI/TIA/EIA−644 by

Data Transmission Interface committee TR30.2 and IEEE

1596.3 SCI−LVDS by IEEE Scalable Coherent Interface

standard (SCI) is a high speed, low power interface that is a

solution in many application areas. LVDS provides an

output swing of 250 mV to 400 mV with a DC offset of 1.2 V.

External resistor components are required for

board−to−board data transfer or clock distribution.

LVECL and LVDS are both differential voltage signals,

but with different output amplitude and offset. The purpose

of this documentation is to show the interfacing between

LVECL and LVDS. In addition, it gives interface

recommendations to and from 5.0 V supplied PECL devices

and negative supplied ECL or NECL

ECL levels

Today’s applications typically use ECL devices in the

PECL mode. PECL (Positive ECL) is nothing more than

supplying any ECL device with a positive power supply

= +5.0 V, V

= 0 V). In addition, ECL uses differential

data transmission technology, which results in better noise

immunity. Since the common mode noise is coupled onto the

differential interconnect, it will be seen as a common mode

modulation and will be rejected.

With the trend towards low voltage systems, a new

generation of ECL circuitry has been developed. The Low

Voltage NECL (LVNECL) devices work using negative

–3.3 V or –2.5 V power supply, or more popular positive

power supplies, V

= +3.3 V or +2.5 V and V

= GND as

LVPECL. LVECL maintains 750 mV output swing with a

0.9 V offset from V

, which makes them ideal as peripheral

components.

The temperature compensated (100EL, 100LVEL,

100EP, 100LVEP) output DC levels for the different supply

levels are shown in Table 1. ECL outputs are designed as an

open emitter, requiring a DC path to a more negative supply

than V

. (see AND8020 for ECL Termination

information).

ECL standard DC input levels are also relative to V

Many devices are available with Voltage Input HIGH

Common Mode Range (V

IHCMR

). These differential inputs

allow processing signals with small V

INPPMIN

(down to

200 mV, 150 mV or even 50 mV signal levels) within an

appropriate offset range. The V

IHCMR

ranges of ECL

devices are listed in each respective data sheets.

Semiconductor Components Industries, LLC, 2003

October, 2003 − Rev. 8

Publication Order Number:

AN1568/D

AN1568/D

Table 1. MC100EXXX/MC100ELXXX/LVELXXX/EPXXX/LVEPXXX

= 0°C to +85°C)

Symbol

Parameter

Positive Supply Voltage

Negative Supply Voltage

Maximum Output HIGH Level

Typical Output HIGH Level

Minimum Output HIGH Level

Maximum Output LOW Level

Typical Output LOW Level

Minimum Output LOW Level

2.5 V LVPECL

(Note 1)

+2.5

GND

1.680

1.555

1.430

0.880

0.755

0.630

3.3 V LVPECL

(Note 1)

+3.3

GND

2.480

2.355

2.230

1.680

1.555

1.430

5.0 V PECL

(Note 1)

GND

4.180

4.055

3.930

3.380

3.255

3.130

NECL

GND

−5.2, −4.5, −3.3 or −2.5

−0.820

−0.945

−1.070

−1.620

−1.745

−1.870

Unit

1. All levels vary 1:1 with V

and loaded with 50

to V

− 2.0 V.

LVDS Levels

As the name indicates, the LVDS main attribute is the low

voltage amplitude levels compared to other data

transmission standards, as shown in Figure 1. The LVDS

specification states 250 mV to 400 mV output swing for

driver/transmitter (V

OUTPP

). The low voltage swing levels

result in low power consumption while maintaining high

performance levels required by most users. In addition,

LVDS uses differential data transmission technology

equivalent to ECL. Furthermore, LVDS technology is not

dependent on specific power supply levels like ECL

technology. This signifies an easy migration path to lower

supply voltages such as 3.3 V, 2.5 V, or lower voltages while

still maintaining the same signaling levels and high

performance. ON Semiconductor currently provides a 2.5 V

1:5 dual differential LVDS Clock Driver/Receiver

(MC100EP210S).

Z = 50

LVDS

Z = 50

100

Figure 2. LVDS Output Definition

SIGNAL VOLTAGE

LVDS receivers require 200 mV minimum input swing

within the input voltage range of 0 V to 2.4 V and can tolerate

a minimum of

$1.0

V ground shift between the driver’s

ground and the receiver’s ground, since LVDS receivers

have a typical driver offset voltage of 1.2 V. The common

mode range of the LVDS receiver is 0.2 V to 2.2 V, and the

recommended LVDS receiver input voltage range is from

0 V to 2.4 V. Common mode range of LVDS is similar to the

theory of Voltage Input HIGH Common Mode Range

IHCMR

) of ECL devices.

Currently more LVDS standards are being developed as

LVDS technology gains in popularity.

BLVDS

PECL

3.3 V LVPECL

2.5 V LVPECL

LVDS

3.3 V LVTTL/LVCMOS

Bus LVDS (BLVDS) was developed for multipoint

applications. This standard is targeted at heavily loaded back

planes, which reduces the impedance of the transmission

line by 50% or more. By providing increased drive current,

the double termination seen by the driver will be

compensated.

M−LVDS

NECL/LVNECL

Figure 1. Comparison of Output Voltage Levels

Standards (Figure not to Scale)

TIA TR30.2 standards group is developing another

multipoint LVDS application called Multipoint LVDS

(M−LVDS). The maximum data rate is 500 Mbps.

LVDS require a 100

load resistor between the

differential outputs to generate the Differential Output

Voltage (V

) with a maximum current of 2.5 mA flowing

through the load resistor. This load resistor will terminate the

controlled characteristic impedance line, which

prevent reflections and reduces unwanted electromagnetic

emission (Figure 2).

http://onsemi.com

AN1568/D

GLVDS and SLVS

Ground referenced LVDS (GLVDS) is similar to LVDS

except the driver output voltage offset is nearer to ground.

The advantage of GLVDS is the use of very low power

supply voltages (0.5 V).

Similar standard to GLVDS is SLVS (Scalable

Low−Voltage Signaling for 400 mV) by JEDEC. The

interface is terminated to ground with 400mV swing and a

minimum supply voltage of 0.8 V.

LVDM

LVDM is designed for double 100

W−terminated

applications. The driver’s output current is two times the

standard LVDS, thus producing LVDS characteristic levels.

Table 2. LVDS LEVELS

LVDS

Specification

Symbol

Transmitter

Receiver

Input Voltage

Range

Differential HIGH

Input Threshold

Differential LOW

Input Threshold

−100

2400

+100

−100

2400

+100

−50

−1000

Output Differen-

tial Voltage

Output Offset

Voltage

Load Resistor

Output Differen-

tial Current

2.5

250

1125

400

1275

240

1225

4.5

500

1375

480

300

Parameter

Min

Max

BLVDS

Specification

Min

Max

Interfacing

Common mode range inputs are capable of processing

signals with 150 mV to 400 mV amplitude. The ECL input

processes signals up to 1.0 V amplitude. The DC voltage

levels should be within the voltage input HIGH common

mode range (V

IHCMR

To interface between these two voltage levels, capacitive

coupling can be used. Only clock or coded signals should be

capacitively coupled. A capacitive coupling of NRZ signals

will cause problems, which can require a passive or active

interfacing.

M−LVDS

Specification

Min

Max

GLVDS

Specification

Min

Max

LVDM

Specification

Min

Max

Unit

Condition

650

2100

150

500

250

247

1.125

454

100

Internal To Rx

Adjustable

3800

+50

−500

1000

+100

2400

+100

gpd

< 950 mV

(Note 2)

gpd

< 950 mV

(Note 2)

gpd

< 950 mV

(Note 2)

−100

2. Vgpd is the voltage of Ground Potential Delta across or between boards.

http://onsemi.com

AN1568/D

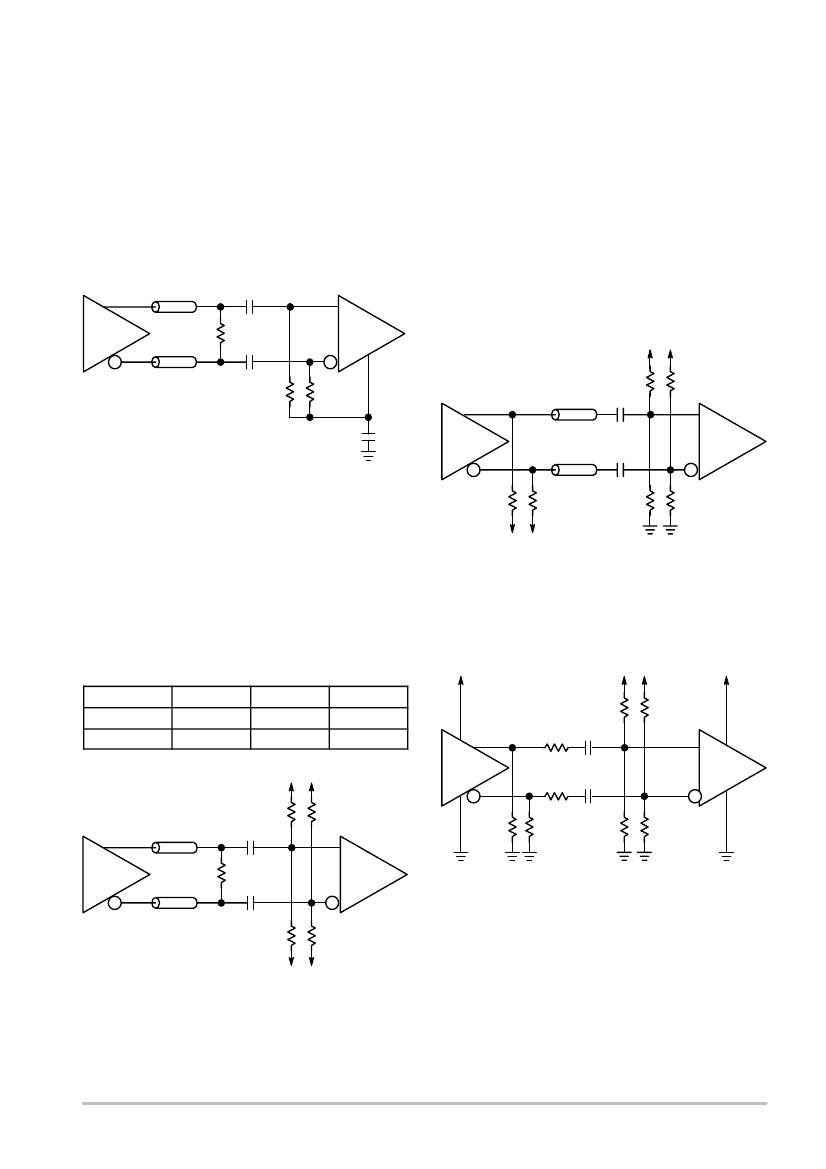

Capacitive Coupling LVDS to ECL

Capacitive Coupling LVDS to ECL Using V

Several ECL devices provide an externally accessible

≈

–1.3V) reference voltage. This ECL

reference voltage can be used for differential capacitive

coupling. The 10 nF capacitor can be used to decouple V

to GND. (Figure 3)

Z = 50

10 pF

In the layout for both interfaces, the resistors and the

capacitors should be located as close as possible to the ECL

input to insure reduced reflection and increased signal

integrity.

Capacitive Coupling ECL to LVDS

The ECL output requires a DC current path to V

;

therefore, the pulldown termination resistors, R

, are

connected to V

. The Thevenin resistor pair represent the

termination of the transmission line Z = R1 || R2 and

generates an appropriate DC offset level of 1.2 V. (Figure 5)

3.3 V

130

Z = 50

10 pF

130

LVDS

Z = 50

100

ECL

1 kW

10 pF

1 kW

10 nF

ECL

Z = 50

10 pF

LVDS

Figure 3. Capacitive Coupling LVDS to ECL

Using V

Capacitive Coupling LVDS to ECL with External

Biasing

If V

reference voltage is not available, equivalent DC

voltage can be generated using a resistor divider network.

The resistor values depend on V

and V

voltages

(Table 3). Stability is enhanced during null signal conditions

if a 50 mV differential voltage is maintained between the

divider networks. (Figure 4)

Table 3. Examples:

= GND

= −5.0 V

= −3.3 V

= −2.5 V

R1 = 1.2 kW

R1 = 680

R1 = 100

R2 = 3.4 kW

R2 = 1.0 kW

R2 = 90

Figure 5. Capacitive Coupling ECL to LVDS

An example of capacitive coupled LVPECL

(ECLinPS Plus™ Device) to LVDS is shown below.

(Figure 6)

2.5 V or 3.3 V

3.9 kW

3.3 V

3.9 kW

3.3 V

LVPECL

10 pF

LVDS

Z = 50

10 pF

237

ECL

10 pF

2 kW

237

2 kW

LVDS

Z = 50

100

Figure 6. Capacitive Coupling LVPECL to LVDS

10 pF

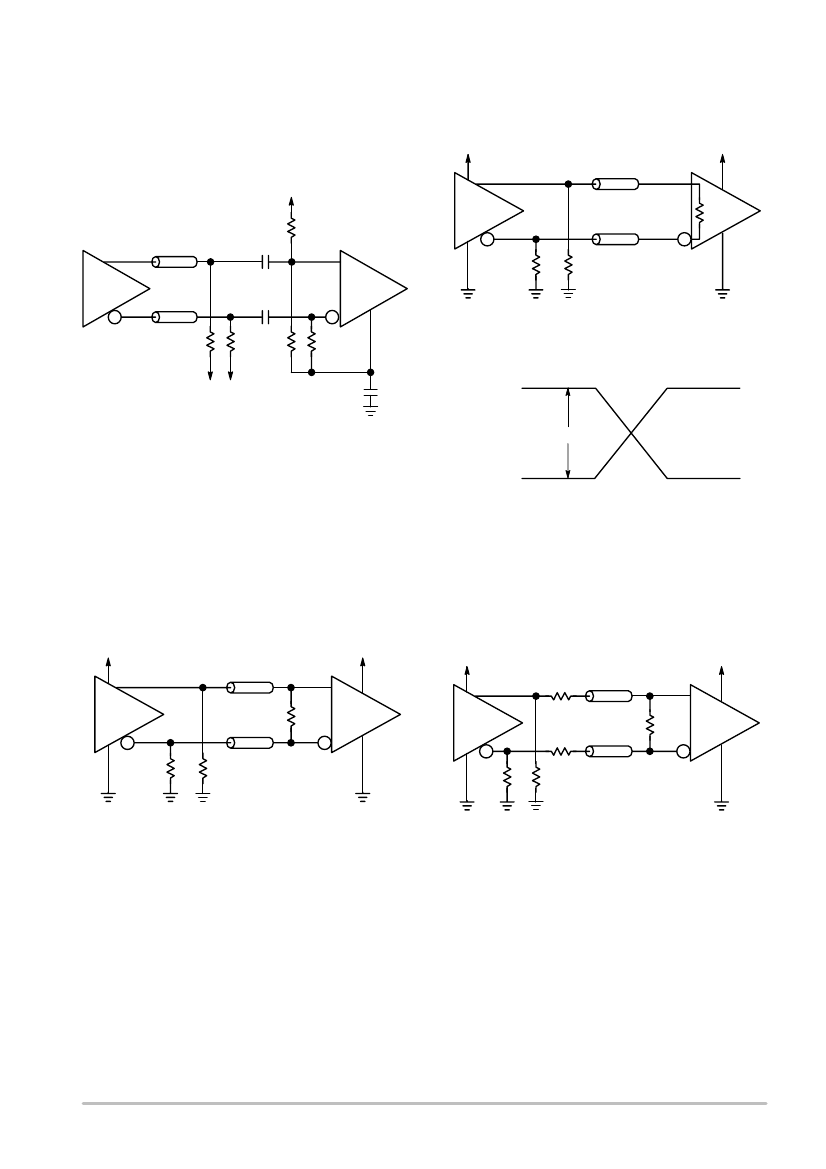

Capacitive Coupling ECL to LVDS Using V

Reference Voltage

Figure 4. Capacitive Coupling LVDS to ECL with

External Biasing

Some LVDS devices supply external offset reference

voltage (V

), which can be used for capacitive coupling.

When the transmission line is very short, a parallel

http://onsemi.com

AN1568/D

termination should be used and placed as close as possible

to the coupling capacitors. (Figure 7)

3.3 V

LVPECL

100 kW

Z = 50

10 pF

ECL

Z = 50

10 pF

1 kW

1.2 V

LVDS

100

LVDS

2.5 V

1 kW

Figure 9. Interfacing 2.5 V LVPECL to LVDS with

Internal 100

Termination Resistor

1.50 V

2.5 V LVPECL

Output

LVDS

Input

Figure 7. Capacitive Coupling ECL to LVDS Using

Reference Voltage

720 mV

0.78 V

Direct Interfacing

Interfacing from 2.5 V LVPECL to LVDS

Where R

= 75

Provided that the LVDS receiver can tolerate large input

voltage peak to peak amplitude, 2.5 V LVPECL can be

directly interfaced to LVDS receiver using proper ECL

termination. 2.5 V LVPECL will be able to drive LVDS

receiver with and without internal 100

termination

resistor. (See Figures 8, 9 and 10).

2.5 V

Figure 10. PSPICE Simulation Levels of 2.5V LVPECL

to LVDS Interface with Example Resistor Values

Furthermore, sreies termination can be used to reduce the

amplitude of the signal as described in AND8020

application note, by placing R

resistor between the driver

and the transmission line. (See Figures 11, 12 and 13).

2.5 V

LVPECL

100

LVDS

LVPECL

100

LVDS

Figure 8. Interfacing 2.5 V LVPECL to LVDS with

External 100

Termination Resistor

Figure 11. Interfacing 2.5 V LVPECL to LVDS with

Series R

and External 100

Termination Resistor

http://onsemi.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

AN1568D Related Products

	AN1568D	AN1568
Description	Interfacing Between LVDS and ECL	Interfacing Between LVDS and ECL

Recommended Resources

LTC2053 thermocouple amplification circuit diagram

Infrared remote control dimming circuit b

Actual circuit diagram of switching power supply composed of four op amps

Speed control circuit of single-phase series motor

GCA 20A/60V silicon rectifier charger circuit

Wide range adjustable high voltage power supply circuit

This week's highlights: : [b][font=微软雅黑][size=3][color=#000000][url=http://www.deyisupport.com/blog/b/thinkinnovative/archive/2017/09/12/jack-kilby.aspx]The chip invented by Jack Kilby[/url][/color][/size][/font][/b][color=r...; 橙色凯 TI Technology Forum

Is there a big speed difference between xds510 from different companies?: I have an old white box emulator from Hezhongda, but the download speed is slow, so I want to change it. Hezhongda has a 510plus version, but it costs 1800, which is too expensive.Want to buy this htt...; dsp_comm DSP and ARM Processors

About ARM and embedded systems: [font=宋体][size=10.5pt]Our company is Relativity Technology Co., Ltd., which has a strong development team and strong economic strength. We are currently engaged in the research and development of [/si...; 相对论 ARM Technology

Application of MOS switch circuit: What are the functions of R7, R2, and R1? Can you analyze it?...; iiove006 Analog electronics

Introduction to Yanqi Lake Scenic Area in Huairou District, Beijing (Photos): Introduction 　　Located 8 kilometers north of Huairou County and 50 kilometers from the city, it is named because of the flocks of wild geese, white cranes and other rare migratory birds that inhabit i...; maker Talking

Guys, let me know what the reason is.: The drivers have been updated and powered on....; 血叶星辰 MCU

Shortcut: S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components
