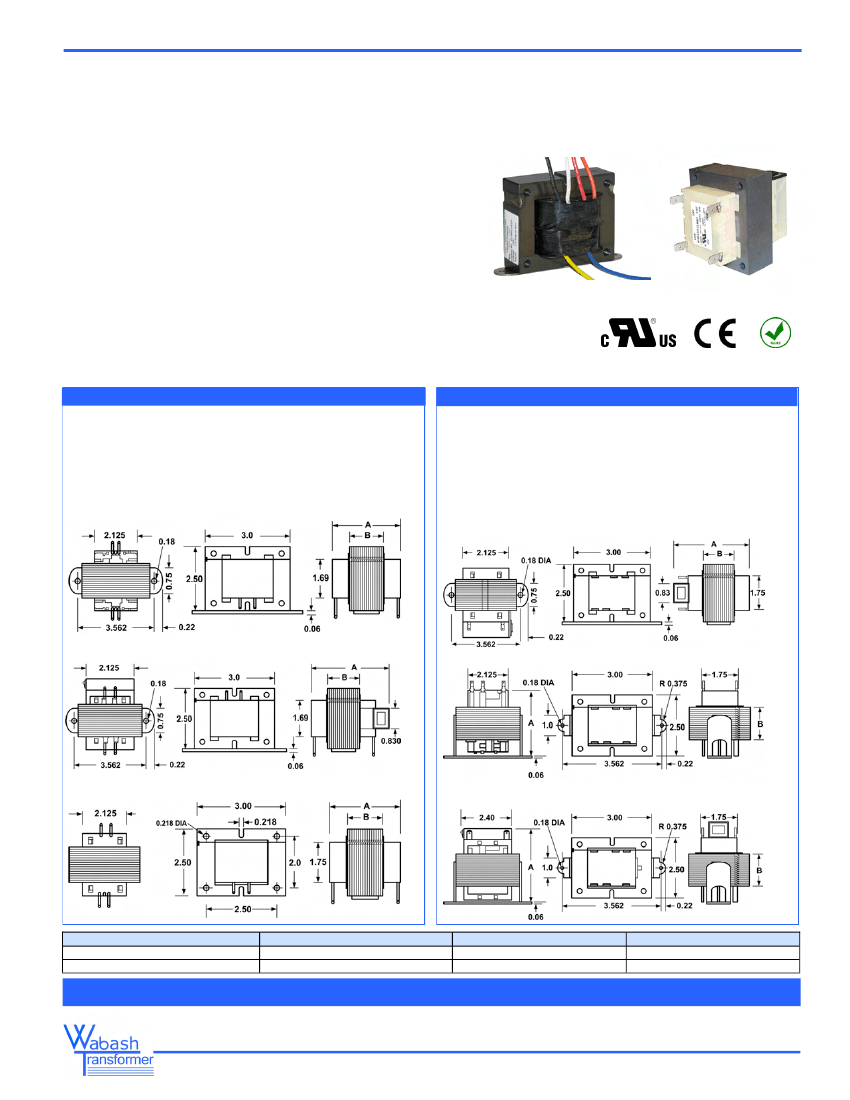

Class 2 UL5085 - 3 Transformer
60VA - 75VA,
Non-Inherently Energy Limited
Series: CL
- Lead Wires & Quick-Connects
Power Rating 60VA to 75VA
Secondary Fusing Required
(Provided by Factory),
Frequency 50/60Hz
Insulation Class B (155°C)
Agency Approvals:
UL/cUL 5085-3 Class 2 Recognized (File E49606)
Insulation File No. E95662
Class 2
Quick-Connects
Type BB
Foot Mount, Pri & Sec on Same Side - Quick connect terminals
with line and load terminations on the same side of transformer.
Type AE
Laydown, Pri & Sec on Top Side - Quick connect terminals
with line and load terminations on the top of transformer.
Type AB
Foot Mount, Pri & Sec on Opposite Side - Quick connect
terminals with line and load terminations on opposite sides of transformer
Terminals:
Standard male quick connects - .250” x .032” (6.35 x .81mm).
Other available quick connects - .187” x .032” (4.75 x .81 mm)
* 60 & 75VA transformers must have overcurrent protectors in series with the secondary winding.
*
Multi voltage combinations are available - consult factory.
Lead Wires
Type HX
Foot Mount - Steel bracket welded to the
bottom of the laminations for easy mounting
Type GX
Panel Mount - 0.218” (5.54 mm) diameter
holes in each corner to allow direct mounting to a panel.
Lead Wires:
All leads are 18 AWG stranded 2/64” (0.794 mm)
insulation thickness. Standard parts have 12” (305 mm)
total length with 1/2” (12.7 mm) strip.
Type HX
- Foot Mount, Internally Fused
Type BB
- Foot Mount, Pri & Sec on Same Side
Type HX
- Foot Mount, Integral Circuit Breaker
Type AE
- Laydown, Pri & Sec on Top side, Internally Fused
Type GX
- Panel Mount
Type AE
- Laydown Termination, Pri & Sec on Top Side,
Integral Circuit Breaker
Dimensions (Inches)
A
B
Internally Fused
2.500
1.000
w/ Integral Circuit Breaker
3.300
1.000
Standard Part
2.500
1.000
Any application, Any requirement, Contact us for our Custom Designs
20
Sales Office:
300 W Factory Road, Addison IL 60101
•
Phone: (630) 628-9999
•
Fax: (630) 628-9922
•
www.wabashtransformer.com
Class 2 UL5085 - 3 Transformer
60VA - 75VA,
Non-Inherently Energy Limited
Series: CL
- Lead Wires & Quick-Connects
Partial Selection Guide
Primary
Voltage
208/230
120
277
120/208/240
480
120/208/240/480
600
277/380/575
380
277/380/415/480
208/240
380/415
575
480/575
200/230
240
120/277
208/240/480
208
100
265
208/230/460
380/460
Secondary Voltage
24
24Vct
24
24Vct
24
24Vct
24
24Vct
24
24Vct
24
24Vct
24
24Vct
24
24Vct
24
24Vct
24
24Vct
24
12
24Vct
24
24Vct
24
24Vct
24
24Vct
24
24Vct
24
24Vct
24
24Vct
24
24Vct
24
24Vct
24
24Vct
24
24Vct
24
24Vct
24
24Vct
60 VA
Size - 1.0” X 1.0”
CL60H00-000*
CL60H00-0CT*
CL60H01-000*
CL60H01-0CT*
CL60H02-000*
CL60H02-0CT*
CL60H03-000*
CL60H03-0CT*
CL60H04-000*
CL60H04-0CT*
─
─
CL60H06-000*
CL60H06-0CT*
CL60H08-000*
CL60H08-0CT*
CL60H09-000*
CL60H09-0CT*
─
─
CL60H15-000*
CL60H50-000*
CL60H15-0CT*
CL60H17-000*
CL60H17-0CT*
CL60H21-000*
CL60H21-0CT*
CL60H30-000*
CL60H30-0CT*
CL60H31-000*
CL60H31-0CT*
CL60H40-000*
CL60H40-0CT*
CL60H41-000*
CL60H41-0CT*
CL60H44-000*
CL60H44-0CT*
CL60H45-000*
CL60H45-0CT*
CL60H48-000*
CL60H48-0CT*
CL60H52-000*
CL60H52-0CT*
CL60H54-000*
CL60H54-0CT*
CL60H60-000*
CL60H60-0CT*
Class 2
UL
√
√
√
√
√
√
√
√
√
√
-
-
√
√
√
√
√
√
-
-
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
75 VA
Size - 1.0” X 1.0”
CL75J00-000*
CL75J00-0CT*
CL75J01-000*
CL75J01-0CT*
CL75J02-000*
CL75J02-0CT*
CL75J03-000*
CL75J03-0CT*
CL75J04-000*
CL75J04-0CT*
CL75J05-000*
CL75J05-0CT*
CL75J06-000*
CL75J06-0CT*
CL75J08-000*
CL75J08-0CT*
CL75J09-000*
CL75J09-0CT*
CL75J14-000*
CL75J14-0CT*
CL75J15-000*
─
CL75J15-0CT*
CL75J17-000*
CL75J17-0CT*
CL75J21-000*
CL75J21-0CT*
CL75J30-000*
CL75J30-0CT*
CL75J31-000*
CL75J31-0CT*
CL75J40-000*
CL75J40-0CT*
CL75J41-000*
CL75J41-0CT*
CL75J44-000*
CL75J44-0CT*
CL75J45-000*
CL75J45-0CT*
CL75J48-000*
CL75J48-0CT*
CL75J52-000*
CL75J52-0CT*
CL75J54-000*
CL75J54-0CT*
CL75J60-000*
CL75J60-0CT*
UL
√
√
√
√
√
√
√
√
√
√
√
√
-
-
√
√
-
-
√
√
√
-
-
-
√
√
√
-
-
√
√
√
√
√
√
-
-
√
√
√
√
√
√
-
-
-
-
* Refer to page number 7. Must complete part number to specify voltages, termination, mounting & fusing.
For custom designs 3 digit customer ID will be added at the end of the part number.
Lead Wire Details:
Primary Voltage
Color
Secondary Voltage
Color
COM
Black
COM
Blue
110,115,120
White
12
Yellow
200,208,215
Red
24
Blue
220, 230, 240
Orange
265, 277
Brown
380
Violet
400, 415
Red/White
460, 480
Grey
575
Black/Red
600
Black/White
Standard leads: All leads are 12.0” L.O.C (length out of coil) 1/2” strip
Any application, Any requirement, Contact us for our Custom Designs
Sales Office:
300 W Factory Road, Addison IL 60101
•
Phone: (630) 628-9999
•
Fax: (630) 628-9922
•
www.wabashtransformer.com
21
