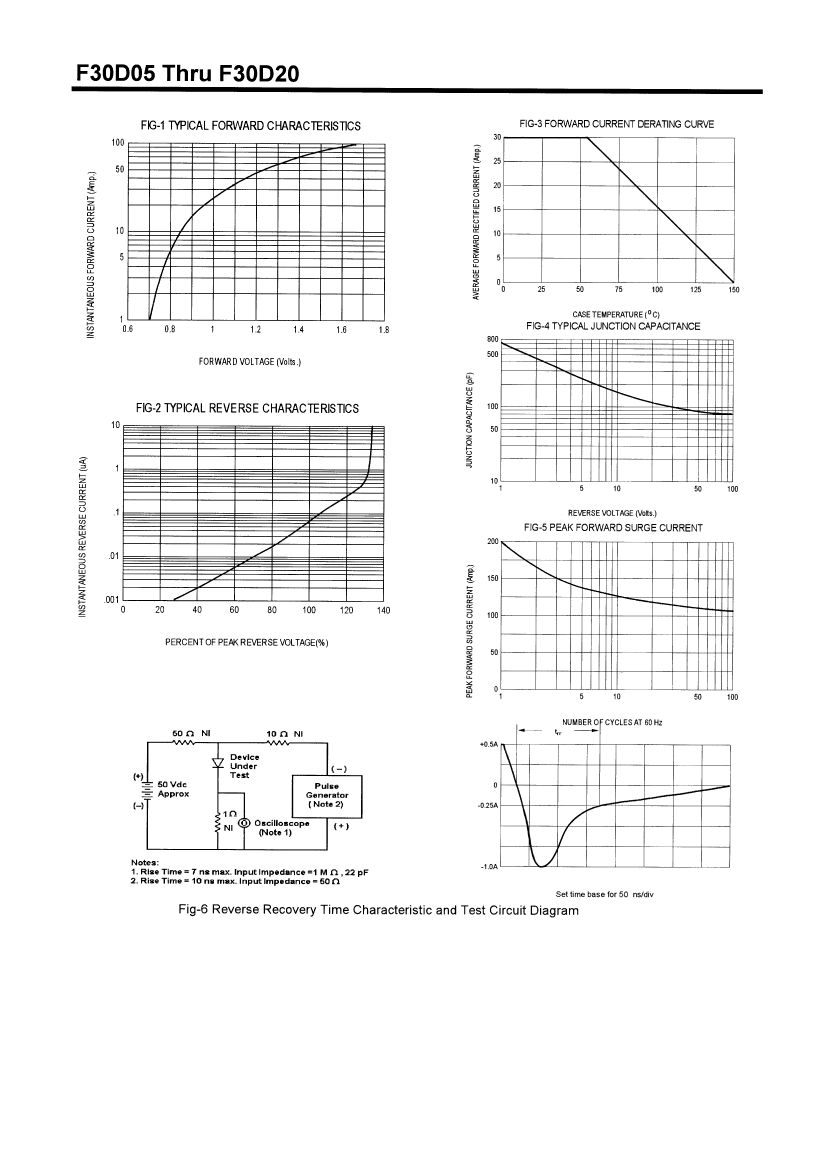

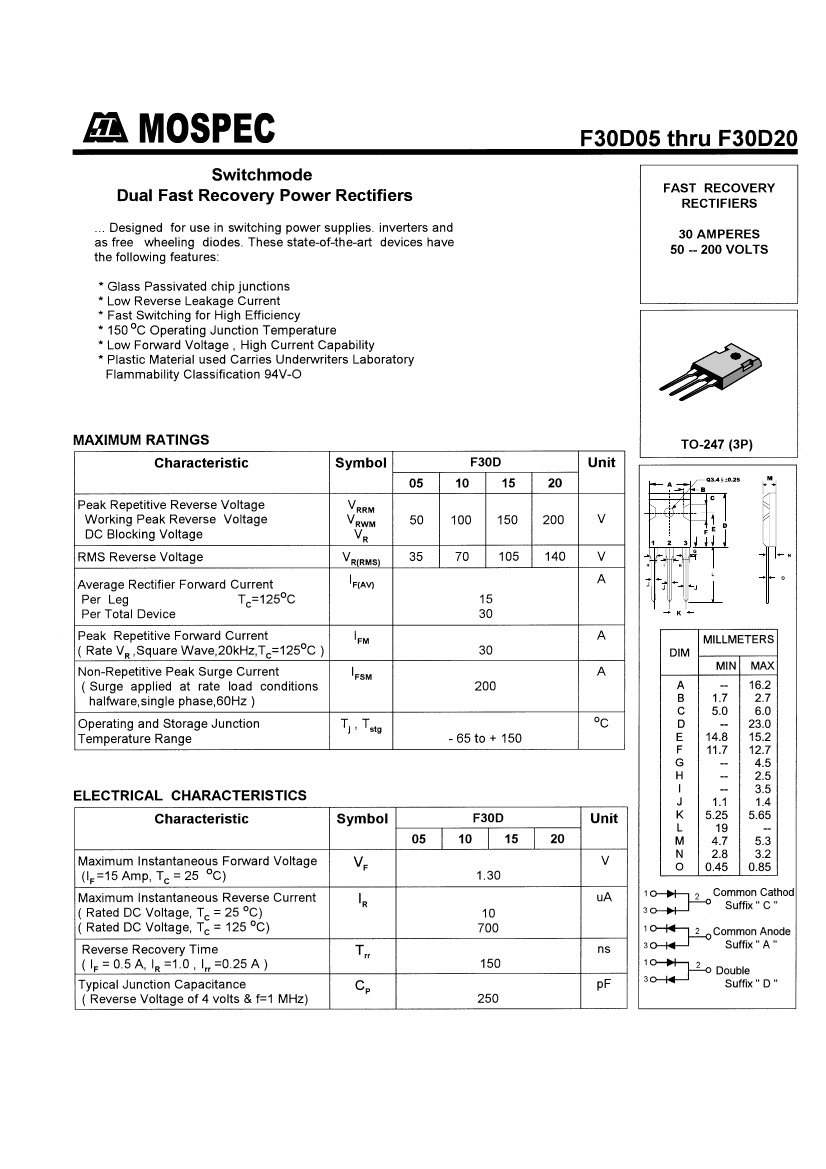

Rectifier Diode, 1 Phase, 2 Element, 15A, 200V V(RRM), Silicon, TO-247, TO-3P, 3 PIN
| Parameter Name | Attribute value |
| Maker | MOSPEC |
| package instruction | R-PSFM-T3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | FREE WHEELING DIODE |
| application | EFFICIENCY |
| Configuration | COMMON CATHODE, 2 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.3 V |
| JEDEC-95 code | TO-247 |
| JESD-30 code | R-PSFM-T3 |
| Maximum non-repetitive peak forward current | 200 A |
| Number of components | 2 |
| Phase | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -65 °C |
| Maximum output current | 15 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Maximum repetitive peak reverse voltage | 200 V |
| Maximum reverse current | 10 µA |
| Maximum reverse recovery time | 0.15 µs |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| F30D20C | F30D10C | F30D10D | F30D15C | F30D20A | |
|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 2 Element, 15A, 200V V(RRM), Silicon, TO-247, TO-3P, 3 PIN | Rectifier Diode, 1 Phase, 2 Element, 15A, 100V V(RRM), Silicon, TO-247, TO-3P, 3 PIN | Rectifier Diode, 1 Phase, 2 Element, 15A, 100V V(RRM), Silicon, TO-247, TO-3P, 3 PIN | Rectifier Diode, 1 Phase, 2 Element, 15A, 150V V(RRM), Silicon, TO-247, TO-3P, 3 PIN | Rectifier Diode, 1 Phase, 2 Element, 15A, 200V V(RRM), Silicon, TO-247, TO-3P, 3 PIN |
| Maker | MOSPEC | MOSPEC | MOSPEC | MOSPEC | MOSPEC |
| package instruction | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | FREE WHEELING DIODE | FREE WHEELING DIODE | FREE WHEELING DIODE | FREE WHEELING DIODE | FREE WHEELING DIODE |
| application | EFFICIENCY | EFFICIENCY | EFFICIENCY | EFFICIENCY | EFFICIENCY |
| Configuration | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON ANODE, 2 ELEMENTS |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V |
| JEDEC-95 code | TO-247 | TO-247 | TO-247 | TO-247 | TO-247 |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 |
| Maximum non-repetitive peak forward current | 200 A | 200 A | 200 A | 200 A | 200 A |
| Number of components | 2 | 2 | 2 | 2 | 2 |
| Phase | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C |
| Maximum output current | 15 A | 15 A | 15 A | 15 A | 15 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Maximum repetitive peak reverse voltage | 200 V | 100 V | 100 V | 150 V | 200 V |
| Maximum reverse current | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA |
| Maximum reverse recovery time | 0.15 µs | 0.15 µs | 0.15 µs | 0.15 µs | 0.15 µs |
| surface mount | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
