PSL-05-56

Description
The Compact Power Transformer
File Size472KB，3 Pages
ManufacturerWabash Transformer Inc.
Websitehttps://www.wabashtransformer.com/
Download Datasheet View All

PSL-05-56 Overview

The Compact Power Transformer

Preview

Download Datasheet

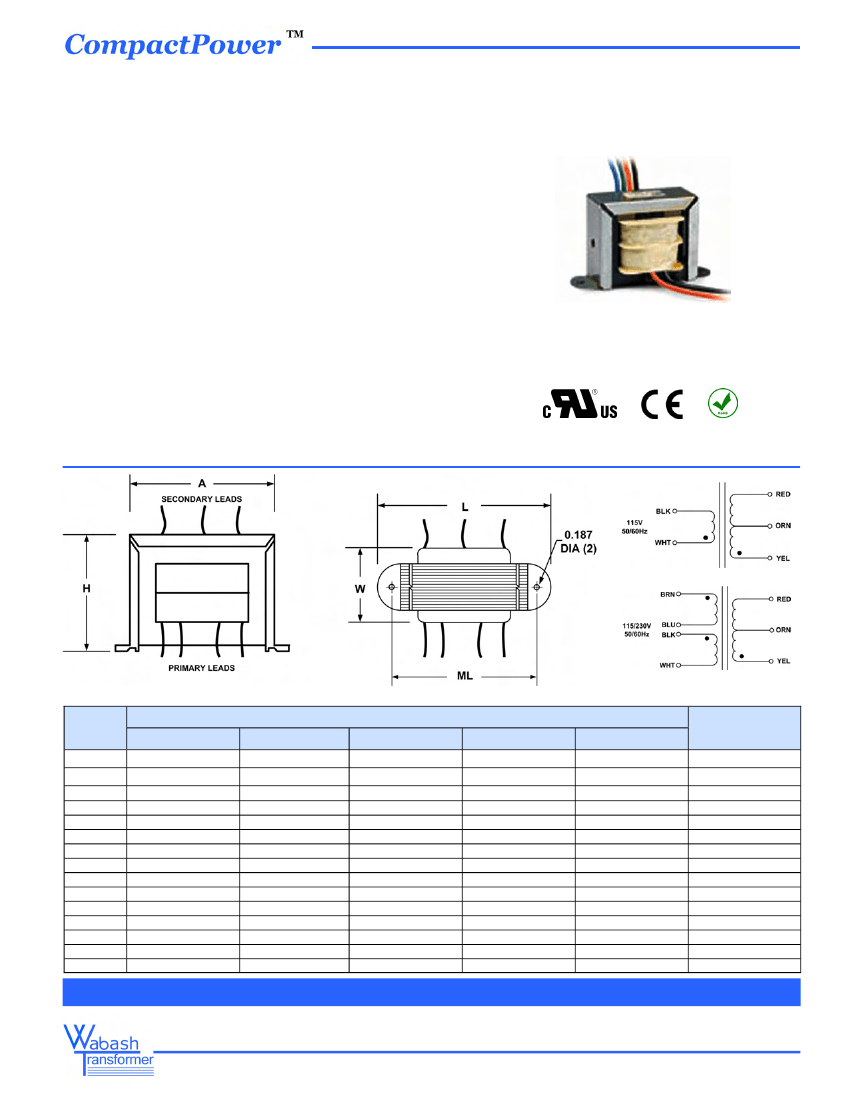

The Compact Power Transformer
Series: PSL & PDL -
Chassis Mount with Lead Wires
Power Rating 1.2VA to 100VA
Single or Dual Primary, 115V or 115/230V
Frequency 50/60HZ
Center-tapped Secondary
Dielectric Strength – 2500 Vrms
Insulation Class B (130°C)
Low Capacitive Coupling, no Electrostatic Shield Needed
Color Coded Hook-up Wires
Agency Approvals:
UL/cUL 5085-2 Recognized (File E47299)
Insulation File No. E95662
Single Primary
Dual Primary
Primaries and Secondaries are designed to be used
simultaneously. That is, they must be used either series or parallel
connected (as one winding). Same applies to secondaries also.
●
Indicates Like Polarity
VA
Rating
1.2
2.4
5
6
10
12
15
20
30
40
50
56
75
80
100
Dimensions (Inches)
L
2.063
2.063
2.375
2.375
2.813
2.813
2.813
3.250
3.250
3.688
3.688
3.688
4.031
4.031
4.031
W
1.00
1.40
1.50
1.50
1.64
1.64
1.64
1.60
2.00
1.95
2.13
2.13
2.25
2.25
2.50
H
1.19
1.19
1.38
1.38
1.62
1.62
1.62
1.94
1.94
2.25
2.25
2.25
2.56
2.56
2.56
A
1.45
1.45
1.70
1.70
1.95
1.95
1.95
2.32
2.32
2.70
2.70
2.70
3.08
3.08
3.08
ML
1.75
1.75
2.00
2.00
2.38
2.38
2.38
2.81
2.81
3.12
3.12
3.12
3.56
3.56
3.56
Weight
Lbs
0.25
0.25
0.44
0.44
0.70
0.70
0.70
1.10
1.10
1.70
1.70
1.70
2.75
2.75
2.75
Any application, Any requirement, Contact us for our Custom Designs
60
Sales Office:
300 W Factory Road, Addison IL 60101
•
Phone: (630) 628-9999
•
Fax: (630) 628-9922
•
www.wabashtransformer.com
