UI-48-24: DescriptionLow Profile Power Transformer; File Size612KB，2 Pages; ManufacturerWabash Transformer Inc.; Websitehttps://www.wabashtransformer.com/

Download Datasheet View All

UI-48-24 Overview

Low Profile Power Transformer

Preview

Download Datasheet

View All

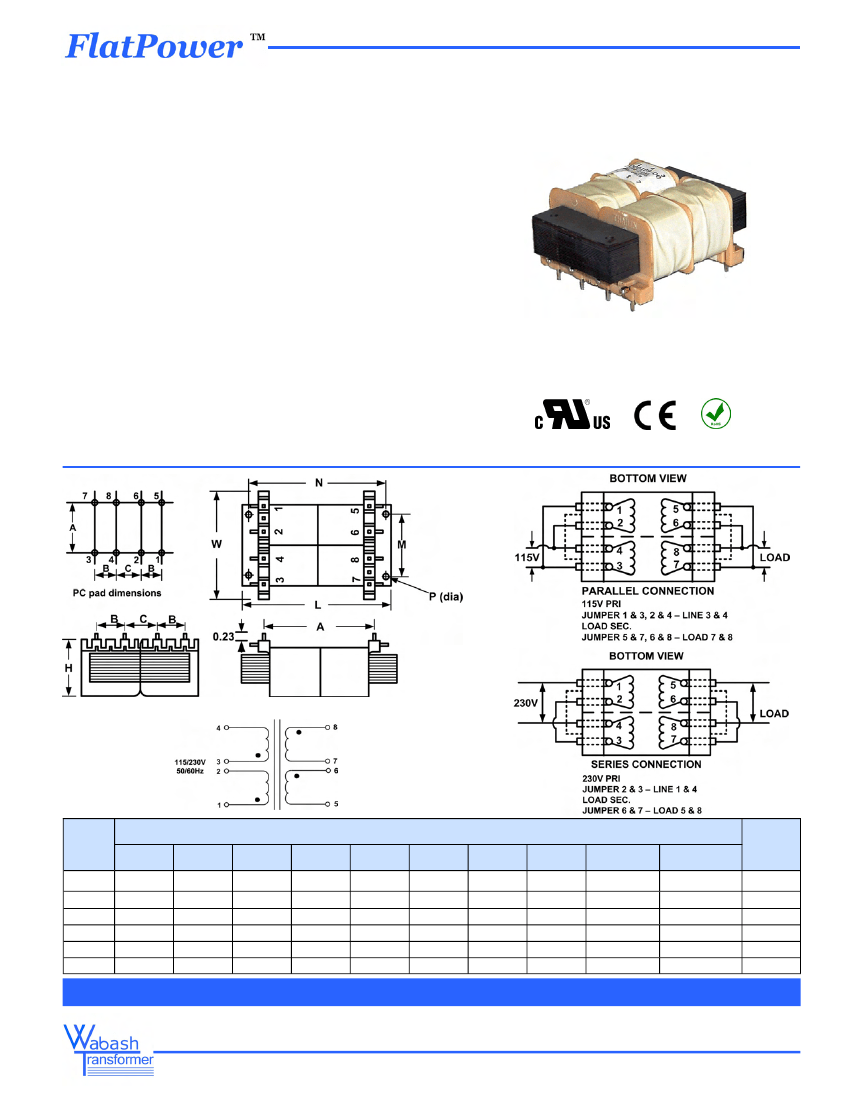

Low Profile Power Transformer

Series: UI

- Printed Circuit Mount



Power Rating 2.5VA to 48VA

Dual Primary, 115/230V

Frequency 50/60HZ

Series or Parallel Secondary

Dielectric Strength – 2500 Vrms

Insulation Class B (130°C)

Low Capacitive Coupling, no Electrostatic Shield Needed

Agency Approvals:



UL/cUL 5085-2 Recognized (File E47299)

Insulation File No. E95662

Dual Primary

●

Indicates Like Polarity

Primaries and Secondaries are designed to be used

simultaneously. That is, they must be used either

series or parallel connected (as one winding). Same

applies to secondaries also.

VA

Rating

2.5

6

12

24

36

48

Dimensions (Inches)

L

1.88

2.50

2.87

3.13

W

1.56

2.00

2.25

2.50

H

0.65

0.81

1.06

1.25

1.38

A

1.60

2.00

1.90

2.18

B

0.375

0.500

0.600

C

0.375

0.500

0.530

0.660

M

-

1.31

1.38

N

-

2.44

2.63

P

-

0.156

0.125

Pins

0.041 X 0.02

0.041

Weight

Oz.

5

7

11

15

21

Any application, Any requirement, Contact us for our Custom Designs

54

Sales Office:

300 W Factory Road, Addison IL 60101

•

Phone: (630) 628-9999

•

Fax: (630) 628-9922

•

www.wabashtransformer.com
