VDE-25L-36 Overview

International Power Transformer

Preview

Download Datasheet

View All

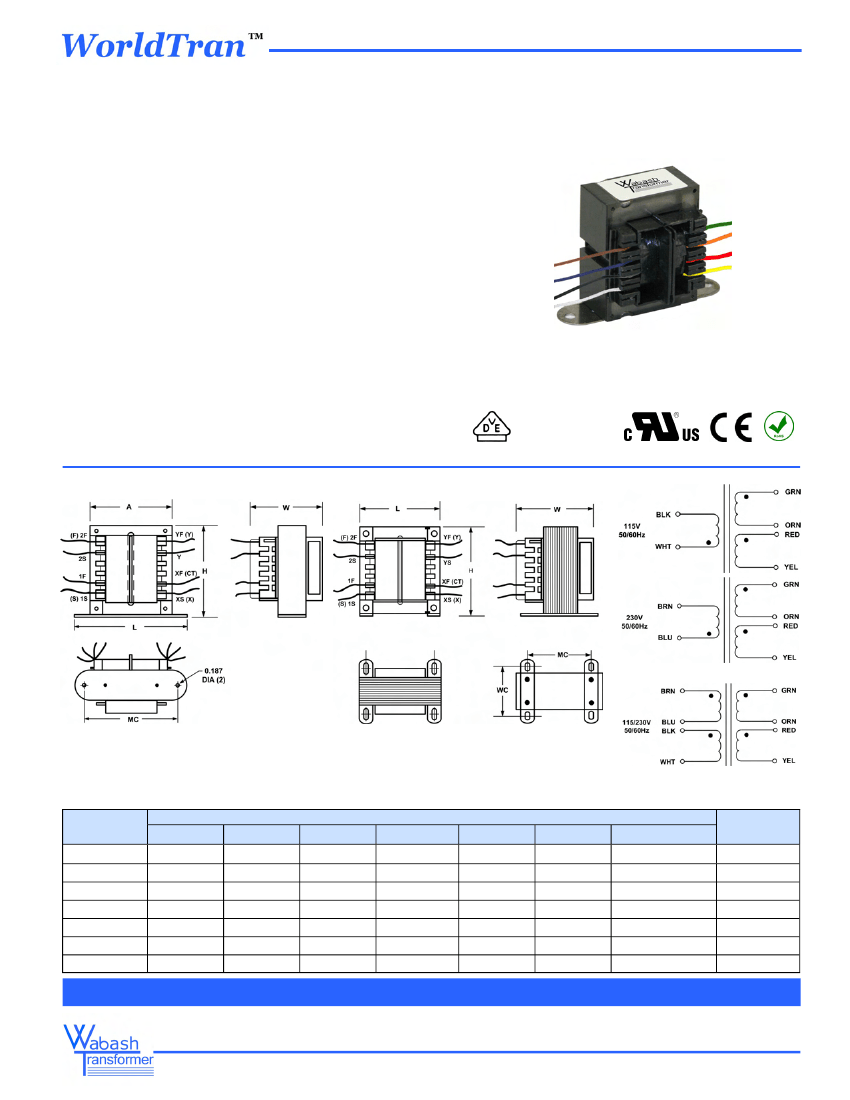

International Power Transformer

Series: VDE

- Lead Wires



Power Rating 25VA to 175VA

Single or Dual Primary, 115V, 230V or 115/230V

Frequency 50/60Hz

Series or Parallel Secondary

Dielectric Strength – 4000 Vrms

Insulation Class F (155°C)

Flammability Rating – Bobbin/Shroud UL94V0 or 94H-B

Agency Approvals:



UL/cUL 5085-2 Recognized (File E47299)

VDE Licensed (File 40001595)

UL/cUL 5085-3 Class 2 Recognized (File E49606)

Insulation File No. E95662

Class 2

Single Primary

Mounting Style B

Mounting Style C

Dual Primary

Horizontal Mounting Available for Low Profile Applications

●

Indicates Like Polarity

Primaries and Secondaries are designed to be used

simultaneously. That is, they must be used either series or parallel

connected (as one winding). Same applies to secondaries also.

Rating

100

130

150

175

Dimensions (Inches)

2.81

3.12

2.50

2.81

3.12

2.14

2.50

3.00

3.12

2.31

2.68

3.00

3.37

3.75

1.95

2.25

Mtg. Style

2.38

2.81

2.00

2.25

2.50

Weight lbs

1.25

1.60

2.80

4.10

5.50

Any application, Any requirement, Contact us for our Custom Designs

Sales Office:

300 W Factory Road, Addison IL 60101

•

Phone: (630) 628-9999

•

Fax: (630) 628-9922

•

www.wabashtransformer.com
