Technical Data Sheet
Full Color Chip LED
22-23/R6GHBHC-A01/2C
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Multi-color
type.
․Pb-free.
․The
product itself will remain within RoHS compliant version.
Descriptions
․The
23-23B SMD LED is much smaller
than lead frame type components, thus
enable smaller board size, higher packing
density, reduced storage space and finally
smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Chip
Type
R6
GH
BH
Material
AlGaInP
InGaN
InGaN
Emitted Color
Brilliant Red
Brilliant Green
Blue
Water Clear
Resin Color
Everlight Electronics Co., Ltd.
Device No.
http://www.everlight.com
Prepared date: 30-Jun-2011
Rev.1
Page: 1 of 12
Prepared by: Haizheng Gao
22-23/R6GHBHC-A01/2C

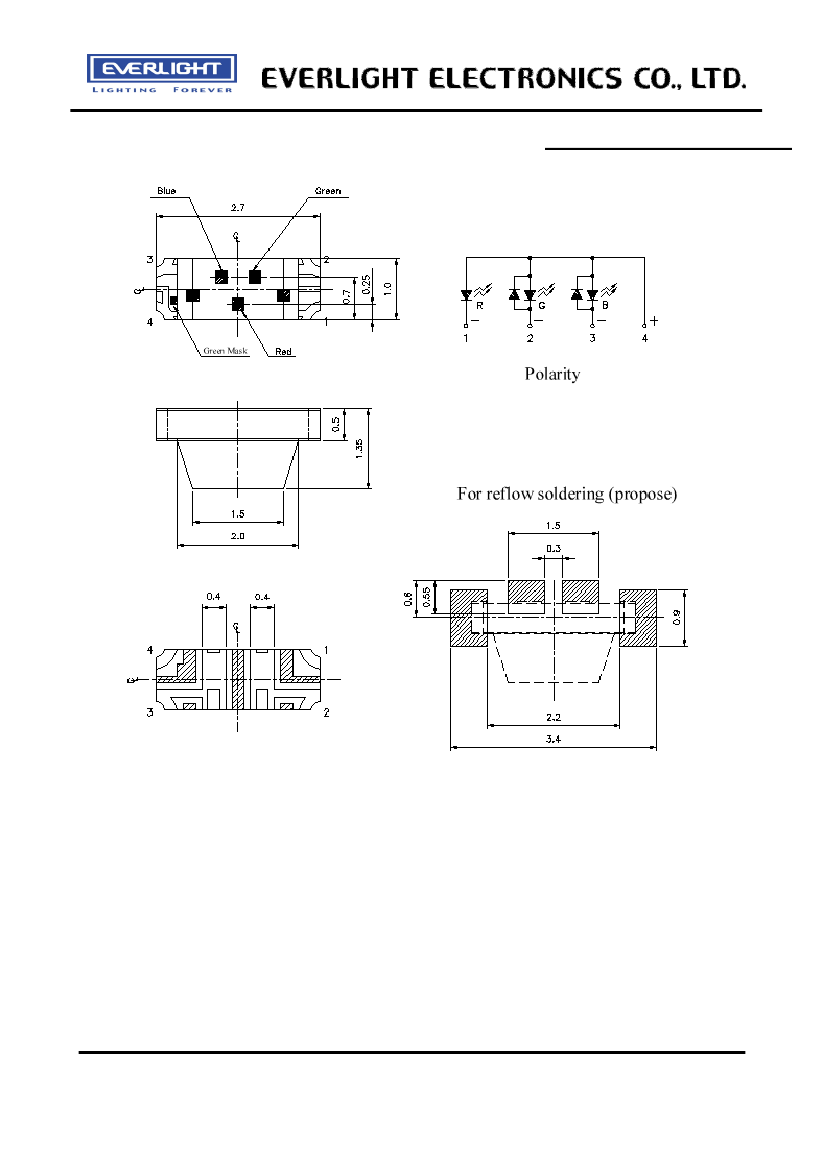

Package Outline Dimensions
Note:
The tolerances unless mentioned is
±0.1mm,Unit
= mm
Everlight Electronics Co., Ltd.
Device No.
http://www.everlight.com
Prepared date: 30-Jun-2011
Rev.1
Page: 2 of 12
Prepared by: Haizheng Gao
22-23/R6GHBHC-A01/2C
Absolute Maximum Ratings (Ta=25℃)
℃
Parameter
Reverse Voltage
Symbol
V
R
Rating
5
R6:25
Forward Current
I
F
GH:25
BH:25
Peak Forward Current
(Duty 1/10 @1KHz)
R6:60
I
FP
GH:100
BH:100
R6:60
Power Dissipation
Pd
GH:95
BH:95
Operating Temperature
Storage Temperature
Topr
Tstg
-40 ~ +85
-40 ~ +90
R6:2000
Electrostatic Discharge(HBM)
ESD
GH:150
BH:150
Reflow Soldering : 260
℃
for 10 sec.
Soldering Temperature
Tsol
Hand Soldering : 350
℃
for 3 sec.
V
℃
℃
mW
mA
mA
Unit
V
Everlight Electronics Co., Ltd.
Device No.
http://www.everlight.com
Prepared date: 30-Jun-2011
Rev.1
Page: 3 of 12
Prepared by: Haizheng Gao
22-23/R6GHBHC-A01/2C
Electro-Optical Characteristics (Ta=25℃)
℃
Parameter
Symbol
R6
Min.
45
112
28.5
-----
Typ.
72
180
45
120
632
Max.
Unit
Condition
Luminous Intensity
Iv
GH
BH
-----
mcd
Viewing Angle
2θ1/2
R6
-----
deg
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
Notes:
1.Tolerance of Luminous Intensity
±
11%
Everlight Electronics Co., Ltd.
Device No.
λ
λ
I
R
Peak Wavelength
p
GH
BH
R6
-----
518
468
-----
nm
615
510
460
20
-----
35
35
1.7
2.7
2.7
2.0
3.3
3.3
-----
630
540
480
nm
I
F
=20mA
d
GH
BH
R6
△λ
GH
BH
R6
-----
nm
2.4
3.7
3.7
10
V
V
F
GH
BH
R6
GH
BH
-----
-----
50
50
μA
V
R
=5V
http://www.everlight.com
Prepared date: 30-Jun-2011
Rev.1
Page: 4 of 12
Prepared by: Haizheng Gao
22-23/R6GHBHC-A01/2C

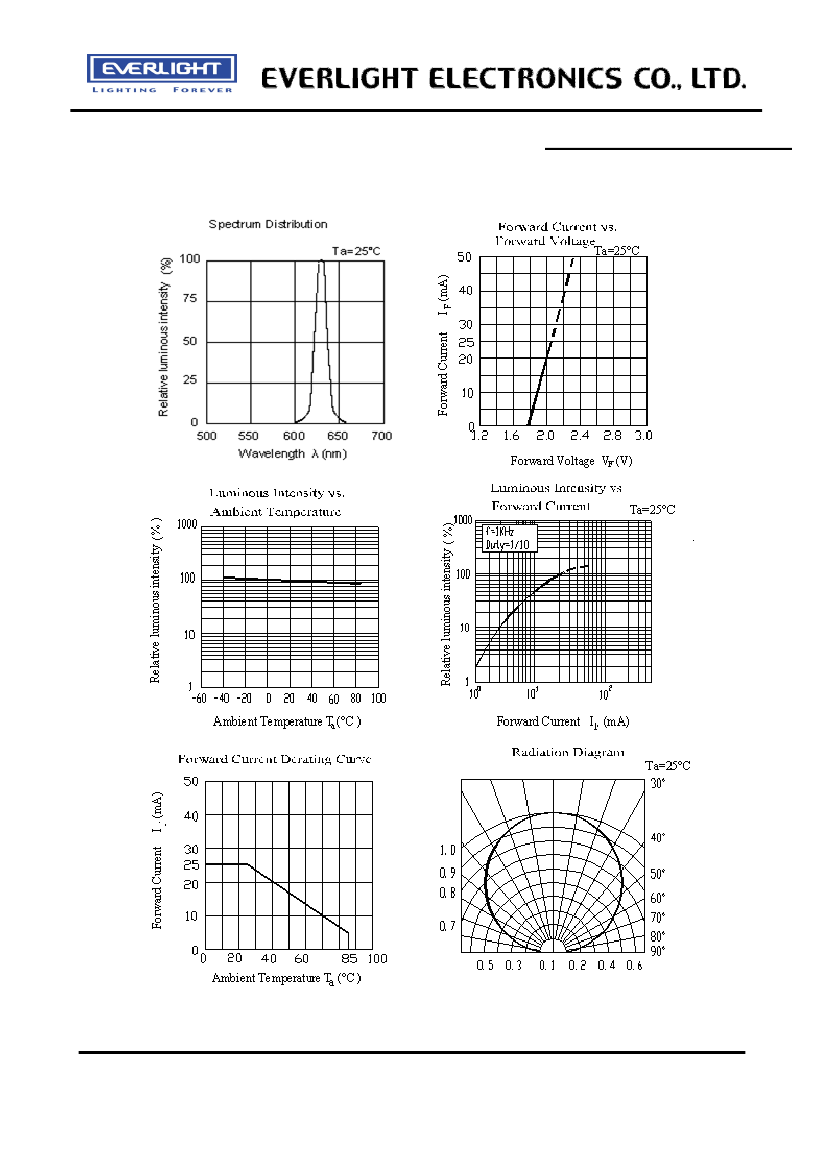

Typical Electro-Optical Characteristics Curves
R6
Everlight Electronics Co., Ltd.
Device No.
http://www.everlight.com
Prepared date: 30-Jun-2011
Rev.1
Page: 5 of 12
Prepared by: Haizheng Gao
