T3622C-2/6 datasheet, PDF - EEWORLD Datasheet

T3622C-2/6: DescriptionPower/Signal Relay, DPDT, Latched, 0.19A (Coil), 6VDC (Coil), 1140mW (Coil), 2A (Contact), 29VDC (Contact), DC Input, AC/DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size631KB，1 Pages; ManufacturerAllied Controls Incorporated

Download Datasheet Parametric View All

T3622C-2/6 Overview

Power/Signal Relay, DPDT, Latched, 0.19A (Coil), 6VDC (Coil), 1140mW (Coil), 2A (Contact), 29VDC (Contact), DC Input, AC/DC Output, Panel Mount

Parameter Name	Attribute value
Maker	Allied Controls Incorporated
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum coil current (DC)	0.19 A
Coil operating voltage (DC)	4.5 V
Coil power	1140 mW
Coil resistance	31.5 Ω
Maximum coil voltage (DC)	6 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	2A@115VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@29VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	29 V
Contact/Output Power Type	AC/DC
Manufacturer's serial number	T362
Installation features	PANEL MOUNT
operating hours	10 ms
Maximum operating temperature	71 °C
Minimum operating temperature	-55 °C
Guideline	CSA; UL
Relay action	LATCHED
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
seal	DUST PROOF
surface mount	NO
Termination type	SOLDER

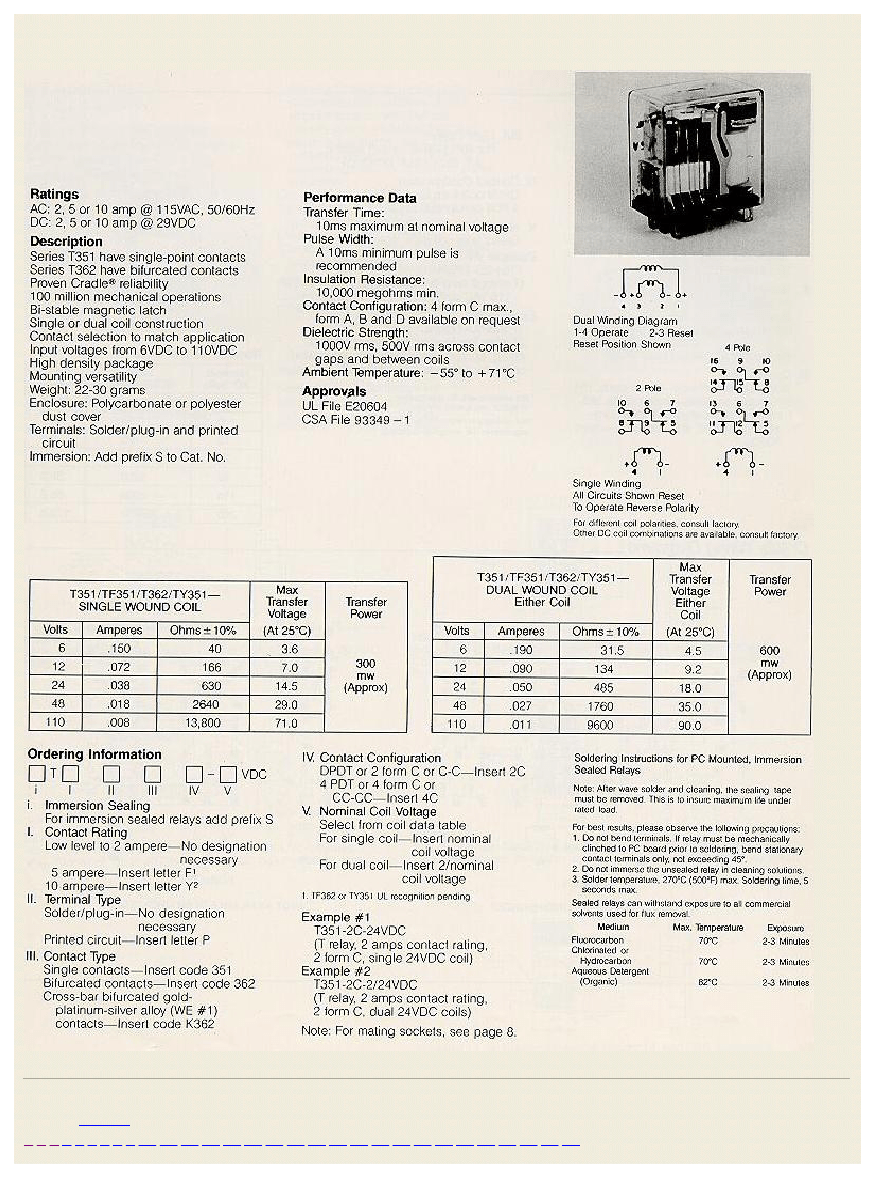

Allied Controls, Inc. Catalog, Page 3
