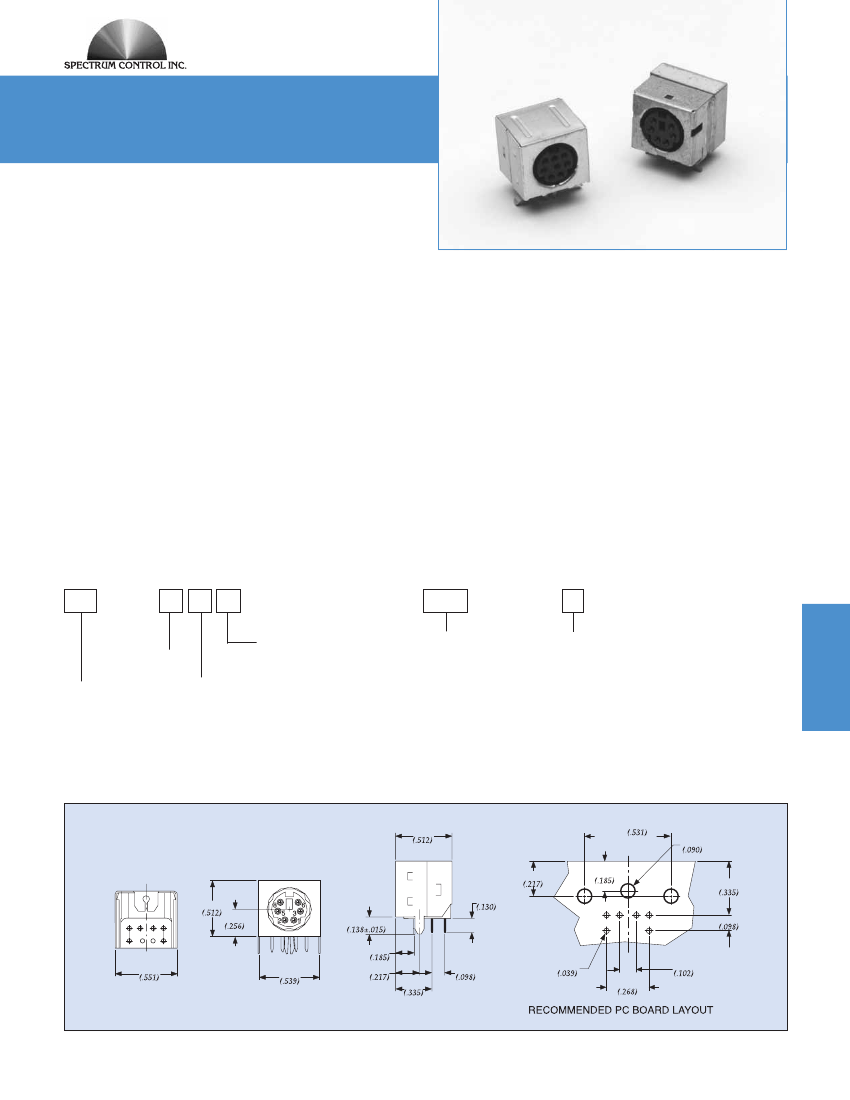

Filtered Mini-DIN
Connectors
Filtered mini-DIN connectors are available in several
configurations and sizes. These are “drop-in” replace-
ments for standard unfiltered connectors with matched
footprints. Housings are made of high temperature
UL94V-0 rated thermoplastic material. Connectors are
available with full metal shields and kinked or straight
ground tabs. Each size can be shielded or filtered
with ferrites.
Primary applications are in computer keyboard and
mouse connections.
Specifications
Contacts
. . . . . . . . . . . . . . . . . .Copper alloy,
gold over nickel plating
Shield
. . . . . . . . . . . . . . . . . . . .Brass, tin plated
Housing
. . . . . . . . . . . . . . . . . .94V-0 rated thermoplastic,
black
Current rating
. . . . . . . . . . . . . .1A @ 12 VDC
DWV
. . . . . . . . . . . . . . . . . . . .500 VDC
Insulation Resistance
. . . . . . . . .500MOhms min
Operating Temp
. . . . . . . . . . . . .-25°C to +70°C
Typical Ferrite Impedance
. . . . . .20-22 Ohm @ 100 MHz
Features
s
s
s
Audio, video and computer equipment
Drop-in replacement for unfiltered connectors
Shielded, ferrite or capacitive filtering
Ordering Information
Example:
56-B32-000-S
56
-
B 3 2
Filtering
Mini-DIN
Filtered
Connectors
Shell Size
1
= 4 Position
2
= 5 Position
3
= 6 Position
4
= 7 Position
5
= 8 Position
1
= None
2
= Ferrite
Typical insertion loss
. . . . . . . . .32 db @ 200 MHz
-
000
Filter Values
-
S
Features
S
= Straight Ground Tab
K
= Kinked Ground Tab
FS
= Full Shield & Straight
Ground Tab
FK
= Full Shield & Kinked
Ground Tab
000
= None or Ferrite
Typical Dimensions
For 56-B32-000-S
5
8
2
1
3
6
Dimensions in inches
(mm)
