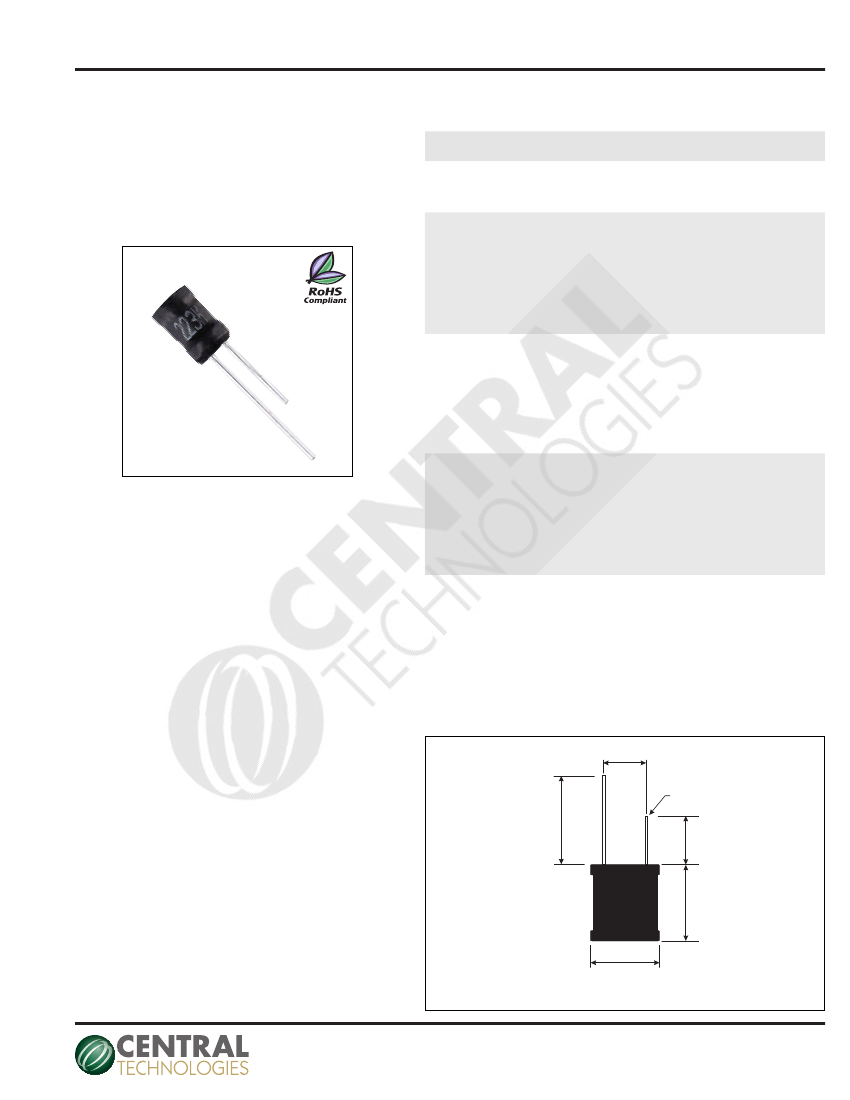

Peaking Coils - Radial
www.ctparts.com
From 3.9 µH to 22,000 µH
CTRL5480F-1
Series
Parts are available in ±10% inductance tolerance only.
Part
Number
CTRL5480F-1-3R9K
CTRL5480F-1-4R7K
CTRL5480F-1-5R6K
CTRL5480F-1-6R8K
CTRL5480F-1-8R2K
CTRL5480F-1-100K
CTRL5480F-1-120K
CTRL5480F-1-150K
CTRL5480F-1-180K
CTRL5480F-1-220K
CTRL5480F-1-270K
CTRL5480F-1-330K
CTRL5480F-1-390K
CTRL5480F-1-470K
CTRL5480F-1-560K
CTRL5480F-1-680K
CTRL5480F-1-820K
CTRL5480F-1-101K
CTRL5480F-1-121K
CTRL5480F-1-151K
CTRL5480F-1-181K
CTRL5480F-1-221K
CTRL5480F-1-271K
CTRL5480F-1-331K
CTRL5480F-1-391K
CTRL5480F-1-471K
CTRL5480F-1-561K
CTRL5480F-1-681K
CTRL5480F-1-821K
Inductance
(µH)
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
12000
15000
18000
22000
L Test
Freq.
(KHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
DCR
(Ω)
Max.
0.030
0.034
0.036
0.040
0.054
0.060
0.072
0.078
0.108
0.144
0.168
0.200
0.220
0.240
0.265
0.380
0.445
0.590
0.640
0.730
0.850
1.20
1.32
1.75
1.95
2.00
2.90
3.10
4.30
5.50
6.30
7.20
9.60
11.5
13.0
17.0
19.0
24.0
29.0
42.0
60.0
70.0
75.0
110.0
125.0
135.0
Saturation
Current
(A)
1.50
1.35
1.25
1.15
1.00
0.920
0.840
0.770
0.720
0.660
0.600
0.540
0.470
0.430
0.390
0.360
0.330
0.300
0.270
0.245
0.220
0.190
0.180
0.165
0.150
0.140
0.125
0.110
0.100
0.092
0.082
0.075
0.068
0.062
0.054
0.049
0.045
0.043
0.040
0.037
0.035
0.034
0.033
0.031
0.029
0.018
Rated
Current
(A)
0.800
0.800
0.800
0.800
0.620
0.620
0.620
0.620
0.490
0.385
0.300
0.300
0.300
0.300
0.300
0.250
0.250
0.190
0.190
0.190
0.190
0.150
0.150
0.120
0.120
0.120
0.095
0.095
0.076
0.060
0.060
0.060
0.046
0.046
0.046
0.036
0.036
0.030
0.030
0.024
0.018
0.018
0.018
0.015
0.015
0.015
SPECIFICATIONS
Not Shown at Actual Size
CHARACTERISTICS
Description:
Radial leaded fixed inductor.
Applications:
Power supplies, Switching Regulators, SCR and
TRIAC Controls, RFI Suppression, Filters, etc.
Operating Temperature:
-55°C to +125°C
Saturation Current:
Based on the inductance change within 5%
of initial value less than 30°C within coil body.
Inductance Tolerance:
±10%
Testing:
Inductance is tested on an HP4285A at the speficied
frequency.
Packaging:
Bulk pack.
Marking:
Parts are marked with inductance code.
Miscellaneous:
RoHS Compliant.
Additional Information:
Additional electrical & physical
information available upon request.
Samples available. See website for ordering information.
CTRL5480F-1-102K
CTRL5480F-1-122K
CTRL5480F-1-152K
CTRL5480F-1-182K
CTRL5480F-1-222K
CTRL5480F-1-272K
CTRL5480F-1-332K
CTRL5480F-1-392K
CTRL5480F-1-472K
CTRL5480F-1-562K
CTRL5480F-1-682K
CTRL5480F-1-822K
CTRL5480F-1-103K
CTRL5480F-1-123K
CTRL5480F-1-153K
CTRL5480F-1-183K
CTRL5480F-1-223K
PHYSICAL DIMENSIONS
Size
mm
inches
A
5.7±1.27
0.225±0.050
B
7.3±1.27
0.290±0.050
C
9.5±1.27
0.375±0.050
D
15.8±1.27
0.625±0.050
E
Typ.
0.50
0.020
F
2.0±1.27
0.080±0.050
F
E
D
C
B
A
Note: Leads easily formable to “F” dimension.
Manufacturer of Passive Components
800-684-5322 Inside US
949-453-1811 Outside US
REV 01.11.11
Copyright © 2011 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
