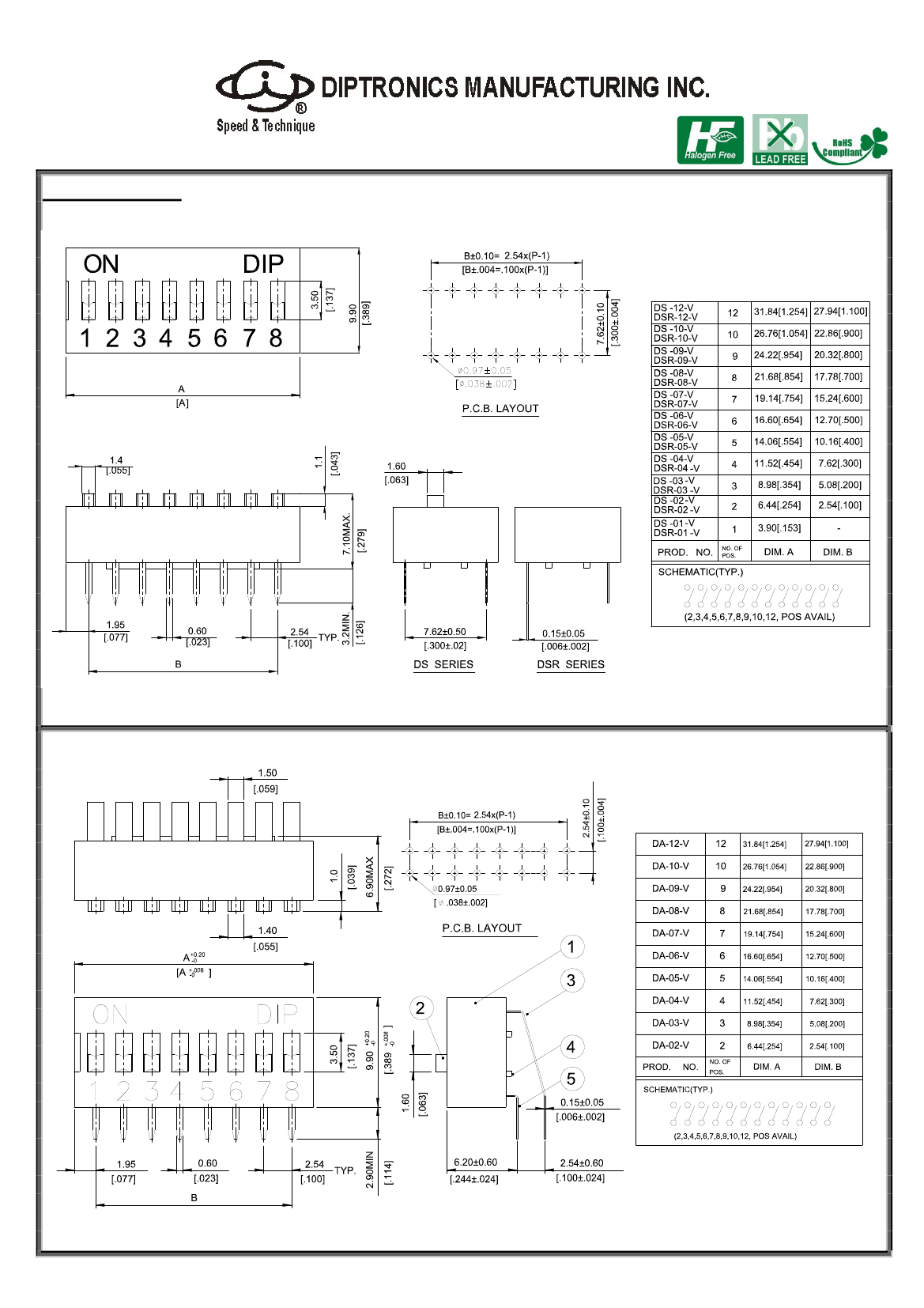

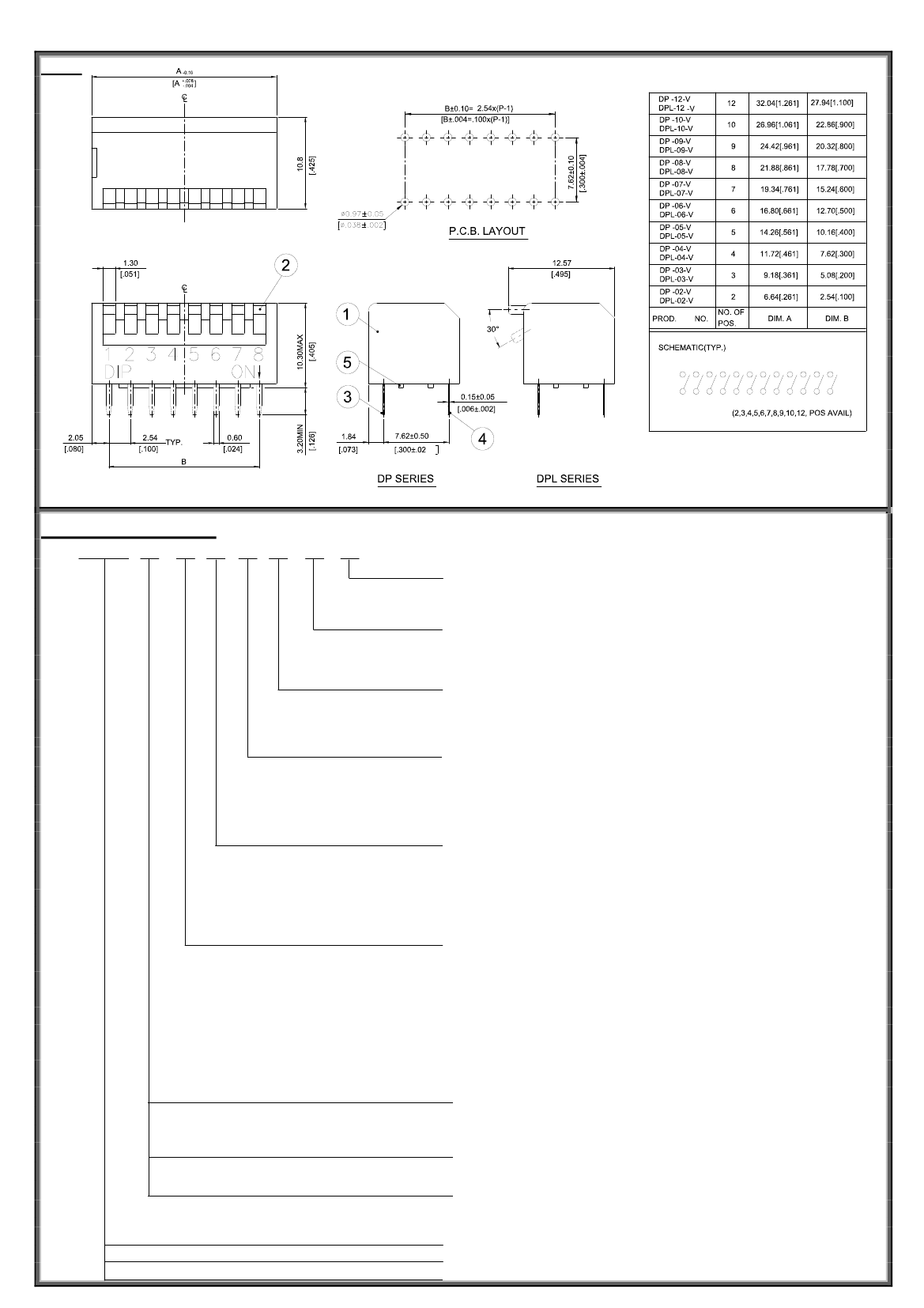

DP(L)
General Tolerance：±0.2mm
HOW TO ORDER
□
□
□
-
□
□
□ □
-
□
-
□
Package：
□
= Tube
Soldering：
V = RoHS & Lead Free Solderable
Q=Halogen Free(Only for Black)
Sealed：
□
= Without Tape
T = Top Tape Sealed
▲On/Off
Position：
□
= Push Down On
U = Push Down Off
<▲U Only For DP(L)>
Color Of Cover：
□
= Red
▲B
= Blue
▲K
= Black
<▲Subject to Our Final Confirmation>
Number Of Position：
01 = 1 Positions <Only For DS(R)>
02 = 2 Positions
07 = 7 Positions
03 = 3 Positions
08 = 8 Positions
04 = 4 Positions
09 = 9 Positions
05 = 5 Positions
10 = 10 Positions
06 = 6 Positions
12 = 12 Positions
DS
□
= Raised Actuator
R = Recessed Actuator
DA
□
= Raised Actuator
DP
□
= Short Key
L = Long Key
DS = Slide Type Dip Switch
DA = Right Angle Type Dip Switch
DP = Piano Type Dip Switch
SPECIFICATION
△MECHANICAL
Mechanical Life: 2,000 operations per switch.
Operation Force: 400gf max. (DP Series)
1,000gf max. (DS & DA Series)
Stroke: 2.0mm(DS & DA Series)
Operation Temperature: -20℃ to +70℃
Storage Temperature: -40
℃
to +85℃
△ELECTRICAL
Electrical Life: 2,000 operations per switch 24VDC,
25mA
Non-Switching Rating: 100mA , 50VDC
Switching Rating: 25mA , 24VDC
Contact Resistance: 50mΩ max. at initial
Insulation Resistance:{at 500 VDC} 100MΩ min.
Dielectric Strength: 500VAC / 1 minute
Circuit: SPST
MATERIAL
△BASE:
UL94V-0 PBT High Thermoplastic
Color: Black
△COVER
UL94V-0 PBT High Thermoplastic
Color: Red, Black, Blue
△ACTUATOR:
UL94V-0 PBT High Thermoplastic
Color: White
△CONTACT:
Phosphor bronze with gold plating over
nickel
△TOP
SEAL: Polyester Film
△POTTING
MATERIAL: Epoxy
SOLDERING PROCESS
△
Keep all switch contacts in their “OFF” position for all
operations.
△
WAVE SOLDERING: Recommended temperature at
500
℉
(260
℃
) max. 5 seconds for through hole type.
△
HAND SOLDERING: Use a soldering iron of 30 watts,
controlled at 350
℃
approximately max 5 seconds.
△Make
sure switch is in “OFF” position during soldering
process, or it will decrease the operating force and
meanwhile increase the contact resistance.
△Do
not wash the switch body except top tape sealed
type, which suitable for spray cleaning method from
top of the s/w.

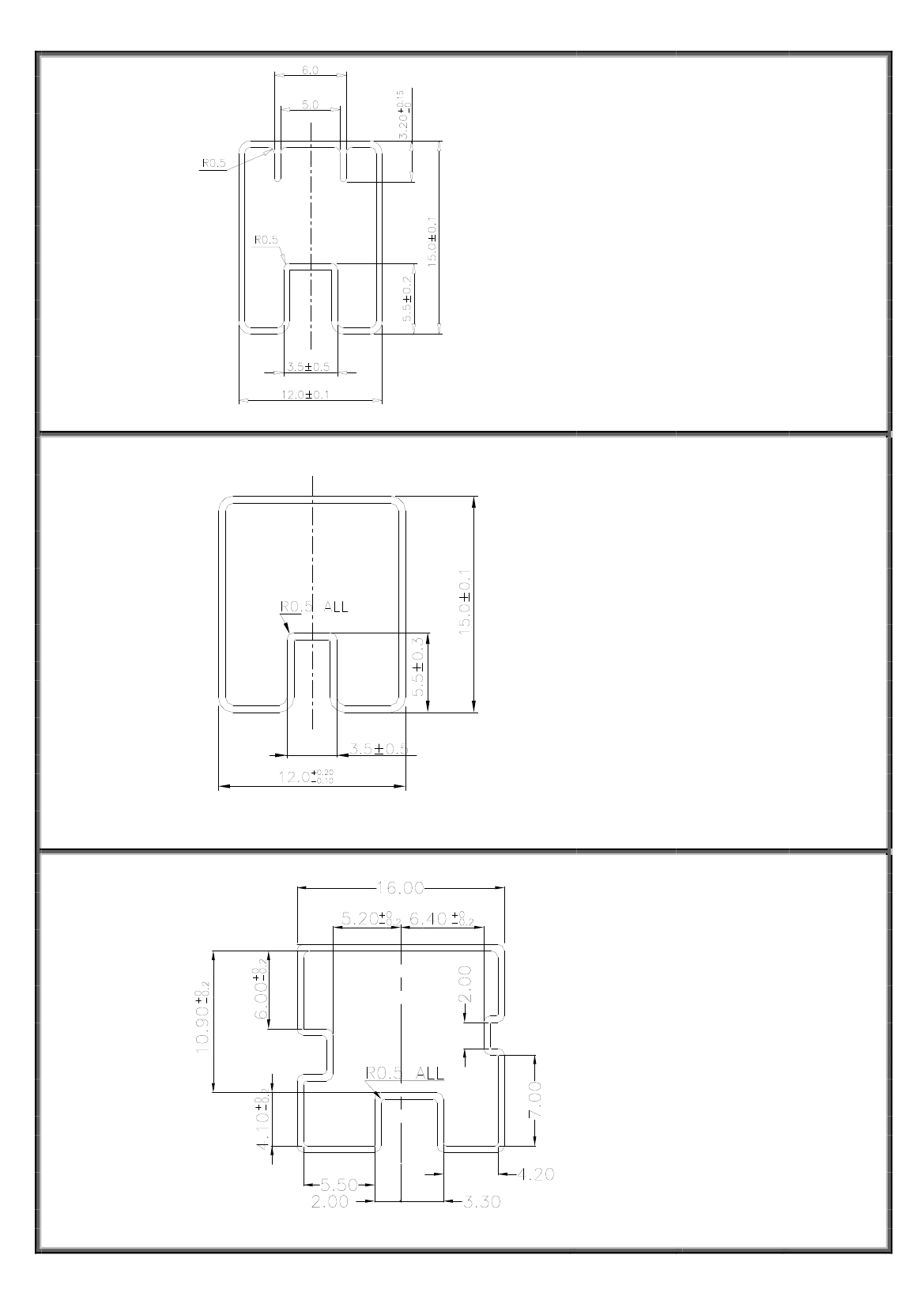

PACKING
Part Number
DS(R)-01
DS(R)-02
DS(R)-03
DS(R)-04
DS(R)-05
DS(R)-06
DS(R)-07
DS(R)-08
DS(R)-09
DS(R)-10
DS(R)-12
DP(L)-02
DP(L)-03
DP(L)-04
DP(L)-05
DP(L)-06
DP(L)-07
DP(L)-08
DP(L)-09
DP(L)-10
DP(L)-12
DA-02
DA-03
DA-04
DA-05
DA-06
DA-07
DA-08
DA-09
DA-10
DA-12
Number Per
Tube
120
72
51
40
32
27
24
21
19
17
14
70
50
39
32
27
24
21
19
17
14
73
52
40
33
28
24
21
19
17
14
Part Number
DS(R)-01-T
DS(R)-02-T
DS(R)-03-T
DS(R)-04-T
DS(R)-05-T
DS(R)-06-T
DS(R)-07-T
DS(R)-08-T
DS(R)-09-T
DS(R)-10-T
DS(R)-12-T
DP(L)-02-T
DP(L)-03-T
DP(L)-04-T
DP(L)-05-T
DP(L)-06-T
DP(L)-07-T
DP(L)-08-T
DP(L)-09-T
DP(L)-10-T
DP(L)-12-T
DA-02-T
DA-03-T
DA-04-T
DA-05-T
DA-06-T
DA-07-T
DA-08-T
DA-09-T
DA-10-T
DA-12-T
Number Per
Tube
113
72
51
40
32
27
24
21
19
17
14
65
49
39
32
27
24
21
19
17
14
70
50
39
32
28
24
21
19
17
14
