HX9100BF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> HX9100BF

HX9100BF: DescriptionCrossbar Switch, 64-Bit, CMOS, FP-256; CategoryThe embedded processor and controller Microcontrollers and processors; File Size90KB，2 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

HX9100BF Overview

Crossbar Switch, 64-Bit, CMOS, FP-256

HX9100BF Parametric

Parameter Name	Attribute value
Maker	Honeywell
package instruction	GQFF,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
boundary scan	NO
External data bus width	64
JESD-30 code	S-XQFP-F256
length	36.83 mm
low power mode	NO
Number of terminals	256
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	64
Package body material	UNSPECIFIED
encapsulated code	GQFF
Package shape	SQUARE
Package form	FLATPACK, GUARD RING
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	4.064 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	0.508 mm
Terminal location	QUAD
total dose	300k Rad(Si) V
width	36.83 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, CROSSBAR SWITCH

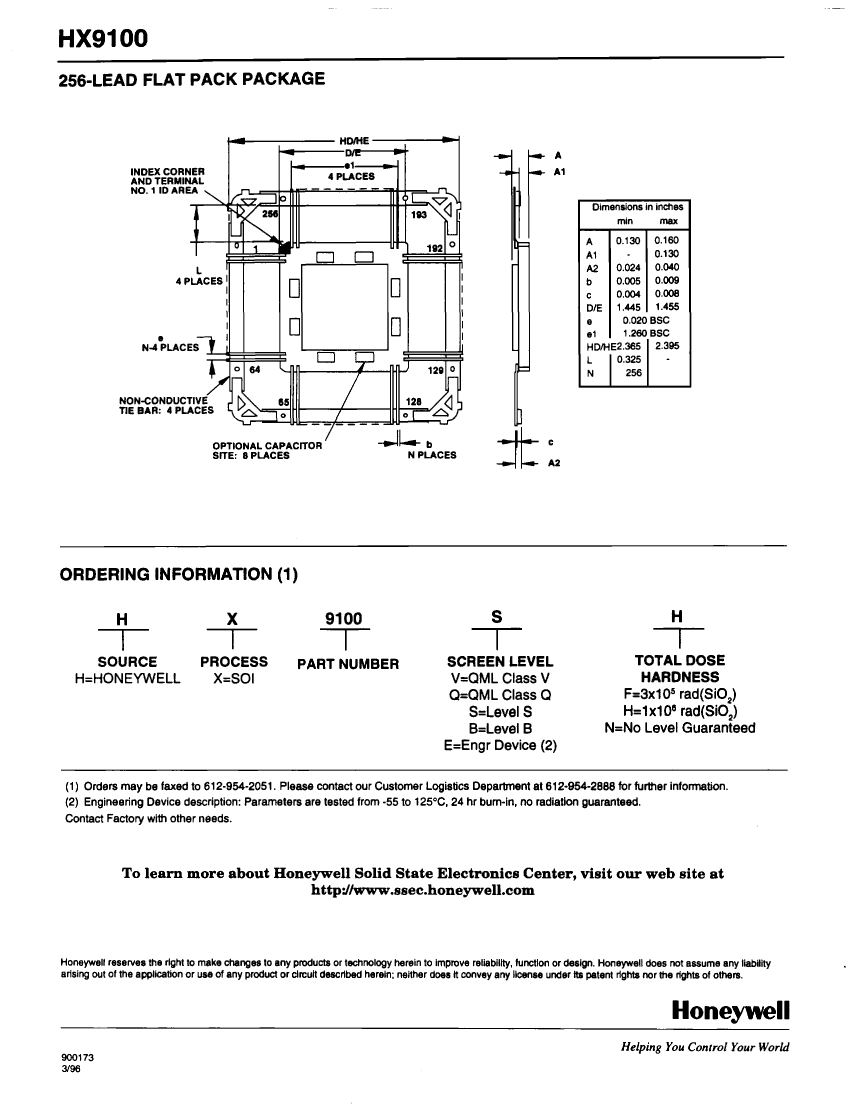

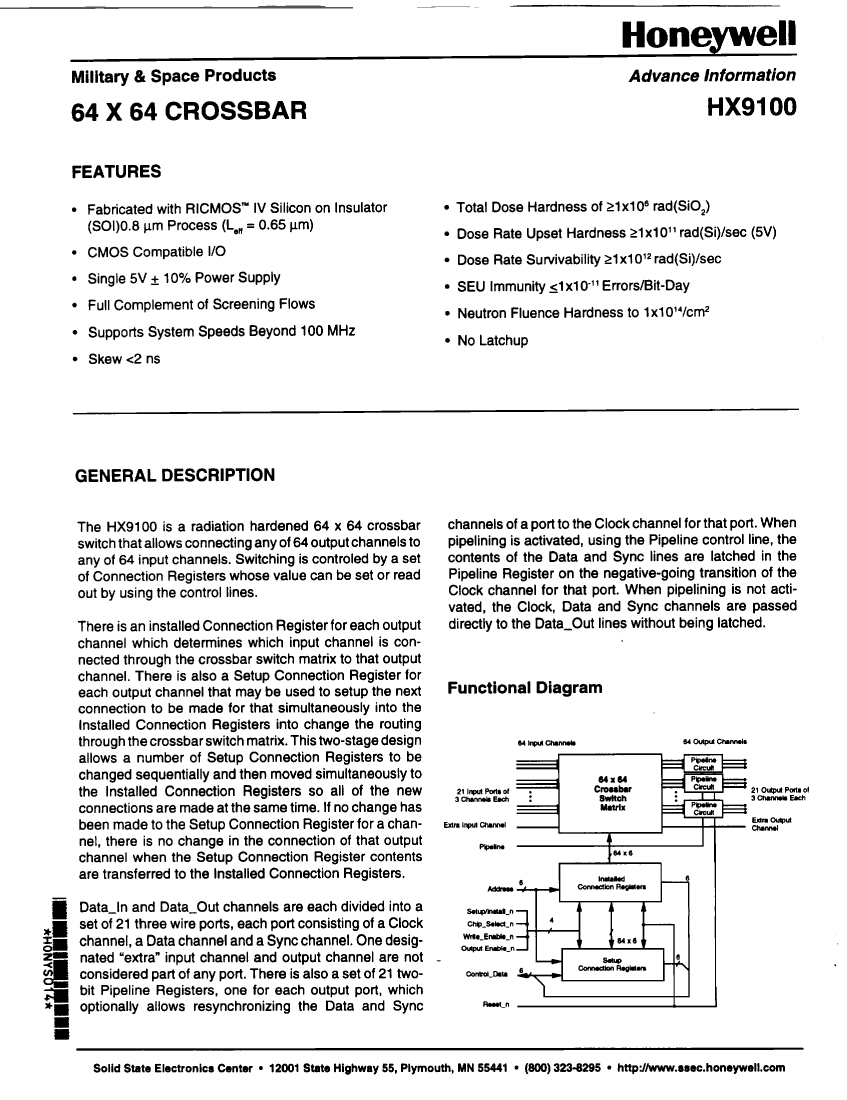

Preview

Download Datasheet

View All

HX9100BF Related Products

	HX9100BF	HX9100SF	HX9100SN	HX9100VH	HX9100EF
Description	Crossbar Switch, 64-Bit, CMOS, FP-256	Crossbar Switch, 64-Bit, CMOS, FP-256	Crossbar Switch, 64-Bit, CMOS, FP-256	Crossbar Switch, 64-Bit, CMOS, FP-256	Crossbar Switch, 64-Bit, CMOS, FP-256
package instruction	GQFF,	GQFF,	GQFF,	GQFF,	GQFF,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
boundary scan	NO	NO	NO	NO	NO
External data bus width	64	64	64	64	64
JESD-30 code	S-XQFP-F256	S-XQFP-F256	S-XQFP-F256	S-XQFP-F256	S-XQFP-F256
length	36.83 mm	36.83 mm	36.83 mm	36.83 mm	36.83 mm
low power mode	NO	NO	NO	NO	NO
Number of terminals	256	256	256	256	256
Output data bus width	64	64	64	64	64
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	GQFF	GQFF	GQFF	GQFF	GQFF
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, GUARD RING	FLATPACK, GUARD RING	FLATPACK, GUARD RING	FLATPACK, GUARD RING	FLATPACK, GUARD RING
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.064 mm	4.064 mm	4.064 mm	4.064 mm	4.064 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal pitch	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD
width	36.83 mm	36.83 mm	36.83 mm	36.83 mm	36.83 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, CROSSBAR SWITCH	DSP PERIPHERAL, CROSSBAR SWITCH	DSP PERIPHERAL, CROSSBAR SWITCH	DSP PERIPHERAL, CROSSBAR SWITCH	DSP PERIPHERAL, CROSSBAR SWITCH
Maker	Honeywell	Honeywell	Honeywell	-	Honeywell
ECCN code	3A001.A.2.C	3A001.A.2.C	-	3A001.A.2.C	3A001.A.2.C
Maximum operating temperature	125 °C	125 °C	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C
Filter level	MIL-STD-883 Class B	MIL-STD-883 Class S	-	MIL-PRF-38535 Class V	-
Temperature level	MILITARY	MILITARY	-	MILITARY	MILITARY
total dose	300k Rad(Si) V	300k Rad(Si) V	-	1M Rad(Si) V	300k Rad(Si) V
Base Number Matches	-	1	1	1	-
