Part Number

Search

3510G-S08-T

Description
PC POWER SUPPLY SUPERVISORS
CategoryPower/power management    The power supply circuit
File Size298KB,8 Pages
ManufacturerUNISONIC TECHNOLOGIES CO.,LTD
Websitehttp://www.unisonic.com.tw/
Download Datasheet Parametric Compare View All

3510G-S08-T Overview

PC POWER SUPPLY SUPERVISORS

3510G-S08-T Parametric

Parameter NameAttribute value
MakerUNISONIC TECHNOLOGIES CO.,LTD
package instructionSOP,
Reach Compliance Codecompliant
ECCN codeEAR99
Adjustable thresholdNO
Analog Integrated Circuits - Other TypesPOWER SUPPLY SUPPORT CIRCUIT
JESD-30 codeR-PDSO-G8
Number of channels2
Number of functions1
Number of terminals8
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum supply current (Isup)1 mA
Maximum supply voltage (Vsup)15 V
Minimum supply voltage (Vsup)4 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelOTHER
Terminal formGULL WING
Terminal locationDUAL
Threshold voltage nominal2.2, 3.5
UNISONIC TECHNOLOGIES CO., LTD
3510
PC POWER SUPPLY
SUPERVISORS

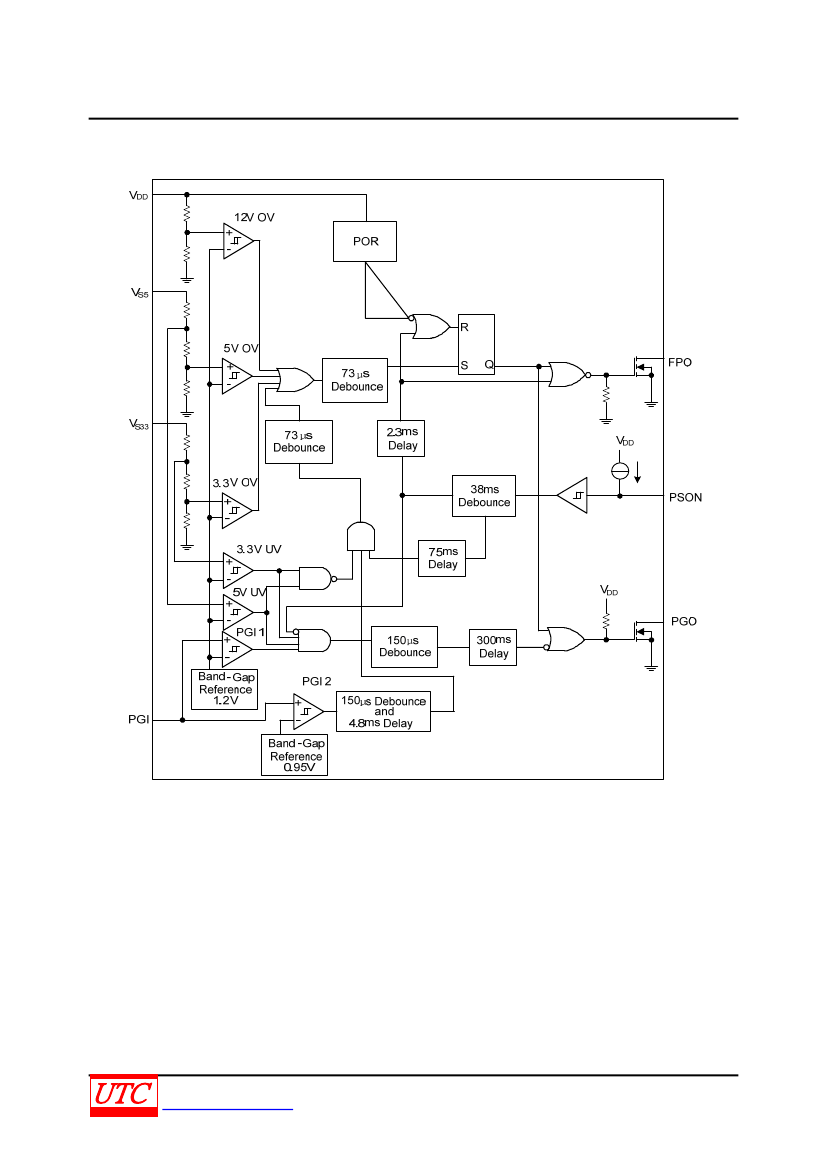

DESCRIPTION
The UTC
3510
is designed to provide protection circuits, power
good output (PGO) indicator, fault protection output (FPO) and a
PSON control for PC switching power supply systems.
The protection circuits include over voltage protection (OVP)
monitoring for 3.3V, 5V and 12V (12V via V
DD
pin) and under voltage
protection(UVP) monitoring for 3.3V and 5V. When an OV or UV event
arose and is detected, the power good output (PGO) goes low and the
FPO will be set to high. The protection latch can be reset by setting
PSON to high. UVP function is enabled 75ms after PSON is set low
and de-bounced. Besides, there is a 2.3ms delay with 38ms
de-bounce at turn off but no delay during turn on.
When OVP and UVP detected the right voltage level, a PGO signal
will be issued.
CMOS IC
FEATURES
* Over Voltage Protection and Lock Out for 3V, 5V and 12V.
* Under Voltage Protection and Lock Out for 3.3V and 5V.
* Open Drain Output for PGO and FPO pin.
* 300ms delay for PGO.
* 75ms delay for 3.3V and 5V short-circuit turn-on protection.
* 2.3ms PSON control to FPO turn-off delay.
* 38ms PSON control de-bounce.
* 73us width noise deglitches.
* Wide supply voltage range from 4V ~15V.
ORDERING INFORMATION
Ordering Number
Lead Free
3510L-D08-T
3510L-S08-R
3510L-S08-T
Halogen Free
3510G-D08-T
3510G-S08-R
3510G-S08-T
Package
DIP-8
SOP-8
SOP-8
Packing
Tube
Tape Reel
Tube
www.unisonic.com.tw
Copyright © 2012 Unisonic Technologies Co., Ltd
1 of 8
QW-R502-408.D
