UNISONIC TECHNOLOGIES CO., LTD
81XX
POWER RESET IC
3
3
21
5
LINEAR INTEGRATED CIRCUIT
DESCRIPTION
The function of UTC
81XX
is to accurately reset system after
detecting the supply voltage at the time of switching power on and
instantaneous power off in various CPU and other logic systems.
Further, this IC, with its super low consumption current and high
precision voltage detection capacity, UTC
81XX
is the most suited
as a voltage check circuit for a number of products which use
batteries.
2
1
4
SOT-23
SOT-25
FEATURES
*High precision voltage detection. (V
SS
±3%
max)
*low current consumption.
(I
CCH
=5µA max. I
CCL
=5µA max.)
*Low operating threshold voltage (0.65V typ.)
*Hysteresis voltage is provided as a detect voltage.
(50mV typ.)
*Large output current at the time ON (15mA typ.)
*The detect voltage can be selected at your discretion at 0.1V step
within the range of 1.9V to 4.6V by the following stipulation method.
1
1
SOT-89
TO-92

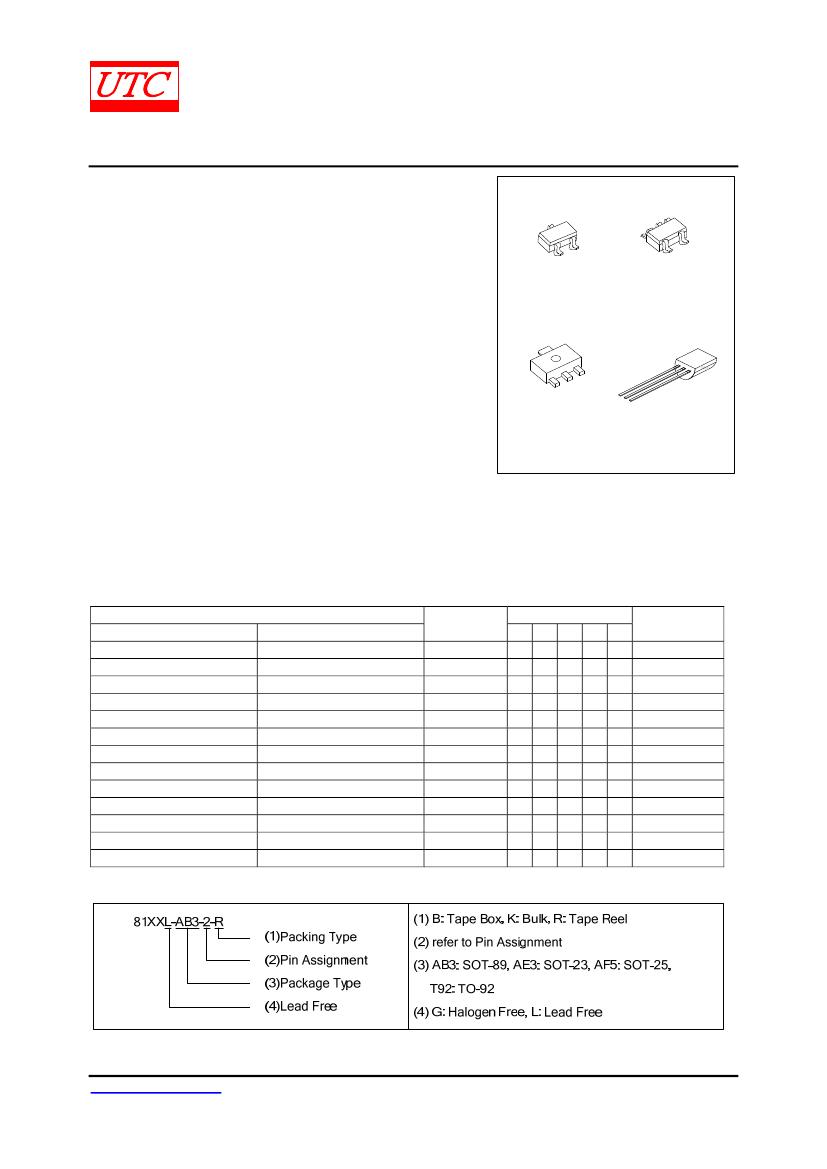

ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
81XXL-AB3-D-R
81XXG-AB3-D-R
81XXL-AB3-E-R
81XXG-AB3-E-R
81XXL-AE3-2-R
81XXG-AE3-2-R
81XXL-AE3-3-R
81XXG-AE3-3-R
81XXL-AE3-5-R
81XXG-AE3-5-R
81XXL-AF5-A-R
81XXG-AF5-A-R
81XXL-AF5-B-R
81XXG-AF5-B-R
81XXL-T92-D-B
81XXG-T92-D-B
81XXL-T92-D-K
81XXG-T92-D-K
81XXL-T92-D-R
81XXG-T92-D-R
81XXL-T92-E-B
81XXG-T92-E-B
81XXL-T92-E-K
81XXG-T92-E-K
81XXL-T92-E-R
81XXG-T92-E-R
Note: Pin Assignment:
I: V
IN
O: V
OUT
G: GND
XX: Detected Voltage Value
Package
SOT-89
SOT-89
SOT-23
SOT-23
SOT-23
SOT-25
SOT-25
TO-92
TO-92
TO-92
TO-92
TO-92
TO-92
N: NC
Pin Assignment
1 2 3 4 5
I G O -
-
O I G -
-
I O G -
-
O G I
-
-
G O I
-
-
N N G O I
O I G N N
I G O -
-
I G O -
-
I G O -
-
O I G -
-
O I G -
-
O I G -
-
Packing
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Box
Bulk
Tape Reel
Tape Box
Bulk
Tape Reel
www.unisonic.com.tw
Copyright © 2012 Unisonic Technologies Co., Ltd
1 of 6
QW-R119-001.Q
81XX

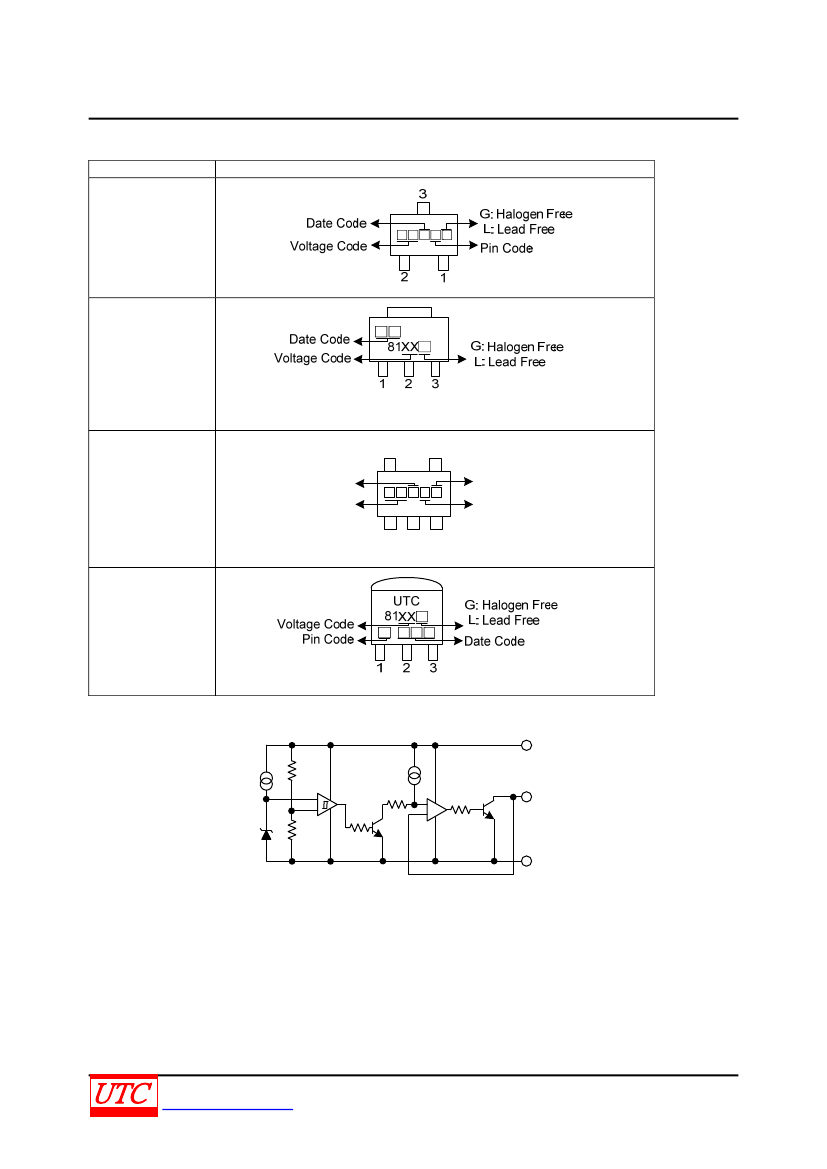

MARKING INFORMATION
PACKAGE
MARKING
LINEAR INTEGRATED CIRCUIT
SOT-23
SOT-89
5
Date Code
SOT-25
Voltage Code
1
2
4
G: Halogen Free
L: Lead Free
Pin Code
3
TO-92
BLOCK DIAGRAM
V
CC
C
01
+
-
OP
1
OUT
The Pin2 this product is SUB, so connect the pin to Ground.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
+
-
GND
2 of 6
QW-R119-001.Q
81XX
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Power Supply Voltage
SYMBOL
V
CC
LINEAR INTEGRATED CIRCUIT
RATINGS
-0.3~+10
TO-92
400
SOT-89
500
Power Dissipation
P
D
SOT-23
300
SOT-25
350
Operating Temperature
T
OPR
-20~+75
Storage Temperature
T
STG
-40~+125
Note Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
UNIT
V
mW
mW
mW
mW
°C
°C
ELECTRICAL CHARACTERISTICS
(T
A
=25°C, The unit of resistance is
Ω
unless otherwise indicated.)
PARAMETER
SYMBOL
(Note 1)
TEST CONDITIONS
UTC 8150
UTC 8146
UTC 8145
UTC 8144
UTC 8143
UTC 8142
UTC 8141
UTC 8140
UTC 8139
UTC 8138
UTC 8137
UTC 8136
UTC 8135
UTC 8134
R
L
=470Ω
UTC 8133
V
CC
=H->L
Detection Voltage
V
SS
1
UTC 8132
V
OUT
=V
CC
UTC 8131
UTC 8130
UTC 8129
UTC 8128
UTC 8127
UTC 8126
UTC 8125
UTC 8124
UTC 8123
UTC 8122
UTC 8121
UTC 8120
UTC 8119
UTC 8118
R
L
=470Ω, V
CC
=L>H->L,
Hysteresis Voltage
ΔV
SS
1
V
OUT
=V
CC
R
L
=470Ω, T
A
=-20~+75°C
Detection Voltage Temperature
V
SS
/ΔT
1
Coefficient
V
OUT
=V
CC
V
CC
=V
SS
MIN -0.05V,
Low Level Output Voltage
V
OL
1
R
L
=470Ω
Output Leakage Current
IOH
2
VCC=10V , VOUT=VCC
MIN
4.850
4.462
4.365
4.268
4.171
4.074
3.977
3.880
3.783
3.686
3.589
3.492
3.395
3.298
3.201
3.104
3.007
2.910
2.813
2.716
2.619
2.522
2.425
2.328
2.231
2.134
2.037
1.940
1.843
1.746
30
TYP
5.000
4.600
4.500
4.400
4.300
4.200
4.100
4.000
3.900
3.800
3.700
3.600
3.500
3.400
3.300
3.200
3.100
3.000
2.900
2.800
2.700
2.600
2.500
2.400
2.300
2.200
2.100
2.000
1.900
1.800
50
±0.01
0.2
0.4
±0.1
MAX
5.150
4.738
4.635
4.532
4.429
4.326
4.223
4.120
4.017
3.914
3.811
3.708
3.605
3.502
3.399
3.296
3.193
3.090
2.987
2.884
2.781
2.678
2.575
2.472
2.369
2.266
2.163
2.060
1.957
1.854
100
UNIT
V
mV
%/°C
V
µA
3 of 6
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
QW-R119-001.Q
81XX
ELECTRICAL CHARACTERISTICS(Cont.)
PARAMETER
Circuit Current at ON Time
Circuit Current at OFF Time
LINEAR INTEGRATED CIRCUIT
SYMBOL
(Note 1)
TEST CONDITIONS
I
CCL
3
V
CC
=V
SS
MIN -0.05V, R
L
=∞
I
CCH
3
V
CC
=V
SS
TYP/0.85, R
L
=∞
T
P
LH
4
C
L
=100pF, R
L
=4.7kΩ
“H” Transmission Delay Time
(Note 2)
T
P
HL
4
C
L
=100pF, R
L
=4.7kΩ
“L” Transmission Delay Time
(Note 3)
Operating Threshold Voltage
V
OPL
1
R
L
=4.7kΩ, V
OL
≤0.4V
R
L
=0, V
CC
=Vs MIN -0.05V,
Output current at ON Time 1
I
OL
1
2
V
OUT
=0.4V
T
A
=-20~+75°C
R
L
=0, V
CC
=V
SS
MIN -0.15V
Output current at ON Time 2
I
OL
2
2
V
OUT
=0.4V
Note: 1. MEASUREMENT CIRCUIT
2.
T
P
LH: V
CC
=(V
SS
Typ. -0.4V) -> (V
SS
Typ. +0.4V)
3.
T
P
HL: V
CC
=(V
SS
Typ. +0.4V) -> (V
SS
Typ. -0.4V)
MIN
TYP
3
3
20
20
0.65
MAX
5
5
60
60
0.85
UNIT
µA
µA
µS
µS
V
mA
mA
5
3
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 6
QW-R119-001.Q
81XX
MEASURING CIRCUITS
LINEAR INTEGRATED CIRCUIT
1
R
L
2
V
CC
UTC 81XX
GND
V
OUT
V
CC
UTC 81XX
GND
V
OUT
A
V
CC
V1
+
10µF
/10V
V
CC
V2
V1
+
10µF
/10V
V
OUT
V2
3
A
V
CC
UTC
81XX V
OUT
GND
V
CC
V
+
10µF
/10V
Note:
1.) A: DC AMMETER
2.) INPUT PULSE
V: DC VOLTMETER
CRT: OSCILLOSCOPE
VsTyp. +0.4V
VsTyp. -0.4V
0V
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5 of 6
QW-R119-001.Q
