SNAPTACR21RLC05CH02 datasheet, PDF

Datasheet> All Categories > The connector> The connector> SNAPTACR21RLC05CH02

SNAPTACR21RLC05CH02: DescriptionTelecom and Datacom Connector, 21 Contact(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size799KB，7 Pages; ManufacturerSmiths Group; Environmental Compliance

Download Datasheet Parametric View All

SNAPTACR21RLC05CH02 Overview

Telecom and Datacom Connector, 21 Contact(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT

SNAPTACR21RLC05CH02 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Smiths Group
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	EMI SHIELDED
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER/BRASS
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	ZINC
Shell material	ALUMINUM ALLOY
Termination type	SOLDER
Total number of contacts	21

Preview

Download Datasheet

View All

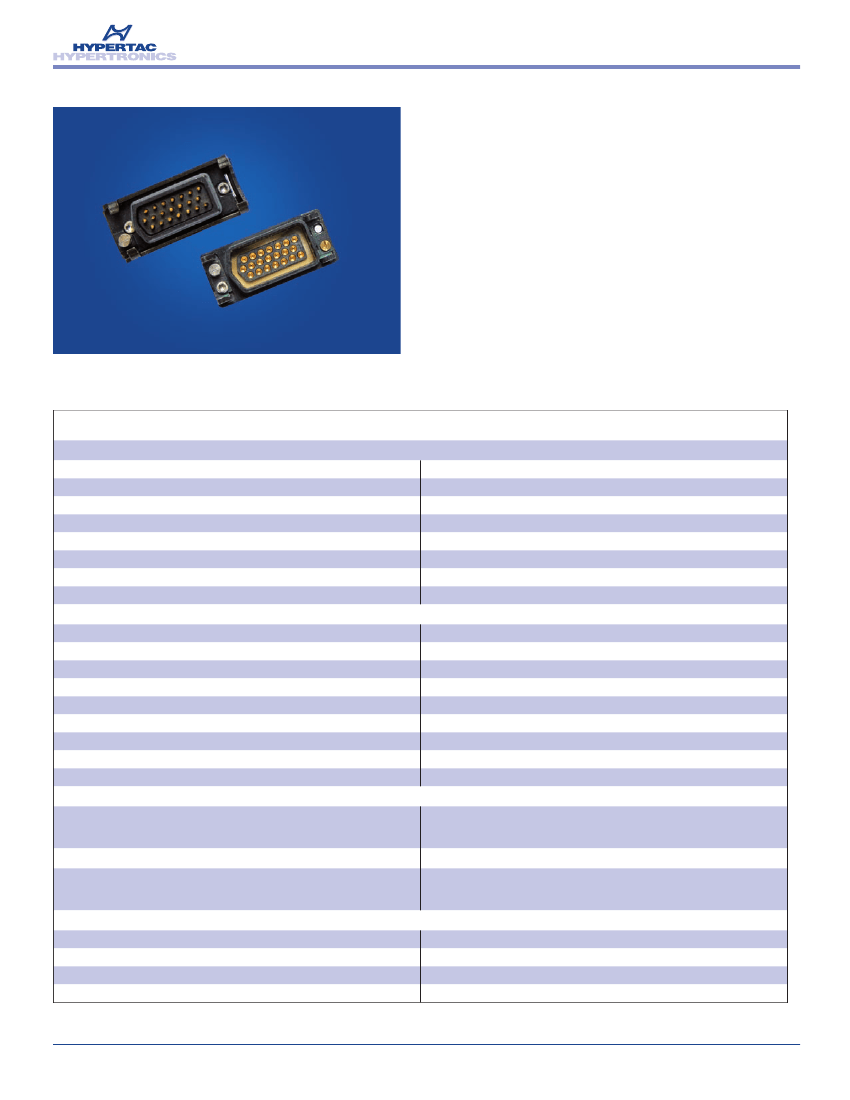

SnapTac Series

Miniature Rectangular

Connectors

• HyperSpring

spring loaded contacts, self-cleaning

wiping action

• 12 or 21 contact configurations

• Combine robust environmental performance

with compact size and light weight

• Easy and fast push-pull locking mechanism

• Full line EMI shielding

• IP67 sealing when mated and unmated

• D-shape hardware coding to avoid mismatching

• 4 position key coding available on request

• Overmolding solutions

• Upgrade commercial high speed Fast Ethernet, USB,

IEEE 1394 interconnect to Mil Spec performances

General Specifications

General

Number of Contacts

Receptacle Terminations

Plug Termination

Cable Diameter Range

AWG Contact

HyperSpring Force

Connector Mating Force

Connector Unmating Force

12, 21

Solder Cup, Dip Solder

Solder Cup

0.315 [8.00] max.

26 - 30

5.5 oz. max. per contact

12 Contacts: 180.0 oz., 21 Contacts: 215.0 oz.

36.0 oz. (after locking system release)

Electrical and Mechanical Characteristics

EMI Shielding

Current Rating

Breakdown Voltage

Dielectric Withstanding Voltage

(between contacts)

Contact Resistance

(low level)

Insulation Resistance

Vibration

Shock

Weight

(Plug and Receptacle – with contacts – without cabling)

Yes

3 Amps at 25° C

625V

500V

< 15 milliohms

5000 Megohms at 500VDC - EIA364.21

EIA364.28 Condition III

EIA364.27 Condition G

12 Contacts: 0.8 oz., 21 Contacts: 1.0 oz.

Materials and Plating

Housing

Material

Plating

Plug Overmolding

Contact

Material

Plating

Aluminium alloy

Zinc cobalt conductive – RoHS compliant

Thermoplastic hotmelt

Brass, beryllium copper

Gold

Environmental Characteristics

Temperature Range

Salt Spray

Humidity

IP Level

-65° C to 80° C

EIA364.26 Condition A (mated connectors)

EIA364.31 Method IV

67 mated and unmated

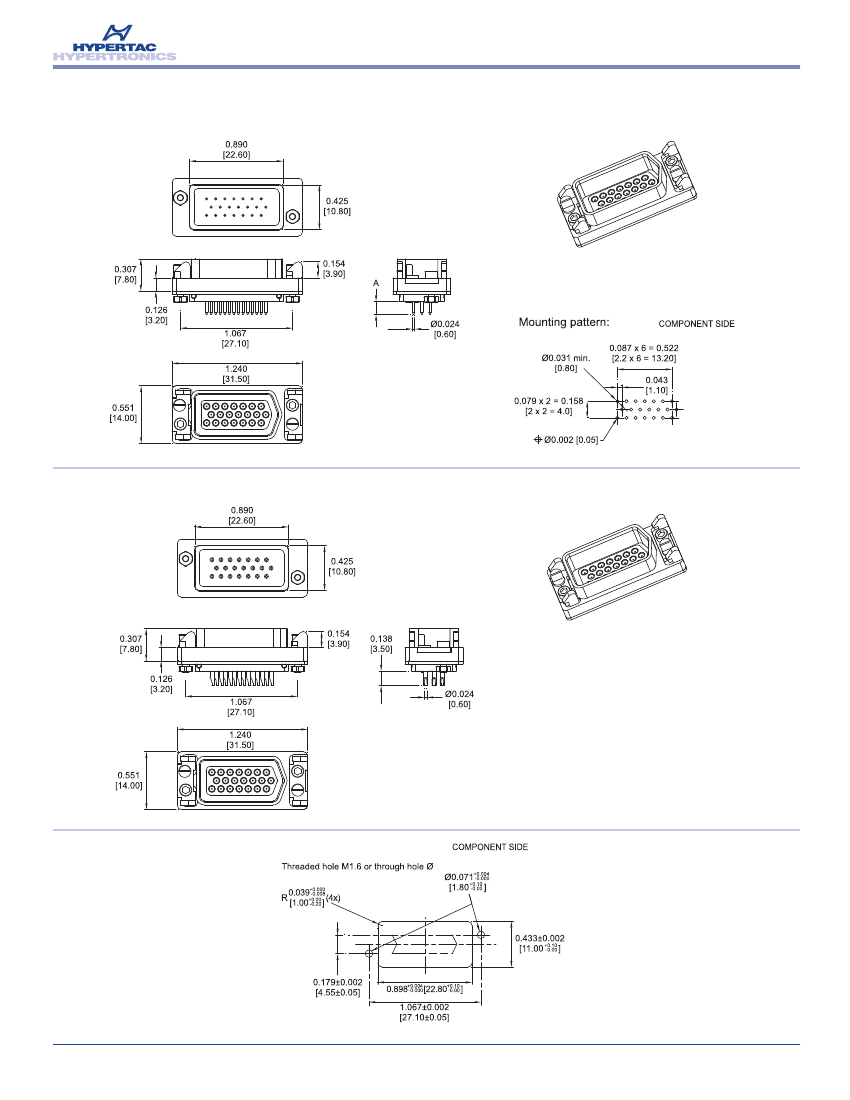

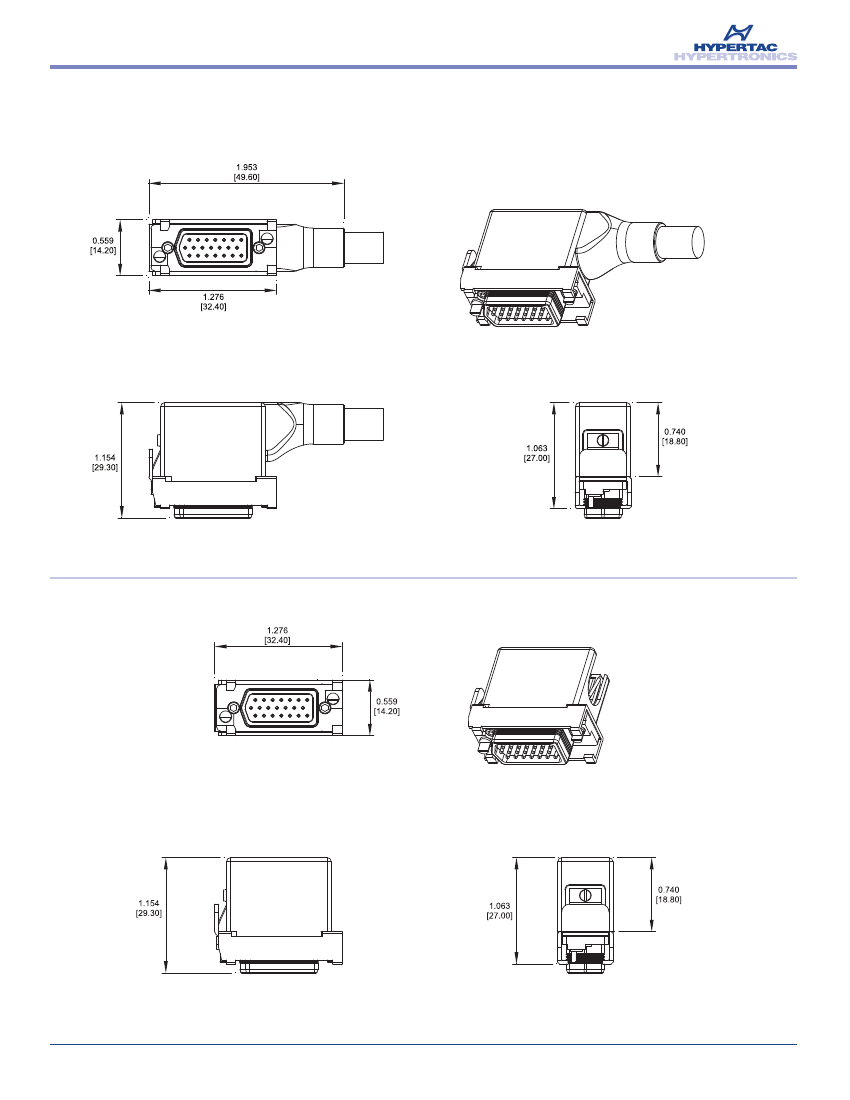

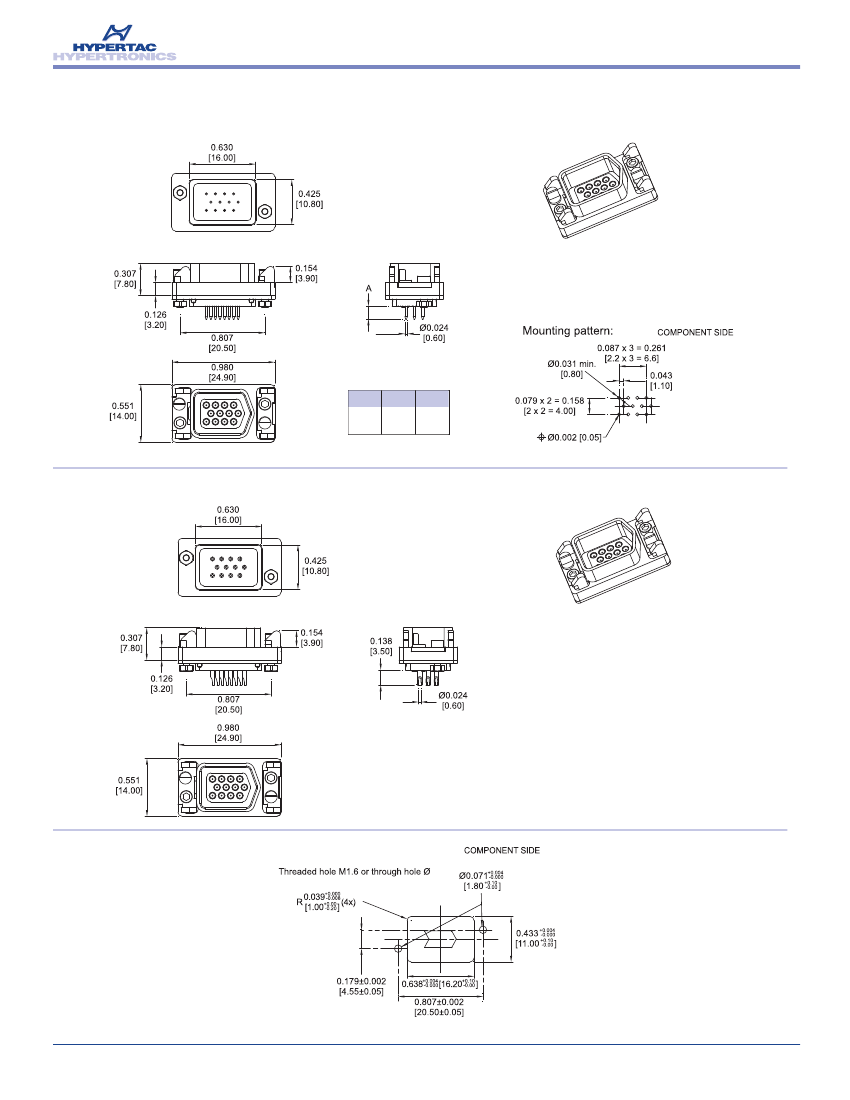

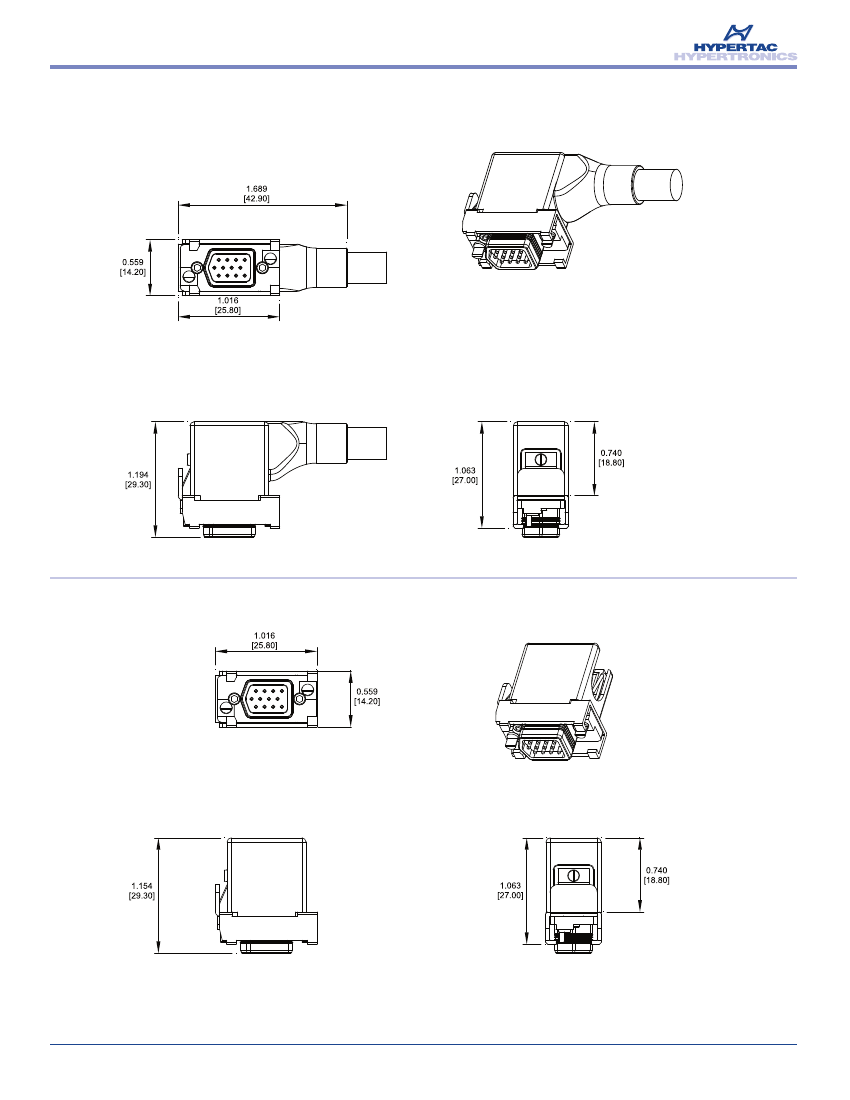

Dimensions are in inches [mm]

www.hypertronics.com

3 / 111
