U74LVC2G125G-SM1-T datasheet, PDF

Datasheet> All Categories > logic> logic> U74LVC2G125G-SM1-T

U74LVC2G125G-SM1-T: DescriptionDUAL BUS BUFFER GATE WITH 3-STATE OUTPUTS; Categorylogic logic; File Size193KB，6 Pages; ManufacturerUNISONIC TECHNOLOGIES CO.,LTD; Websitehttp://www.unisonic.com.tw/; Environmental Compliance

Download Datasheet Parametric Compare View All

U74LVC2G125G-SM1-T Overview

DUAL BUS BUFFER GATE WITH 3-STATE OUTPUTS

U74LVC2G125G-SM1-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	UNISONIC TECHNOLOGIES CO.,LTD
Parts packaging code	MSOP
package instruction	LSSOP,
Contacts	8
Reach Compliance Code	compli
series	LVC/LCX/Z
JESD-30 code	S-PDSO-G8
length	3 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	1
Number of functions	2
Number of ports	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	SQUARE
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	9.1 ns
Maximum seat height	1.25 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.65 V
Nominal supply voltage (Vsup)	1.8 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3 mm

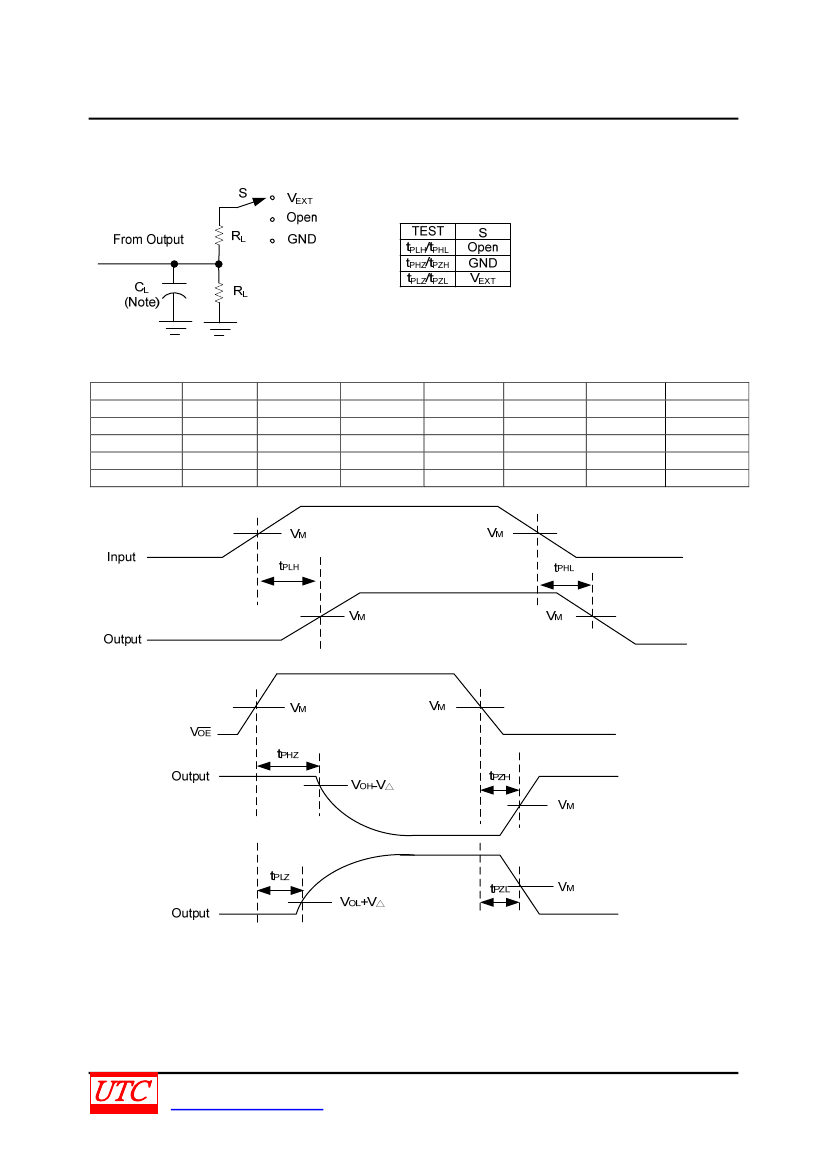

Preview

Download Datasheet

View All

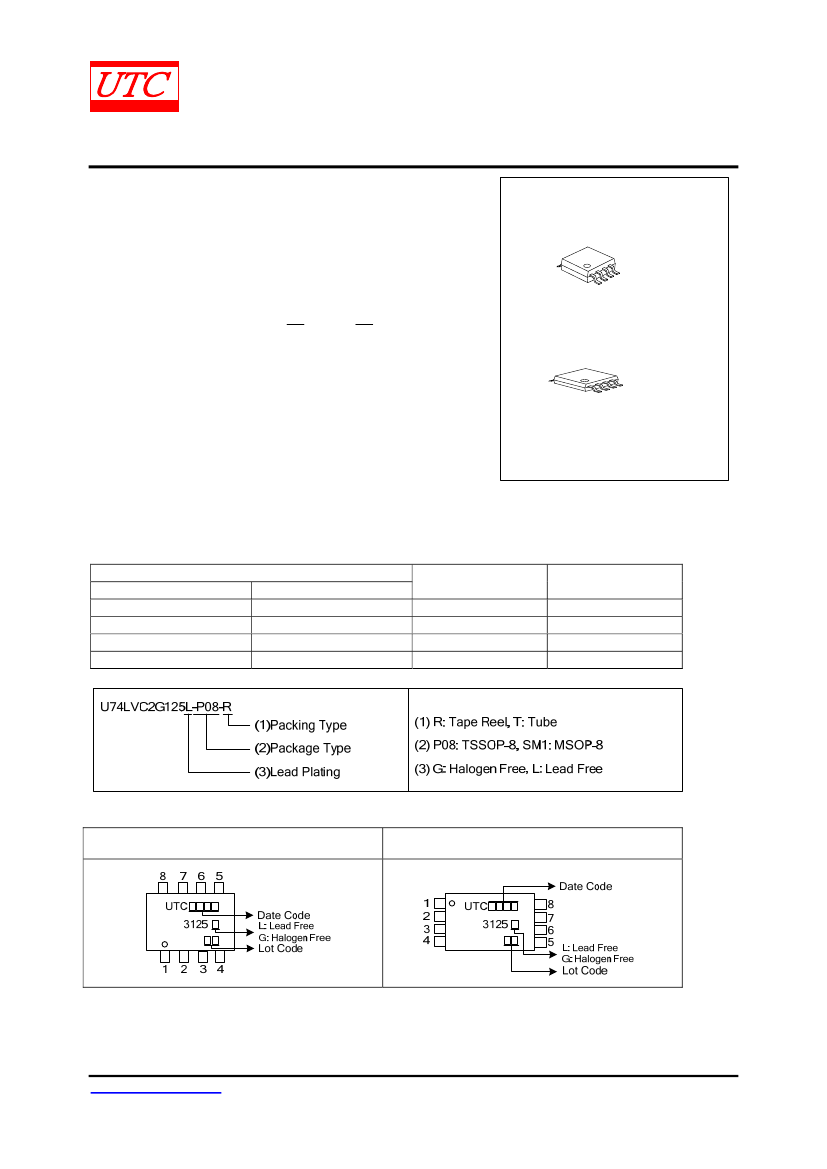

UNISONIC TECHNOLOGIES CO., LTD

U74LVC2G125

DUAL BUS BUFFER GATE

WITH 3-STATE OUTPUTS

DESCRIPTION

The U74LVC2G125L consists of two bus buffers with 3-state

output controlled by enable input (nOE), when nOE is high, the

output is disable.

Inputs can be driven from either 3.3V or 5V devices, so the

device can be used in a mix 3.3V/5V system.

This device is full specified for partial power-down protective

circuit, preventing the backflow current through the device when it

is powered down.

CMOS IC

MSOP-8

TSSOP-8

FEATURES

* Operation Voltage Range: 1.65~5.5V

* Low Power Dissipation

* Input Accept Voltage to 5.5V

ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

U74LVC2G125L-P08-R

U74LVC2G125G-P08-R

U74LVC2G125L-P08-T

U74LVC2G125G-P08-T

U74LVC2G125L-SM1-R

U74LVC2G125G-SM1-R

U74LVC2G125L-SM1-T

U74LVC2G125G-SM1-T

Package

TSSOP-8

MSOP-8

Packing

Tape Reel

Tube

Tape Reel

Tube

MARKING INFORMATION

MSOP-8

TSSOP-8

www.unisonic.com.tw

1 of 6

QW-R502-136.C

U74LVC2G125G-SM1-T Related Products

	U74LVC2G125G-SM1-T	U74LVC2G125_15	U74LVC2G125G-P08-T	U74LVC2G125G-SM1-R	U74LVC2G125L-P08-R	U74LVC2G125G-P08-R	U74LVC2G125L-P08-T	U74LVC2G125L-SM1-R	U74LVC2G125L-SM1-T
Description	DUAL BUS BUFFER GATE WITH 3-STATE OUTPUTS	DUAL BUS BUFFER GATE WITH 3-STATE OUTPUTS	DUAL BUS BUFFER GATE WITH 3-STATE OUTPUTS	DUAL BUS BUFFER GATE WITH 3-STATE OUTPUTS	DUAL BUS BUFFER GATE WITH 3-STATE OUTPUTS	DUAL BUS BUFFER GATE WITH 3-STATE OUTPUTS	DUAL BUS BUFFER GATE WITH 3-STATE OUTPUTS	DUAL BUS BUFFER GATE WITH 3-STATE OUTPUTS	DUAL BUS BUFFER GATE WITH 3-STATE OUTPUTS
Is it Rohs certified?	conform to	-	conform to	-	conform to	-	conform to	conform to	conform to
Maker	UNISONIC TECHNOLOGIES CO.,LTD	-	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD
Parts packaging code	MSOP	-	SOIC	MSOP	SOIC	SOIC	SOIC	MSOP	MSOP
package instruction	LSSOP,	-	TSSOP,	LSSOP,	TSSOP,	TSSOP,	TSSOP,	LSSOP,	LSSOP,
Contacts	8	-	8	8	8	8	8	8	8
Reach Compliance Code	compli	-	compli	compli	compli	compli	compli	compli	compli
series	LVC/LCX/Z	-	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z
JESD-30 code	S-PDSO-G8	-	R-PDSO-G8	S-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	S-PDSO-G8	S-PDSO-G8
length	3 mm	-	4.4 mm	3 mm	4.4 mm	4.4 mm	4.4 mm	3 mm	3 mm
Logic integrated circuit type	BUS DRIVER	-	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	1	-	1	1	1	1	1	1	1
Number of functions	2	-	2	2	2	2	2	2	2
Number of ports	2	-	2	2	2	2	2	2	2
Number of terminals	8	-	8	8	8	8	8	8	8
Maximum operating temperature	85 °C	-	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	-	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	-	TSSOP	LSSOP	TSSOP	TSSOP	TSSOP	LSSOP	LSSOP
Package shape	SQUARE	-	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	-	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
propagation delay (tpd)	9.1 ns	-	9.1 ns	9.1 ns	9.1 ns	9.1 ns	9.1 ns	9.1 ns	9.1 ns
Maximum seat height	1.25 mm	-	1.2 mm	1.25 mm	1.2 mm	1.2 mm	1.2 mm	1.25 mm	1.25 mm
Maximum supply voltage (Vsup)	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	1.65 V	-	1.65 V	1.65 V	1.65 V	1.65 V	1.65 V	1.65 V	1.65 V
Nominal supply voltage (Vsup)	1.8 V	-	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V
surface mount	YES	-	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	-	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	-	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	3 mm	-	3.05 mm	3 mm	3.05 mm	3.05 mm	3.05 mm	3 mm	3 mm
