MAS28155CS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MAS28155CS

MAS28155CS: DescriptionParallel I/O Port, 24 I/O, CMOS, CDIP40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size213KB，20 Pages; ManufacturerDynex; Websitehttp://www.dynexsemi.com/

Download Datasheet Parametric View All

MAS28155CS Overview

Parallel I/O Port, 24 I/O, CMOS, CDIP40

MAS28155CS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Dynex
package instruction	DIP, DIP40,.6
Reach Compliance Code	unknown
ECCN code	EAR99
External data bus width	8
JESD-30 code	R-CDIP-T40
JESD-609 code	e0
Number of I/O lines	24
Number of ports	3
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Maximum slew rate	10 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE

Preview

Download Datasheet

View All

MA28155

Radiation Hard Programmable

Peripheral Interface

Replaces June 1999 version, DS3575-4.0

DS3575-5.0 January 2000

The MA28155 is a general purpose programmable Input/

Output device designed for use with the MAS281

microprocessor. It has 24 I/O pins which may be individually

programmed in 2 groups of 12 and used in 3 major modes of

operation.

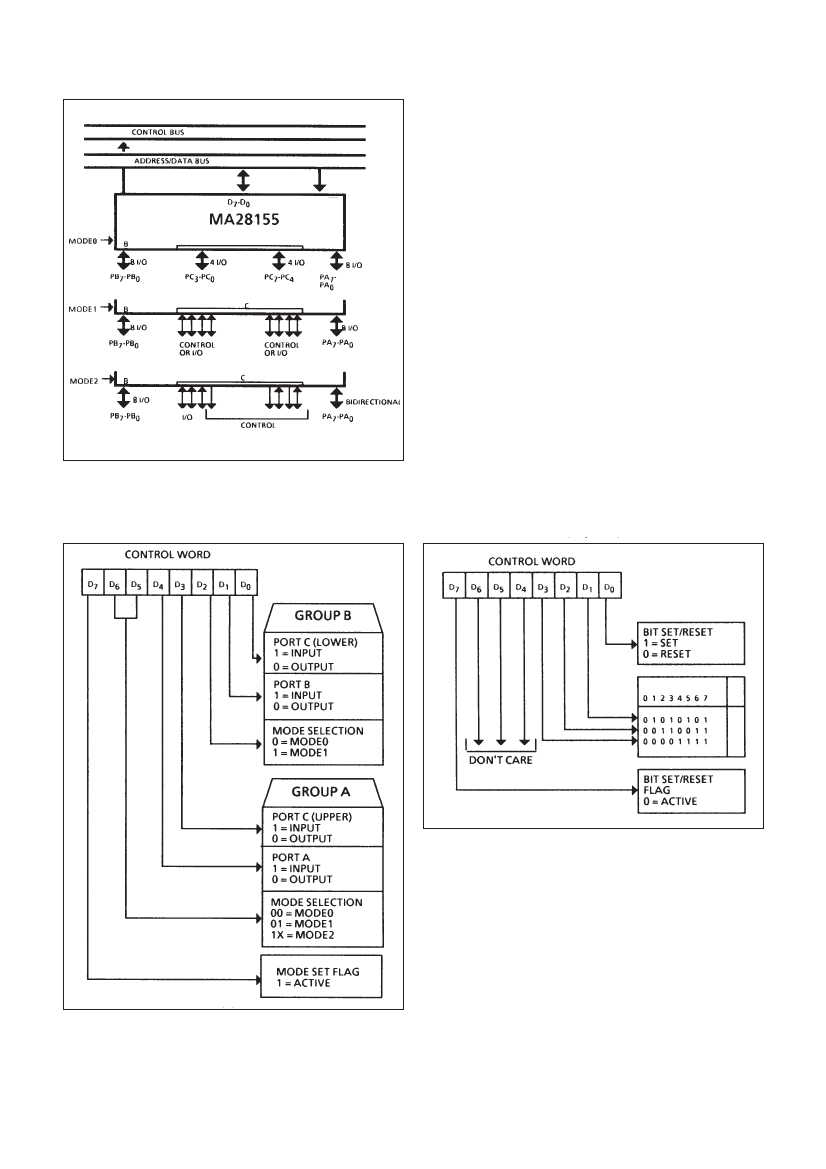

In the first mode (MODE 0), each group of 12 I/O pins may

be programmed in sets of 4 to be inputs or outputs. In the

second mode (MODE 1), each group may be programmed to

have 8 lines of input or output. Of the remaining 4 pins, 3 are

used for hand-shaking and interrupt control signals. The third

mode of operation (MODE 2) is the bidirectional bus mode,

which uses 8 lines for a bidirectional bus and 5 lines, borrowing

one from the other group, for hand-shaking.

FEATURES

Radiation Hard to 1MRad (Si)

High SEU Immunity, Latch Up Free

Silicon-on-Sapphire Technology

24 Programmable l/O Pins

All Inputs and Outputs are TTL Compatible

Direct Bit Set/Reset Capability Easing Control Application

Interface

Replaces Several MSI Packages

Compatible with MAS281 (Mil-Std-1750A) Microprocessor

RD/WN

DSN

CSN

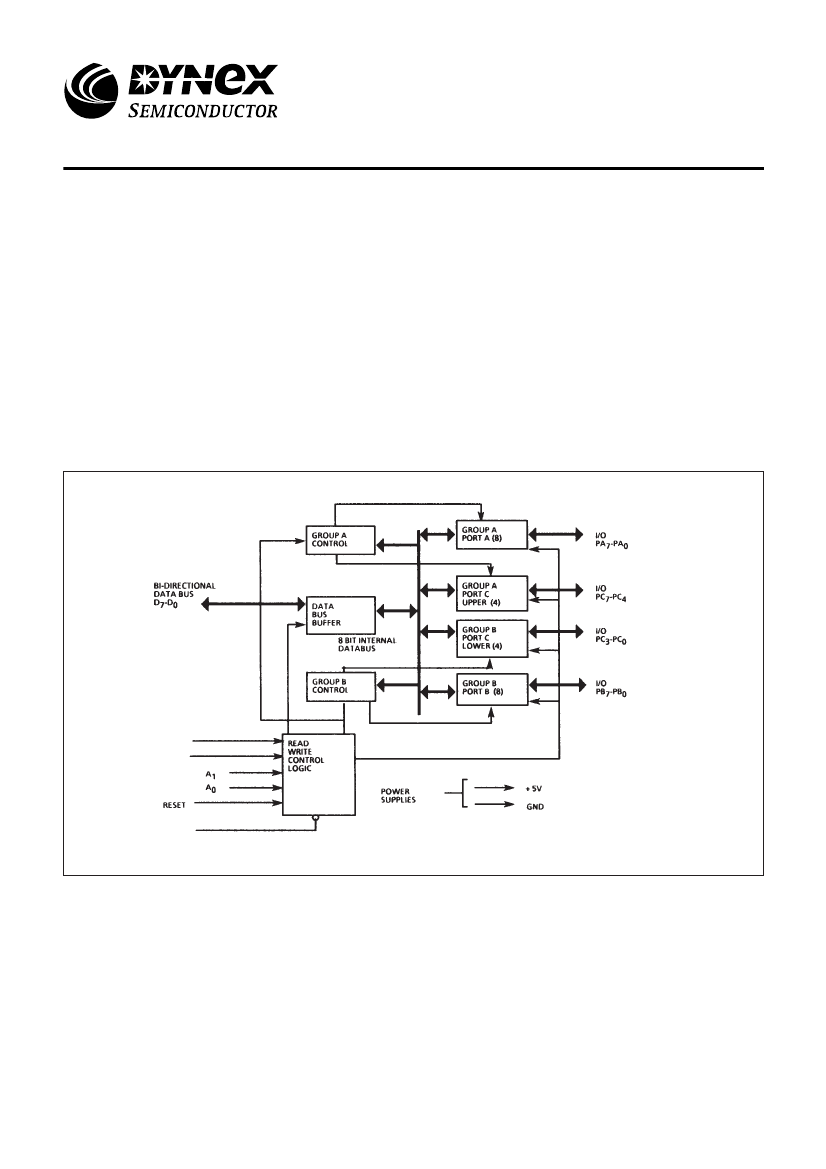

Figure 1: Block Diagram

1/20
