UNISONIC TECHNOLOGIES CO., LTD

MJE13003-P

NPN SILICON POWER

TRANSISTOR

DESCRIPTION

These devices are designed for high-voltage and

high-speed power switching inductive circuits where fall time is

critical. They are particularly suited for 115 and 220V

applications in switch mode.

NPN SILICON TRANSISTOR

FEATURES

* Reverse biased SOA with inductive load @ Tc=100°C

* Inductive switching matrix 0.5 ~ 1.5 Amp, 25 and 100°C

Typical tc = 290ns @ 1A, 100°C.

* 700V blocking capability

APPLICATIONS

* Switching regulator’s, inverters

* Motor controls

* Solenoid/relay drivers

* Deflection circuits

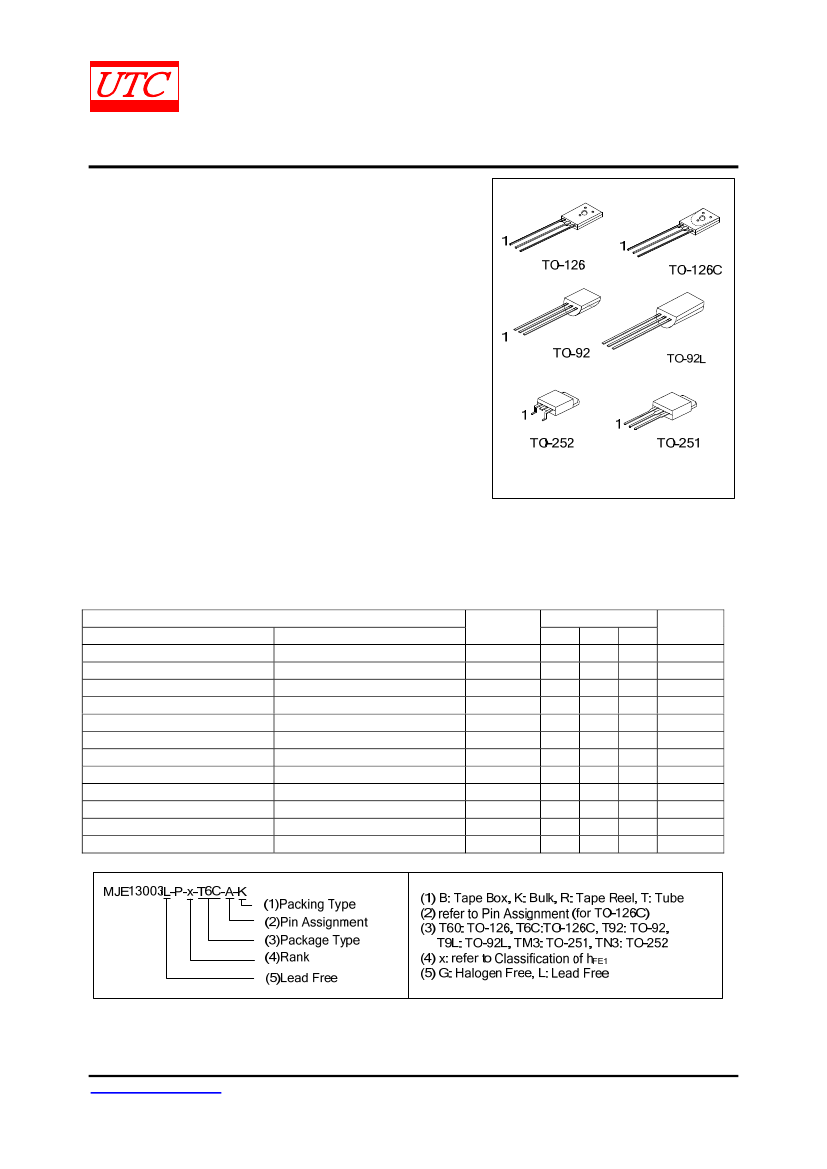

ORDERING INFORMATION

Ordering Number

Lead Free

MJE13003L-P-x-T60-K

MJE13003L-P-x-T6C-A-K

MJE13003L-P-x-T6C-F-K

MJE13003L-P-x-T92-B

MJE13003L-P-x-T92-K

MJE13003L-P-x-T92-R

MJE13003L-P-x-T9L-B

MJE13003L-P-x-T9L-K

MJE13003L-P-x-T9L-R

MJE13003L-P-x-TM3-T

MJE13003L-P-x-TN3-R

MJE13003L-P-x-TN3-T

Halogen-Free

MJE13003G-P-x-T60-K

MJE13003G-P-x-T6C-A-K

MJE13003G-P-x-T6C-F-K

MJE13003G-P-x-T92-B

MJE13003G-P-x-T92-K

MJE13003G-P-x-T92-R

MJE13003G-P-x-T9L-B

MJE13003G-P-x-T9L-K

MJE13003G-P-x-T9L-R

MJE13003G-P-x-TM3-T

MJE13003G-P-x-TN3-R

MJE13003G-P-x-TN3-T

Package

TO-126

TO-126C

TO-92

TO-92L

TO-251

TO-252

Pin Assignment

Packing

Bulk

Tape Box

Bulk

Tape Reel

Tape Box

Bulk

Tape Reel

Tube

Tape Reel

Tube

www.unisonic.com.tw

1 of 8

QW-R204-027.A
