AZ1086D-3.0G1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AZ1086D-3.0G1

AZ1086D-3.0G1: Description1.5A LOW DROPOUT LINEAR REGULATOR; CategoryPower/power management The power supply circuit; File Size422KB，17 Pages; ManufacturerBCD Semi（Diodes）; Environmental Compliance

Download Datasheet Parametric View All

AZ1086D-3.0G1 Overview

1.5A LOW DROPOUT LINEAR REGULATOR

AZ1086D-3.0G1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	BCD Semi（Diodes）
Parts packaging code	TO-252
package instruction	TO-252, SMSIP3H,.38,90TB
Contacts	4
Reach Compliance Code	unknow
ECCN code	EAR99
Adjustability	FIXED
Maximum drop-back voltage 1	1.5 V
Nominal dropback voltage 1	1.3 V
Maximum absolute input voltage	15 V
Maximum input voltage	15 V
Minimum input voltage	1.5 V
JESD-30 code	R-PSSO-G2
length	6.525 mm
Maximum grid adjustment rate	0.006%
Maximum load regulation	0.02%
Number of functions	1
Output times	1
Number of terminals	2
Working temperatureTJ-Max	125 °C
Operating temperatureTJ-Mi
Maximum output current 1	1.5 A
Maximum output voltage 1	3.06 V
Minimum output voltage 1	2.94 V
Nominal output voltage 1	3 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-252
Encapsulate equivalent code	SMSIP3H,.38,90TB
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TUBE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	2.527 mm
surface mount	YES
technology	BIPOLAR
Terminal form	GULL WING
Terminal pitch	2.3 mm
Terminal location	SINGLE
Maximum voltage tolerance	2%
width	5.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Data Sheet

1.5A LOW DROPOUT LINEAR REGULATOR

General Description

The AZ1086 is a series of low dropout positive voltage

regulators with a maximum dropout of 1.5V at 1.5A of

load current.

The series features on-chip thermal shutdown. It also

includes a bandgap reference and a current limiting cir-

cuit.

The AZ1086 is available in 1.5V, 1.8V, 2.5V, 3.0V,

3.3V, and 5.0V versions. The fixed versions integrate

the adjust resistors. It is also available in an adjustable

version, which can set the output voltage with only two

external resistors.

The AZ1086 series is available in standard packages of

TO-263-3, TO-220-3, SOT-223 and TO-252-2.

AZ1086

Features

Low Dropout Voltage: Typical 1.3V at 1.5A

Current Limiting and Thermal Protection

Output Current: 1.5A

Current Limit: 2.3A

Operating Junction Temperature: 0 to 125

Line Regulation: 0.015% (Typical)

Load Regulation: 0.1% (Typical)

Applications

High Efficiency Linear Regulators

Battery Charger

Post Regulation for Switching Supply

Microprocessor Supply

Motherboard Power Supply

Cable and ADSL Modem

DVD-Video Player

Telecom Equipment

Set Top Boxes and Web Boxes Modules' Supply

TO-263-3

TO-220-3

SOT-223

TO-252-2

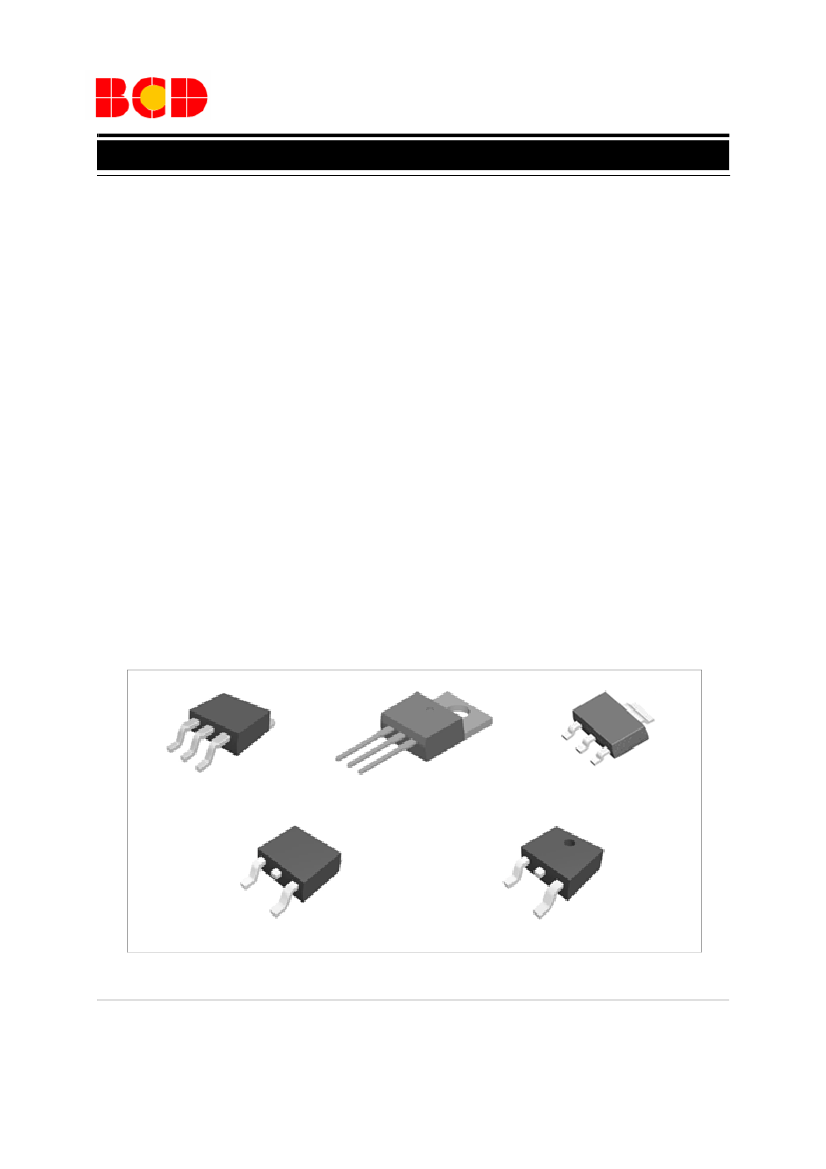

Figure 1. Package Types of AZ1086

Apr. 2011 Rev. 1. 8

BCD Semiconductor Manufacturing Limited
