SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 2056, REV. -
B – 1W Series
DC-DC Converters
Fixed Input, 3000V Isolation, Unregulated, Single/Dual Output, Micro-Package
FEATURES:
•
•
•
•
•
•
•
•
•
•
•
Isolation Voltage:
Isolation Resistance (1):
Short-Circuit Duration:
Case Temperature Rise:
Cooling Method:
Operating Temp.:
Storage Temp.:
Humidity:
Soldering Temp. (2):
Case Material:
Mean Time Before Failure:
3000Vdc
1000MΩ
1 second
Max. 25°C, Typ. 15°C
Free-Air Cooling
-40°C ~ + 85°C
-55°C ~ + 125°C
≤
95%
300°C
Non-Flammable Material (UL94-V0)
> 1,000,000 hours (Operating Temp. 25°C)
B Single/Dual Micro Package-1W Series Input Characteristics
Part Number
B05XXH/GM1U
Nominal Input Voltage
5Vdc
Input Voltage Range
4.5~5.5Vdc
Maximum Input Voltage*
7Vdc
15Vdc
B12XXH/GM1U
12Vdc
10.8~13.2Vdc
* Voltage above this value may cause permanent damage to the device.
B Single/Dual Micro Package-1W Series Characteristics
Parameter
Output Power
Line Regulation
Efficiency at 100% Load
Temperature Coefficient
5V Output
Load Regulation
9V Output
12V Output
15V Output
5V Output
Ripple and Noise
9V Output
12V Output
15V Output
Switching Frequency
1.
2.
80
14
9
7.5
7.0
85
60
50
40
100
65
1.0
75
85
0.03
15
10
9.5
8.5
110
75
65
55
200
kHz
mVp-p
MIN
TYP
MAX
1
Units
W
%
%
%/°C
%
All specifications at TA=25°C, 75% of the humidity, Nominal input voltage, full output load unless otherwise
specified.
Soldering for 10 seconds at 1.5mm away from the edge.
•
221 West Industry Court
•
Deer Park, NY 11729-4681
•
Phone (631) 586-7600
•
Fax (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 2056, REV. -
B – 1W Series
B Single/Dual Micro Package-1W Series Part Number List
Input
Output
5V/200mA
9V/111mA
12V/84MA
±
5V/100mA
±
9V/55mA
±
12V/42mA
±
15V/33mA
Power
1.00 W
1.00 W
1.00 W
1.00 W
1.00 W
1.00W
1.00W
Single-1W
B0505HM1U
B0509HM1U
B0512HM1U
B0515HM1U
B1205HM1U
B1209HM1U
B1212HM1U
Dual-1W
B0505GM1U
B0509GM1U
B0512GM1U
B0515GM1U
B1205GM1U
B1209GM1U
B1212GM1U
5Vdc
12Vdc
PIN CONFIGURATION
BxxyyHM1U PACKAGE DIMENSIONS
BxxyyGM1U PACKAGE DIMENSIONS
1 2
4 5 6
1 2 3 4
PIN CONFIGURATION
Pin
1
2
3
4
Function
GND
Vin
0V
+Vo
PIN CONFIGURATION
Pin
1
2
4
5
6
Function
Vin
GND
-Vo
0V
+Vo
•
221 West Industry Court
•
Deer Park, NY 11729-4681
•
Phone (631) 586-7600
•
Fax (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 2056, REV. -
B – 1W Series

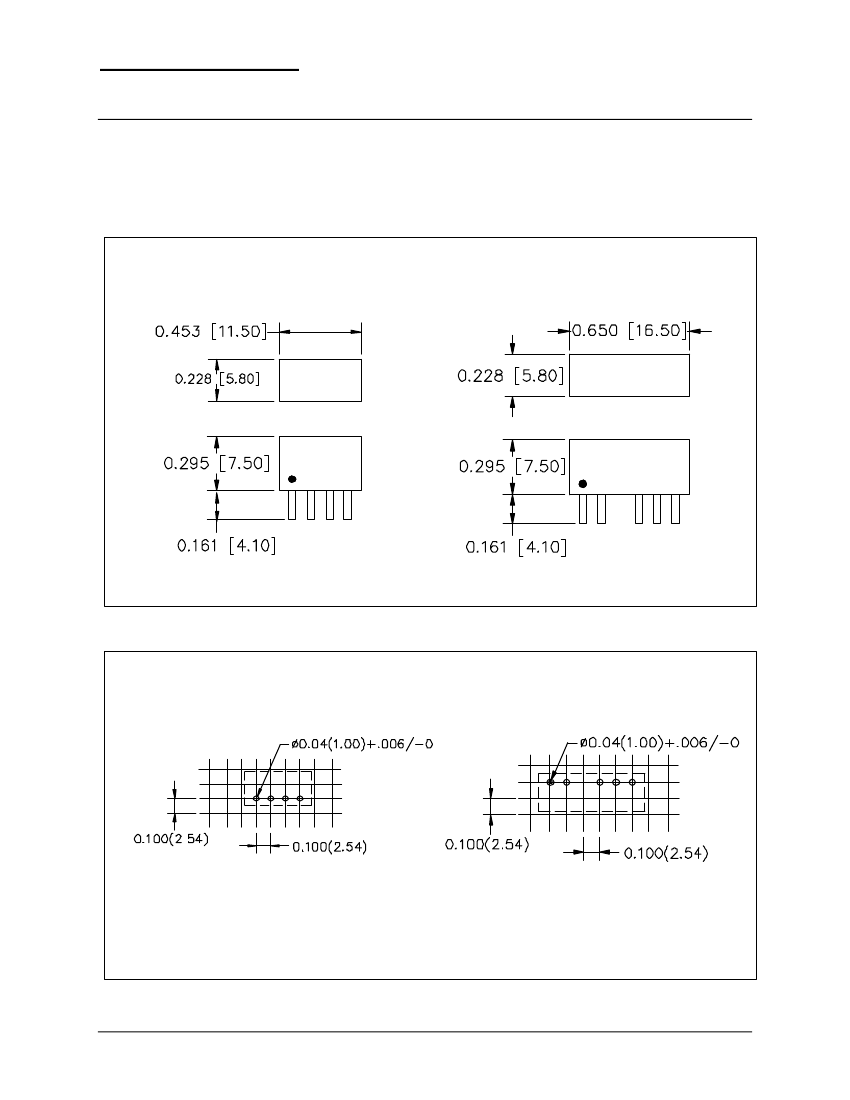

Mechanical Dimension: in inches / (mm)
BxxyyHM1U PACKAGE DIMENSIONS
BxxyyGM1U PACKAGE DIMENSIONS
DIMENSIONAL RECOMMENDATIONS FOR PCB LAYOUT
SIP PACKAGE DIMENSIONS
DIP PACKAGE DIMENSIONS
•
221 West Industry Court
•
Deer Park, NY 11729-4681
•
Phone (631) 586-7600
•
Fax (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest version
of the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment, and safety equipment), safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement.
3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other cause during
operation of the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no responsibility for any intellectual
property claims or any other problems that may result from applications of information, products or circuits described in the datasheets.
4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage resulting from
use at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron Semiconductor.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of
Sensitron Semiconductor.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will
hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third
party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and
regulations.
•
221 West Industry Court
Deer Park, NY 11729-4681
(631) 586-7600 FAX (631) 242-9798
•
•
World Wide Web - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
