Cree
®
Screen Master
®

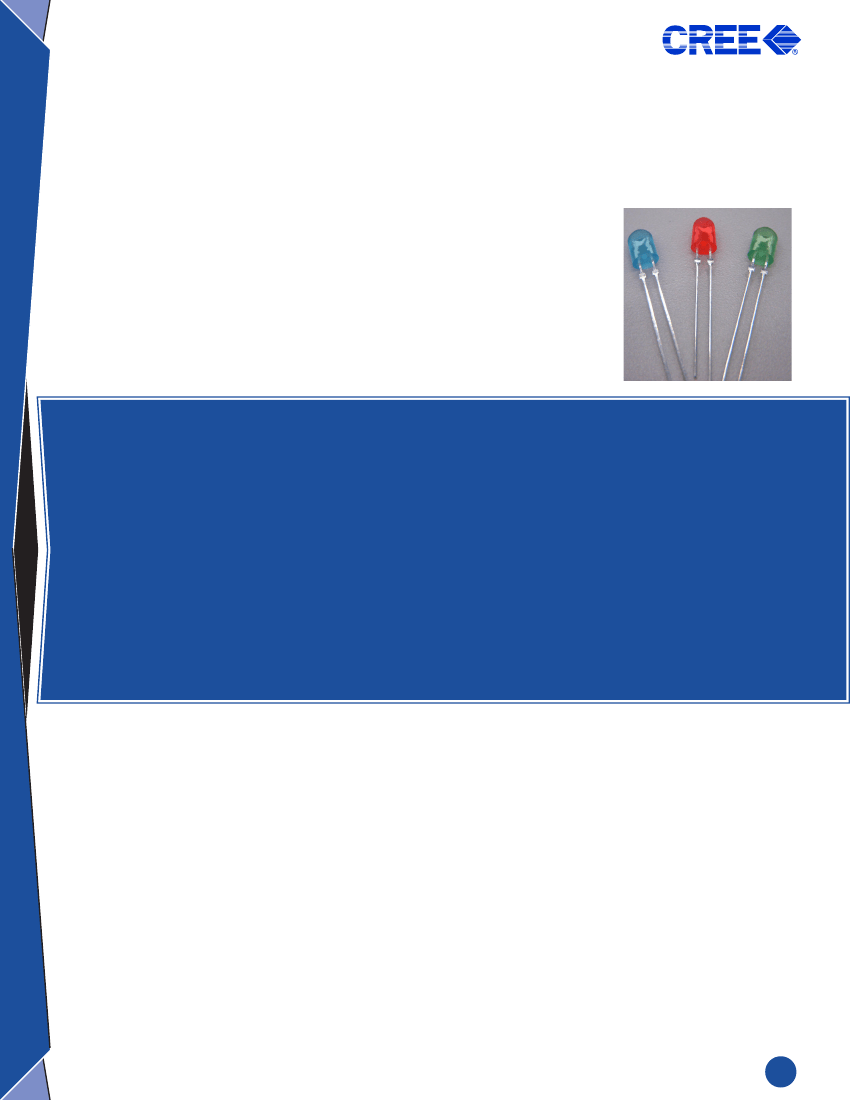

5-mm Oval LED
C5SMF-RJS/GJS/BJS
C5SME-RJS
Data Sheet
This oval LED is specifically designed for variable-message signs and passenger-
information signs. The oval-shaped radiation pattern and high luminous intensity
ensure that these devices are excellent for wide-field-of-view outdoor applications
where a wide viewing angle and readability in sunlight are essential.
These lamps are made with an advanced optical-grade epoxy that offers superior
high-temperature and moisture-resistance performance in outdoor signage
applications. The encapsulation resin contains UV inhibitors to minimize the effects
of long-term exposure to direct sunlight, resulting in stable light output over the
life of the LED.
FEATURES
•
•
Size (mm): 5
Color and Typical Dominant Wavelength (nm):
»
Red (621)
»
Green (527)
»
Blue (470)
Luminous Intensity (mcd)
»
C5SMF - Red (1100-4180)
Green (2130-8200)
Blue (550-2130)
»
C5SME - Red (770-2130)
Lead-Free
RoHS-Compliant
APPLICATIONS
•
•
•
•
•
•
Electronic Signs & Signals (ESS)
Full-Color Video Screen
Motorway Signs
Variable-Message Sign (VMS)
Advertising Signs
Petrol Signs
•
•
•
•
LD-CT201.003
Data Sheet: C
Subject to change without notice.
www.cree.com/ledlamps
1
Absolute Maximum Ratings (T
A
= 25°C)
Items
Symbol
Absolute Maximum Rating
Red
Forward Current
Peak Forward Current
Reverse Voltage
Power Dissipation
Operation Temperature
Storage Temperature
Lead Soldering Temperature
Electrostatic Discharge
Classification (MIL-STD-883E)
Note2
Unit
Blue and Green
35
100
5
140
-40 ~ +95
-40 ~ +100
Max. 260°C for 3 sec. max.
(3 mm from the base of the epoxy bulb)
mA
mA
V
mW
°C
°C
I
F
I
FP
V
R
P
D
T
opr
T
stg
T
sol
ESD
50
Note1
200
5
130
Class 2
Note:
1.
2.
For long-term performance, the drive currents between 10 mA and 30 mA are recommended. Please contact a
Cree sales representative for more information on recommended drive conditions.
Pulse width ≤0.1 msec, duty ≤1/10.
Typical Electrical & Optical Characteristics (T
A
= 25°C)
Characteristics
Forward Voltage
Color
Red
Blue/Green
Red
Blue/Green
Red
Dominant Wavelength
Green
Blue
C5SMF - Red
Luminous Intensity
C5SME - Red
Green
Blue
Symbol
V
F
V
F
I
R
I
R
λ
D
λ
D
λ
D
I
V
I
V
I
V
I
V
Condition
I
F
= 20 mA
I
F
= 20 mA
V
R
= 5 V
V
R
= 5 V
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
Unit
V
V
μA
μA
nm
nm
nm
mcd
mcd
mcd
mcd
619
520
460
1100
770
2130
550
621
527
470
2200
1100
4400
1100
Minimum
Typical
2.1
3.4
Maximum
2.6
4.0
100
100
624
535
475
Reverse Current
Copyright © 2009 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree, the
Cree logo and Screen Master are registered trademarks of Cree, Inc.
2
CLD-CT201.003
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
Fax: +1.919.313.5778
www.cree.com/ledlamps
Intensity Bin Limit (I
F
= 20 mA)
Red: C5SMF
Bin
Code
Sub-
bin
T1
T0
T2
T3
T4
U1
U0
U2
U3
U4
V1
V0
V2
V3
V4
W1
W0
W2
W3
W4
Min.
(mcd)
1100
1205
1310
1415
1520
1672
1824
1976
2130
2347
2564
2781
3000
3295
3590
3885
Max.
(mcd)
1205
1310
1415
1520
1672
1824
1976
2130
2347
2564
2781
3000
3295
3590
3885
4180
Y0
X0
W0
V0
Green:C5SMF
Bin
Code
Sub-
bin
V1
V2
V3
V4
W1
W2
W3
W4
X1
X2
X3
X4
Y1
Y2
Y3
Y4
Min.
(mcd)
2130
2347
2564
2781
3000
3295
3590
3885
4180
4600
5020
5440
5860
6445
7030
7615
Max.
(mcd)
2347
2564
2781
3000
3295
3590
3885
4180
4600
5020
5440
5860
6445
7030
7615
8200
Blue:C5SMF
Bin
Code
Sub-
bin
R1
R0
R2
R3
R4
S1
S0
S2
S3
S4
T1
T0
T2
T3
T4
U1
U0
U2
U3
U4
Min.
(mcd)
550
605
660
715
770
852
934
1017
1100
1205
1310
1415
1520
1672
1824
1976
Max.
(mcd)
605
660
715
770
852
934
1017
1100
1205
1310
1415
1520
1672
1824
1976
2130
Red: C5SME
Bin
Code
Sub-
bin
S1
S0
S2
S3
S4
T1
T0
T2
T3
T4
U1
U0
U2
U3
U4
Min.
(mcd)
770
852
934
1017
1100
1205
1310
1415
1520
1672
1824
1976
Max.
(mcd)
852
934
1017
1100
1205
1310
1415
1520
1672
1824
1976
2130
Tolerance of measurement of luminous intensity is ±15%
Color Bin Limit (I
F
= 20 mA)
Red
Bin Code
RB
Min.(nm)
619
Max.(nm)
624
Green
Bin Code
G7
G8
G9
Min.(nm)
520
525
530
Max.(nm)
525
530
535
Blue
Bin Code
B3
B4
B5
Min.(nm)
460
465
470
Max.(nm)
465
470
475
Tolerance of measurement of dominant wavelength is ±1 nm
Copyright © 2009 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree, the
Cree logo and Screen Master are registered trademarks of Cree, Inc.
3
CLD-CT201.003
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
Fax: +1.919.313.5778
www.cree.com/ledlamps
Order Code Table*
C5SMF
Luminous Intensity (mcd)
Color
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Kit Number
C5SMF-RJS-CT0W0BB1
C5SMF-RJS-CT14QBB1
C5SMF-RJS-CT34QBB1
C5SMF-RJS-CU14QBB1
C5SMF-RJS-CU34QBB1
C5SMF-RJS-CV14QBB1
C5SMF-RJS-CT0W0BB2
C5SMF-RJS-CT14QBB2
C5SMF-RJS-CT34QBB2
C5SMF-RJS-CU14QBB2
C5SMF-RJS-CU34QBB2
C5SMF-RJS-CV14QBB2
Min.
1100
Max.
4180
Color Bin
RB
RB
RB
RB
RB
RB
RB
RB
RB
RB
RB
RB
Dominant Wavelength
Min.
(nm)
619
619
619
619
619
619
619
619
619
619
619
619
Color Bin
RB
RB
RB
RB
RB
RB
RB
RB
RB
RB
RB
RB
Max. (nm)
624
624
624
624
624
624
624
624
624
624
624
624
Pack-
age
Bulk
Bulk
Bulk
Bulk
Bulk
Bulk
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Any 4 consecutive sub-bins: T1 (1100) - U2 (1824)
Any 4 consecutive sub-bins: T3 (1310) - U4 (2130)
Any 4 consecutive sub-bins: U1 (1520) - V2 (2564)
Any 4 consecutive sub-bins: U3 (1824) - V4 (3000)
Any 4 consecutive sub-bins: V1 (2130) - W2
(3590)
1100
4180
Any 4 consecutive sub-bins: T1 (1100) - U2 (1824)
Any 4 consecutive sub-bins: T3 (1310) - U4 (2130)
Any 4 consecutive sub-bins: U1 (1520) - V2 (2564)
Any 4 consecutive sub-bins: U3 (1824) - V4 (3000)
Any 4 consecutive sub-bins: V1 (2130) - W2
(3590)
Luminous Intensity (mcd)
Color
Green
Green
Green
Green
Green
Green
Green
Green
Green
Green
Green
Green
Kit Number
C5SMF-GJS-CV0Y0791
C5SMF-GJS-CV14Q7S1
C5SMF-GJS-CV14Q7T1
C5SMF-GJS-CW14Q7T1
C5SMF-GJS-CW34Q7T1
C5SMF-GJS-CX14Q7T1
C5SMF-GJS-CV0Y0792
C5SMF-GJS-CV14Q7S2
C5SMF-GJS-CV14Q7T2
C5SMF-GJS-CW14Q7T2
C5SMF-GJS-CW34Q7T2
C5SMF-GJS-CX14Q7T2
Min.
2130
Max.
8200
Color Bin
G7
Dominant Wavelength
Min.
(nm)
520
Color Bin
G9
Max. (nm)
535
Pack-
age
Bulk
Bulk
Bulk
Bulk
Bulk
Bulk
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Any 4 consecutive sub-bins: V1 (2130) - W2 (3590)
Any 4 consecutive sub-bins: V1 (2130) - W2 (3590)
Any 4 consecutive sub-bins: W1 (3000) - X2 (5020)
Any 4 consecutive sub-bins: W3 (3590) - X4 (5860)
Any 4 consecutive sub-bins: X1 (4180) - Y2 (7030)
2130
8200
Any 1 color bin from G7 (520 nm) to G9 (535 nm)
Any 1 color bin from G7 (520 nm) to G8 (530 nm)
Any 1 color bin from G7 (520 nm) to G8 (530 nm)
Any 1 color bin from G7 (520 nm) to G8 (530 nm)
Any 1 color bin from G7 (520 nm) to G8 (530 nm)
G7
520
G9
535
Any 4 consecutive sub-bins: V1 (2130) - W2 (3590)
Any 4 consecutive sub-bins: V1 (2130) - W2 (3590)
Any 4 consecutive sub-bins: W1 (3000) - X2 (5020)
Any 4 consecutive sub-bins: W3 (3590) - X4 (5860)
Any 4 consecutive sub-bins: X1 (4180) - Y2 (7030)
Any 1 color bin from G7 (520 nm) to G9 (535 nm)
Any 1 color bin from G7 (520 nm) to G8 (530 nm)
Any 1 color bin from G7 (520 nm) to G8 (530 nm)
Any 1 color bin from G7 (520 nm) to G8 (530 nm)
Any 1 color bin from G7 (520 nm) to G8 (530 nm)
Copyright © 2009 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree, the
Cree logo and Screen Master are registered trademarks of Cree, Inc.
4
CLD-CT201.003
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
Fax: +1.919.313.5778
www.cree.com/ledlamps
Order Code Table*
C5SMF
Luminous Intensity (mcd)
Min.
550
550
Max.
2130
2130
Color Bin
B3
B4
Dominant Wavelength
Min.(nm)
460
465
Color Bin
B5
B5
Max. (nm)
475
475
Pack-
age
Bulk
Bulk
Bulk
Bulk
Bulk
Bulk
Bulk
Bulk
Bulk
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Color
Blue
Blue
Blue
Blue
Blue
Blue
Blue
Blue
Blue
Blue
Blue
Blue
Blue
Blue
Blue
Blue
Blue
Blue
Kit Number
C5SMF-BJS-CR0U0351
C5SMF-BJS-CR0U0451
C5SMF-BJS-CR14Q3T1
C5SMF-BJS-CR14Q4T1
C5SMF-BJS-CR24Q4T1
C5SMF-BJS-CS24Q3T1
C5SMF-BJS-CS24Q4T1
C5SMF-BJS-CT14Q3T1
C5SMF-BJS-CT14Q4T1
C5SMF-BJS-CR0U0352
C5SMF-BJS-CR0U0452
C5SMF-BJS-CR14Q3T2
C5SMF-BJS-CR14Q4T2
C5SMF-BJS-CR24Q4T2
C5SMF-BJS-CS24Q3T2
C5SMF-BJS-CS24Q4T2
C5SMF-BJS-CT14Q3T2
C5SMF-BJS-CT14Q4T2
Any 4 consecutive sub-bins: R1 (550) - S2 (934)
Any 4 consecutive sub-bins: R1 (550) - S2 (934)
Any 4 consecutive sub-bins: R2 (605) - S3 (1017)
Any 4 consecutive sub-bins: S2 (852) - T3 (1415)
Any 4 consecutive sub-bins: S2 (852) - T3 (1415)
Any 4 consecutive sub-bins: T1 (1100) - U2 (1824)
Any 4 consecutive sub-bins: T1 (1100) - U2 (1824)
550
550
2130
2130
Any 1 color bin from B3 (460 nm) to B4 (470 nm)
Any 1 color bin from B4 (465 nm) to B5 (475 nm)
Any 1 color bin from B4 (465 nm) to B5 (475 nm)
Any 1 color bin from B3 (460 nm) to B4 (470 nm)
Any 1 color bin from B4 (465 nm) to B5 (475 nm)
Any 1 color bin from B3 (460 nm) to B4 (470 nm)
Any 1 color bin from B4 (465 nm) to B5 (475 nm)
B3
B4
460
465
B5
B5
475
475
Any 4 consecutive sub-bins: R1 (550) - S2 (934)
Any 4 consecutive sub-bins: R1 (550) - S2 (934)
Any 4 consecutive sub-bins: R2 (605) - S3 (1017)
Any 4 consecutive sub-bins: S2 (852) - T3 (1415)
Any 4 consecutive sub-bins: S2 (852) - T3 (1415)
Any 4 consecutive sub-bins: T1 (1100) - U2 (1824)
Any 4 consecutive sub-bins: T1 (1100) - U2 (1824)
Any 1 color bin from B3 (460 nm) to B4 (470 nm)
Any 1 color bin from B4 (465 nm) to B5 (475 nm)
Any 1 color bin from B4 (465 nm) to B5 (475 nm)
Any 1 color bin from B3 (460 nm) to B4 (470 nm)
Any 1 color bin from B4 (465 nm) to B5 (475 nm)
Any 1 color bin from B3 (460 nm) to B4 (470 nm)
Any 1 color bin from B4 (465 nm) to B5 (475 nm)
Copyright © 2009 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree, the
Cree logo and Screen Master are registered trademarks of Cree, Inc.
5
CLD-CT201.003
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
Fax: +1.919.313.5778
www.cree.com/ledlamps
京公网安备 11010802033920号
EEWORLD
