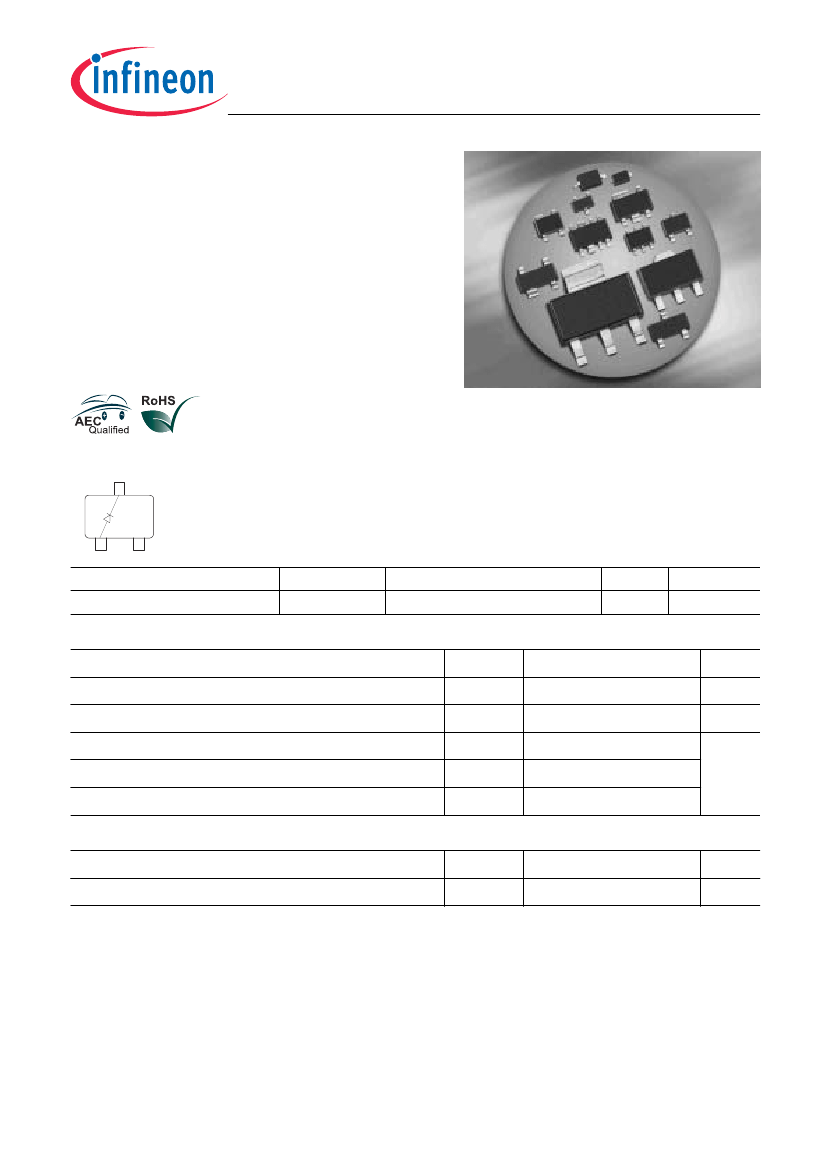

BA779
Silicon PIN Diode
•
Current-controlled RF resistor
for switching and attenuating applications
•
Frequency range 1 MHz ... 2 GHz
•
Especially useful as antenna switch
in TV-sat tuners
•
Very low harmonics
•
Pb-free (RoHS compliant) package
1)
•
Qualified according AEC Q101
BA779
!
Type
BA779
Package
SOT 23
Configuration
single
L
S
(nH)
1.8
Marking
PA
Maximum Ratings
at
T
A
= 25°C, unless otherwise specified
Symbol
Parameter
Diode reverse voltage
Forward current
Junction temperature
Operating temperature range
Storage temperature
Thermal Resistance
Parameter
Junction - soldering point
2)
1
Pb-containing
Value
50
50
150
-55 ... 125
-55 ... 150
Unit
V
mA
°C
V
R
I
F
T
j
T
op
T
stg
Symbol
R
thJS
Value
≤
370
Unit
K/W
package may be available upon special request
2
For calculation of
R
thJA
please refer to Application Note Thermal Resistance
1
2007-04-19
