PS381ESEE datasheet, PDF - EEWORLD Datasheet

PS381ESEE: DescriptionSPST, 2 Func, 1 Channel, PDSO16, 0.150 INCH, SOIC-16; CategoryAnalog mixed-signal IC The signal circuit; File Size186KB，8 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric View All

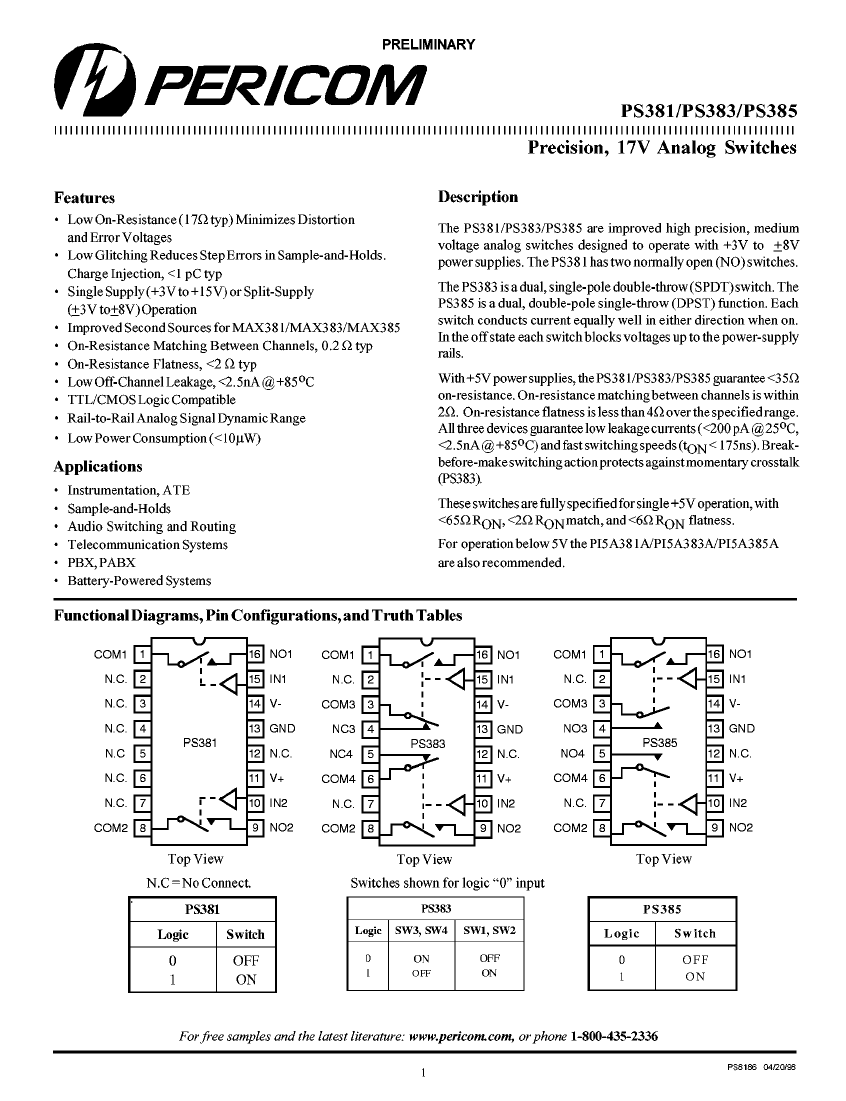

PS381ESEE Overview

SPST, 2 Func, 1 Channel, PDSO16, 0.150 INCH, SOIC-16

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G16
JESD-609 code	e3
length	9.9 mm
Humidity sensitivity level	1
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of channels	1
Number of functions	2
Number of terminals	16

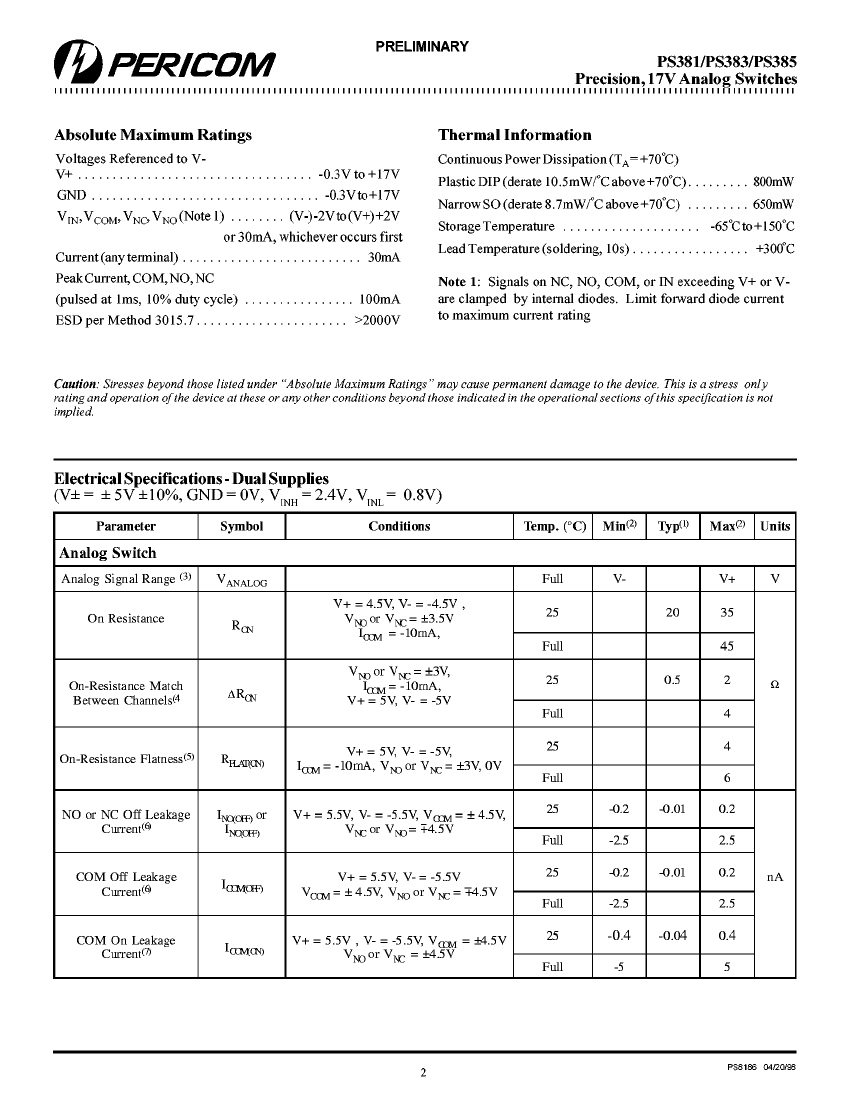

Nominal off-state isolation	65 dB
On-state resistance matching specifications	0.2 Ω
Maximum on-state resistance (Ron)	30 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.75 mm

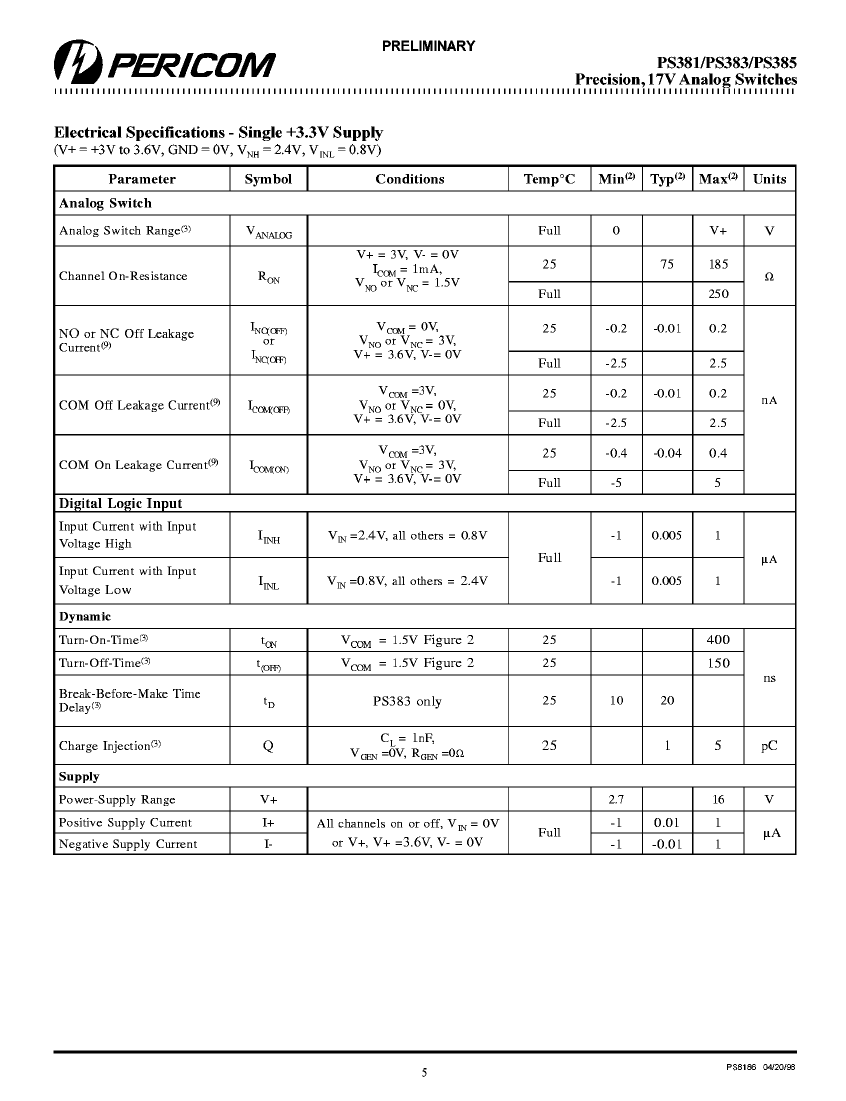

Maximum supply voltage (Vsup)	8 V
Minimum supply voltage (Vsup)	3 V

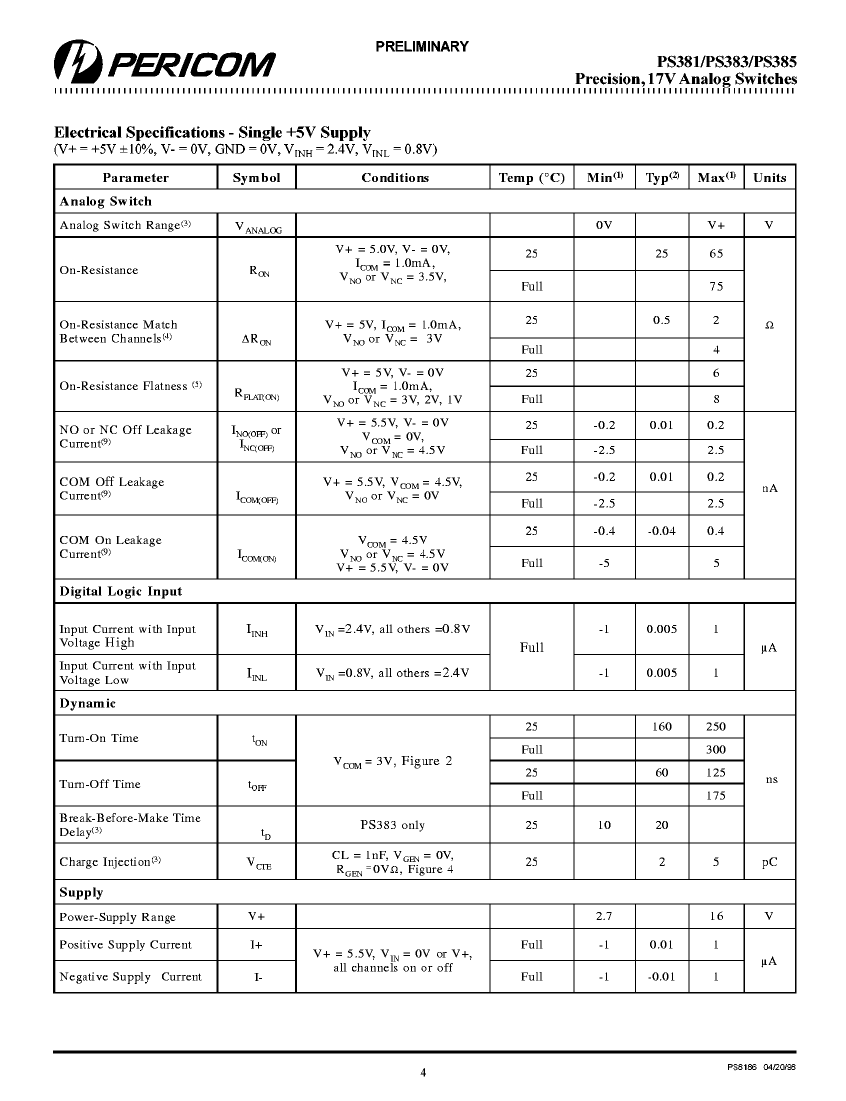

Nominal supply voltage (Vsup)	5 V
surface mount	YES

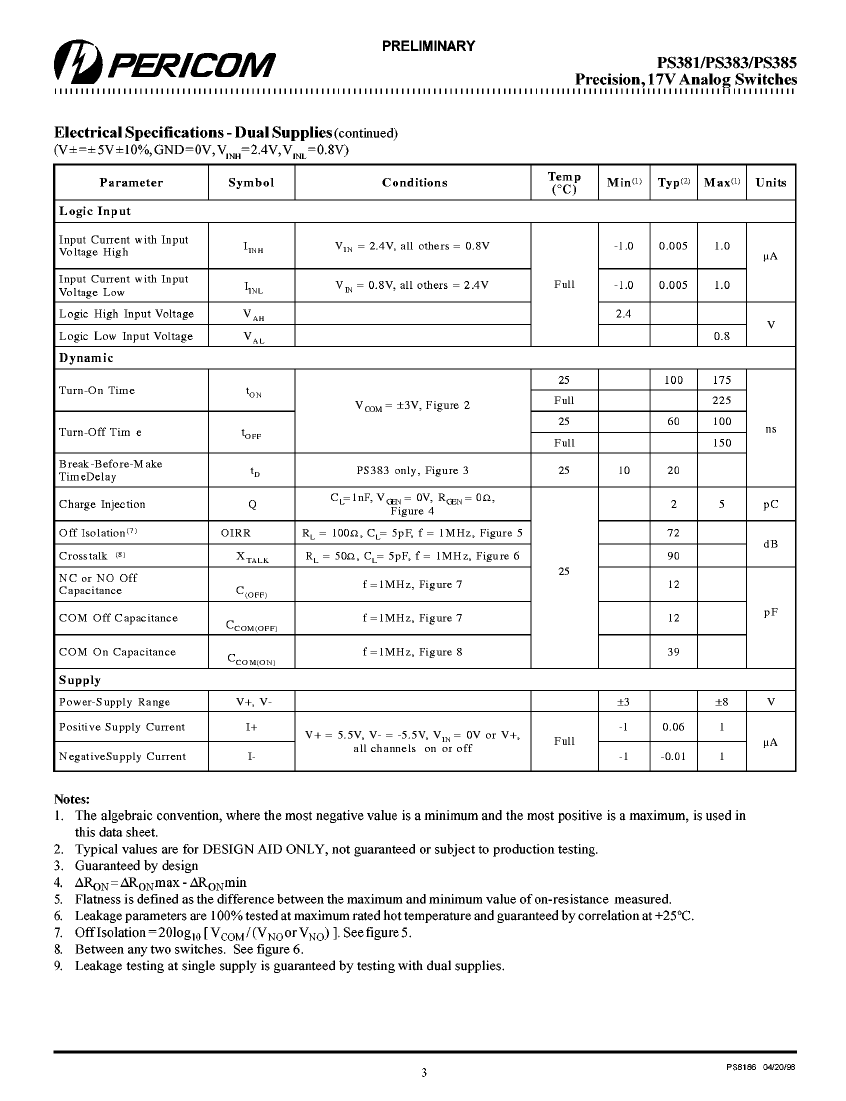

Maximum disconnect time	75 ns
Maximum connection time	130 ns
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
