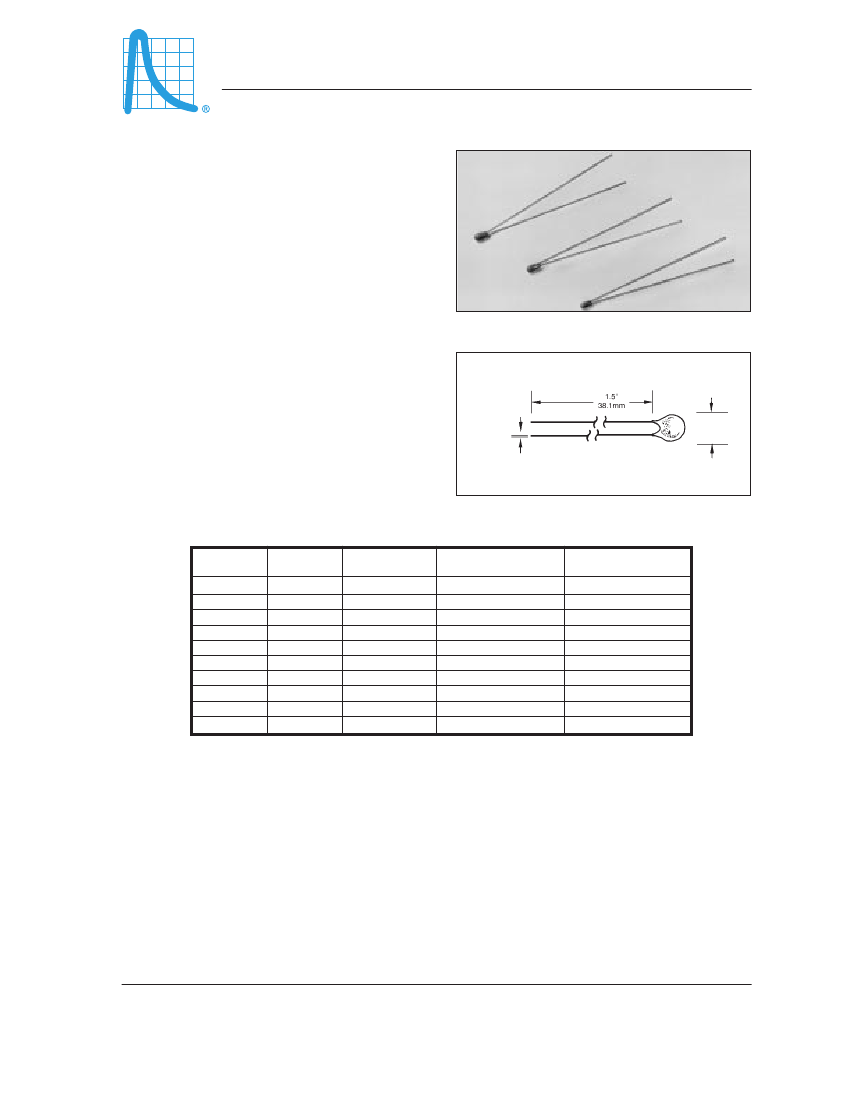

NTC THERMISTORS:
TYPE DC95
INTERCHANGEABLE CHIP THERMISTOR
DESCRIPTION:
Epoxy coated interchangeable chip thermistors
with bare tinned copper lead-wires.
FEATURES:
•
Precision, solid state temperature sensor
•
Interchangeability down to ±0.1 °C
•
Suitable for use over the range of
–80°C to 150°C
•
High sensitivity greater than –4% / °C at 25°C
•
Suitable for temperature measurement,
control and compensation
•
High reliability and stability over
interchangeable range
•
Most popular R-vs-T curves are available
•
Resin coated for good mechanical strength
and resistance to solvents
•
.012" (.3 mm) dia. bare tinned copper
lead-wires
DIMENSIONS:
TINNED
COPPER
ALLOY
LEADS
.012”
(.3MM)
.095”
2.4MM
MAX. DIA.
Select appropriate part number below for resistance and temperature tolerance desired
R25°C
MATERIAL
SYSTEM
± .1°C
0°C to 70°C
± .2°C
0°C to 70°C
± .2°C
0°C to 100°C
2000
2252
3000
5000
10000
10000
30000
50000
100000
100000
F
F
F
F
F
Y
H
G
Y
G
DC95F202V
DC95F232V
DC95F302V
DC95F502V
DC95F103V
DC95Y103V
DC95H303V
DC95G503V
DC95Y104V
DC95G104V
DC95F202W
DC95F232W
DC95F302W
DC95F502W
DC95F103W
DC95Y103W
DC95H303W
DC95G503W
DC95Y104W
DC95G104W
DC95F202Z
DC95F232Z
DC95F302Z
DC95F502Z
DC95F103Z
DC95Y103Z
DC95H303Z
DC95G503Z
DC95Y104Z
DC95G104Z
OPTIONS:
Consult factory for availability of options:
•
Other resistance values in the range of
100Ω - 100kΩ
•
Other tolerances or ranges
•
Alternative lead-wires or lengths
•
Non standard R-vs-T curves
•
Controlled dimensions
DATA:
THERMAL AND ELECTRICAL PROPERTIES:
Dissipation constant:........(still
air)
1 mW/°C
(stirred oil) 8 mW/°C
Thermal time constant:.....(still
air)
10 sec.
(stirred oil)
1 sec.
Maximum power at 25°C
.........................75mW
(derated from 100% at 25°C to 0% at 100°C)
BOWTHORPE THERMOMETRICS
Crown Industrial Estate, Priorswood Road
Taunton, Somerset TA2 8QY UK
Tel +44 (0) 1823 335200
Fax +44 (0) 1823 332637
THERMOMETRICS, INC.
808 US Highway 1
Edison, New Jersey 08817-4695 USA
Tel +1 (732) 287 2870
Fax +1 (732) 287 8847
KEYSTONE THERMOMETRICS CORPORATION
967 Windfall Road
St. Marys, Pennsylvania 15857-3397 USA
Tel +1 (814) 834 9140
Fax +1 (814) 781 7969
