ASSV-FREQ-L-D3-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASSV-FREQ-L-D3-T

ASSV-FREQ-L-D3-T: DescriptionCMOS Output Clock Oscillator, 5MHz Min, 160MHz Max, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size1MB，4 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASSV-FREQ-L-D3-T Overview

CMOS Output Clock Oscillator, 5MHz Min, 160MHz Max, ROHS COMPLIANT, SMD, 4 PIN

ASSV-FREQ-L-D3-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TRI-STATE FUNCTION; TAPE AND REEL
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	ASSV
Installation features	SURFACE MOUNT
Maximum operating frequency	160 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 1.8mm
longest rise time	4 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

3.3V LOW EMI SMD SPREAD SPECTRUM CLOCK OSCILLATOR

ASSV SERIES

FEATURES:

• Integrated spread spectrum technology

• EMI reduction up to 20dB

• Solve EMI failures as a drop in replacement for std. 5x7mm Osc.

• Cost effective EMI reduction

RoHS

Compliant

APPLICATIONS:

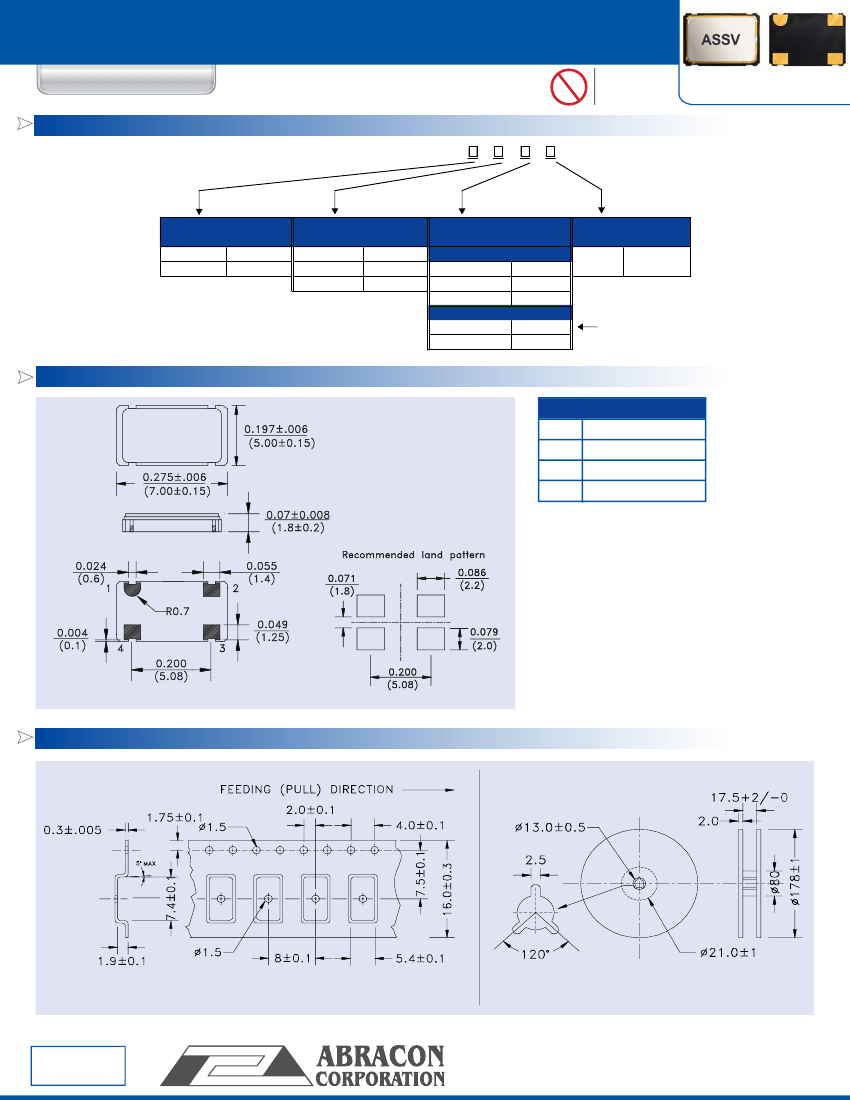

7.0 x 5.0 x 1.8mm

| | | | | | | | | | | | | | |

• Printers, Digital Copy Machines, Scanners, Projectors,

Modems, LAN, WAN, Navigation Equipment, Automotive,

Audio, Medical Electronics, Hand-held readers,

Industrial Automation

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Spread Type

EMI Reduction (reduction is applied to

the entire frequency spectrum)

Operating Temperature

Storage Temperature

Frequency Stability

Supply Voltage (Vdd)

Start-up Time

Stabilization Time

Rise time / Fall time

Load

Current Consumption

Duty Cycle

Output Logic

Cycle to cycle Jitter

Output Impedance

Static Discharge Voltage

Aging

Output Voltage “High”; “1”

Output Voltage “Low”; “0”

Modulation Carrier Freq. (Dither rate)

Pin 1 Function

ASSV

5.000 MHz to 160.000 MHz

±0.5 (see table 1 for options)

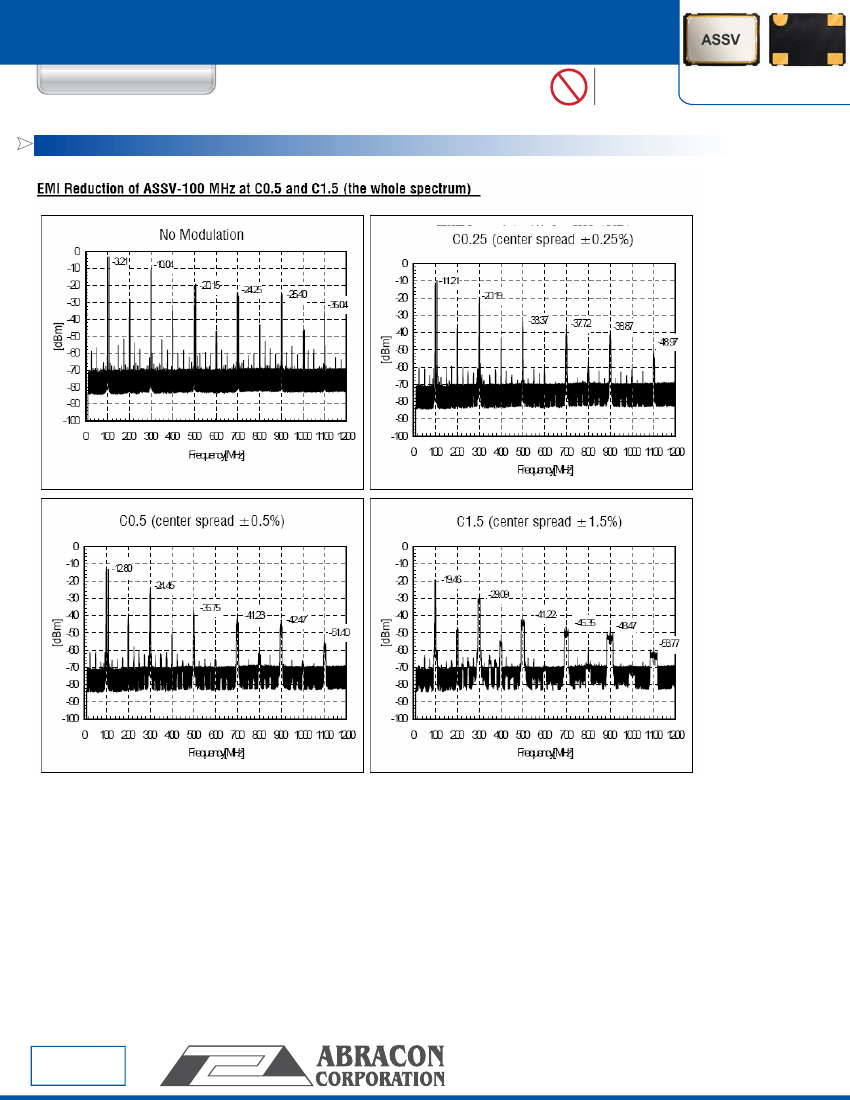

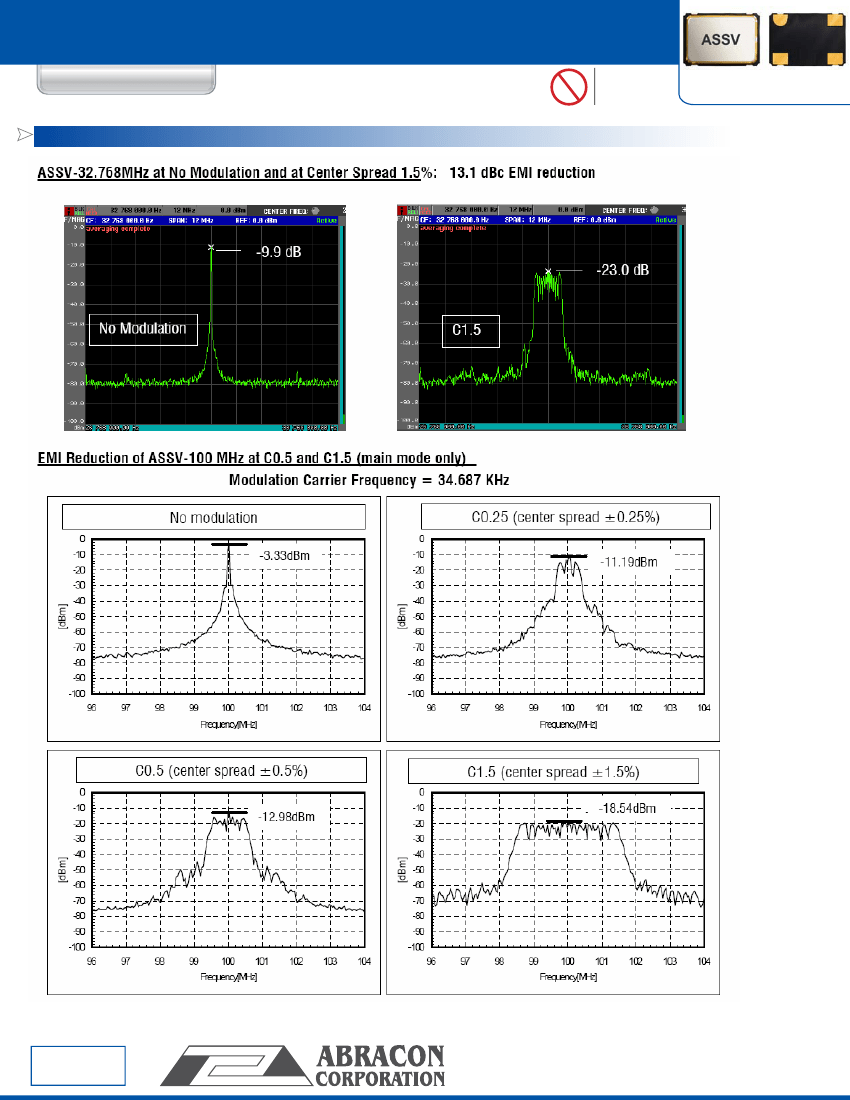

-7dBc min. 100MHz at C0.25; -9dBc min. 100MHz at C0.5

-15dBc min. 100MHz at C1.5

With respect to the dB level when no modulation.

0°C to + 70°C (see options)

- 65°C to + 150°C

± 100 ppm (see options)

3.3 Vdc ± 5%

2ms typ, 5ms max.

2ms max.

4n sec. max. (10% VDD <-> 90% VDD)

15pF

20mA max.

50% ± 5% (CL = 15pF at 50% VDD)

CMOS Square wave

±250ps typ; ±300ps max.

Ω

>2,000V (per MIL-STD-883, method 3015)

±5ppm per year max.; Ta=+25°C

2.0V min.; 3.2V typ (at 90% VDD)

0.8V max. ; 0.2V typ (at 10% VDD)

6.9KHz min.; 55.5KHz max; Freq dependent call for details.

Output is high impedance when taken low.

Output enable/disable time: 100 ns max.

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 09.24.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
