TC4462EPD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> TC4462EPD

TC4462EPD: DescriptionMOSFET Driver, CMOS, PDIP14,; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size354KB，6 Pages; ManufacturerTelCom Semiconductor, Inc. (Microchip Technology); Websitehttp://www.telcom-semi.com/

Download Datasheet Parametric Compare View All

TC4462EPD Overview

MOSFET Driver, CMOS, PDIP14,

TC4462EPD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TelCom Semiconductor, Inc. (Microchip Technology)
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	4.5/18 V
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

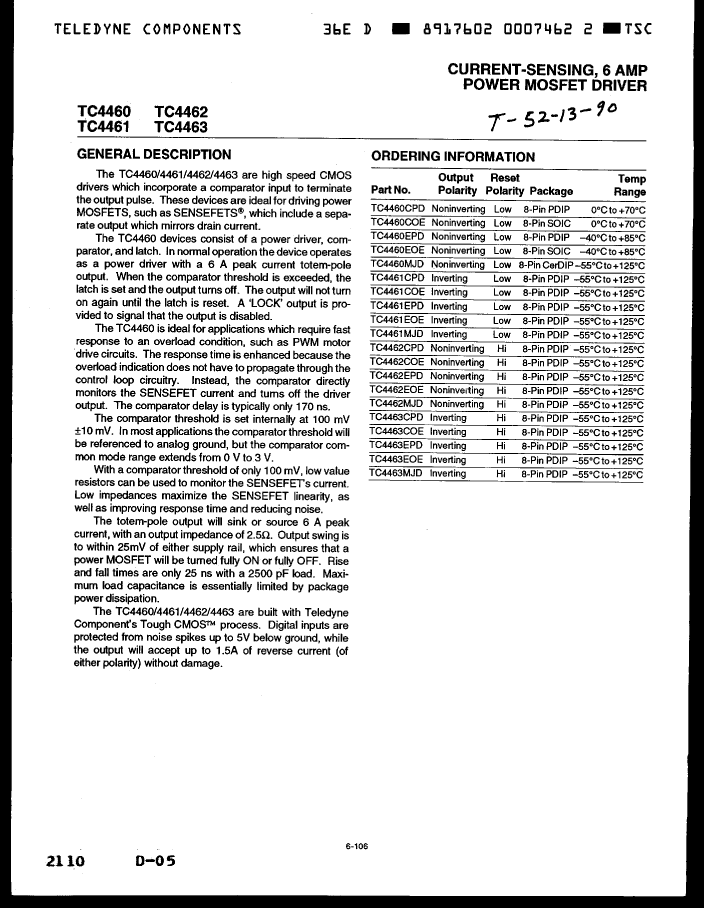

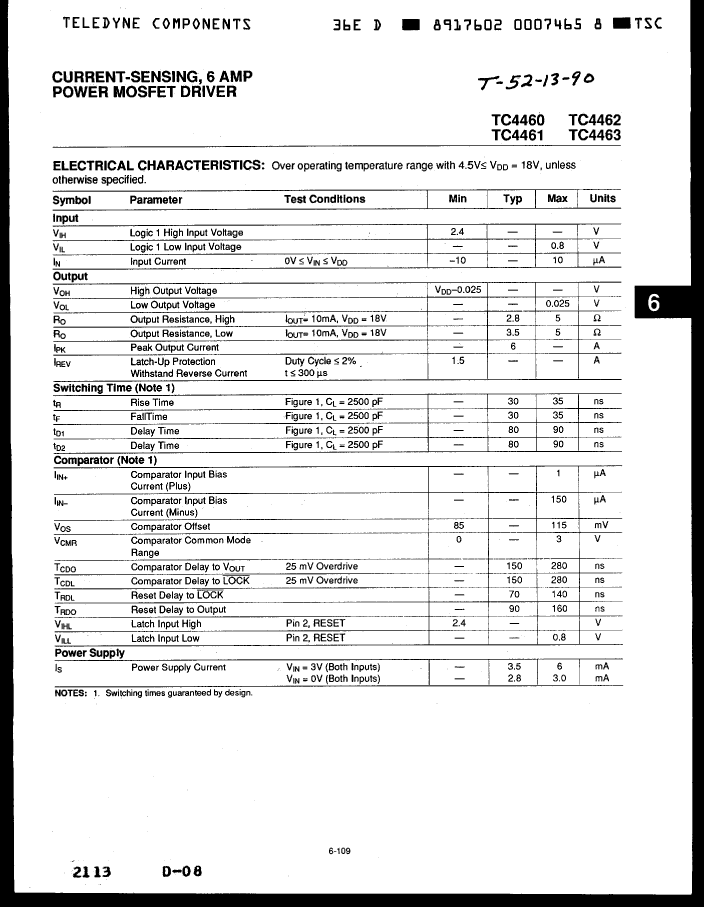

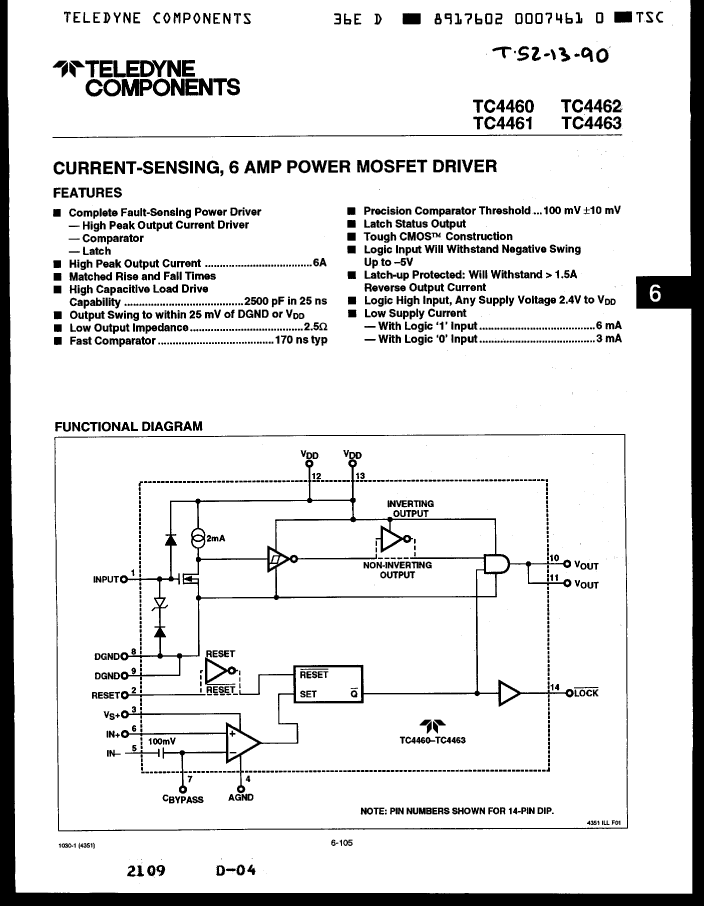

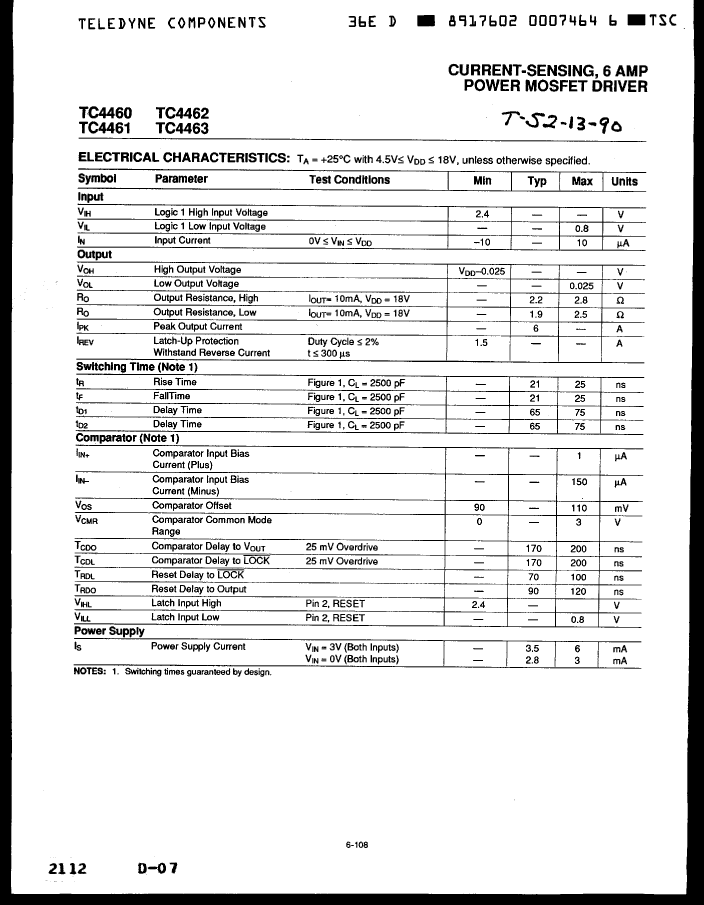

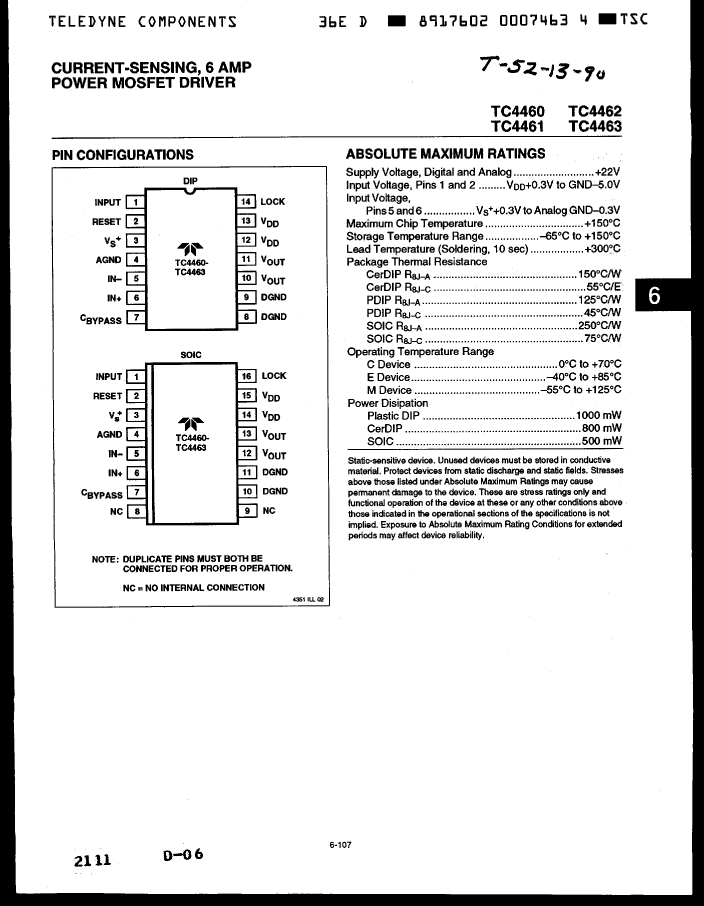

Preview

Download Datasheet

View All

TC4462EPD Related Products

	TC4462EPD	TC4463EOE	TC4463COE	TC4463EPD	TC4463CPD	TC4463MJD	TC4462MJD	TC4462CPD	TC4462COE	TC4462EOE
Description	MOSFET Driver, CMOS, PDIP14,	MOSFET Driver, CMOS, PDSO16,	MOSFET Driver, CMOS, PDSO16,	MOSFET Driver, CMOS, PDIP14,	MOSFET Driver, CMOS, PDIP14,	MOSFET Driver, CMOS, CDIP14,	MOSFET Driver, CMOS, CDIP14,	MOSFET Driver, CMOS, PDIP14,	MOSFET Driver, CMOS, PDSO16,	MOSFET Driver, CMOS, PDSO16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDIP-T14	R-PDSO-G16	R-PDSO-G16	R-PDIP-T14	R-PDIP-T14	R-XDIP-T14	R-XDIP-T14	R-PDIP-T14	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	14	16	16	14	14	14	14	14	16	16
Maximum operating temperature	85 °C	85 °C	70 °C	85 °C	70 °C	125 °C	125 °C	70 °C	70 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-	-55 °C	-55 °C	-	-	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	DIP	DIP	DIP	DIP	DIP	SOP	SOP
Encapsulate equivalent code	DIP14,.3	SOP16,.4	SOP16,.4	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	SOP16,.4	SOP16,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
power supply	4.5/18 V	4.5/18 V	4.5/18 V	4.5/18 V	4.5/18 V	4.5/18 V	4.5/18 V	4.5/18 V	4.5/18 V	4.5/18 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	YES	NO	NO	NO	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
