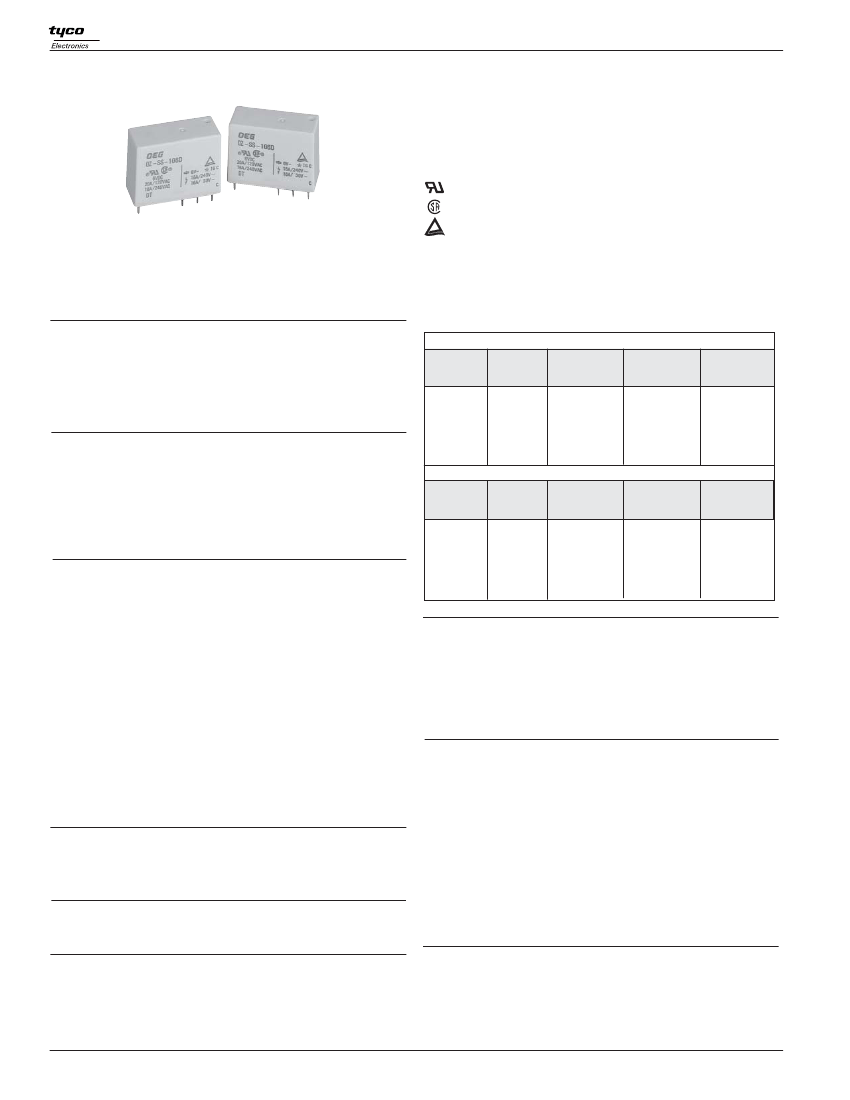

Catalog 1308242
Issued 3-03 (PDF Rev. 11-04)
OEG
OZ/OZF
series
16A Miniature
Power PC Board Relay
Appliances, HVAC, Office Machines.
UL File No. E82292
CSA File No. LR48471
TUV File No. R85447
Users should thoroughly review the technical data before selecting a product part
number. It is recommended that user also seek out the pertinent approvals files of
the agencies/laboratories and review them to ensure the product meets the
requirements for a given application.
Features
• Meet UL 508, CSA and TUV requirements.
• 1 Form A and 1 Form C contact arrangements.
• Immersion cleanable, sealed version available.
• Meet 5,000V dielectric voltage between coil and contacts.
• Meet 10,000V surge voltage between coil and contacts (1.2 / 50µs).
• Quick Connect Terminal type available (OZF).
• UL TV-8 rating available (OZT).
Coil Data @ 20°C
OZ-L Sensitive
Rated Coil
Voltage
(VDC)
5
6
9
12
24
48
Nominal
Current
(mA)
106.4
88.0
58.0
44.4
21.8
10.9
Coil
Resistance
(ohms)
±
10%
47
68
155
270
1,100
4,400
OZ-D Standard
Rated Coil
Voltage
(VDC)
5
6
9
12
24
48
Nominal
Current
(mA)
138.9
120.0
78.3
60.0
29.3
14.5
Coil
Resistance
(ohms)
±
10%
36
50
115
200
820
3,300
Must Operate
Voltage
(VDC)
3.50
4.20
6.30
8.40
16.80
33.60
Must Release
Voltage
(VDC)
0.25
0.30
0.45
0.90
1.20
2.40
Must Operate
Voltage
(VDC)
3.75
4.50
6.75
9.00
18.00
36.00
Must Release
Voltage
(VDC)
0.25
0.30
0.45
0.60
1.20
2.40
Contact Data @ 20°C
Arrangements:
1 Form A (SPST-NO) and 1 Form C (SPDT).
Material:
Ag Alloy (1 Form C) and AgSnO (1 Form A).
Max. Switching Rate:
300 ops./min. (no load).
30 ops./min. (rated load).
Expected Mechanical Life:
10 million operations (no load).
Expected Electrical Life:
100,000 operations (rated load).
Minimum Load:
100mA @ 5VDC.
Initial Contact Resistance:
100 milliohms @ 1A, 6VDC.
Contact Ratings
Ratings:
OZ/OZF:
20A @ 120VAC resistive,
16A @ 240VAC resistive,
5A @ 120VAC inductive (cosø= 0.4),
5A @ 24VDC inductive ( L/R= 7msec).
1/2 HP @ 120VAC, 70°C.
1 HP @ 240VAC.
20A @ 120VAC, general use.
16A @ 240VAC, general use, N.O. only, @ 105°C*.
16A @ 240VAC, general use, carry only, N.C. only, @ 105°C*.
* Rating applicable only to models with Class F (155°C) insulation system.
OZT:
8A @ 240VAC resistive,
TV-8 @ 120VAC tungsten, 25,000ops.
Operate Data
Must Operate Voltage:
OZ-D:
70% of nominal voltage or less.
OZ-L:
75% of nominal voltage or less.
Must Release Voltage:
5% of nominal voltage or more.
Operate Time: OZ-D:
15 ms max.
OZ-L:
20 ms max.
Release Time:
8 ms max.
Environmental Data
Temperature Range:
Operating, Class A (105
°
C) Insulation:
OZ-D:
-30°C to +55°C
OZ-L:
-30°C to +70°C.
Operating, Class F (155
°
C) Insulation:
OZ-D:
-30°C to +85°C
OZ-L:
-30°C to +105°C.
Operating: OZ-D:
-30°C to +55°C
OZ-L:
-30°C to +70
°C
Vibration, Mechanical:
10 to 55 Hz., 1.5mm double amplitude
Operational:
10 to 55 Hz., 1.5mm double amplitude.
Shock, Mechanical:
1,000m/s
2
(100G approximately).
Operational:
100m/s
2
(10G approximately).
Operating Humidity:
20 to 85% RH. (Non-condensing).
Max. Switched Voltage: AC:
240V.
DC:
110V.
Max. Switched Current:
16A (OZ/OZF), 8A (OZT).
Max. Switched Power:
3,850VA, 600W.
Initial Dielectric Strength
Between Open Contacts:
1,000VAC 50/60 Hz. (1 minute).
Between Coil and Contacts:
5,000VAC 50/60 Hz. (1 minute).
Surge Voltage Between Coil and Contacts:
10,000V (1.2 / 50µs).
Initial Insulation Resistance
Between Mutually Insulated Elements:
1,000M ohms min. @ 500VDC.
Coil Data
Voltage:
5 to 48VDC.
Nominal Power:
720 mW (OZ-D), 540mW (OZ-L).
Coil Temperature Rise:
45°C max., at rated coil voltage.
Max. Coil Power:
130% of nominal.
Duty Cycle:
Continuous.
Dimensions are shown for
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Mechanical Data
Termination:
Printed circuit terminals.
Enclosure (94V-0 Flammability Ratings):
OZ-S:
Vented (Flux-tight) plastic cover.
OZF-SS:
Vented (Flux-tight) plastic cover.
OZ-SH:
Sealed plastic case.
Weight:
0.46 oz (13g) approximately.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
462
reference purposes only.
Catalog 1308242
Issued 3-03 (PDF Rev. 11-04)
OEG
Ordering Information
Typical Part Number
B
OZ -SH
-1
24
L
M
1
F
,294
1. Basic Series:
OZ = 16A PC Board Terminals
OZF = Quick Connect Terminals
OZT = TV-8 Rating PC Board Terminals
2. Enclosure:
S = Vent (Flux-tight)* plastic cover (only available with OZF)
SS = Vent (Flux-tight)* plastic cover.
SH = Sealed, plastic case.
3. Termination:
1 = 1 pole
4. Coil Voltage:
05 = 5VDC
09 = 9VDC
24 = 24VDC
06 = 6VDC
12 = 12VDC
48 = 48VDC
5. Coil Input:
D = Standard (720mW)
L = Sensitive (540mW)
6. Contact Arrangement:
Blank = 1 Form C, SPDT
M = 1 Form A, SPST-NO
7. Contact Material:
Blank = AgCdO (1 Form C)
1 = AgSnO (1 Form A, only available with OZ....LM1 or DM1)
8. Mounting and Termination:
Blank = PC Board Terminals
P = PC Board and Quick Connect Terminals (only available only with OZF-S-1..LM1P).
9. Insulation System:
Blank = Class A (105°C) Insulation
F= Class F (155°C) Insulation
10. Suffix:
,200 = Standard model for "SS" enclosure on OZ and OZT
,000 = Standard model for coil input "D" on OZF
Other Suffix = Custom model
,294 = Standard model for "SH" enclosure on OZ and OZT
,300 = Standard model for coil input "L" on OZF
* Not suitable for immersion cleaning processes.
Our authorized distributors are more likely to maintain the following items in stock for immediate delivery.
OZ-SH-105D,294
OZ-SH-112D,294
OZ-SH-124D,294
OZ-SH-105LM1,294
OZ-SH-112LM1,294
OZ-SH-124LM1,294
.266
±
.012
(6.75
±
.3)
.2
±
.002
(.5
±
.05)
OZ-SH-105L,294
OZ-SH-112L,294
.092
±
.012
(2.35
±
.3)
.187
.134 (4.75)
(3.4)
.061 DIA
(1.55)
OZ-SH-124L,294

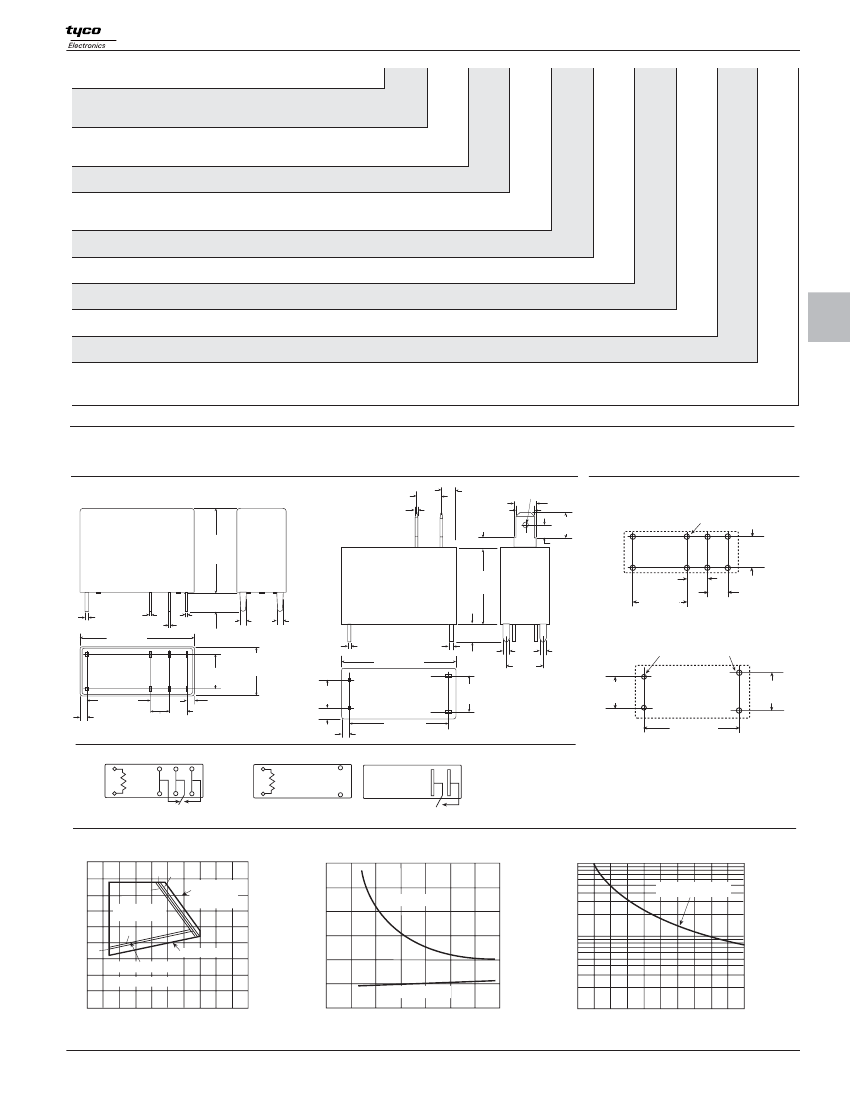

Outline Dimensions
OZ
OZF
PC Board Layouts (Bottom View)
.224
(5.7)
.25
(6.35)
.126
(3.2)
OZ
8 – .059 DIA
(1.5)
.295
±
.012
(7.5
±
.3)
.197
±
.012
(5.0
±
.3)
.600
±
.012
(15.24
±
.3)
.811
±
.02
(20.6
±
.5)
.945
±
.08
(24.0
±
.2)
.024
c
(.60)
.012
(.3)
.157
±
.012
(4.0
±
.3)
.012
.047
(.3)
(1.2)
.197
±
.012
(5.0
±
.3)
1.15
±
.02
(29.2
±
.5)
.012
(.3)
.047
(1.2)
.024
±
.004
(0.6
±
.1)
1.14
±
.02
(29.0
±
.5)
.300
±
.004
(7.6
±
.1)
1.02
±
.02
(26.0
±
.5)
.047
(1.2)
.165
±
.012
(4.2
±
.3)
.047
(1.2)
.394
(10.0)
.394
±
.006
(10.0
±
.15)
.047
(1.2)
OZF
.295
±
.012
(7.5
±
.3)
.59
±
.012
(15.0
±
.3)
.073
±
.012 .197
±
.012
(1.85
±
.3)
(5.0
±
.3)
.504
±
.02
(12.8
±
.5)
2 – .047 DIA 2 – .059 DIA
(1.5)
(1.2)
.085
±
.012
(2.15
±
.3)
.197
±
.012
(5.0
±
.3)
.300
±
.004
(7.6
±
.1)
.394
±
.006
(10.0
±
.15)
.098
±
.004
(2.5
±
.1)
.073
(1.85)
1.02
±
.008
(26.0
±
.2)
Wiring Diagrams
OZ
OZF
*
(Bottom View)
(Bottom View)
(Top View)
*
No electrical connection,
for board attachment only.
Reference Data
Operating Voltage
180
12
13A 8A
16A
Operating
Votage Range
13A/16A
8A
Hot Coil Applied
Operate Time
100
Life Expectancy
% of Supplying Voltage to Coil
160
140
120
100
80
60
40
20
Time (msec)
8
6
4
2
Release Time
Operation (x 10
4
)
Maximum
Allowable
Coil Voltage
10
Operate Time
240VAC Resistive
10
Cool Coil
Pick-Up Voltage
0 20 40 60 80 100 120 140
Ambient Temp. (°C)
Note:
This data is based on the max. allowable
temperature for E type insulation coil (115°C).
-40 -20
0
0.2
0.4
0.6
0.8
1.0
Coil Power (W)
1.2
1.4
1
0
2
4
6 8 10 12 14 16 18
Contact Current (A)
20
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
463
Refer to inside back cover.
