58399-3001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 58399-3001

58399-3001: DescriptionBoard Connector, 128 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking; CategoryThe connector The connector; File Size394KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

58399-3001 Overview

Board Connector, 128 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking

58399-3001 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.622 inch
subject depth	0.669 inch
body length	3.777 inch
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN/LEAD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	.3614 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	58399
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	128
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

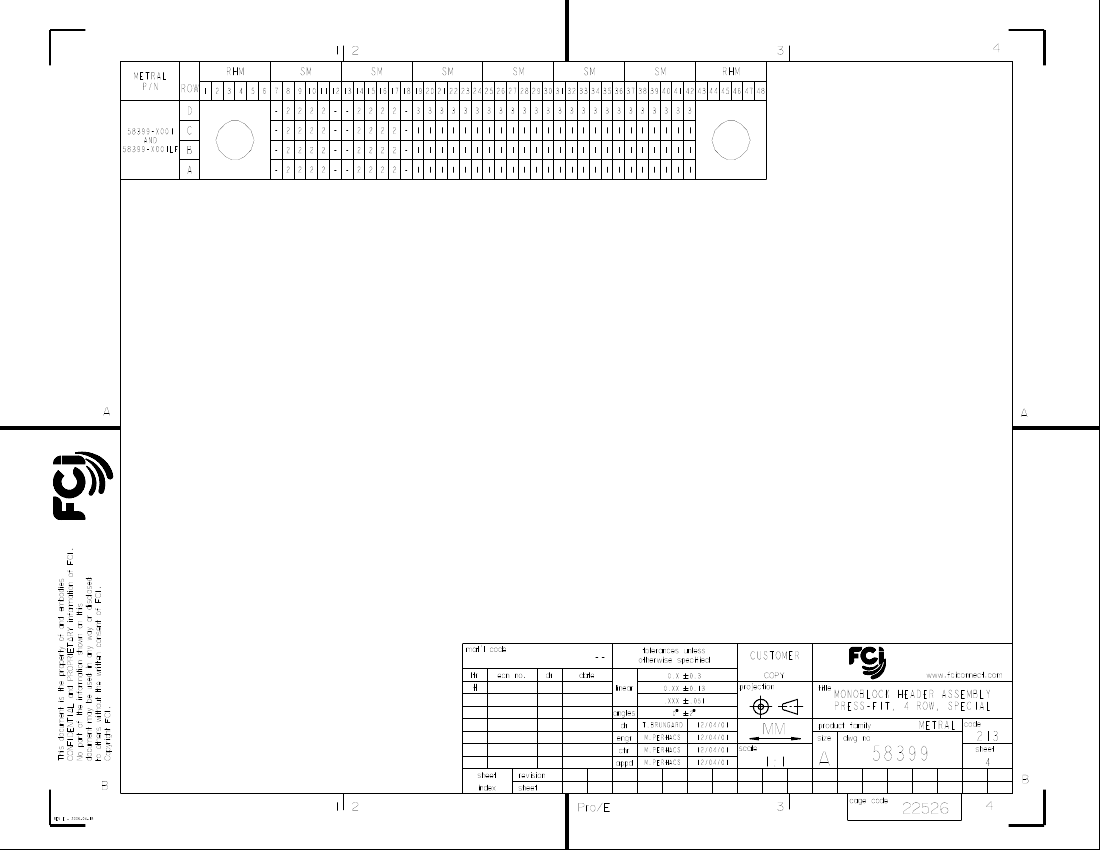

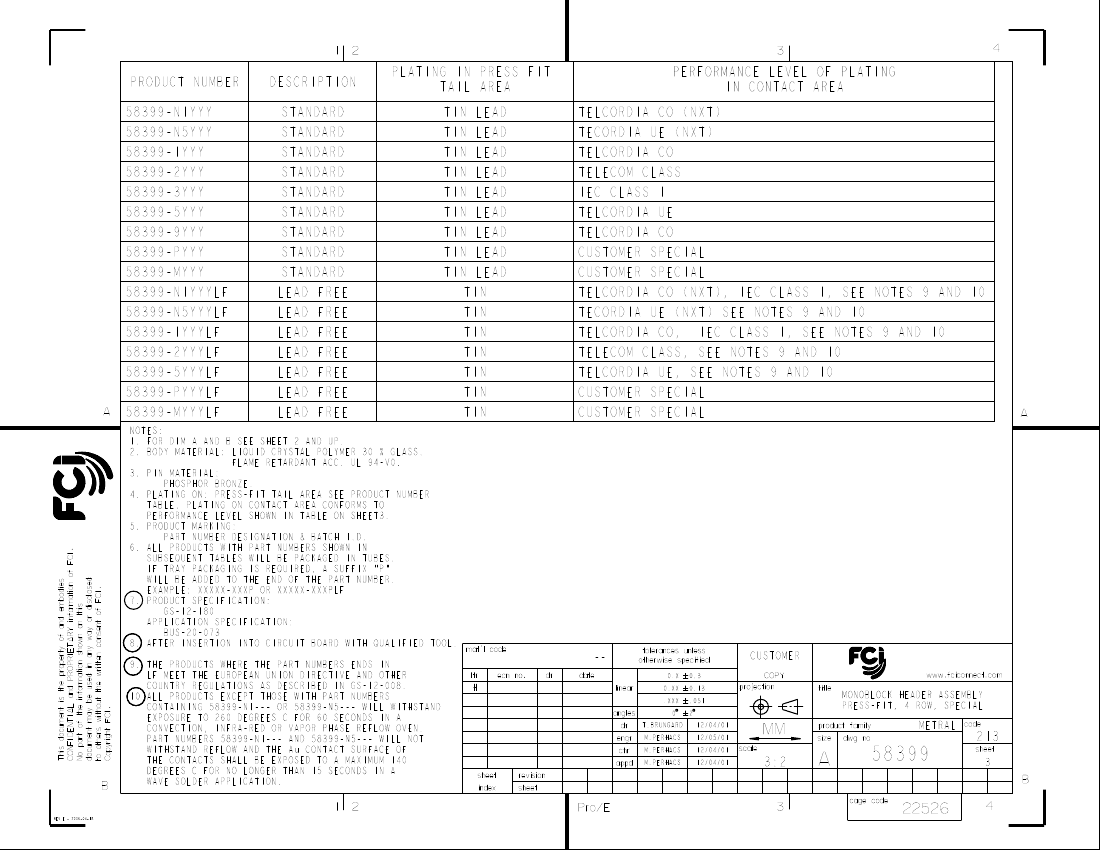

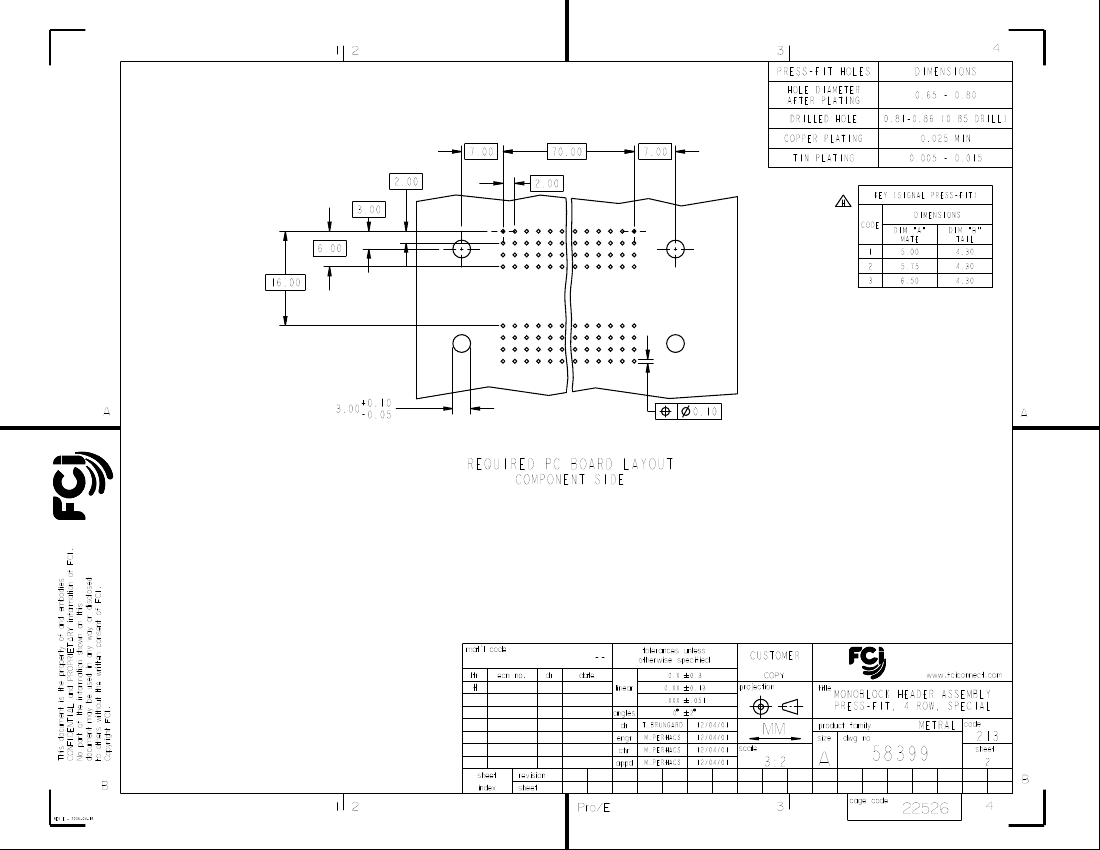

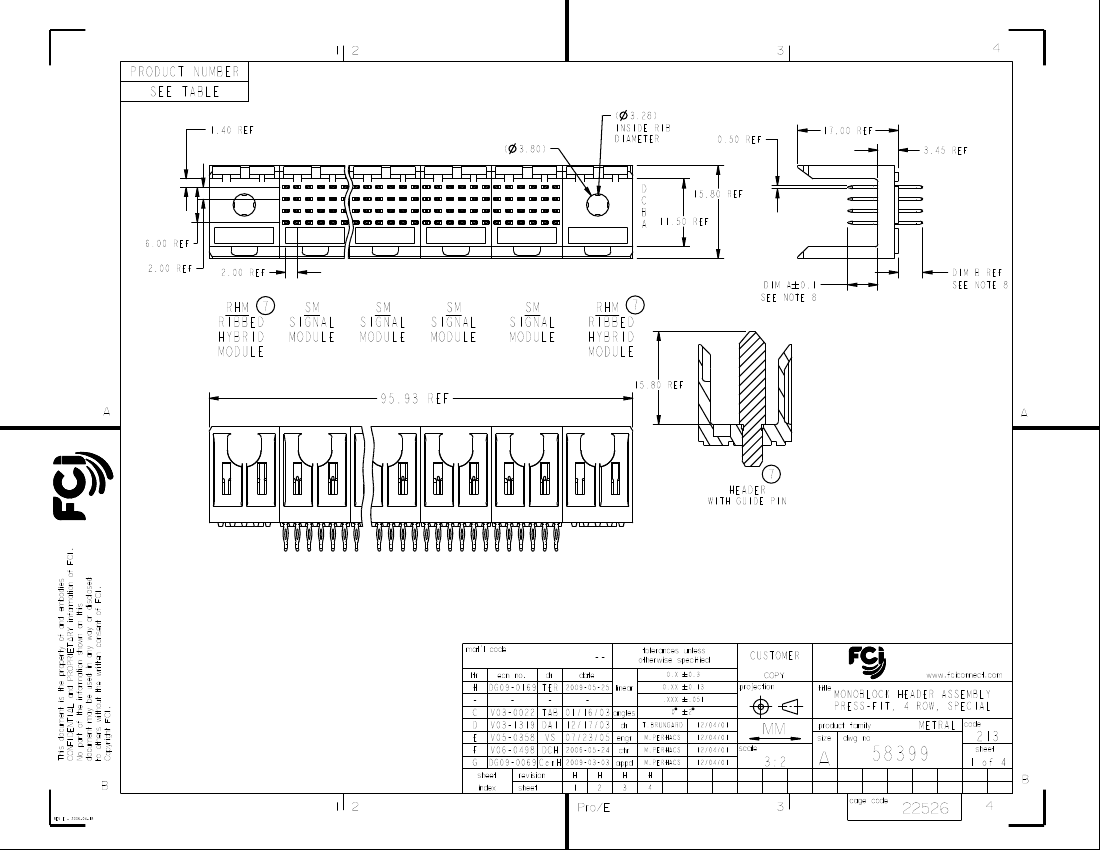

PRODUCT NUMBER

SEE TABLE

1.40 REF

(

3.80 )

( 3.28 )

INSIDE RIB

DIAMETER

17.00 REF

3.45 REF

0.50 REF

6.00 REF

2.00 REF

15.80 REF

11.50 REF

RHM 7

RIBBED

HYBRID

MODULE

SIGNAL

MODULE

SIGNAL

MODULE

SIGNAL

MODULE

SIGNAL

MODULE

RHM 7

RIBBED

HYBRID

MODULE

15.80 REF

DIM A 0.1

SEE NOTE 8

DIM B REF

SEE NOTE 8

95.93 REF

HEADER

WITH GUIDE PIN

CONFIDENTIAL and PROPRIETARY information of FCI.

This document is the property of and embodies

to others without the written consent of FCI.

document may be used in any way or disclosed

No part of the information shown on this

mat'l code

ecn no.

date

linear

tolerances unless

otherwise specified

CUSTOMER

COPY

projection

title

www.fciconnect.com

ltr

0.X

0.XX

.XXX

angles

engr

chr

appd

0.3

0.13

.051

DG09-0169

TER

2009-05-25

V03-0022 TAB 01/16/03

V03-1319 DAI 12/17/03

V05-0358 VS 07/23/05

V06-0498 DCH

2006-05-24

DG09-0069

CenH

2009-03-03

sheet

revision

sheet

MONOBLOCK HEADER ASSEMBLY

PRESS-FIT, 4 ROW, SPECIAL

METRAL

code

dwg no

T.BRUNGARD

M.PERHACS

12/04/01

scale

product family

size

3:2

58399

cage code

213

sheet

1 of 4

Pro/E

REV E - 2006-04-18

index

22526

PDM: Rev:H

STATUS:

Released

Printed: May 27, 2009
