51787-003LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 51787-003LF

51787-003LF: DescriptionBoard Connector, 30 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size291KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51787-003LF Overview

Board Connector, 30 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE

51787-003LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
body width	0.47 inch
subject depth	0.82 inch
body length	2.9 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P6
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9452 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51787
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.155 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30
UL Flammability Code	94V-0
Evacuation force-minimum value	.17792 N

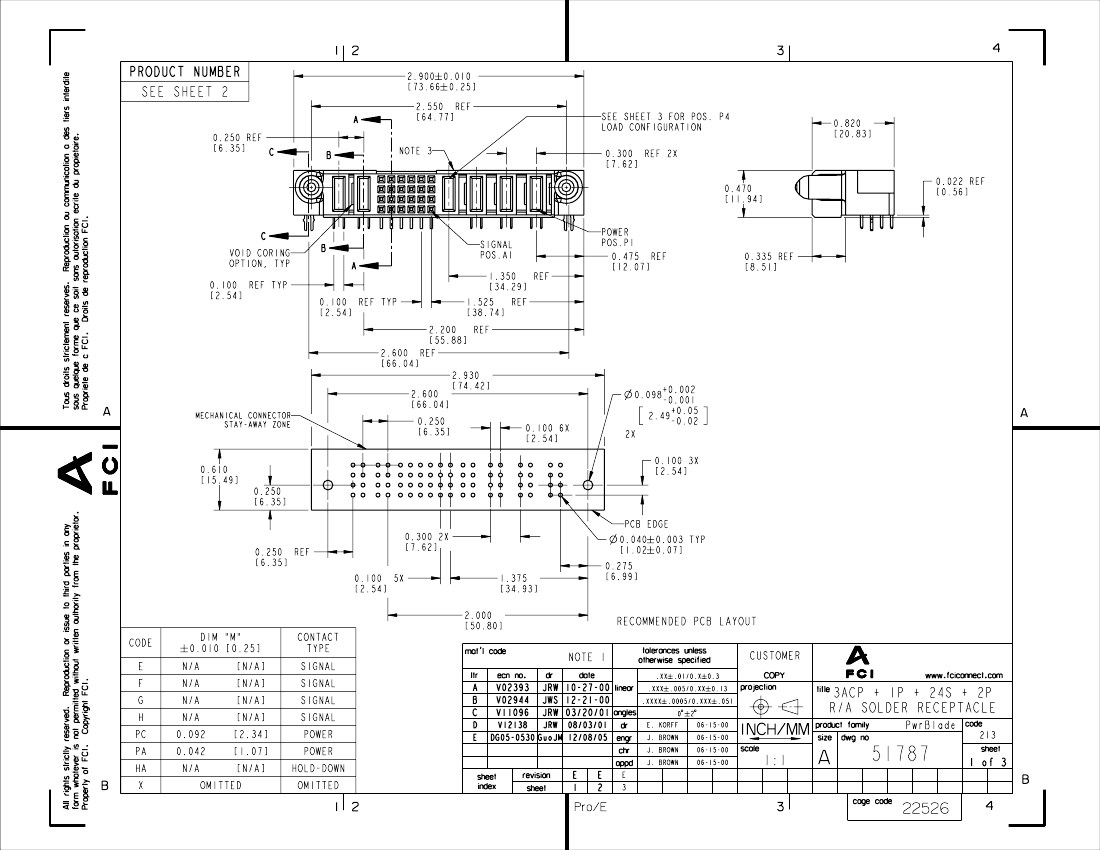

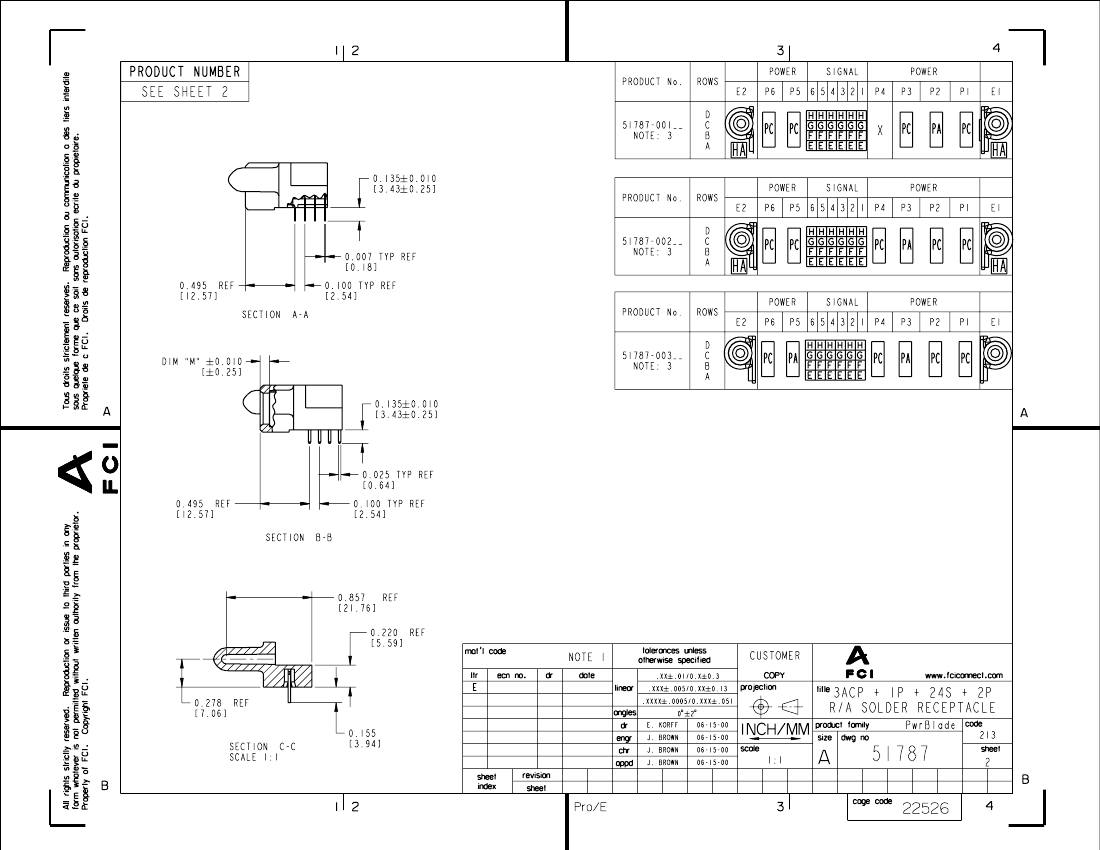

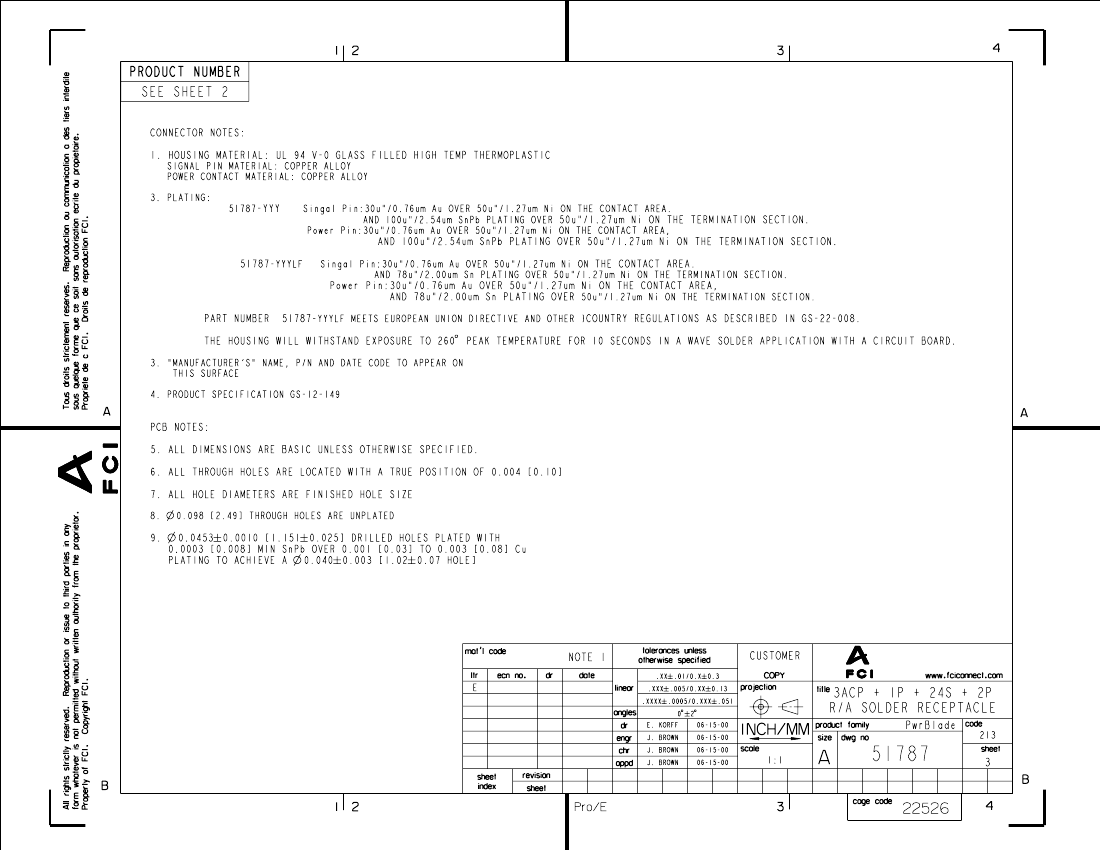

Preview

Download Datasheet

View All

PDM: Rev:E

STATUS:

Released

Printed: Dec 20, 2010

51787-003LF Related Products

	51787-003LF	51787-004LF	51787-002	51787-004	51787-001LF	51787-001	51787-002LF	51787-003
Description	Board Connector, 30 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE	PwrBlade®, Power Connectors, 4P 24S 2P Right Angle Receptacle, Solder To Board	R/A REC POWERBLADE	R/A SOLDER REC PWRBLADE	PwrBlade®, Power Connectors, 3ACP 1P 24S 2P Right Angle Receptacle, Solder To Board	Board Connector, 29 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Receptacle	Board Connector, 30 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 30 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
body width	0.47 inch	0.47 inch	0.47 inch	0.47 inch	0.47 inch	0.47 inch	0.47 inch	0.47 inch
subject depth	0.82 inch	0.82 inch	0.82 inch	0.82 inch	0.82 inch	0.82 inch	0.82 inch	0.82 inch
body length	2.9 inch	2.9 inch	2.9 inch	2.9 inch	2.9 inch	2.9 inch	2.9 inch	2.9 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S24P6	S24P6	S24P6	S24P6	S24P6	S24P6	S24P6	S24P6
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Durability	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	.9452 N	.973 N	.9452 N	.973 N	.9452 N	.9452 N	.9452 N	.9452 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED POLYETHYLENE	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED POLYETHYLENE	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	YES	YES	YES	YES	YES	YES	YES	YES
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
Number of rows loaded	4	4	4	4	4	4	4	4
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal length	0.155 inch	0.135 inch	0.135 inch	0.135 inch	0.135 inch	0.135 inch	0.135 inch	0.155 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	30	30	30	30	29	29	30	30
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.17792 N	.1668 N	.17792 N	.1668 N	.17792 N	.17792 N	.17792 N	.17792 N
Maker	Amphenol	-	Amphenol	Amphenol	-	Amphenol	Amphenol	Amphenol
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	AU ON NI	-	NOT SPECIFIED	AU ON NI	NOT SPECIFIED	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	NOT APPLICABLE	TIN/LEAD OVER NICKEL	-	TIN OVER NICKEL	TIN/LEAD OVER NICKEL	TIN OVER NICKEL	TIN/LEAD OVER NICKEL
Dielectric withstand voltage	2500VDC V	-	2500VDC V	-	2500VDC V	2500VDC V	2500VDC V	2500VDC V
Manufacturer's serial number	51787	-	51787	51787	-	51787	51787	51787
Plating thickness	30u inch	-	30u inch	-	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	1 A	-	1 A	-	1 A	1 A	1 A	1 A
Guideline	UL	-	UL	-	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
