APA4880
Stereo 330mW 8Ω Speak Driver With Mute
Features
•
Operating Voltage
Single Supply
Dual Supply
3V to 7V
±1.5V to ± 3.5V
Applications
•
•
•
•
•
Portable Digital Audio
Personal Computers
Microphone Preamplifier
CD ROM Player
Headphone Amplifier
•
•
•
•
•
Depop Circuitry Integrated.
High Signal-to-Noise Ratio
High Slew Rate
Low Distortion
Output Power at 10% THD+N
into 8Ω
into 16Ω
330mW
200mW
100dB
5.5V/ms
-66dB
Gereral Description
The APA4880 is an integrated class AB stereo head-
phone amplifier contained in an SO-8 or a DIP-8 plas-
tic package. The APA4880 is capable of delivering
330mW of max. output power to an 8Ω load with less
than 10% (THD+N) from a 5V power supply. The
device has been primarily developed for portable digi-
tal audio applications. Both of the depop circuitry and
mute circuitry are integrated in the APA4880 , that
reduces pops and clicks noise during power up and
when using the mute mode(high active).
•
•
•
•
•
•
•
Large Output Voltage Swing
Excellent Power Supply Ripple Rejection
Low Power Consumption
Short-circuit Elimination
Wide Temperature Range
No Switch ON/OFF Clicks
Available in 8 pin SOP,TSSOP or PDIP
Package
Ordering and Marking Information
APA4880
L e a d F re e C o d e
H a n d lin g C o d e
Tem p. Range
Package Code
Package Code
J : P D IP - 8
K : SOP - 8
O : T S S O P -8
Tem p. Range
I : - 4 0 to 8 5
°
C
H a n d lin g C o d e
TU : Tube
TR : Tape & Reel
L e a d F re e C o d e
L : L e a d F re e D e v ic e
B la n k : O rig in a l D e v ic e
APA4880 J :
APA4880
XXXXX
X X X X X - D a te C o d e
A P A 4 8 8 0 K /O :
APA4880
XXXXX
X X X X X - D a te C o d e
ANPEC reserves the right to make changes to improve reliability or manufacturability without notice, and advise
customers to obtain the latest version of relevant information to verify before placing orders.
Copyright
ANPEC Electronics Corp.
Rev. A.4 - Jan., 2003
1
www.anpec.com.tw
APA4880
Block Diagram
OutA
INA
1
2
3
4
MUTE
A
- +
B
+ -
8
7
6
5
V
DD
OutB
INB
Mute
Bypass
V
SS
APA4880
Pin Function Description
Pin Name
OUTA
INA
Bypass
VSS
Mute
INB
OUTB
VDD
No
1
2
3
4
5
6
7
8
I/O
O
I
I
I
I
O
Description
Channel A output pin
Audio input channel A
Connect to voltage divider for internal mid_supply bias
Ground or negative supply voltage connection for circuitry.
mute mode control signal input, place entire IC in mute mode when held
high, Imute=140µA
Audio input channel B
Channel B output pin
Supply voltage input pin
Absolute Maximum Ratings
Symbol
V
DD
T
SC(O)
T
A
T
J
T
STG
T
S
V
ESD
Parameter
Supply Voltage
Output Short-Circuit Duration , at T
A
=25°C , P
TOT
=1W
Operating Ambient Temperature range
Maximum Junction Temperature
Storage Temperature Range
Soldering Temperature , 10 seconds
Electrostatic Discharge
Rating
5
20
-40 to 85
150
-65 to+150
260
-3000 to 3000
*1
Unit
V
S
°C
°C
°C
°C
V
Note : *1. Human body model : C=100pF , R=1500Ω , 3 positive pulses plus 3 negative pulses
Copyright
ANPEC Electronics Corp.
Rev. A.4 - Jan., 2003
2
www.anpec.com.tw
APA4880
Thermal Characteristics
Symbol
R
THJA
Parameter
Thermal Resistance from Junction to Ambient in Free Air
SO-8
TSSOP-8
PDIP-8
Value
210
220
109
Unit
K/W
Electrical Characteristics
T
A
=25°C, V
DD
=5V, V
SS
=0V, f=1kHz (unless otherwise noted)
Symbol
I
DD
Parameter
Test Conditions
No Load
V
PINS
APA4880
Min.
Typ.
Max.
3.0
140
5
0.05
0.04
0.03
240
150
85
330
200
110
50
85
85
100
7
5.5
20
Unit
mA
uA
mV
%
Supply Current
I
MUTE
Mute Current
V
I(OS)
Input Offset Voltage
AC Characteristics
(THD+N)/S Total Harmonic Distortion
plus Noise to Signal Ratio
Po
Output Power
PSRR
ATT
Xtalk
Gv
Fg
SR
S/N
Power Supply Rejection
Ratio
Mute attenuation
Channel Separation
Open Loop Gain
Unity Gain Frequency
Slew Rate
Signal to Noise Ratio
P
O
=200mW , R
L
=8Ω , f=1kHz
P
O
=120mW , R
L
=16Ω , f=1kHz
P
O
=75mW , R
L
=32Ω , f=1kHz
(THD+N)/S=0.1% , f=1kHz
R
L
=8Ω
R
L
=16Ω
R
L
=32Ω
(THD+N)/S=10% , f=1kHz
R
L
=8Ω
R
L
=16Ω
R
L
=32Ω
C
S
=2.2uF , V
RIPPLE
=200mV
RMS
,
f=120Hz
Vin=1Vrms , R
L
=8Ω
P
O
=200mV , R
L
=8Ω , Cb=2.2µF
mW
dB
dB
dB
dB
MHz
V/us
uVrms
Vin=1Vrms , R
L
=8Ω
Copyright
ANPEC Electronics Corp.
Rev. A.4 - Jan., 2003
3
www.anpec.com.tw
APA4880

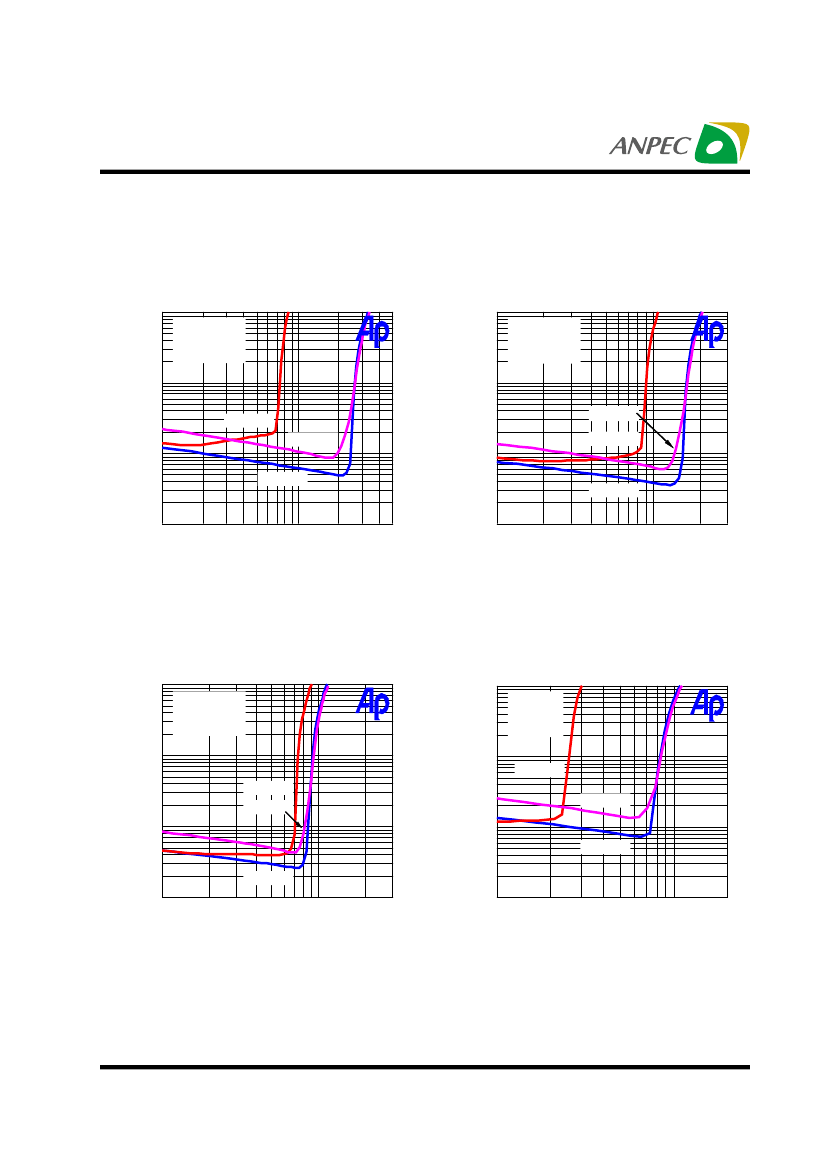

Typical Characteristics
THD+N-Total Harmonic Distortion+Noise (%)
THD+N-Total Harmonic Distortion+Noise (%)
10
5
2
1
0.5
10
5
2
1
0.5
V
DD
=5V
RL=8Ω
Av=-1
V
DD
=5V
RL=16Ω
Av=-1
f=20Hz
0.2
0.1
0.05
0.02
0.01
10m
f=20kHz
0.2
0.1
0.05
f=1kHz
f=20Hz
f=20kHz
f=1kHz
0.02
0.01
10m
20m 30m
50m
80m
200m
500m
20m
30m
50m 70m 100m
300m
Output Power (W)
Output Power (W)
THD+N-Total Harmonic Distortion+Noise (%)
THD+N-Total Harmonic Distortion+Noise (%)
10
5
2
1
0.5
0.2
0.1
0.05
0.02
0.01
10m
5
2
1
0.5
V
DD
=5V
RL=32Ω
Av=-1
V
DD
=3V
RL=8Ω
Av=-1
f=20Hz
f=20kHz
f=20Hz
0.2
0.1
0.05
0.02
0.01
10m
f=20kHz
f=1kHz
f=1kHz
20m
30m
5 0 m 7 0 m 100m
300m
20m
30m
50m
70m
100m
200m
Output Power (W)
Output Power (W)
Copyright
ANPEC Electronics Corp.
Rev. A.3 - Jun., 2001
5
www.anpec.com.tw
