51915-024LF

Description
Board Connector, 38 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE
CategoryThe connector    The connector
File Size308KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

51915-024LF Overview

Board Connector, 38 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE

51915-024LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid2127486493
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL9.1
Other featuresTERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
Board mount optionsHOLE .138-.163
body width0.47 inch
subject depth0.82 inch
body length4.5 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleHYBRID
DIN complianceNO
Dielectric withstand voltage2500VDC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance10000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYETHYLENE
MIL complianceNO
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Number of rows loaded4
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Plating thickness30u inch
GuidelineUL
Terminal length0.135 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts38
UL Flammability Code94V-0

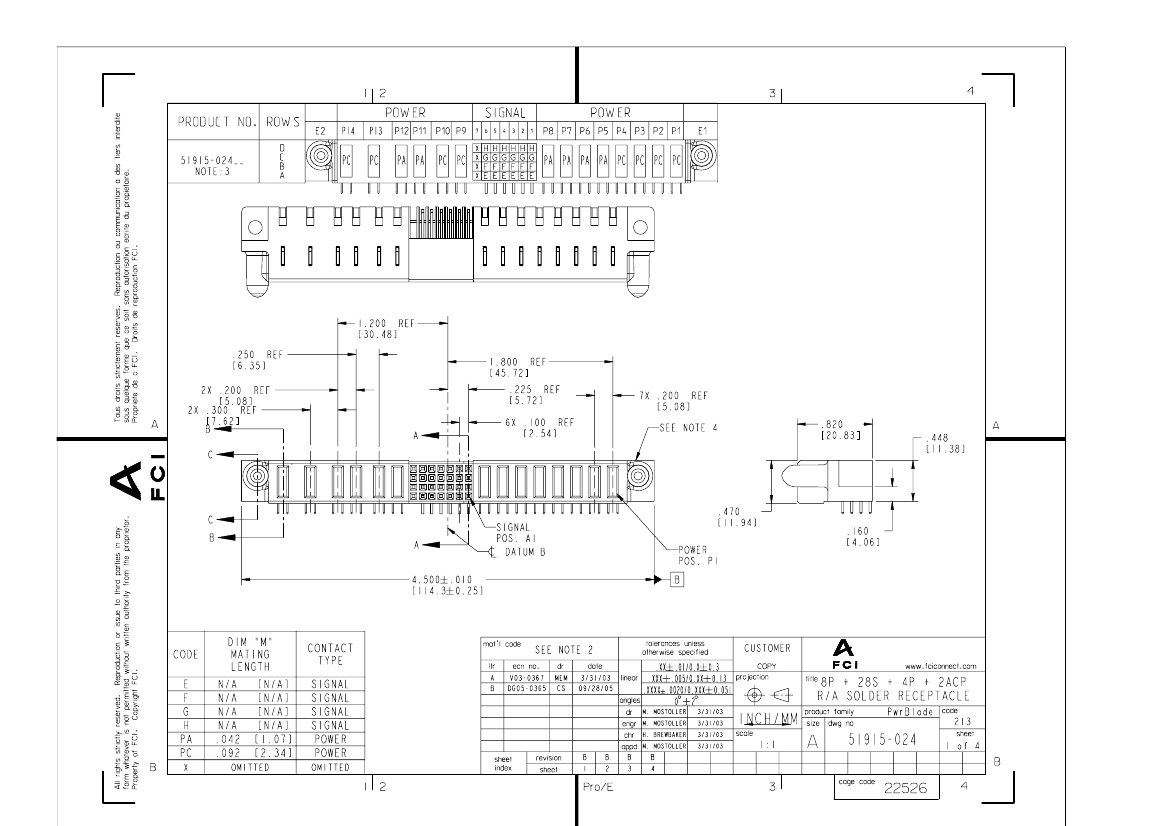

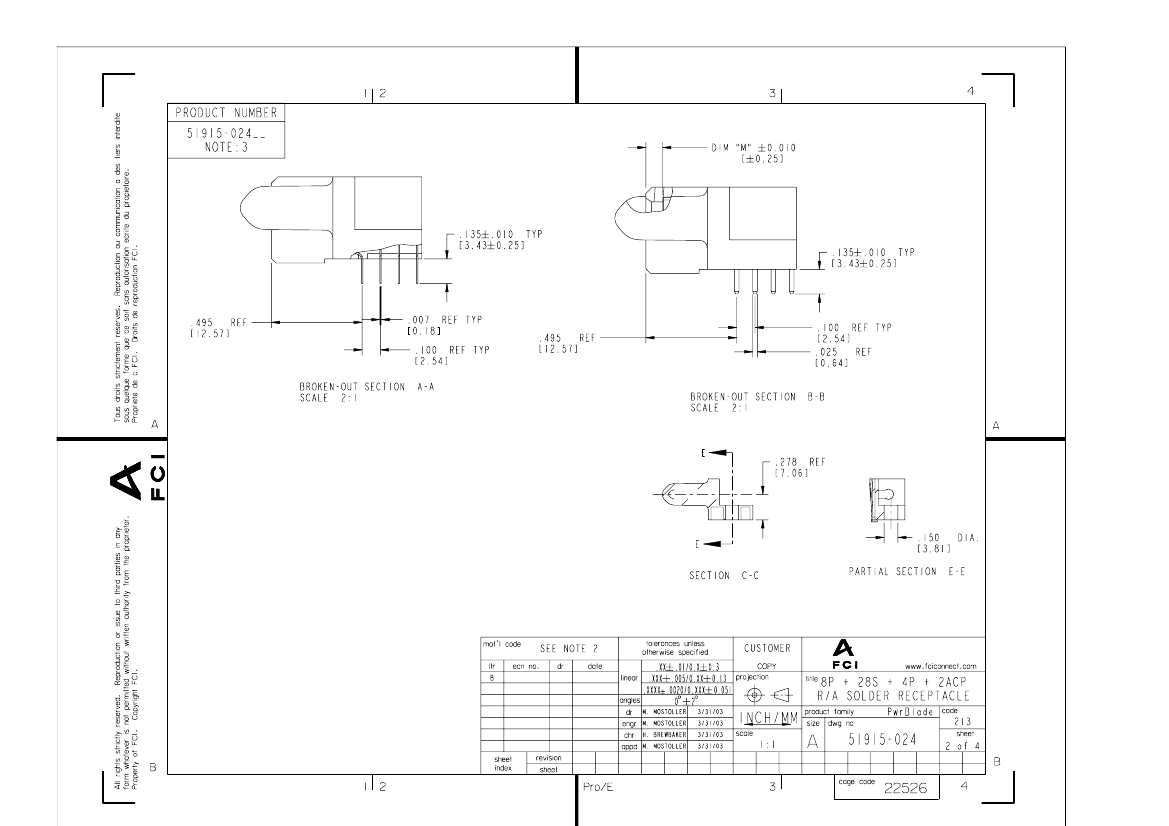

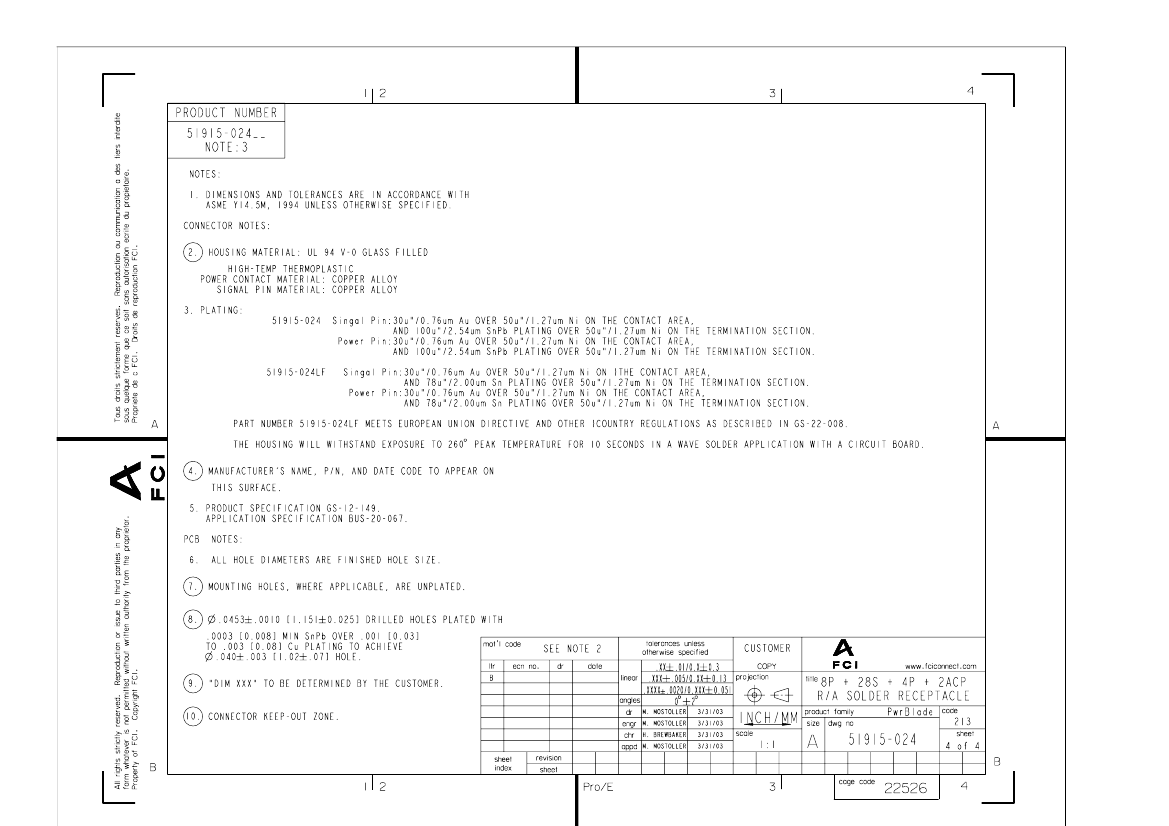

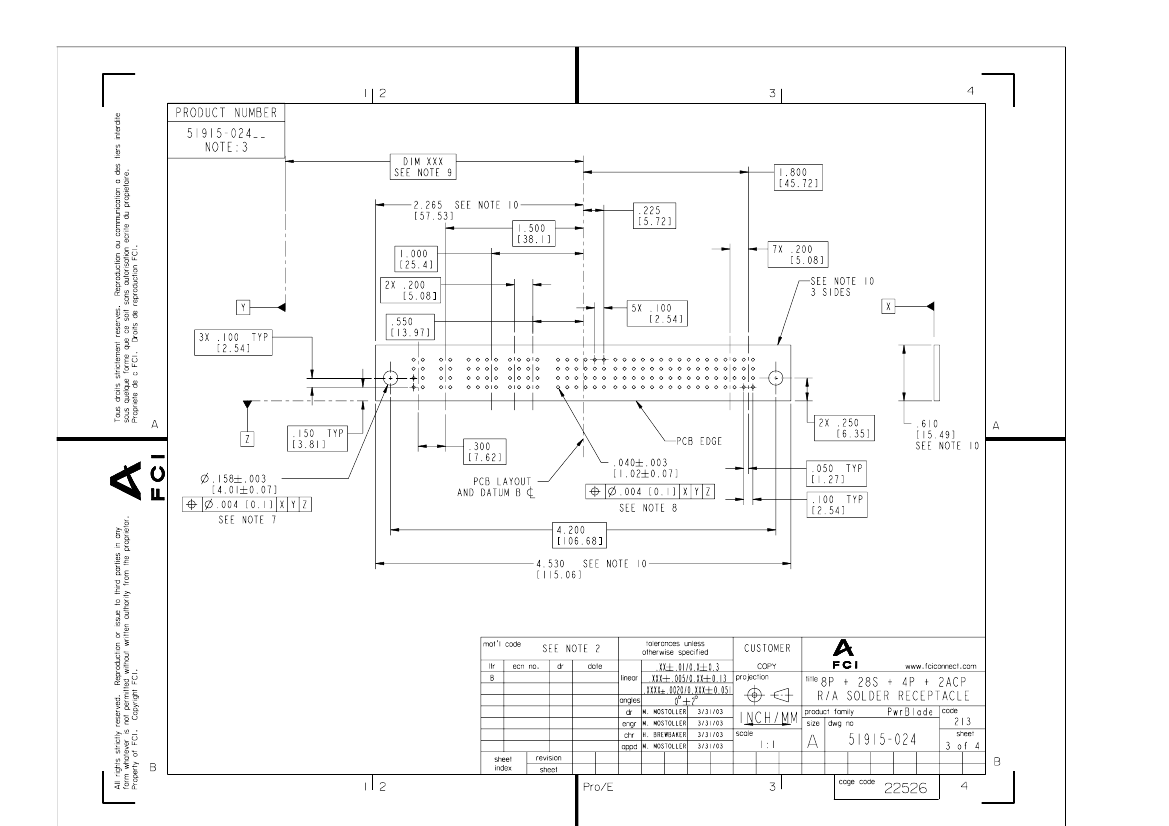

PDM: Rev:B
STATUS:
Released
Printed: Dec 20, 2010
.

51915-024LF Related Products

51915-024LF 51915-024
Description Board Connector, 38 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE PWRBLADE RA REC
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Other features TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
Board mount options HOLE .138-.163 HOLE .138-.163
body width 0.47 inch 0.47 inch
subject depth 0.82 inch 0.82 inch
body length 4.5 inch 4.5 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED AU ON NI
Contact completed and terminated TIN OVER NICKEL TIN/LEAD OVER NICKEL
Contact point gender FEMALE FEMALE
Contact material NOT SPECIFIED COPPER ALLOY
Contact resistance 20 mΩ 20 mΩ
Contact style HYBRID HYBRID
DIN compliance NO NO
Dielectric withstand voltage 2500VDC V 2500VDC V
Durability 200 Cycles 200 Cycles
Filter function NO NO
IEC compliance NO NO
Insulation resistance 10000000000 Ω 10000000000 Ω
Insulator color BLACK BLACK
insulator material GLASS FILLED POLYETHYLENE GLASS FILLED THERMOPLASTIC
MIL compliance NO NO
Mixed contacts YES YES
Installation option 1 LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of connectors ONE ONE
Number of rows loaded 4 4
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
Plating thickness 30u inch 30u inch
Guideline UL UL
Terminal length 0.135 inch 0.135 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type SOLDER SOLDER
Total number of contacts 38 38
UL Flammability Code 94V-0 94V-0
