5080S110000 datasheet, PDF - EEWORLD Datasheet

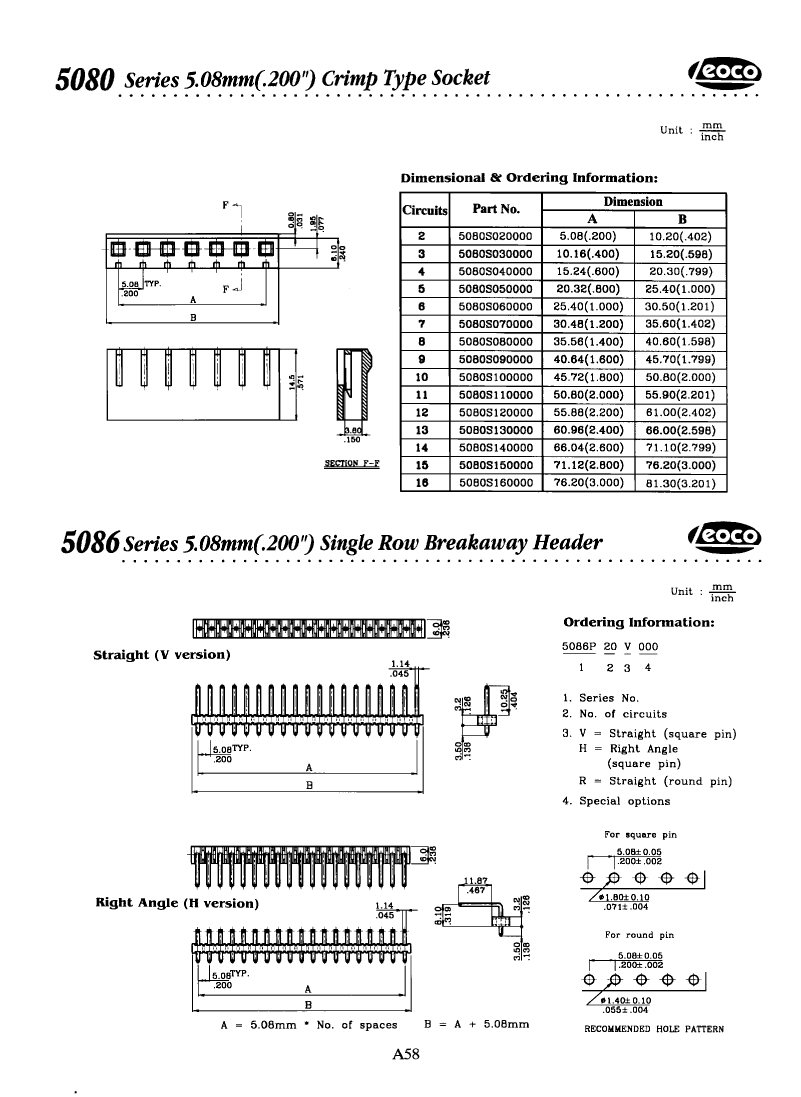

5080S110000: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Female, 0.2 inch Pitch, Crimp Terminal, Locking, Socket; CategoryThe connector The connector; File Size86KB，2 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

5080S110000 Overview

Board Connector, 11 Contact(s), 1 Row(s), Female, 0.2 inch Pitch, Crimp Terminal, Locking, Socket

Parameter Name	Attribute value
Maker	Leoco USA Corp
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
body width	0.272 inch
subject depth	0.571 inch
body length	2.201 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	5080
Plug contact pitch	0.2 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	11
UL Flammability Code	94V-0
Maximum wire diameter	18 AWG
Minimum wire diameter	26 AWG
