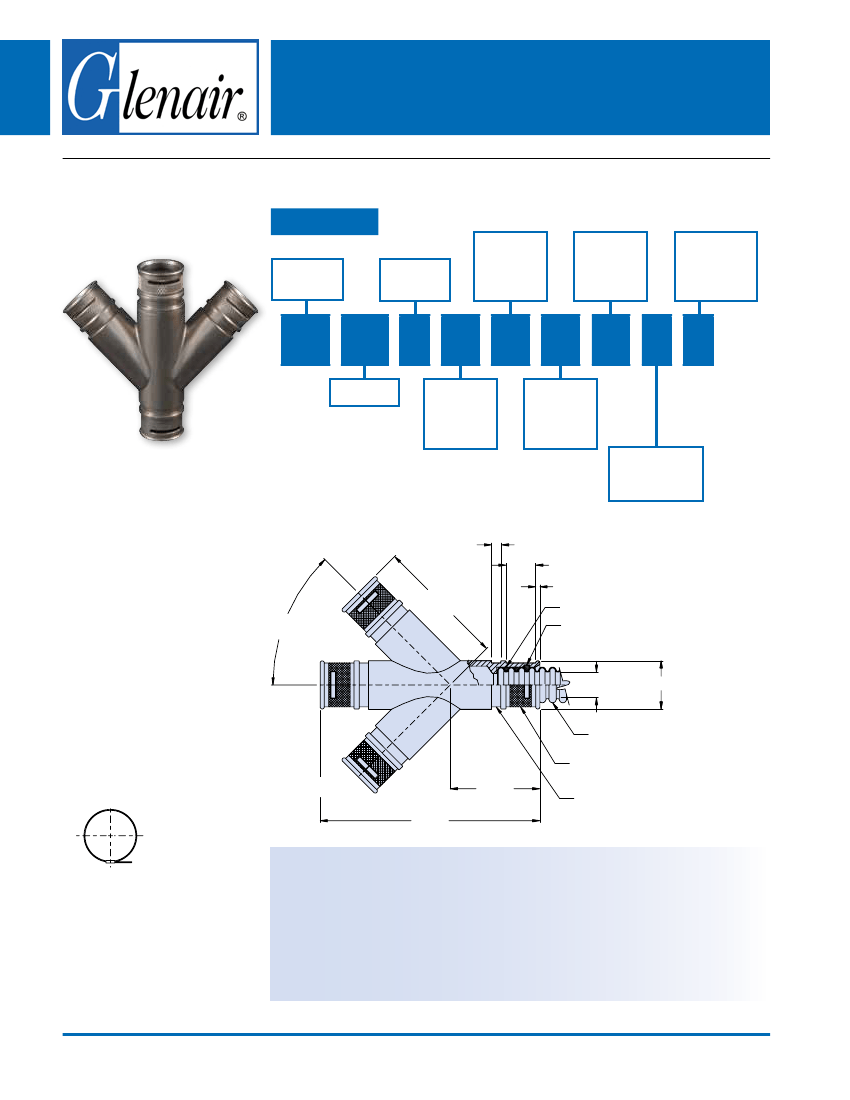

710-859

direct Attachment Guardian double-Y transition

For Series 72 Annular Convoluted tubing

Series 72

Guardian

45°

2x

Direct-attachment Guardian double-Y transition

How To Order

Product

Series

Finish

(Table II)

“B” End,

Conduit

Entry Size

(Table I)

“D” End,

Conduit

Entry Size

(Table I)

Shrink Boot

(Omit if not

required)

See Table I

710

-

859 M

Basic No.

09

“A” End,

Conduit

Entry Size

(Table I)

09

“C” End,

Conduit

Entry Size

(Table I)

09

B

T

B

= Band

K

= Precoiled

(Omit for none)

“B” End

D mAx

2x

.135 TyP

.380 TyP

.060 TyP

CONDUIT O-rING 2x TyP

CONDUIT rETAINING CLIP TyP

“C” End

CONDUIT

I.D. TyP

A mAx TyP

“A” End

TUBING SHOwN FOr

rEFErENCE ONLy

ACCOmODATES 600-052-1 BAND

“D” End

C mAx

BAND OPTION

(k OPTION SHOwN-

SEE NOTES)

B mAx

SHrINk SLEEvE Or BOOT GrOOvE

Material and Finish

Transition: See Table II

O-ring: Silicone/NA

Retaining clip: High-grade engineering thermoplastic/NA

Tools and Assembly notes

Conduit retaining clip and conduit O-rings to be supplied unassembled

Glenair assembly procedure AP74-010 is recommended for adapter to conduit termination

Glenair 600 Series backshell assembly tools are recommended for assembly and installation

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
