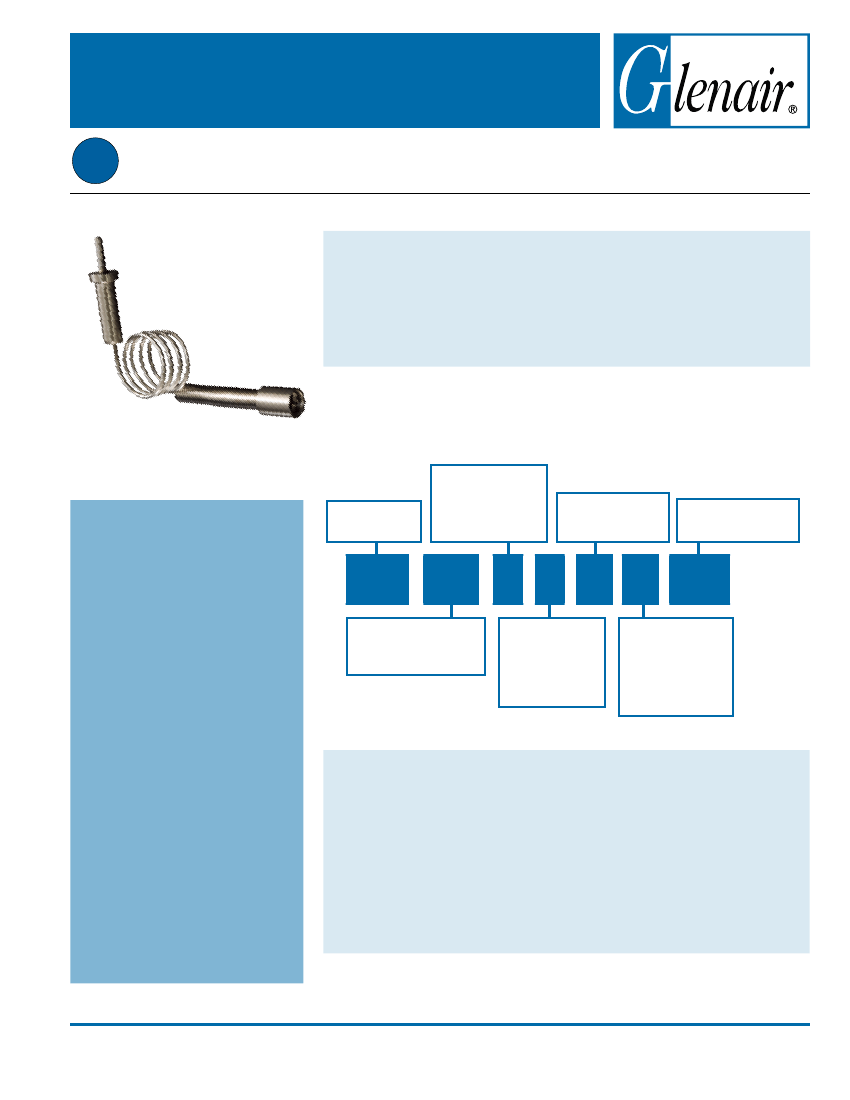

for MIL-DTL-38999 Series I, III and IV Connectors
D38999
831-001
GT Gas Tube Assemblies
Ser. I, III, IV
High-Pressure Assemblies for Pure Gas Pneumatic/Cryogenic Applications
Series 831 GT assemblies provide passage of nitrogen and other pure, pressurized gases
through standard MIL-DTL-38999 Series I, III and IV connectors. These snap-in, rear-release
assemblies feature precision stainless steel gas contacts brazed to semi-rigid stainless steel
tubing. The assemblies are fabricated using a flux-free brazing process and are ultrasonically
cleaned and packaged in a sealed, dust-free environment. Available in #12 AWG gas contacts,
these assemblies are supplied with two different tubing sizes, and may be ordered in single
ended or pin-to-pin, pin-to-socket and socket-to-socket configurations. Consult factory for
available off-the-shelf lengths or use the part number to specify a made-to-order length.
#12 assembly for MIL-DTL-38999 Series I, Series III and Series IV environmental connectors. Use part number
development to specify gender, assembly length and tubing type.
831-001 #12 Assembly
for MIL-DTL-38999 Series I, III, and IV
A End Contact
Gender
Glenair GT Gas Tube
Connectors Perform to
MIL-DTL-38999
•
Flow Rate
Typical Flow Rate is 5 liters per minute
(lpm) @ 150 PSI.
After cycling the connector between
-65°C +175°C, gas contacts will meet all
applicable mechanical requirements.
No mechanical defects after 500 cycles of
engagement and disengagement.
No loosening of parts, cracking or other
deleterious results hindering further
part operation after 300 G's in each of 3
mutually perpendicular planes.
Mated connectors will withstand high
impact shock per MIL-S-901.
No disengagement of mated contacts,
backing off of the coupling mechanism,
evidence of cracking, breaking or
loosening of parts.
GT Assembly
Series
P = Pin
S = Socket
Contact Size
12 = #12 AWG
Assembly
Length in Inches
831
-
001
-
P
MIL-DTL-38999
Series I, Series III
and Series IV
S
12
A
XXX
•
Thermal Shock
B End Contact
Gender
N = No Contact
P = Pin
S = Socket
Tubing Size
A = 0.55mm ID,
0.85mm OD
B = 0.8mm ID,
1.6mm OD
•
Durability
Example Part Number: 831-001-PS12A024
• Physical
Shock
Material and Finish
• High Impact
Shock
• Vibration
Contact Body: Passivated Stainless Steel
Internal O-Ring (Socket): High-Pressure Rated Elastomer
Internal Washer (Socket): Temperature and Chemically Resistant Polymer
Particle Filter (Socket): Stainless Steel
Brazing Material: Silver Alloy
Tubing: Stainless Steel
* Please consult the Glenair factory for made-to-order GT gas contacts, hermetics, mixed
contact AWG assemblies, point-to-point tubing assemblies with unique route and bend
requirements as well as integrated cable harnesses that combine our GT tubing and gas
contacts with standard electrical and/or fiber optic media.
© 2011 Glenair, Inc.
www.glenair.com
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
