121-195-09VE: DescriptionAnnular Convoluted Tubing with Double External Braid; File Size185KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

121-195-09VE Overview

Annular Convoluted Tubing with Double External Braid

Preview

Download Datasheet

View All

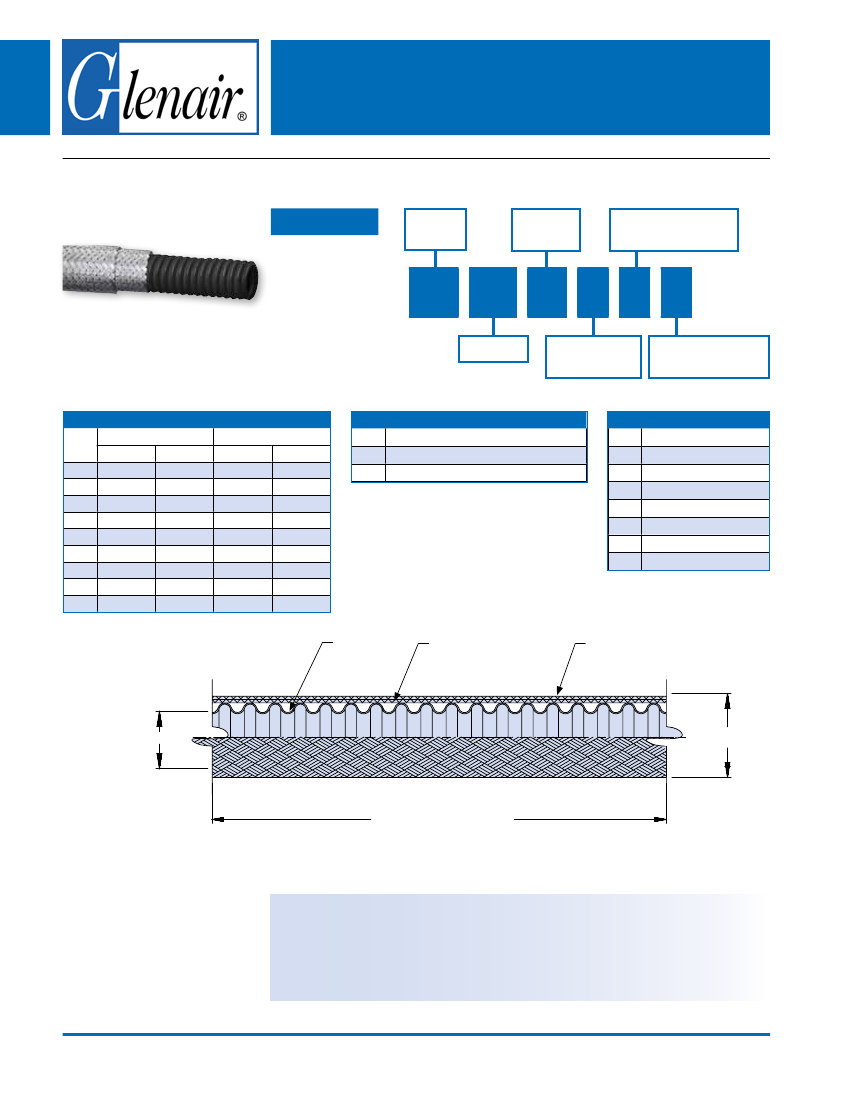

121-192

Annular Convoluted tubing

with double external Braid

Series 72

Guardian

How To Order

Dash

table i - dash number/diameter

A Inside Dia

B Outside Dia

Min

Max

Min

Max

.24 (6.1)

.28 (7.1)

.46 (11.7)

.50 (12.7)

.33 (8.4)

.37 (9.4)

.56 (14.2)

.60 (15.2)

.45 (11.4)

.50 (12.7)

.68 (17.3)

74 (18.8)

.57 (14.5)

.62 (15.7)

.79 (20.3)

.85 (21.6)

.69 (17.5)

.81 (20.6)

.93 (23.6)

1.18 (30.0)

1.56 (39.6)

.75 (19.1)

.87 (22.1)

1.00 (25.4)

1.25 (31.8)

1.63 (41.4)

.96 (24.4)

1.08 (27.4)

1.20 (30.5)

1.44 (36.6)

1.85 (47.0)

1.02 (25.9)

1.16 (30.1)

1.28 (32.5)

1.52 (38.6)

1.93 (49.0)

TUBING

For non-environmental EMI/RFI applications with high dB shielding requirements

Product

Series

Dash No.

(Table I)

Inner Braid Option

(Table III)

121

192

Basic No.

Outer Braid Option

(Table III)

Tubing Option

(Table II)

table ii - tubing option

table iii - Shield/Braid option

Kynar/Thermally stabilized

PVDF/Not thermally stabilized

Siltem/Medium duty

Tin/Copper

Stainless Steel

Nickel Copper

ArmorLite™

Dacron

Nomex

AmberStrand® 100%

AmberStrand® 75%/25%

INNEr SHIELD/BrAID

OUTEr SHIELD/BrAID

A TyP

B TyP

LENGTH

(AS SPECIFIED IN P.O.)

Packaging

Long-length orders of 121-192 braided conduit are subject to carrier weight and box size

restrictions. For example, UPS air shipments are currently limited to 50 lbs. per box.

Unless otherwise specified, Glenair standard practice is to ship optimal lengths of product

based on weight, size, and individual carrier specifications. Consult factory for additional

information or to specify packaging requirements.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
