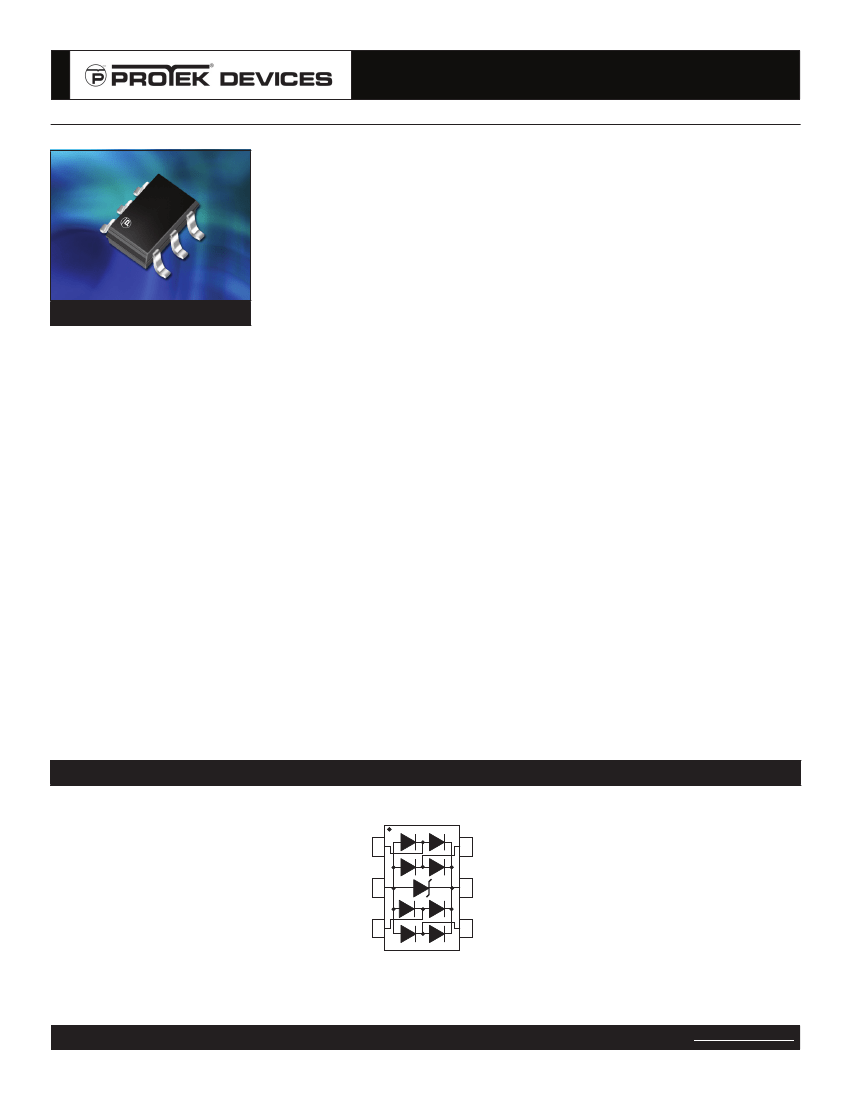

05350
Only One Name Means ProTek’Tion™
PAM05SC700504F
ultRA low CAPACitAnCe SteeRing diode/tvS ARRAy
deSCRiPtion
The PAM05SC700504F is subminiature, ultra low capacitance steering diode/TVS suppressor array designed for the
protection of sensitive IC components from the damaging effects of Electrostatic Discharge (ESD) and Electrical Fast
Transients (EFT). This device is ideally suited for use in automotive applications.
The PAM05SC700504F provides protection in accordance with IEC 61000-4-2 and IEC 61000-4-4 requirements. This
device is available in a SC70-6L package configuration and is rated at 200 Watts peak pulse power (8/20µs) per line.
SC70-6l PACkAge
FeAtuReS
•
•
•
•
•
•
•
•
•
Compatible with IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV
Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns
200 Watts Peak Pulse Power per Line(tp = 8/20µs)
ESD Protection > 25 kilovolts
Protects 4 Data Lines
Low Clamping Voltage
Ultra Low Capacitance: 1.9pF Typical
RoHS Compliant
REACH Compliant
APPliCAtionS
• Automotive Applications
MeChAniCAl ChARACteRiStiCS
•
•
•
•
•
•
Molded JEDEC SC70-6L Package
Approximate Weight: 7milligrams
Lead-Free Nickel Paladium Gold Plating
Solder Reflow Temperature: 260-270°C
Flammability Rating UL 94V-0
8mm Tape and Reel per EIA Standard 481
Pin ConFiguRAtion
I/O 1 1
GND 2
I/O 2 3
6 I/O 4
5 REF
4 I/O 3
05350.R0 12/11
Page 1
www.protekdevices.com
05350
Only One Name Means ProTek’Tion™
PAM05SC700504F
tyPiCAl deviCe ChARACteRiStiCS
MAXiMuM RAtingS
@ 25°C unless otherwise Specified
PARAMeteR
Peak Pulse Power (tp = 8/20µs) - See Figure 1
Operating Temperature
Storage Temperature
Forward Surge Rating (1/120 seconds @ 25°C, I
F
= 10mA)
SyMBol
P
PP
T
L
T
STG
V
F
vAlue
200
-55 to 150
-55 to 150
1.5
unitS
Watts
°C
°C
Volts
eleCtRiCAl ChARACteRiStiCS PeR line
@ 25°C unless otherwise Specified
PARt
nuMBeR
deviCe
MARking
RAted
StAnd-oFF
voltAge
(note 1)
v
wM
voltS
PAM05SC700504F
1. From I/O pin to ground.
MiniMuM
BReAkdown
voltAge
(note 1)
@ 1mA
v
(BR)
voltS
6.0
MAXiMuM
ClAMPing
voltAge
(Fig. 2)
(note 1)
@ i
P
= 1A
v
C
voltS
15.0
MAXiMuM
ClAMPing
voltAge
(Fig. 2)
(note 1)
@ i
P
= 5A
v
C
voltS
25.0
MAXiMuM
leAkAge
CuRRent
(note 1)
@v
wM
i
d
µA
3
MAXiMuM
CAPACitAnCe
(note 1)
@0v,
1Mhz
C
j(Sd)
pF
1.9
A5
5.0
noteS
10,000
FiguRe 1
PeAk PulSe PoweR vS PulSe tiMe
P
PP
- Peak Pulse Power - watts
1,000
200W, 8/20µs Waveform
100
10
0.1
1
10
100
t
d
- Pulse duration - µs
1,000
10,000
05350.R0 12/11
Page 2
www.protekdevices.com
05350
Only One Name Means ProTek’Tion™
PAM05SC700504F
tyPiCAl deviCe ChARACteRiStiCS
FiguRe 2
PulSe wAve FoRM
t
f
Peak Value I
PP
TEST
WAVEFORM
PARAMETERS
t
f
= 8µs
t
d
= 20µs
120
i
PP
- Peak Pulse Current - % of i
PP
100
80
% of Rated Power
FiguRe 3
PoweR deRAting CuRve
Peak Pulse Power
8/20µs
100
80
60
40
20
0
0
5
e
-t
60
40
20
0
Average Power
t
d
= t/(I
PP
/2)
10
15
t - time - µs
20
25
30
0
25
50
75 100 125
t
A
- Ambient temperature - °C
150
FiguRe 4
oveRShoot & ClAMPing voltAge
35
5 volts per division
25
15
5
-5
eSd test Pulse - 25 kilovolt, 1/30ns (waveshape)
05350.R0 12/11
Page 3
www.protekdevices.com
05350
Only One Name Means ProTek’Tion™
PAM05SC700504F
SC70-6l PACkAge inFoRMAtion
outline diMenSionS
diM
A
B
C
D
E
F
G
J
K
L
M
noteS
0.80
0.08
2.00
-
0.26
D
E
MilliMeteRS
Min
1.90
1.15
0.80
0.15
0.65 BSC
1.30 BSC
1.10
0.25
2.40
0.10
0.46
inCheS
Min
0.074
0.045
0.031
0.005
MAX
2.15
1.35
1.00
0.30
MAX
0.084
0.055
0.040
0.012
6
5
4
K
1
2
3
L
F
A
B
M
J
0° - 8°
0.026 BSC
0.051 BSC
0.031
0.003
0.078
-
0.010
0.043
0.010
0.095
0.004
0.018
C
G
1. Controlling dimension: inches.
2. Dimensioning and tolerances per ANSI Y14.5M, 1985.
3. Dimensions are exclusive of mold flash and metal burrs.
PAd lAyout diMenSionS
diM
A
B
C
D
E
noteS
B
C
E
D
MilliMeteRS
noMinAl
0.50
1.30
0.65
1.72
0.60
inCheS
noMinAl
0.020
0.051
0.026
0.068
0.024
A
1. Controlling dimension: inches.
05350.R0 12/11
Page 4
www.protekdevices.com
05350
Only One Name Means ProTek’Tion™
PAM05SC700504F
tAPe And Reel
P0
t
D
P2
10 Pitches Cumulative
Tolerance on Tape. ± 0.2
E
Top Cover Tape
A0
K0
F
W
Pin 1
P
B0
User Direction of Feed
SPeCiFiCAtionS
Reel diA.
178mm (7”)
1.
2.
3.
4.
tAPe
width
8mm
A0
B0
k0
d
e
F
w
P0
P2
P
tmax
0.25
2.25 ± 0.10 2.34 ± 0.10 1.22 ± 0.10 1.50 ± 0.10 1.75 ± 0.10 3.50 ± 0.05 8.00 ± 0.30 4.00 ± 0.10 2.00 ± 0.05 4.00 ± 0.10
noteS
Dimensions are in millimeters.
Surface mount product is taped and reeled in accordance with EIA-481.
Suffix - T73 = 7” Reel - 3,000 pieces per 8mm tape.
Marking on Part - marking code (see page 2) and pin one defined by dot on package.
Package outline, pad layout and tape specifications per document number 06019.R5 3/11.
oRdeRing inFoRMAtion
BASe PARt nuMBeR
PAM05SC700504F
leAdFRee SuFFiX
n/a
tAPe SuFFiX
-T73
Qty/Reel
3,000
Reel SiZe
7”
tuBe Qty
n/a
This device is only available in a Lead-Free configuration.
