531-40089: DescriptionRF Connector, Female, Board Mount, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size182KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

531-40089 Overview

RF Connector, Female, Board Mount, Solder Terminal, Receptacle

531-40089 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	RECEPTACLE
Characteristic impedance	75 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	SILVER
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	G
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	1 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

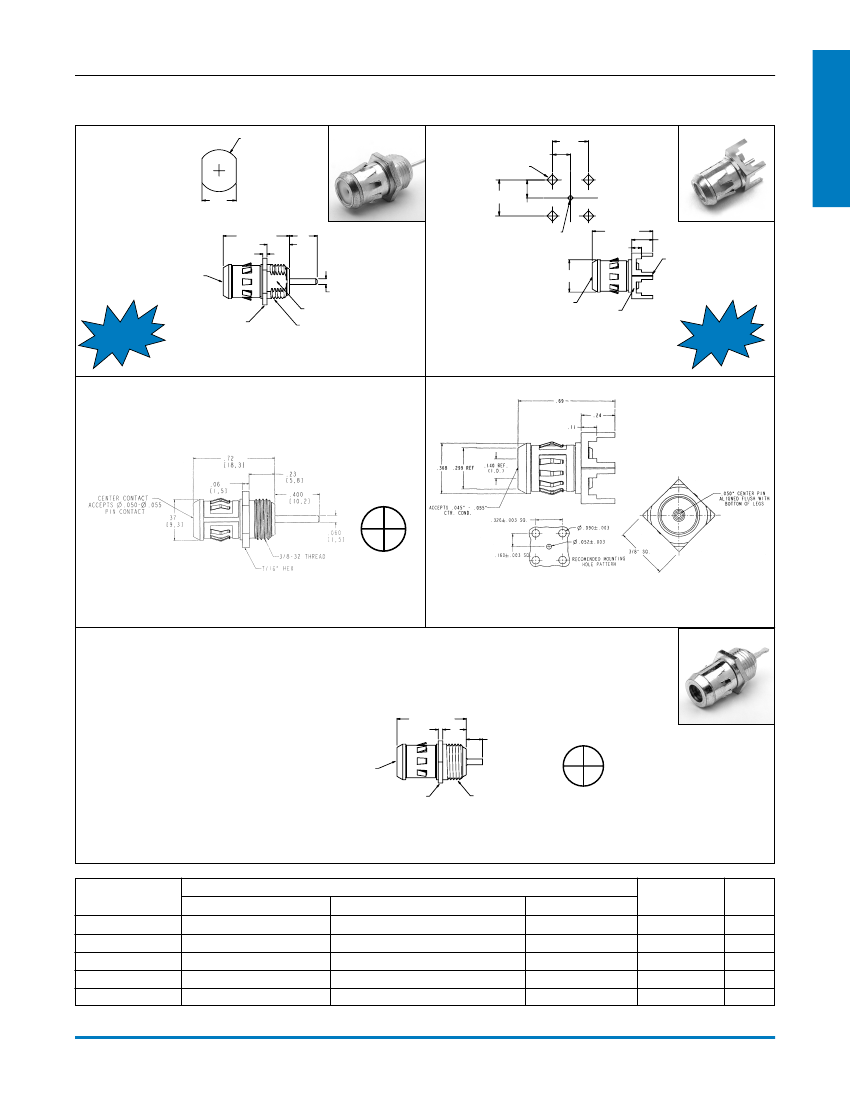

Type G

Receptacles

Fig. 1

.380(9.6)

dia.

Amphenol

®

Fig. 2

.160(4.1)

.090

(2.3) dia.

.320

(8.1)

.160

(4.1)

.320

(8.1)

Type G

.310

(7.9)

.72(18.3)

.045

(1.1)

accepts

.038 - .065 dia.

ctr. cond.

7/16 hex

.30(7.6)

.25(6.4)

.060

(1.5) dia.

.69

(17.5)

.11(2.8)

.24(6.1)

.05 dia.

ctr. cond.,

flush with legs

.06(1.5) dia.

double d flat

.37

(9.4)

accepts

.045 - .055 dia.

ctr. cond.

3/8 sq.

P

15 AM

3/8-32 thd

Type G Receptacle, Jack

531-40089

Fig. 4

Type G Jack

Four Hole PCB Mount

531-40051

P

15 AM

Fig. 3

.380(9.7)

dia.

Type G Receptacle, Jack

Low Insertion Force

531-40065

Fig. 5

Type G Jack

Four Hole PCB Mount, Low Insertion Force

531-40070

.69(17.5)

.06(1.5)

.20(5.1)

.24(6.1)

.380(9.7)

dia.

gsk female

interface

7/16 hex

3/8-32 thd

Type G Receptacle, Jack

531-40017

Materials

Body (plating)

brass (tin plate)

brass (tin lead)

Contact (plating)

phosphor bronze (silver)

phosphor bronze (gold over nickel)

phosphor bronze (tin lead)

Insulator

PTFE

Polypropylene

Amphenol

Number

531-40089

531-40051

531-40065

531-40070

531-40017

Terminal/Cable

Type

Round

Flat Tab

Fig.

1

2

3

4

5

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com
