53643-0704: DescriptionBoard Stacking Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug; CategoryThe connector The connector; File Size81KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

53643-0704 Overview

Board Stacking Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug

53643-0704 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
Board mount options	POLARIZATION POST
body width	0.205 inch
subject depth	0.157 inch
body length	1.147 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	53643
Plug contact pitch	0.025 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	70
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Stacking height: 5.0 and 11.0mm

Sizes 20 to 240 circuits

Housing lock on 20 to 70 circuits

Anti-ﬂux design

Metal solder tabs provide PCB hold down and strain

relief for SMT tails

Polarizing pegs assist placement

Reference Information

Packaging: Tube and embossed tape

Mates With:

52760

(H=5.0mm)

52837

(H=11.0mm)

Designed In: Millimeters

Mating Dimensions

1. 53475 • 52760

H=5.0mm W=6.4mm

2. 53475 • 52837

H=11.0mm W=6.4mm

Physical

Housing: White glass-ﬁlled LCP, UL 94V-0

Contact: Copper Alloy

Plating: Gold over Nickel

Operating Temperature: -55 to +85˚C

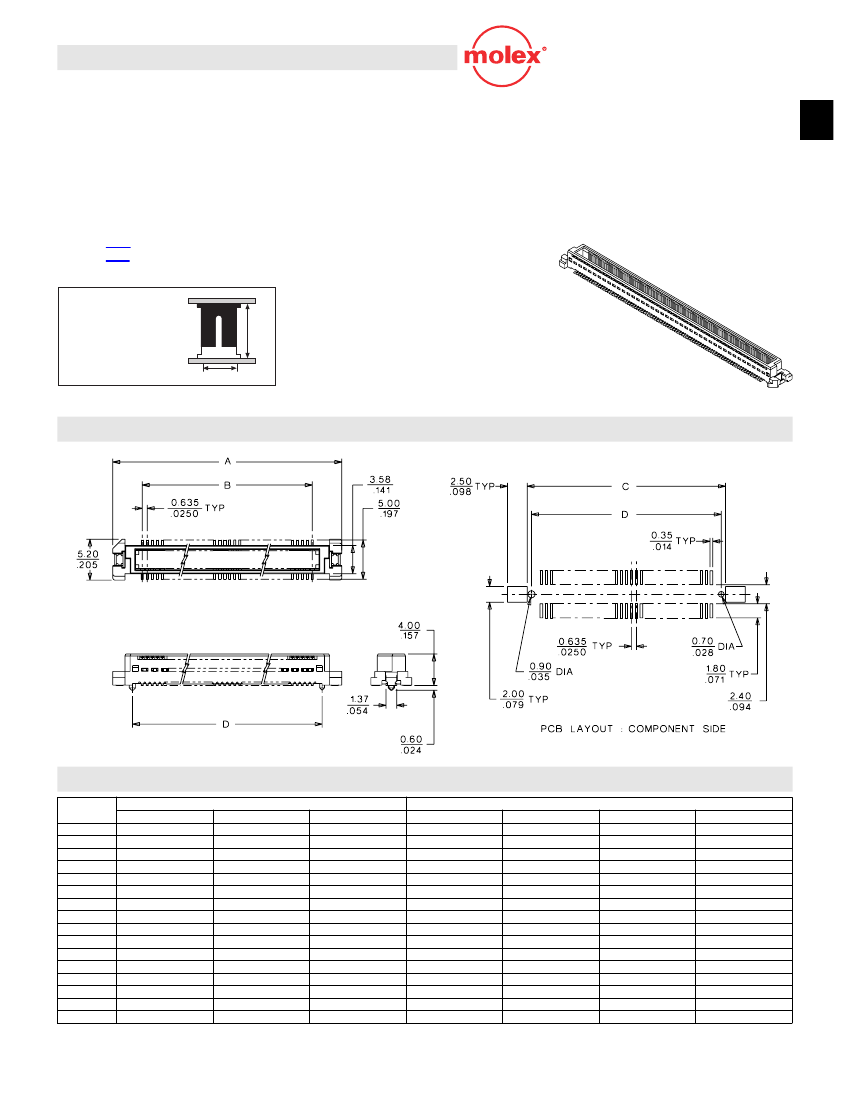

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

100

120

140

160

180

200

240

Tube

53475-0209

53475-0309

53475-0409

53475-0509

53475-0609

53475-0689

53475-0709

53475-0809

53475-0909

53475-1009

53475-1209

53475-1409

53475-1609

53475-1809

53475-2009

53475-2409

Order No.

Tube with Cover

53643-0205

53643-0405

Dimension

Embossed Tape with Cover

53643-0204

53643-0304

53643-0404

53643-0504

13.22

16.40

19.57

22.75

25.92

28.46

29.10

32.27

35.45

38.62

44.97

51.32

57.67

64.02

70.37

83.07

(.520)

(.640)

(.770)

(.890)

(1.020)

(1.120)

(1.140)

(1.270)

(1.390)

(1.520)

(1.770)

(2.020)

(2.270)

(2.520)

(2.770)

(3.270)

5.715

8.890

12.065

15.240

18.415

20.955

21.590

24.765

27.940

31.115

37.465

43.815

50.165

56.515

62.865

75.565

(.220)

(.340)

(.470)

(.590)

(.720)

(.820)

(.840)

(.970)

(1.090)

(1.220)

(1.470)

(1.720)

(1.970)

(2.220)

(2.470)

(2.970)

9.32

12.50

15.67

18.85

22.02

24.56

25.20

28.37

31.55

34.72

41.07

47.42

53.77

60.12

66.47

79.17

(.360)

(.490)

(.610)

(.740)

(.860)

(.960)

(.990)

(1.110)

(1.240)

(1.360)

(1.610)

(1.860)

(2.110)

(2.360)

(2.610)

(3.110)

8.22

11.40

14.57

17.75

20.92

23.46

24.10

27.27

30.45

33.62

39.97

46.32

52.67

59.02

65.37

78.07

(.320)

(.440)

(.570)

(.690)

(.820)

(.920)

(.940)

(1.070)

(1.190)

(1.320)

(1.570)

(1.820)

(2.070)

(2.320)

(2.570)

(3.070)

53643-0705

53643-0704

53643-0804

53643-1004

53643-1204

53643-1404

53643-1604

53643-1405

Note: Use only one connector per daughterboard in order to insure proper mating alignment

Note: Contact Molex for embossed tape speciﬁcations

MX01

A-43

0.40 to 1.60mm (.016 to .063") Pitch

Electrical

Voltage: 100V

Current: 0.5A

Contact Resistance: 40m

Ω

max. (H=5.0mm)

60m

Ω

max. (H=11.0mm)

Dielectric Withstanding Voltage: 250V AC

Insulation Resistance: 1000 M

Ω

min.

0.635mm (.025") Pitch

Board-to-Board

Plug

53475/53643

SMT, Dual Row

Vertical Stacking
