54557-1208

Description
Board Connector, 120 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE
CategoryThe connector    The connector

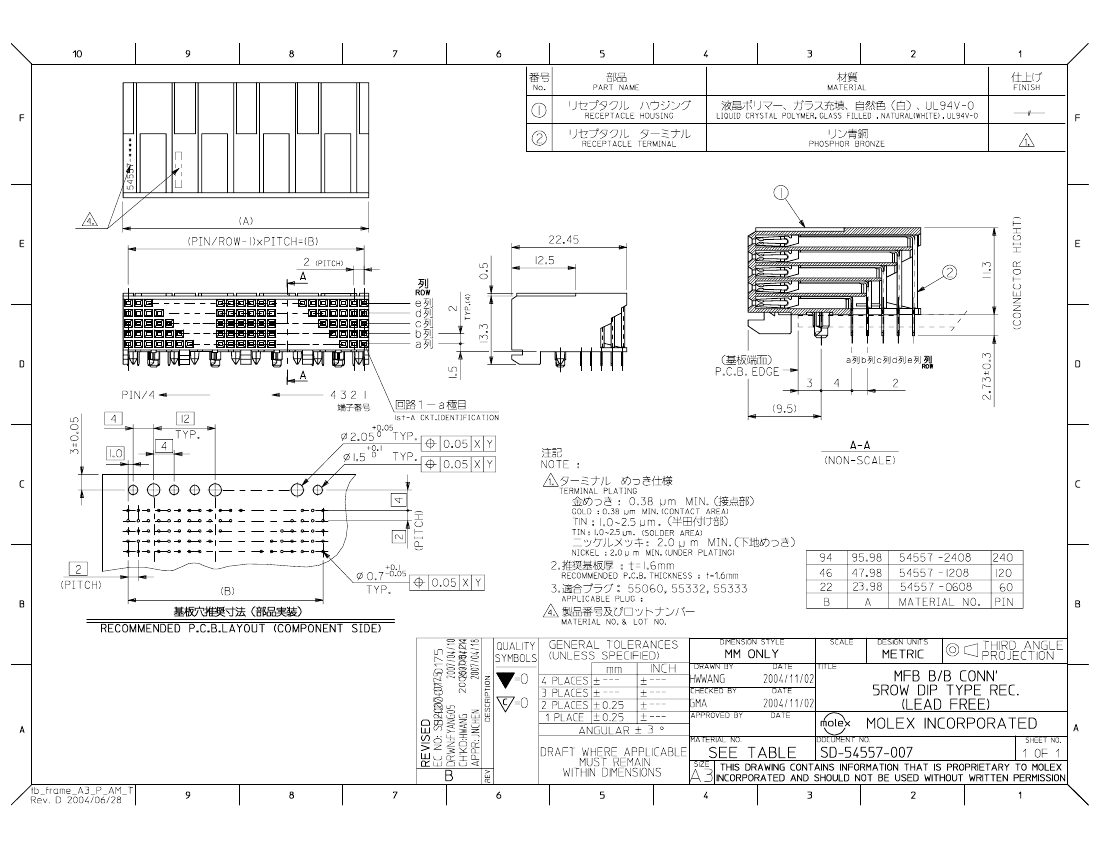

File Size92KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

54557-1208 Overview

Board Connector, 120 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE

54557-1208 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionLEAD FREE
Reach Compliance Codecompliant
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number54557
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded5
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts120
UL Flammability Code94V-0

54557-1208 Related Products

54557-1208 54557-0608 54557-2408
Description Board Connector, 120 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE Board Connector, 60 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE Board Connector, 240 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE
Is it Rohs certified? conform to conform to conform to
Maker Molex Molex Molex
package instruction LEAD FREE LEAD FREE LEAD FREE
Reach Compliance Code compliant compliant unknown
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact point gender FEMALE FEMALE FEMALE
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
DIN compliance NO NO NO
Filter function NO NO NO
IEC compliance NO NO NO
MIL compliance NO NO NO
Manufacturer's serial number 54557 54557 54557
Mixed contacts NO NO NO
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD
Number of rows loaded 5 5 5
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2 mm 2 mm 2 mm
Termination type SOLDER SOLDER SOLDER
Total number of contacts 120 60 240
UL Flammability Code 94V-0 94V-0 94V-0
Is it lead-free? Lead free Lead free -
ECCN code - EAR99 EAR99
