53521-0840 datasheet, PDF - EEWORLD Datasheet

53521-0840: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.312 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size65KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

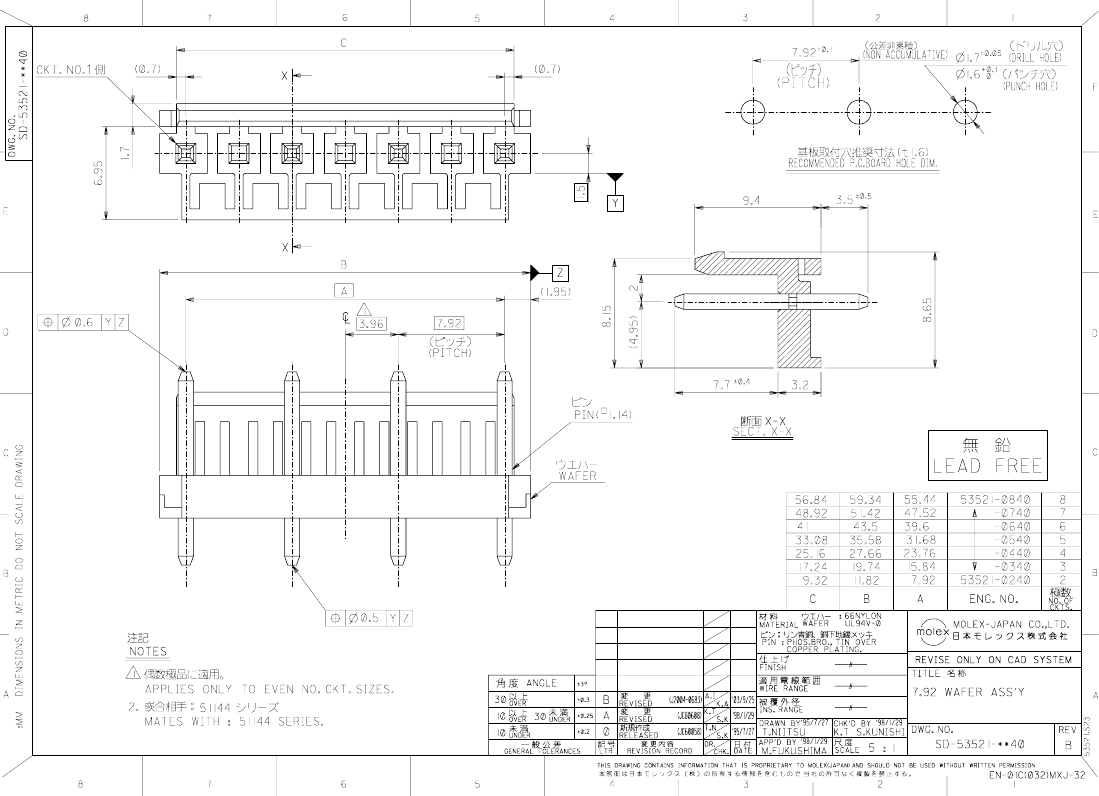

53521-0840 Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.312 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS AND ELV PACKAGING
body width	0.321 inch
subject depth	0.37 inch
body length	2.336 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	9.7856 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	53521
Plug contact pitch	0.312 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	6 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	7.92 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Evacuation force-minimum value	.5004 N
