Easy to check the fillet after soldering is finished.
2) Small, light, rectangular 2-chip network
Area ratio is 65% smaller than that of MNR32, while weight ratio has been cut 75%.
3) High-density mounting
Can be mounted even more densely than two 0603 chips (MCR03), and mounting costs are lower.
4) Compatible with a wide range of mounting equipment.
Squared corners make it excellent for mounting using image recognition devices.
5) ROHM resistors have approved ISO9001- / ISO/TS 16949- certification.
Design and specifications are subject to change without notice. Carefully check the specification sheet supplied with the
product before using or ordering it.
Ratings
Item
Rated power
Conditions
Power must be derated according to the power derating curve in
Figure 1 when ambient temperature exceeds 70°C.
100
80
POWER LOAD (%)
Specifications
0.063W (1 / 16W)
at 70°C
60
40
20
0
−55
0
70
100 125
AMBIENT TEMPERATURE (°C)
Fig.1
Rated voltage
The voltage rating is calculated by the following equation.
If the value obtained exceeds the limiting element voltage,
the voltage rating is equal to the maximum operating voltage.
E: Rated voltage (V)
E= P×R
P: Rated power (W)
R: Nominal resistance (Ω)
Nominal resistance
Operating temperature
See Table 1.
−55°C
to
+155°C
Limiting element voltage 50V
www.rohm.com
c
○
2011 ROHM Co., Ltd. All rights reserved.
1/3
2011.11 - Rev.I
MNR12
Jumper type
Resistance
Rated current
Max. 50mΩ
1A
Data Sheet
Table 1
Resistance tolerance
J (±5%)
F (±1%)
Resistance range
(Ω)
10 to 1M (E24)
10 to 1M (E24)
Resistance temperature coefficient
(ppm /
°C)
±200
±100
Operating temperature
−55°C
to
+155°C
Before
using components in circuits where they will be exposed to transients such as pulse loads (short-duration, high-level loads), be certain to evaluate the
component in the mounted state. In addition, the reliability and performance of this component cannot be guaranteed if it is used with a steady state voltage that
is greater than its rated voltage.
Characteristics
Item
Resistance
Variation of resistance
with temperature
Overload
±
(2.0%+0.1Ω)
Guaranteed value
Resistor type
Jumper type
J :
±5%
F :
±1%
Max. 50mΩ
See Table.1
Max. 50mΩ
Test conditions (JIS C 5201-1)
JIS C 5201-1 4.5
JIS C 5201-1 4.8
Measurement :
−55
/
+25
/
+125°C
JIS C 5201-1 4.13
Rated voltage (current)
×2.5,
2s.
Maximum Overload Voltage : 100V
JIS C 5201-1 4.17
Rosin·Ethanol (25%WT)
Soldering condition : 235±5°C
Duration of immersion : 2.0±0.5s.
JIS C 5201-1 4.18
Soldering condition : 260±5°C
Duration of immersion : 10±1s.
JIS C 5201-1 4.19
Test temp. :
−55°C
to
+125°C
5cyc
JIS C 5201-1 4.24
40°C, 93%RH
Test time : 1,000h to 1,048h
JIS C 5201-1 4.25.1
Rated voltage (current), 70°C
1.5h : ON
−
0.5h : OFF
Test time : 1,000h to 1,048h
JIS C 5201-1 4.25.3
125°C
Test time : 1,000h to 1,048h
JIS C 5201-1 4.29
23±5°C, Immersion cleaning, 5±0.5min.
Solvent : 2-propanol
JIS C 5201-1 4.33
Solderability
A new uniform coating of minimum of
95% of the surface being immersed
and no soldering damage.
±
(1.0%+0.05Ω)
Max. 50mΩ
No remarkable abnormality on the appearance.
±
(1.0%+0.05Ω)
±
(3.0%+0.1Ω)
Max. 50mΩ
Max. 50mΩ
Resistance to
soldering heat
Rapid change of
temperature
Damp heat, steady state
±
(3.0%+0.1Ω)
Endurance at 70°C
±
(3.0%+0.1Ω)
Max. 50mΩ
Max. 50mΩ
Endurance
±
(1.0%+0.05Ω)
Resistance to solvent
Max. 50mΩ
Bend strength of
the end face plating
Max. 50mΩ
±
(1.0%+0.05Ω)
Without mechanical damage such as breaks.
Dimensions
(Unit : mm)
0.6±0.15
Cross section A-A'
0.3±0.2
6
1
No.
1
5
Material
Resistive element
(Oxide metal thick film)
Silver thick film electrode
Nickel electrode
Sn electrode
Alumina substrate
Overcoating (Resin)
0.25±0.15
0.3±0.2
1.6±0.1
103
0.3±0.2
Cross section B-B'
6
1
2
3
4
5
2
3
4
5
6
0.8
1.6±0.1
0.4±0.15
∗
Making may change to the one-character type.
0.6±0.15
0.5±0.1
∗∗
Pitch of the upper electrode.
0.6±0.15
Cross section A-A'
0.3±0.2
0.25±0.15
0.3±0.2
No.
1
5
2
3
4
Material
Resistive element
(Oxide metal thick film)
Silver thick film electrode
Nickel electrode
Sn electrode
Alumina substrate
Overcoating (Resin)
1.6±0.1
103
0.3±0.2
Cross section B-B'
66 11
5
2 3 4
5
6
0.8
1.6±0.1
0.4±0.15
0.6±0.15
0.5±0.1
∗
Making may change to the one-character type.
∗∗
Pitch of the upper electrode.
www.rohm.com
c
○
2011 ROHM Co., Ltd. All rights reserved.
2/3
2011.11 - Rev.I
MNR12
Equivalent
circuit
Data Sheet
R1
R2
R1
=
R2

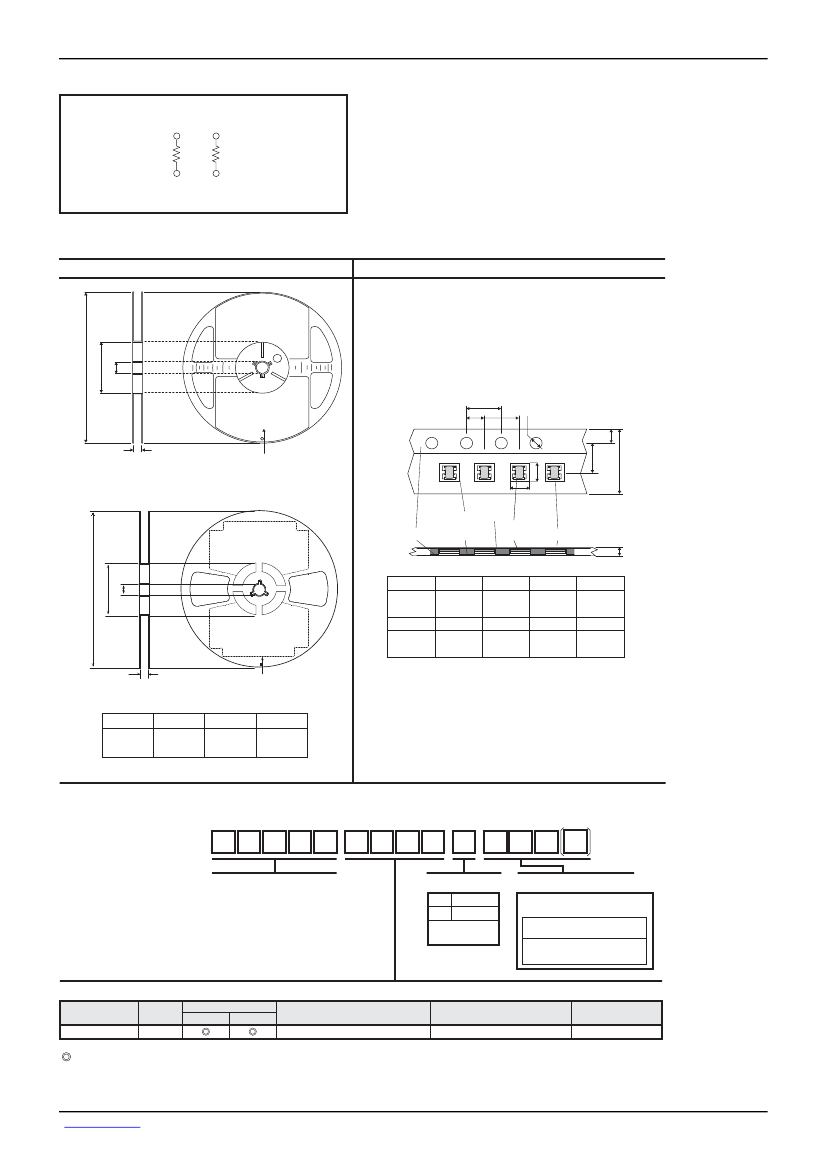

Packaging
Reel
Taping
A
B
D
08
06
04
02
02
04
06
08
P
0
P
2
P
1
φD
0
E
C
Label
EIAJ ET-7200B (RRM) compliant
A
0
B
0
F
W
Heat crimp cover / Tape
Thick paper (Underside paper tape)
mount
Chip network
resistor
Square punchout hole
T2
(Unit : mm)
A
B D
W
8.0±0.3
D
0
F
3.5±0.05
P
0
4.0±0.1
E
1.75±0.1
P
1
4.0±0.1
A
0
1.8±0.1
P
2
2.0±0.05
B
0
1.8±0.1
T
2
Max. 1.1
φ1.5
+0.1
0
C
Label
EIAJ ET-7200B (RRV) compliant
(Unit : mm)
A
B
C
D
φ13±0.2
φ180
0
−1.5
φ60
+1
0
9
+1.0
0
Part
No. Explanation
M N R 1 2
Part No.
E 0 A P
F
J
J
Nominal resistance
Resistance code, 3 or 4 digits.
000 denotes jumper type.
Resistance
Resistance
tolerance
code
F
J
:
:
4 digits
3 digits
Resistance tolerance
±
1%
±
5%
J is also used
for jumper
Packaging Specifications Code
Part No.
MNR12
Code
E0AP
Resistance tolerance
J(
±
5%)
F(
±
1%)
Packaging specifications
Paper tape (4mm Pitch)
Reel
φ180mm
(7in.)
Basic ordering unit (pcs)
5,000
Reel (
φ
180) : JEITA ET-7200B
: Standard product
www.rohm.com
c
○
2011 ROHM Co., Ltd. All rights reserved.
3/3
2011.11 - Rev.I
Notice
Notes
No copying or reproduction of this document, in part or in whole, is permitted without the
consent of ROHM Co.,Ltd.
The content specified herein is subject to change for improvement without notice.
The content specified herein is for the purpose of introducing ROHM's products (hereinafter
"Products"). If you wish to use any such Product, please be sure to refer to the specifications,
which can be obtained from ROHM upon request.
Examples of application circuits, circuit constants and any other information contained herein
illustrate the standard usage and operations of the Products. The peripheral conditions must
be taken into account when designing circuits for mass production.
Great care was taken in ensuring the accuracy of the information specified in this document.
However, should you incur any damage arising from any inaccuracy or misprint of such
information, ROHM shall bear no responsibility for such damage.
The technical information specified herein is intended only to show the typical functions of and
examples of application circuits for the Products. ROHM does not grant you, explicitly or
implicitly, any license to use or exercise intellectual property or other rights held by ROHM and
other parties. ROHM shall bear no responsibility whatsoever for any dispute arising from the
use of such technical information.
The Products specified in this document are intended to be used with general-use electronic
equipment or devices (such as audio visual equipment, office-automation equipment, commu-
nication devices, electronic appliances and amusement devices).
The Products specified in this document are not designed to be radiation tolerant.
While ROHM always makes efforts to enhance the quality and reliability of its Products, a
Product may fail or malfunction for a variety of reasons.
Please be sure to implement in your equipment using the Products safety measures to guard
against the possibility of physical injury, fire or any other damage caused in the event of the
failure of any Product, such as derating, redundancy, fire control and fail-safe designs. ROHM
shall bear no responsibility whatsoever for your use of any Product outside of the prescribed
scope or not in accordance with the instruction manual.
The Products are not designed or manufactured to be used with any equipment, device or
system which requires an extremely high level of reliability the failure or malfunction of which
may result in a direct threat to human life or create a risk of human injury (such as a medical
