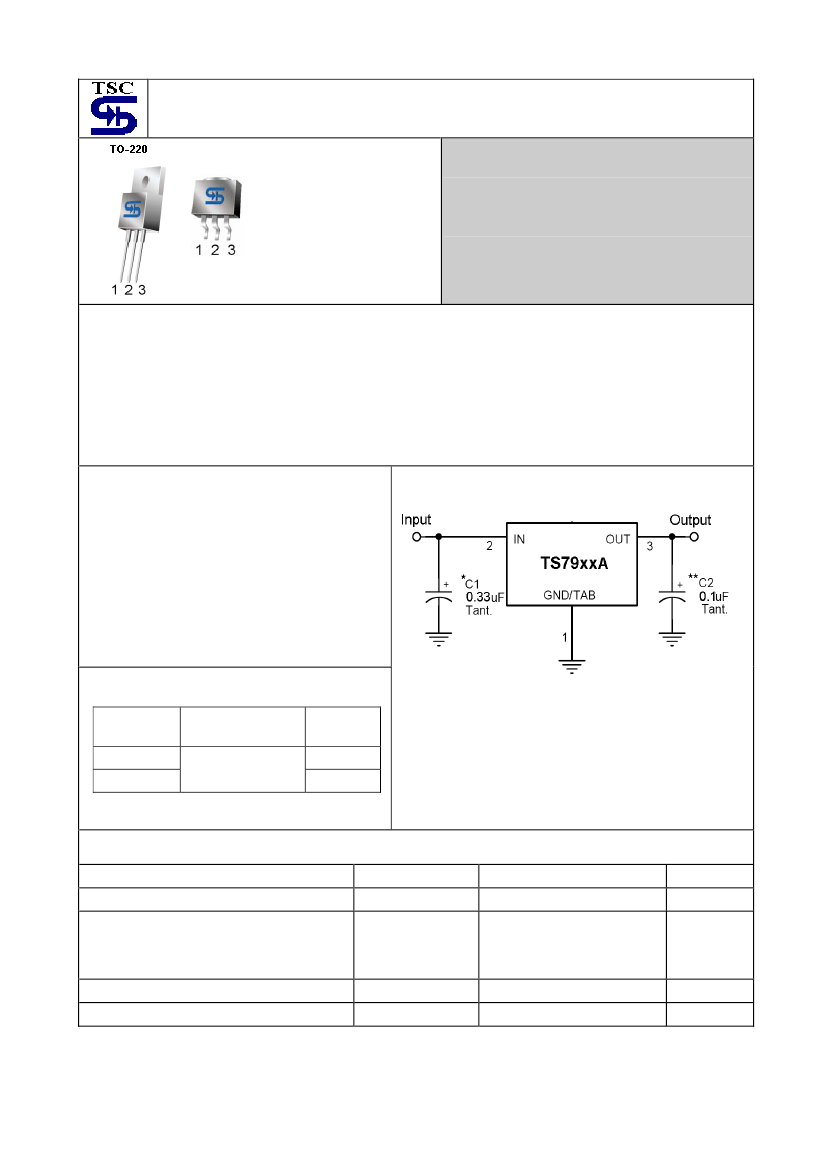

TS7900A series
3-Terminal Fixed Negative Output Voltage Regulator
TO-263
Pin assignment:
1. Ground
2. Input
3. Output
(Heatsink surface
connected to Pin 2)
Voltage Range - 5V to - 24V
Output Current up to 1.5A
General Description
The TS7900A series of fixed output negative voltage regulators are intended as complements to the popular TS7800A
series device. These negative regulators are available in the same seven-voltage options as the TS7800A devices.
Available in fixed output voltage options from -5.0 to -24 volts, these regulators employ current limiting, thermal shutdown,
and safe-area compensation--making them remarkably rugged under most operating conditions. With adequate heat sink
they can deliver output currents in excess of 1.5 ampere.
This series is offered in 3-pin TO-220, TO-263 package.
Features
Output current up to 1.5A
No external components required
Internal thermal overload protection
Internal short-circuit current limiting
Output transistor safe-area compensation
Output voltage offered in +/-2% tolerance
Standard Application
Ordering Information
Part No.
TS79xxACZ
TS79xxACM
Operating Temp.
(Ambient)
o
-20 ~ +85 C
Package
TO-220
TO-263
Note: Where xx denotes voltage option.
A common ground is required between the input and the
output voltages. The input voltage must remain typically 2.0V
above the output voltage even during the low point on the
Input ripple voltage.
XX = these two digits of the type number indicate voltage.
* = Cin is required if regulator is located an appreciable
distance from power supply filter.
** = Co is not needed for stability; however, it does improve
transient response.
Absolute Maximum Rating
Input Voltage
Input Voltage
Power Dissipation
TO-220
TO-220
TO-263
Operating Junction Temperature Range
Storage Temperature Range
Note :
* TS7905A to TS7918A
** TS7924A
*** Follow the derating curve
Vin *
Vin **
Without heatsink
Pt ***
Without heatsink
T
J
T
STG
- 35
- 40
2
15
1.5
0 ~ +150
-65 ~ +150
o
o
V
V
W
C
C
TS7900A series
1-1
2003/12 rev. A
TS7905A Electrical Characteristics
(Vin= -10V, Iout=500mA, 0
o
C
≤Tj≤125
o
C, Cin=0.33uF, Cout=0.1uF; unless otherwise specified.)
Parameter
Output voltage
Symbol
Vout
Test Conditions
Tj=25
o
C
-7.5V≤Vin≤ -20V, 10mA≤Iout≤1A,
PD≤15W
Min
-4.90
-4.80
Typ
-5
-5
Max
-5.10
-5.20
Unit
V
Line Regulation
REGline
Tj=25
o
C
o
-7.5V≤Vin≤-25V
-8V≤Vin≤-12V
10mA≤Iout≤1.5A
250mA≤Iout≤750mA
--
--
--
--
--
--
--
3
1
15
5
4
--
--
40
74
2
2.1
-1
100
50
100
50
8
1.3
0.5
--
--
--
--
--
uV
dB
V
A
mV/
o
mV
Load Regulation
Quiescent Current
Quiescent Current Change
Output Noise Voltage
Ripple Rejection Ratio
Voltage Drop
Peak Output Current
Temperature Coefficient of
Output Voltage
REGload
Iq
∆lq
Vn
RR
Vdrop
Io peak
∆Vout/∆Tj
Tj=25 C
Iout=0, Tj=25
o
C
-7.5V≤Vin≤-25V
10mA≤Iout≤1A
10Hz≤f≤100KHz, Tj=25 C
f=120Hz, -8V≤Vin≤-18V
Iout=1.0A, Tj=25 C
Tj=25
o
C
o
o
Iout=10mA, 0 C
≤Tj≤125
C
o
o
mA
--
62
--
--
--
C
TS7908A Electrical Characteristics
(Vin=-14V, Iout=500mA, 0
o
C
≤Tj≤125
o
C, Cin=0.33uF, Cout=0.1uF; unless otherwise specified.)
Parameter
Output Voltage
Symbol
Vout
Test Conditions
Tj=25
o
C
-10.5V≤Vin≤-23V,
10mA≤Iout≤1A, PD≤15W
Min
-7.84
-7.68
Typ
-8
-8
Max
-8.16
-8.32
Unit
V
Line Regulation
REGline
Tj=25
o
C
Tj=25
o
C
-10.5V≤Vin≤-25V
-11V≤Vin≤-17V
10mA≤Iout≤1.5A
250mA≤Iout≤750mA
--
--
--
--
--
--
--
--
56
--
--
--
6
2
12
4
4
--
--
52
72
2
2.1
-1
160
80
160
80
8
1
0.5
--
--
--
--
--
uV
dB
V
A
mV/
o
mV
Load Regulation
Quiescent Current
Quiescent Current Change
Output Noise Voltage
Ripple Rejection Ratio
Voltage Drop
Peak Output Current
Temperature Coefficient of
Output Voltage
REGload
Iq
∆lq
Vn
RR
Vdrop
Io peak
∆Vout/∆Tj
Iout=0, Tj=25
o
C
-10.5V≤Vin≤-25V
10mA≤Iout≤1A
10Hz≤f≤100KHz, Tj=25
o
C
f=120Hz, -11V≤Vin≤-21V
Iout=1.0A, Tj=25
o
C
Tj=25
o
C
o
o
Iout=10mA, 0 C
≤Tj≤125
C
mA
C
Pulse testing techniques are used to maintain the junction temperature as close to the ambient temperature as
possible, and thermal effects must be taken into account separately.
This specification applies only for DC power dissipation permitted by absolute maximum ratings.
TS7900A series
2-2
2003/12 rev. A
TS7909A Electrical Characteristics
(Vin=-15V, Iout=500mA, 0
o
C
≤Tj≤125
o
C, Cin=0.33uF, Cout=0.1uF; unless otherwise specified.)
Parameter
Output Voltage
Symbol
Vout
Test Conditions
Tj=25
o
C
-11.5V≤Vin≤-23V,
10mA≤Iout≤1A, PD≤15W
Min
-8.88
-8.64
Typ
-9
-9
Max
-9.18
-9.36
Unit
V
Line Regulation
REGline
Tj=25
o
C
Tj=25
o
C
-11.5V≤Vin≤-26V
-12V≤Vin≤-17V
10mA≤Iout≤1.5A
250mA≤Iout≤750mA
--
--
--
--
--
--
--
6
2
12
4
4
--
--
58
71
2
2.1
-1
180
90
180
90
8
1
0.5
--
--
--
--
--
uV
dB
V
A
mV/
o
mV
Load Regulation
Quiescent Current
Quiescent Current Change
Output Noise Voltage
Ripple Rejection Ratio
Voltage Drop
Peak Output Current
Temperature Coefficient of
Output Voltage
REGload
Iq
∆lq
Vn
RR
Vdrop
Io peak
∆Vout/∆Tj
Iout=0, Tj=25
o
C
-11.5V≤Vin≤-26V
10mA≤Iout≤1A
10Hz≤f≤100KHz, Tj=25 C
f=120Hz, -12V≤Vin≤-22V
Iout=1.0A, Tj=25 C
Tj=25 C
o
o
Iout=10mA, 0 C
≤Tj≤125
C
o
o
o
mA
--
56
--
--
--
C
TS7912A Electrical Characteristics
(Vin=-19V, Iout=500mA, 0
o
C
≤Tj≤125
o
C, Cin=0.33uF, Cout=0.1uF; unless otherwise specified.)
Parameter
Output Voltage
Symbol
o
Test Conditions
Tj=25 C
-14.5V≤Vin≤-27V,
10mA≤Iout≤1A, PD
≤15W
Min
-11.76
-11.52
Typ
-12
-12
Max
-12.24
-12.48
Unit
V
Vout
Line Regulation
REGline
Tj=25
o
C
Tj=25
o
C
-14.5V≤Vin≤-30V
-15V≤Vin≤-19V
10mA≤Iout≤1.5A
250mA≤Iout≤750mA
--
--
--
--
--
--
--
--
55
--
--
--
10
3
12
4
4
--
--
75
70
2
2.1
-1
240
120
240
120
8
1
0.5
--
--
--
--
--
uV
dB
V
A
mV/
o
mV
Load Regulation
Quiescent Current
Quiescent Current Change
Output Noise Voltage
Ripple Rejection Ratio
Voltage Drop
Peak Output Current
Temperature Coefficient of
Output Voltage
REGload
Iq
∆lq
Vn
RR
Vdrop
Io peak
∆Vout/∆Tj
Tj=25
o
C, Iout=0
-14.5V≤Vin≤-30V
10mA≤Iout≤1A
10Hz≤f≤100KHz, Tj=25
o
C
f=120Hz, 15V≤Vin≤25V
Iout=1.0A, Tj=25
o
C
Tj=25
o
C
o
o
Iout=10mA, 0 C
≤Tj≤125
C
mA
C
Pulse testing techniques are used to maintain the junction temperature as close to the ambient temperature as
possible, and thermal effects must be taken into account separately.
This specification applies only for DC power dissipation permitted by absolute maximum ratings.
TS7900A series
3-3
2003/12 rev. A
TS7915A Electrical Characteristics
(Vin=-23V, Iout=500mA, 0
o
C
≤Tj≤125
o
C, Cin=0.33uF, Cout=0.1uF; unless otherwise specified.)
Parameter
Output Voltage
Symbol
Vout
Test Conditions
Tj=25
o
C
-17.5V≤Vin≤-30V,
10mA≤Iout≤1A, PD
≤15W
Min
-14.70
-14.40
Typ
-15
-15
Max
-15.30
-15.60
Unit
V
Line Regulation
REGline
Tj=25
o
C
Tj=25
o
C
-17.5V≤Vin≤-30V
-18V≤Vin≤-22V
10mA≤Iout≤1.5A
250mA≤Iout≤750mA
--
--
--
--
--
--
--
12
3
12
4
4
--
--
90
69
2
2.1
-1
300
150
300
150
8
1
0.5
--
--
--
--
--
uV
dB
V
A
mV/
o
mV
Load Regulation
Quiescent Current
Quiescent Current Change
Output Noise Voltage
Ripple Rejection Ratio
Voltage Drop
Peak Output Current
Temperature Coefficient of
Output Voltage
REGload
Iq
∆lq
Vn
RR
Vdrop
Io peak
∆Vout/∆Tj
Tj=25
o
C, Iout=0
-17.5V≤Vin≤-30V
10mA≤Iout≤1A
10Hz≤f≤100KHz, Tj=25 C
f=120Hz, -18V≤Vin≤-28V
Iout=1.0A, Tj=25 C
Tj=25 C
o
o
Iout=10mA, 0 C
≤Tj≤125
C
o
o
o
mA
--
54
--
--
--
C
TS79818A Electrical Characteristics
(Vin=-27V, Iout=500mA, 0
o
C
≤Tj≤125
o
C, Cin=0.33uF, Cout=0.1uF; unless otherwise specified.)
Parameter
Output Voltage
Symbol
o
Test Conditions
Tj=25 C
-21V≤Vin≤-33V,
10mA≤Iout≤1A, PD
≤15W
Min
-17.64
-17.28
Typ
-18
-18
Max
-18.36
-18.72
Unit
V
Vout
Line Regulation
REGline
Tj=25
o
C
Tj=25
o
C
-21V≤Vin≤-33V
-22V≤Vin≤-26V
10mA≤Iout≤1.5A
250mA≤Iout≤750mA
--
--
--
--
--
--
--
--
53
--
--
--
15
5
12
4
4
--
--
110
68
2
2.1
-1
360
180
360
180
8
1
0.5
--
--
--
--
--
uV
dB
V
A
mV/
o
mV
Load Regulation
Quiescent Current
Quiescent Current Change
Output Noise Voltage
Ripple Rejection Ratio
Voltage Drop
Peak Output Current
Temperature Coefficient of
Output Voltage
REGload
Iq
∆lq
Vn
RR
Vdrop
Io peak
∆Vout/∆Tj
Tj=25
o
C, Iout=0
-21V≤Vin≤-33V
10mA≤Iout≤1A
10Hz≤f≤100KHz, Tj=25
o
C
f=120Hz, -21V≤Vin≤-31V
Iout=1.0A, Tj=25
o
C
Tj=25
o
C
o
o
Iout=10mA, 0 C
≤Tj≤125
C
mA
C
Pulse testing techniques are used to maintain the junction temperature as close to the ambient temperature as
possible, and thermal effects must be taken into account separately.
This specification applies only for DC power dissipation permitted by absolute maximum ratings.
TS7900A series
4-4
2003/12 rev. A
TS7824A Electrical Characteristics
(Vin=-33V, Iout=500mA, 0
o
C
≤Tj≤125
o
C, Cin=0.33uF, Cout=0.1uF; unless otherwise specified.)
Parameter
Output Voltage
Symbol
Vout
Test Conditions
Tj=25
o
C
-27V≤Vin≤-38V,
10mA≤Iout≤1A, PD
≤15W
Min
-23.52
-23.04
Typ
-24
-24
Max
-24.48
-24.96
Unit
V
Line Regulation
REGline
Tj=25
o
C
Tj=25
o
C
-27V≤Vin≤-38V
-28V≤Vin≤-32V
10mA≤Iout≤1.5A
250mA≤Iout≤750mA
--
--
--
--
--
--
--
18
6
12
4
4
--
--
170
65
2
2.1
-1
480
240
480
240
8
1
0.5
--
--
--
--
--
uV
dB
V
A
mV/
o
mV
Load Regulation
Quiescent Current
Quiescent Current Change
Output Noise Voltage
Ripple Rejection Ratio
Voltage Drop
Peak Output Current
Temperature Coefficient of
Output Voltage
REGload
Iq
∆lq
Vn
RR
Vdrop
Io peak
∆Vout/∆Tj
Iout=0, Tj=25
o
C
-27V≤Vin≤-38V
10mA≤Iout≤1A
10Hz≤f≤100KHz, Tj=25 C
f=120Hz, -27V≤Vin≤-37V
Iout=1.0A, Tj=25 C
Tj=25 C
o
o
Iout=10mA, 0 C
≤Tj≤125
C
o
o
o
mA
--
50
--
--
--
C
Pulse testing techniques are used to maintain the junction temperature as close to the ambient temperature as
possible, and thermal effects must be taken into account separately.
This specification applies only for DC power dissipation permitted by absolute maximum ratings.
TS7900A series
5-5
2003/12 rev. A
