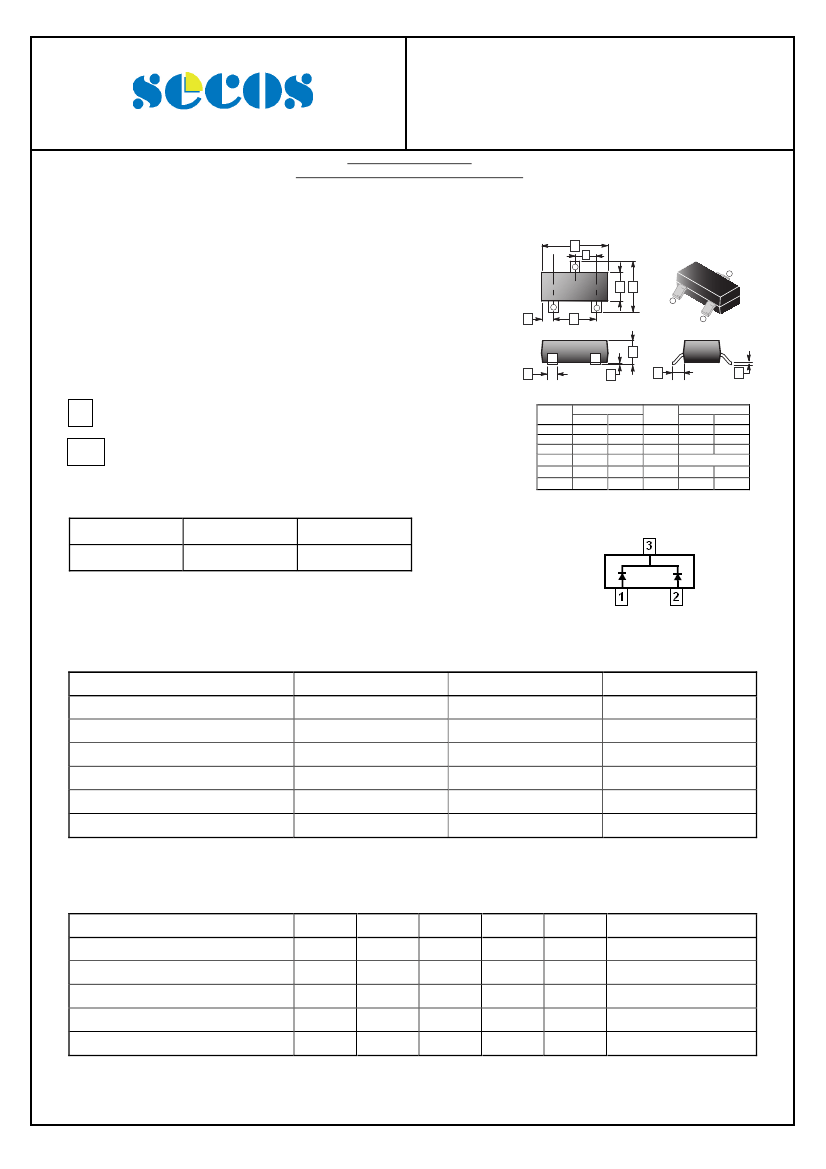

SCS202NK
Elektronische Bauelemente
0.3A , 80V
Plastic-Encapsulated
Small Signal Switching Diode
RoHS Compliant Product
A suffix of “-C” specifies halogen and lead free
FEATURES
High reliability
Suitable for high packing density layout
Fast reverse recovery time : T
RR
= 1.5ns (typ.)
A
L
3
SOT-23
3
Top View
C B
1
2
2
PACKAGING INFORMATION
Weight: 0.0078g (Approx.)
K
1
E
D
MARKING CODE
N
A4
PACKAGE INFORMATION
Package
SOT-23
MPQ
3K
Leader Size
7 inch
F
G
Millimeter
Min.
Max.
2.80
3.04
2.10
2.55
1.20
1.40
0.89
1.15
1.80
2.00
0.30
0.50
H
J
REF.
A
B
C
D
E
F
REF.
G
H
J
K
L
Millimeter
Min.
Max.
0.09
0.18
0.45
0.60
0.08
0.177
0.6 REF.
0.89
1.02
Top View
ABSOLUTE MAXIMUM RATINGS
(T
A
=25°C unless otherwise specified)
Parameter
Peak Reverse Voltage
DC Reverse Voltage
Maximum (Peak) Forward Current
Average Forward Current
Power Dissipation
Junction, Storage Temperature
Symbol
V
RM
V
R
I
FM
I
O
P
D
T
J
, T
STG
Ratings
80
80
300
100
250
150, -55~150
Unit
V
V
mA
mA
mW
°
C
ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise specified)
Parameter
Reverse Breakdown Voltage
Forward Voltage
Reverse Voltage Leakage Current
Diode Capacitance
Reverse Recovery Time
Symbol
V
(BR)
V
F
I
R
C
D
T
RR
Min.
80
-
-
-
-
Typ.
-
-
-
-
-
Max.
-
1.2
0.1
3.5
4.0
Unit
V
V
µA
pF
ns
Test Conditions
I
R
=100µA
I
F
=100mA
V
R
=70V
V
R
=6V, f=1MHz
V
R
=6V, I
F
=5mA
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
17-Nov-2011 Rev. D
Page 1 of 2
SCS202NK
Elektronische Bauelemente
0.3A , 80V
Plastic-Encapsulated
Small Signal Switching Diode

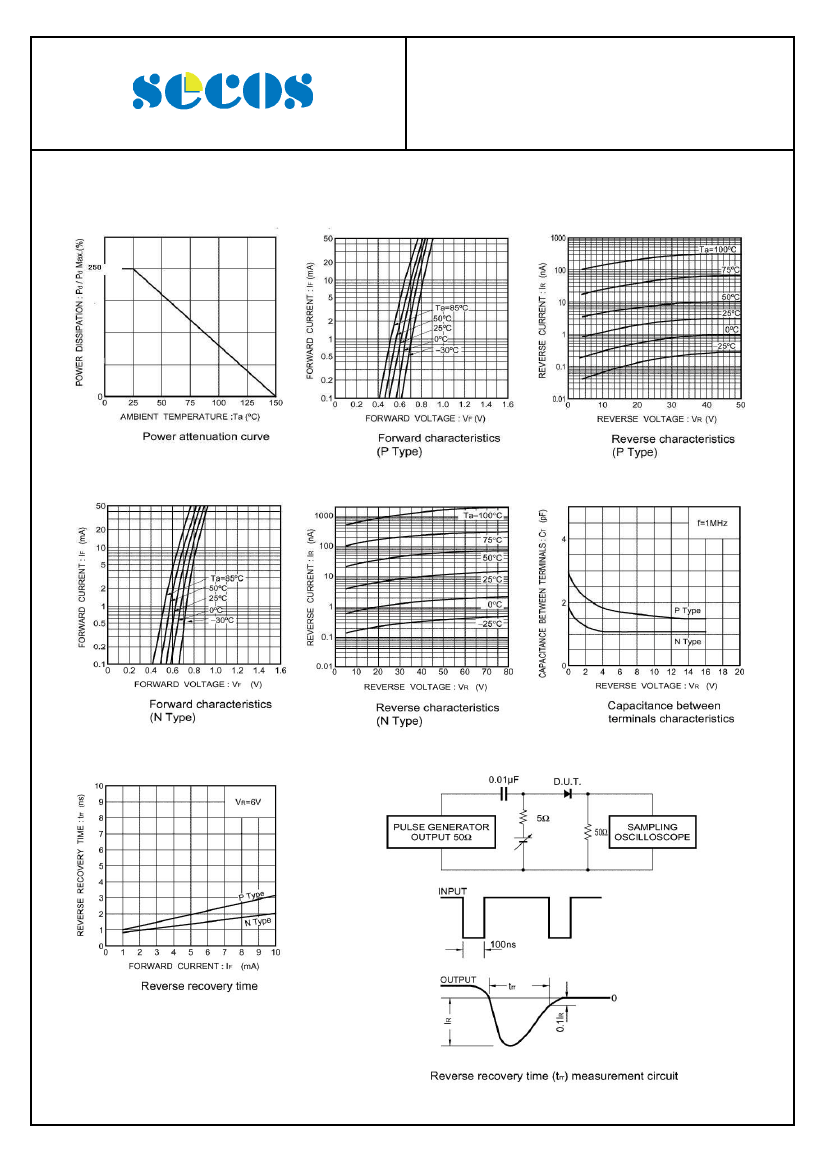

CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
17-Nov-2011 Rev. D
Page 2 of 2
