DTC114TKA Overview

Digital transistors (built-in resistors)

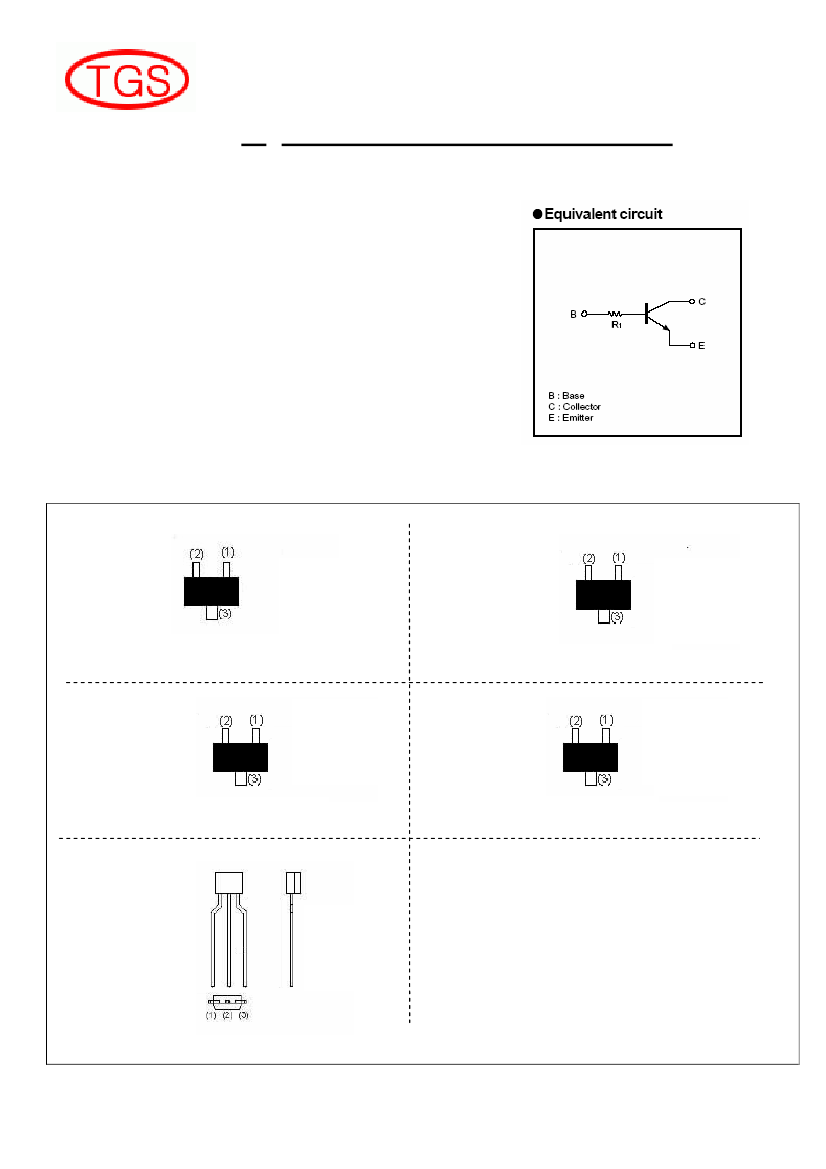

TIGER ELECTRONIC CO.,LTD
Digital transistors (built-in resistors)
DTC114TE/DTC114TUA
DTC114TKA/DTC114TCA /DTC114TSA
DIGITAL TRANSISTOR (NPN)
FEATURES
Built-in bias resistors enable the configuration of an
inverter circuit without connecting extemal input resistors.
The bias resistors conisit of thin-film resistors with
complete isolation to without connecting extemal input.
They also have the advantage of almost completely
Eliminating parasitic effects.
Only the on/off conditions need to be set for operation,
marking device design easy.
PIN CONNENCTIONS AND MARKING
DTC114TE
(1) Base
(2) Emitter
(3) Collector
Addreviated symbol: 04
SOT-323
Addreviated symbol: 04
DTC114TUA
(1) Base
(1) Base
(2) Emitter
(2) Emitter
(3) Collector
(3) Collector
SOT-523
DTC114TKA
(1) Base
(2) Emitter
(3) Collector
DTC114TCA
DTA114ECA
(1) Base
(1) Base
(2) Emitter
(2) Emitter
(3) Collector
(3) Collector
SOT-23-3L
Addreviated symbol:04
SOT-23
Addreviated symbol: 04
DTC114TSA
(1) Emitter
(2) Collector
(3) Base

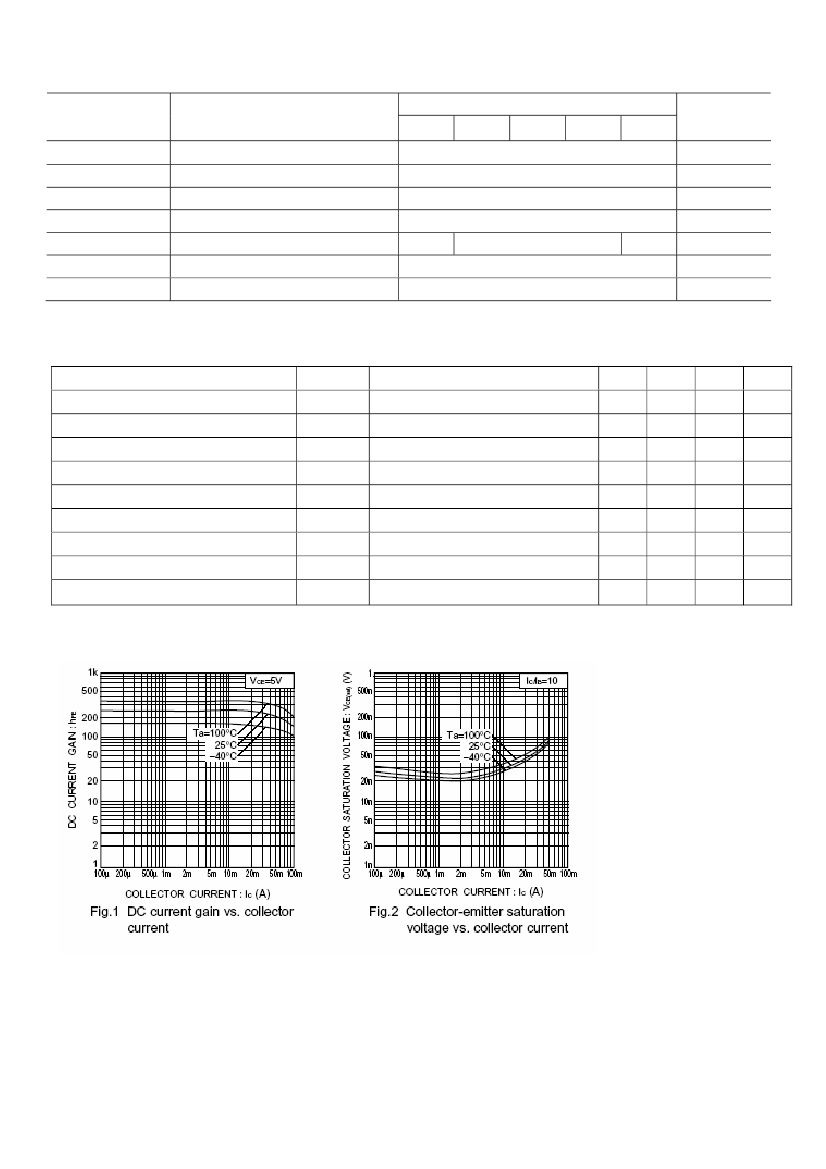

TO-92S
